Electronic Brake Control Module (EBCM) (FX3)
Electronic Brake Control Module
(EBCM) (FX3)

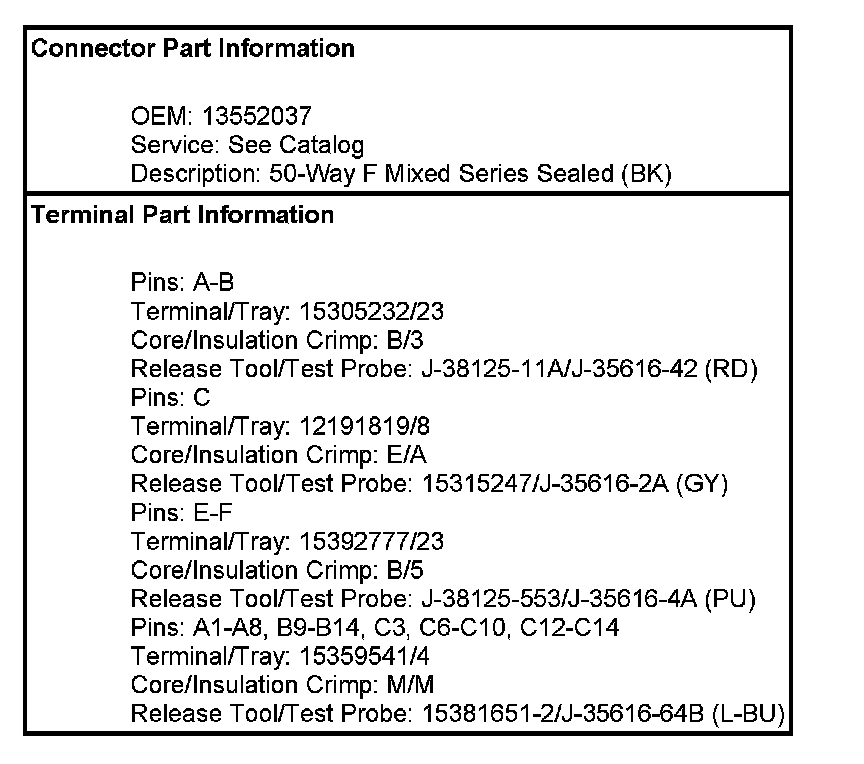

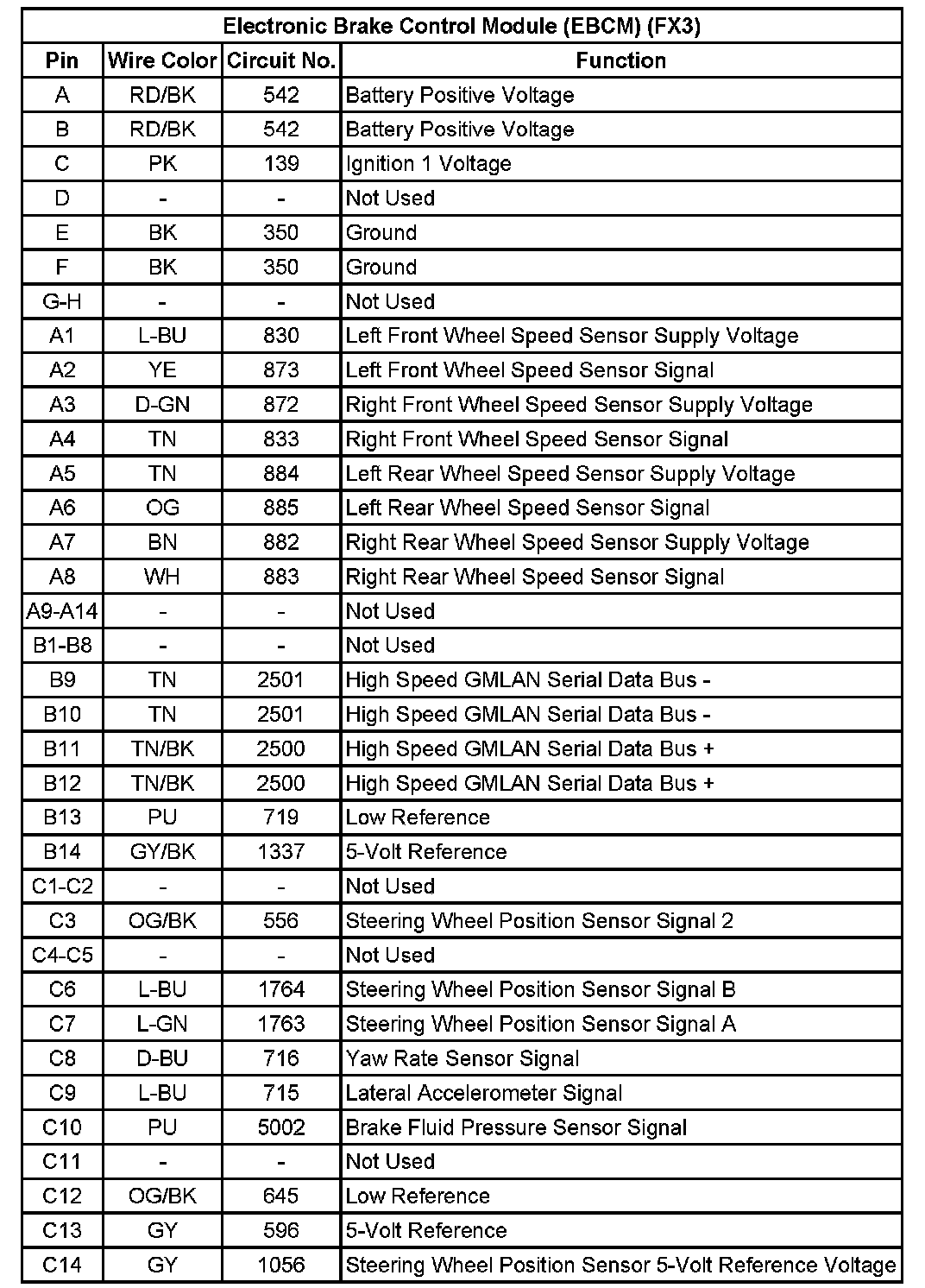

Electronic Brake Control Module (EBCM)(FX3):
