Engine Control Module

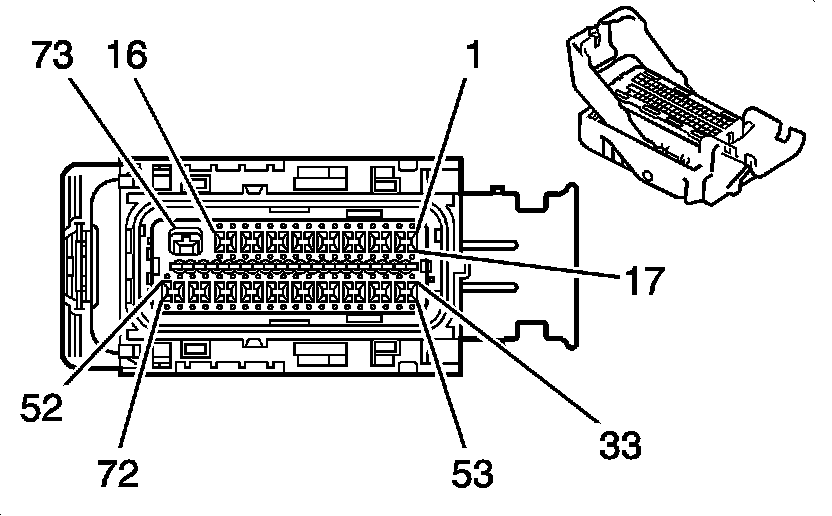

Engine Control Module Connector End Views

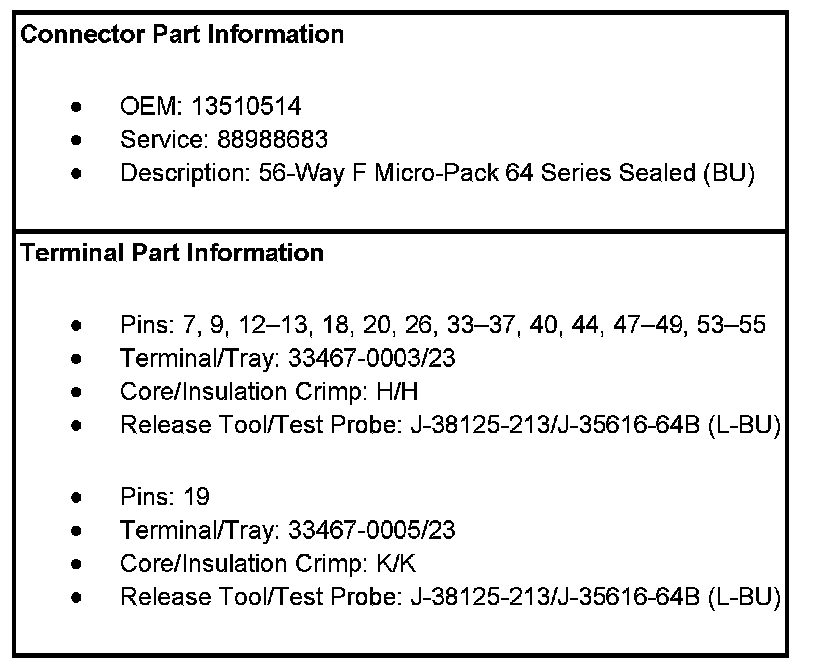

Engine Control Module (ECM) C1

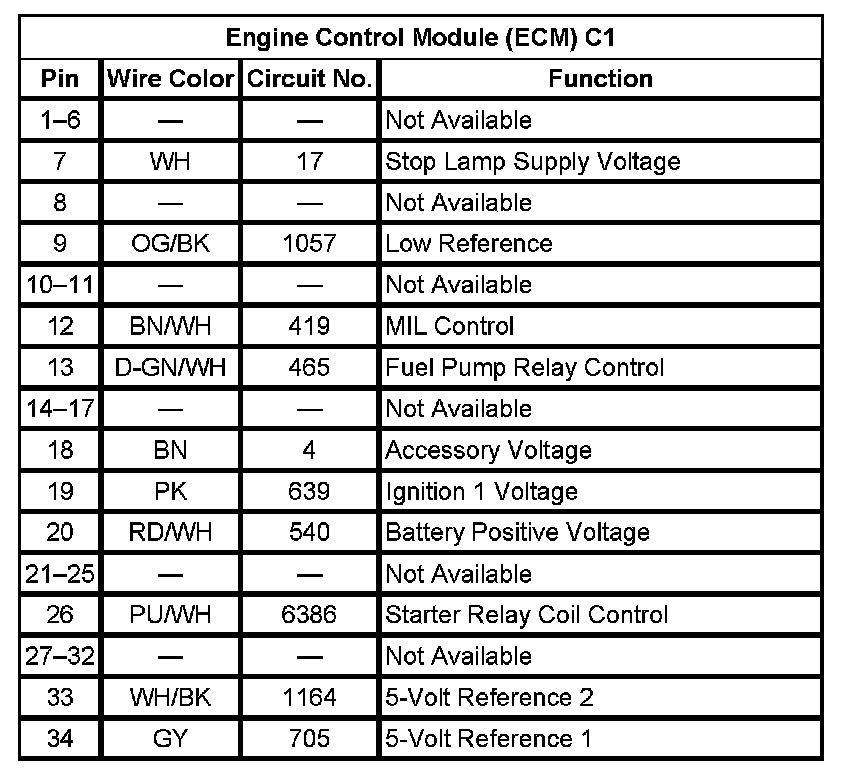

Engine Control Module (ECM) C1 (Pin 1 To 34):

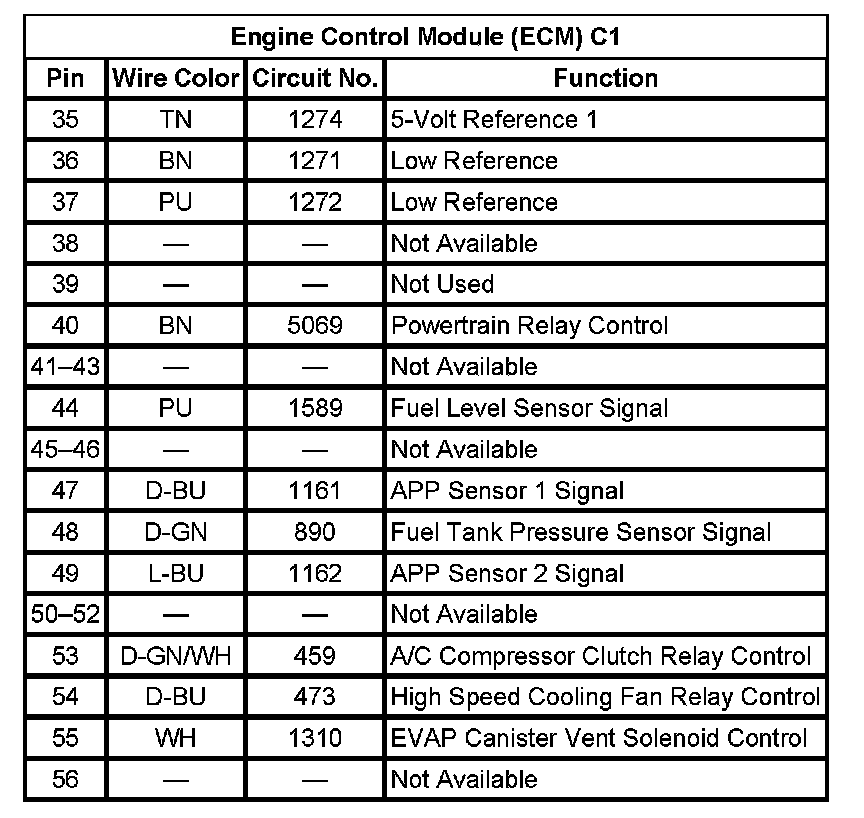

Engine Control Module (ECM) C1 (Pin 35 To 56):

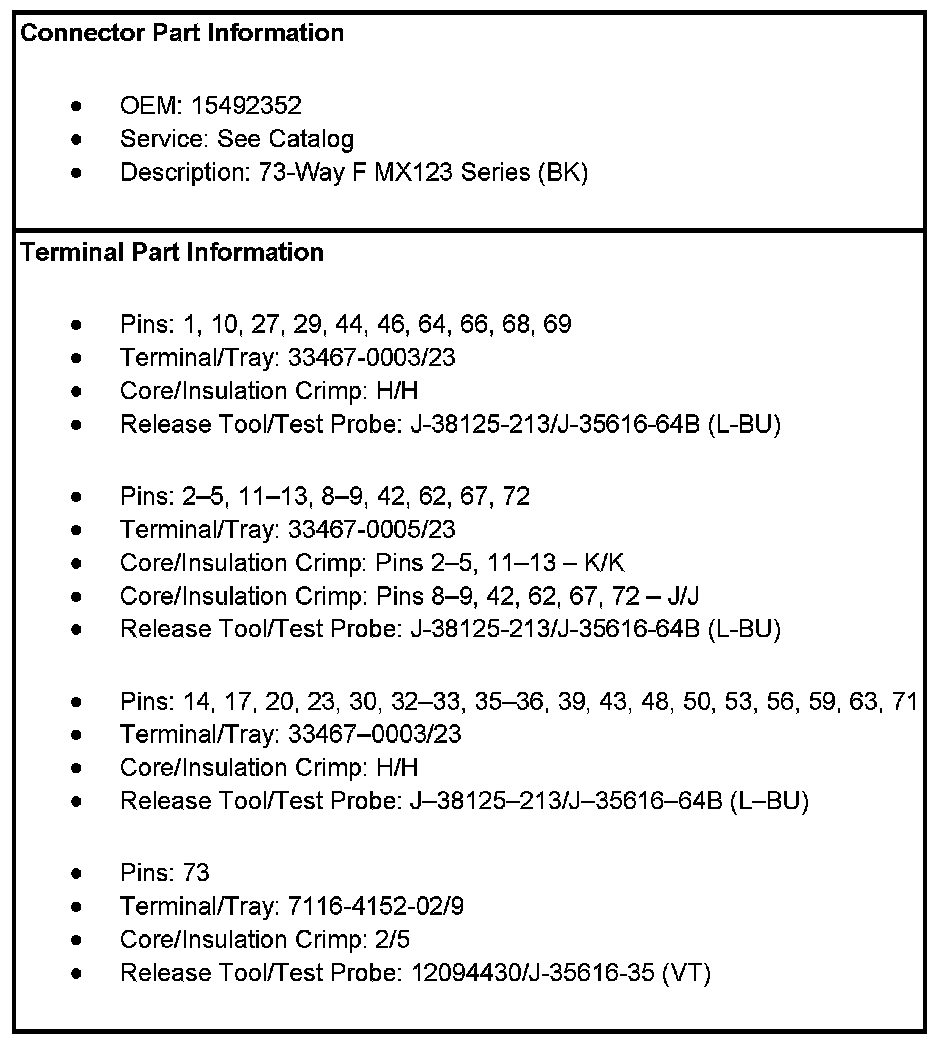

Engine Control Module (ECM) C2

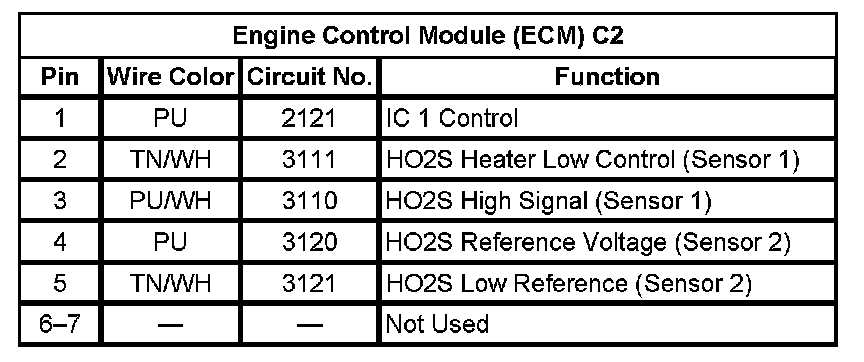

Engine Control Module (ECM) C2 (Pin 1 To 7):

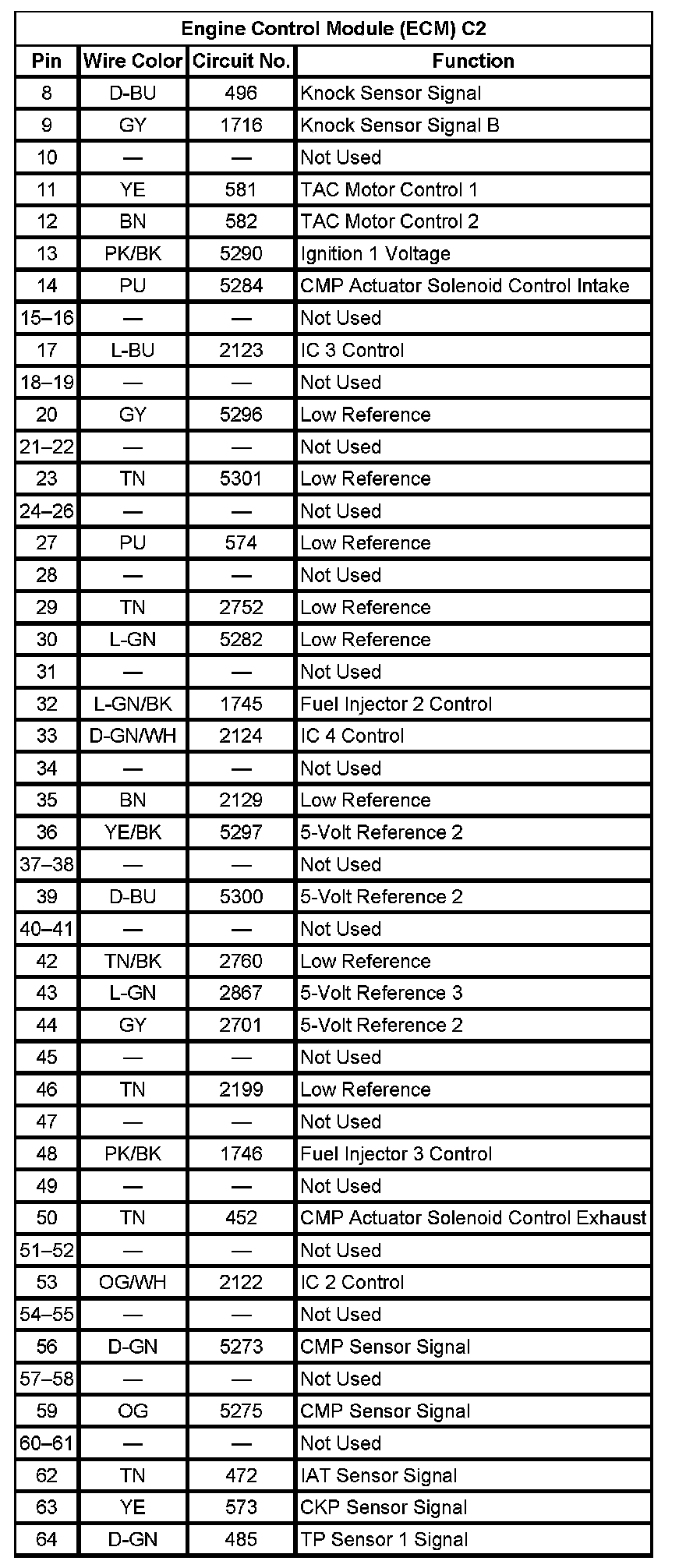

Engine Control Module (ECM) C2 (Pin 8 To 64):

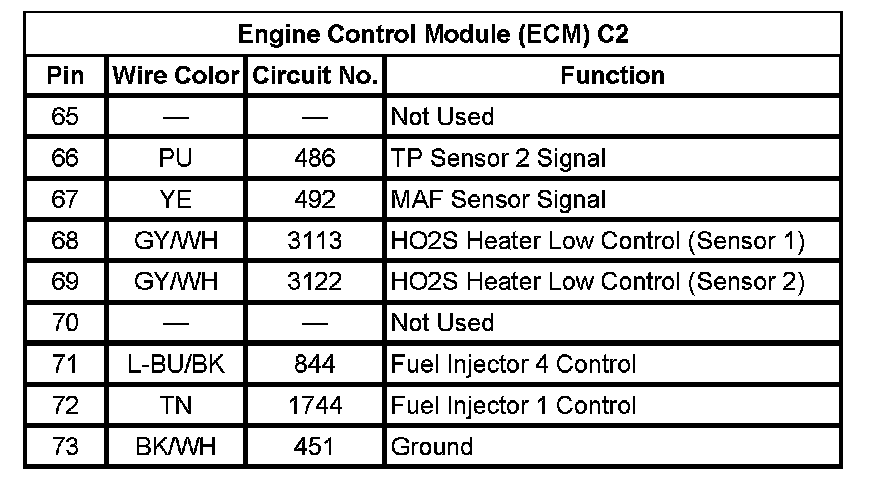

Engine Control Module (ECM) C2 (Pin 65 To 73):

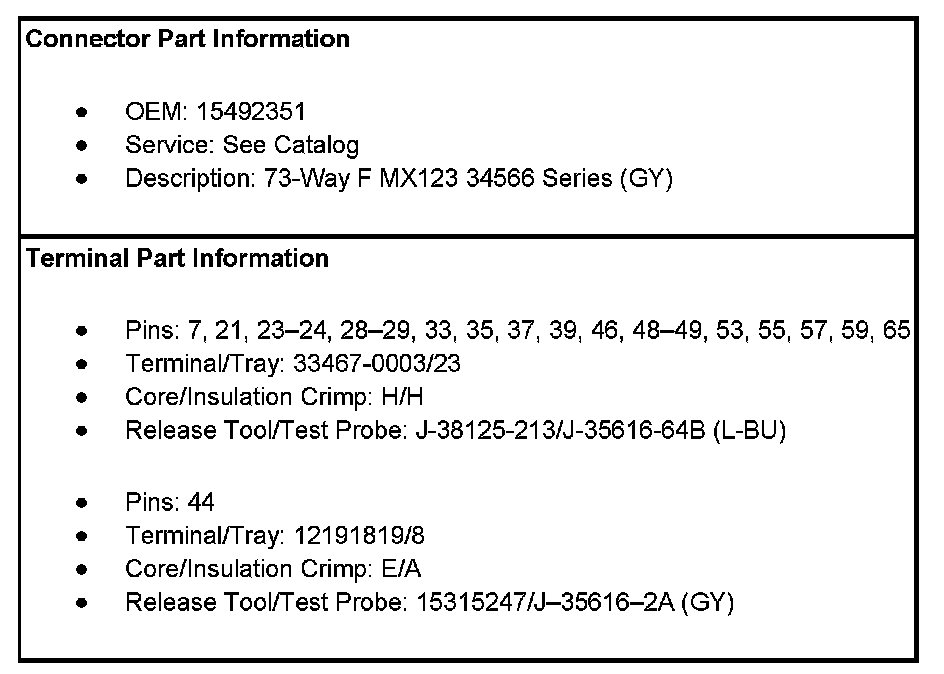

Engine Control Module (ECM) C3

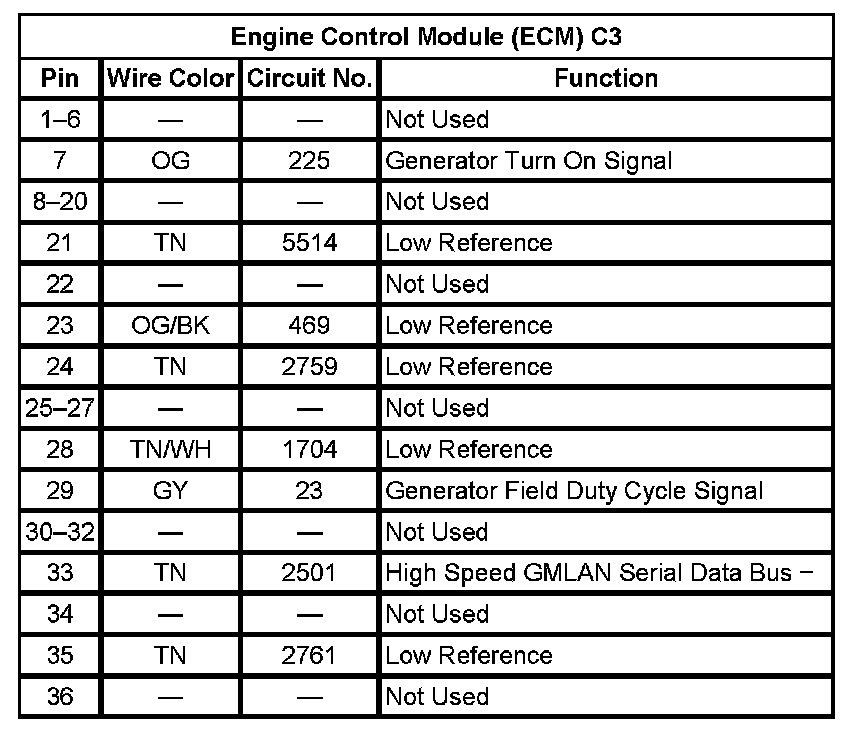

Engine Control Module (ECM) C3 (Pin 1 To 36):

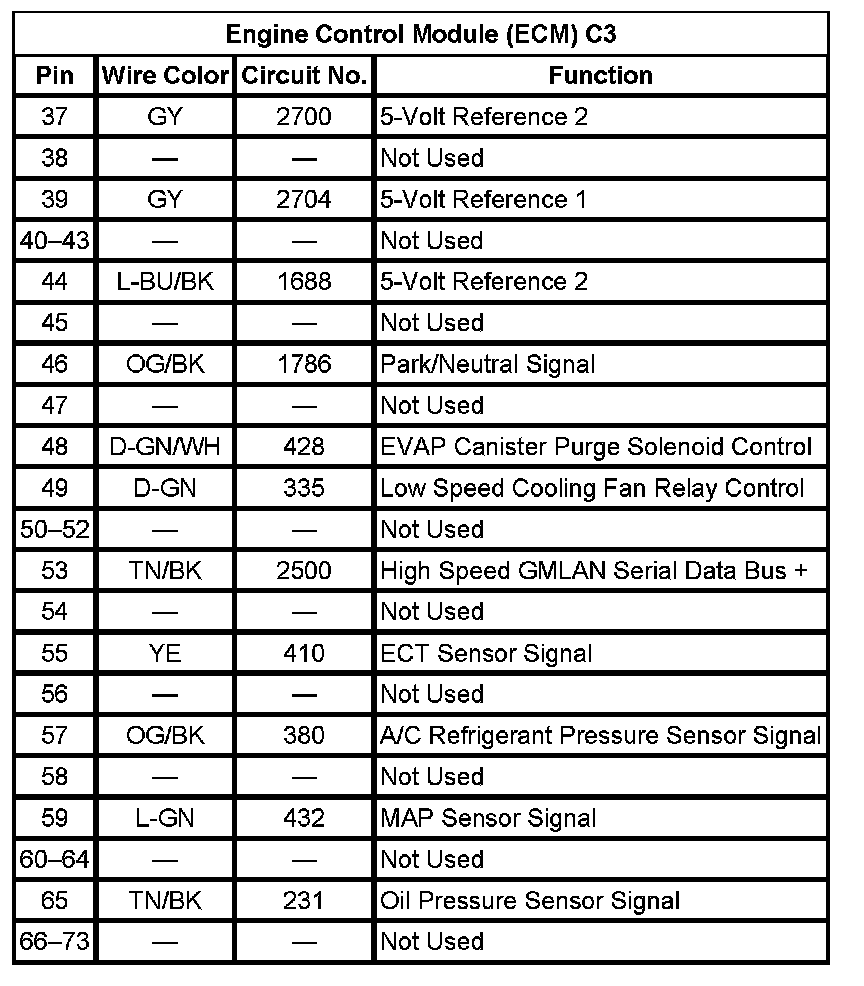

Engine Control Module (ECM) C3 (Pin 37 To 73):
