Rear Fuse Block

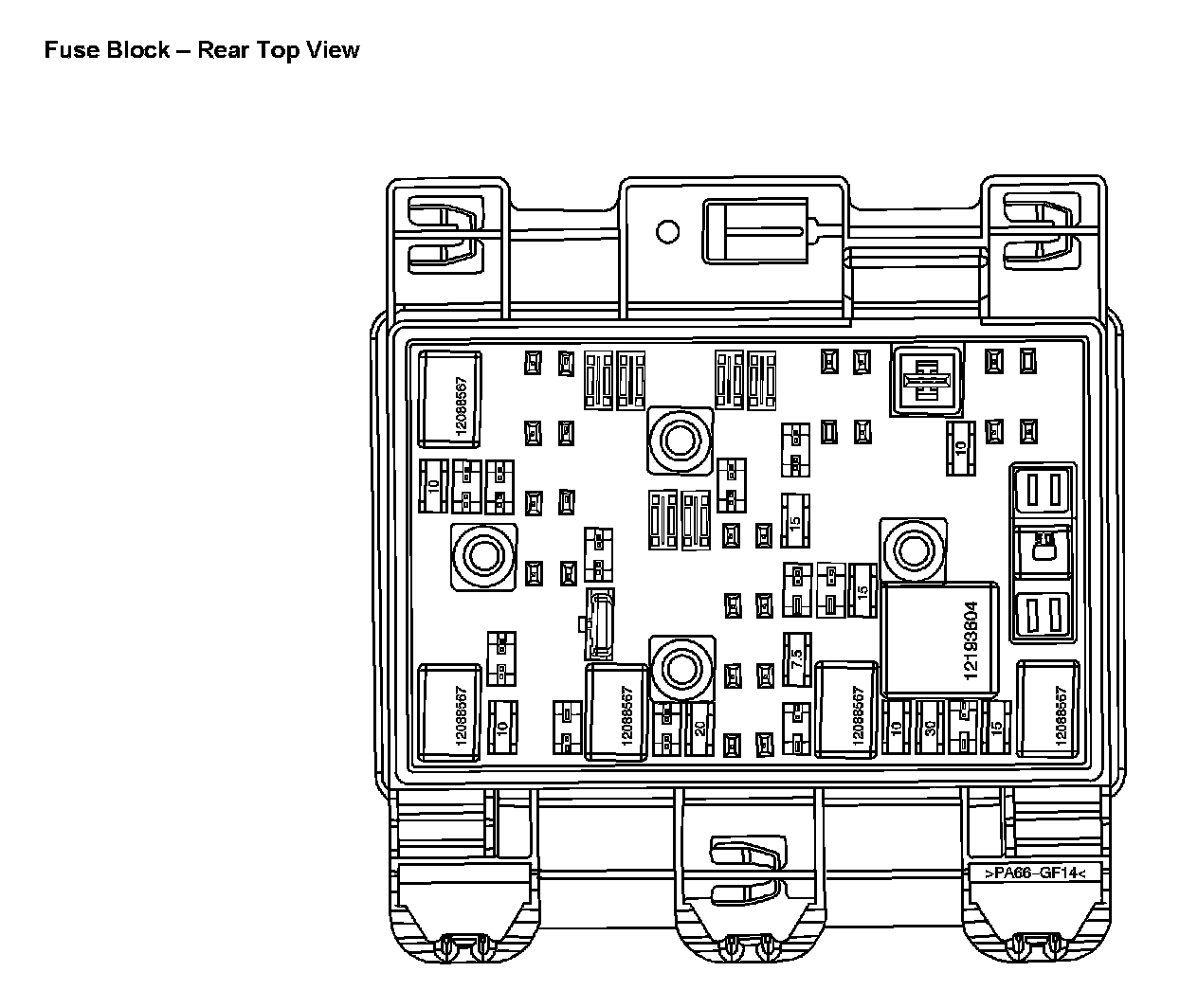

Fuse Block - Rear Top View:

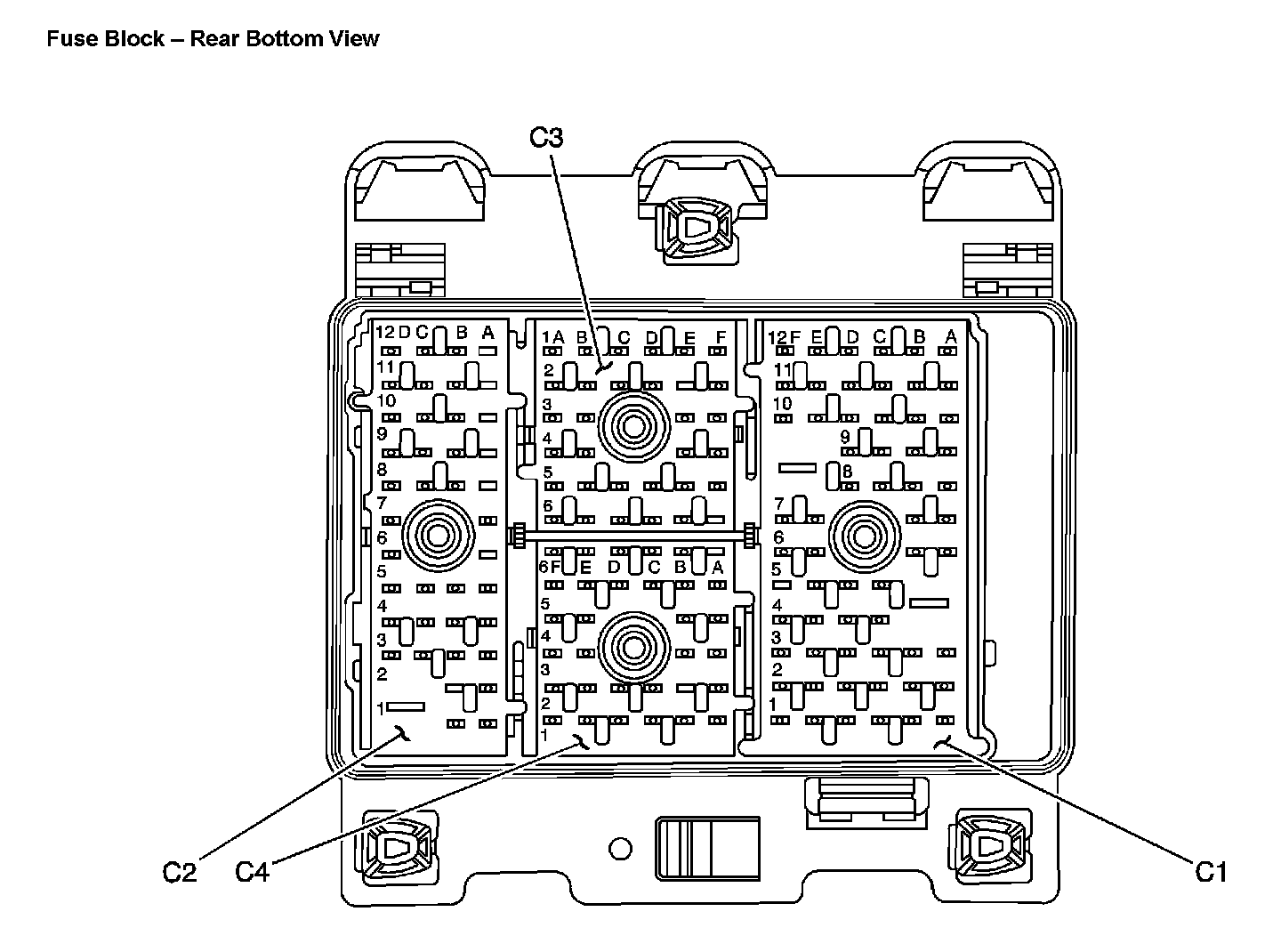

Fuse Block - Rear Bottom View:

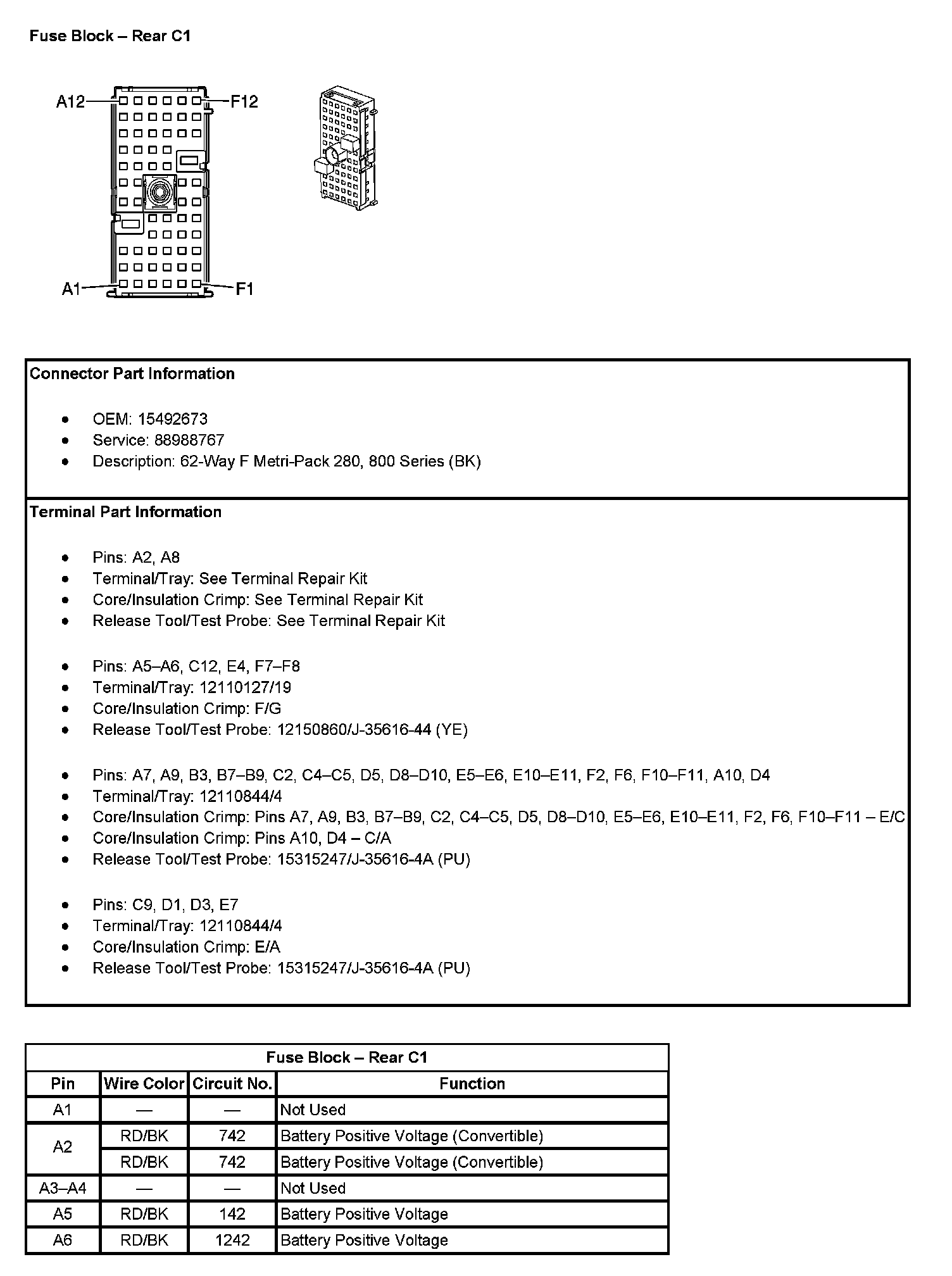

Fuse Block - Rear C1 (Pin A1 To A6):

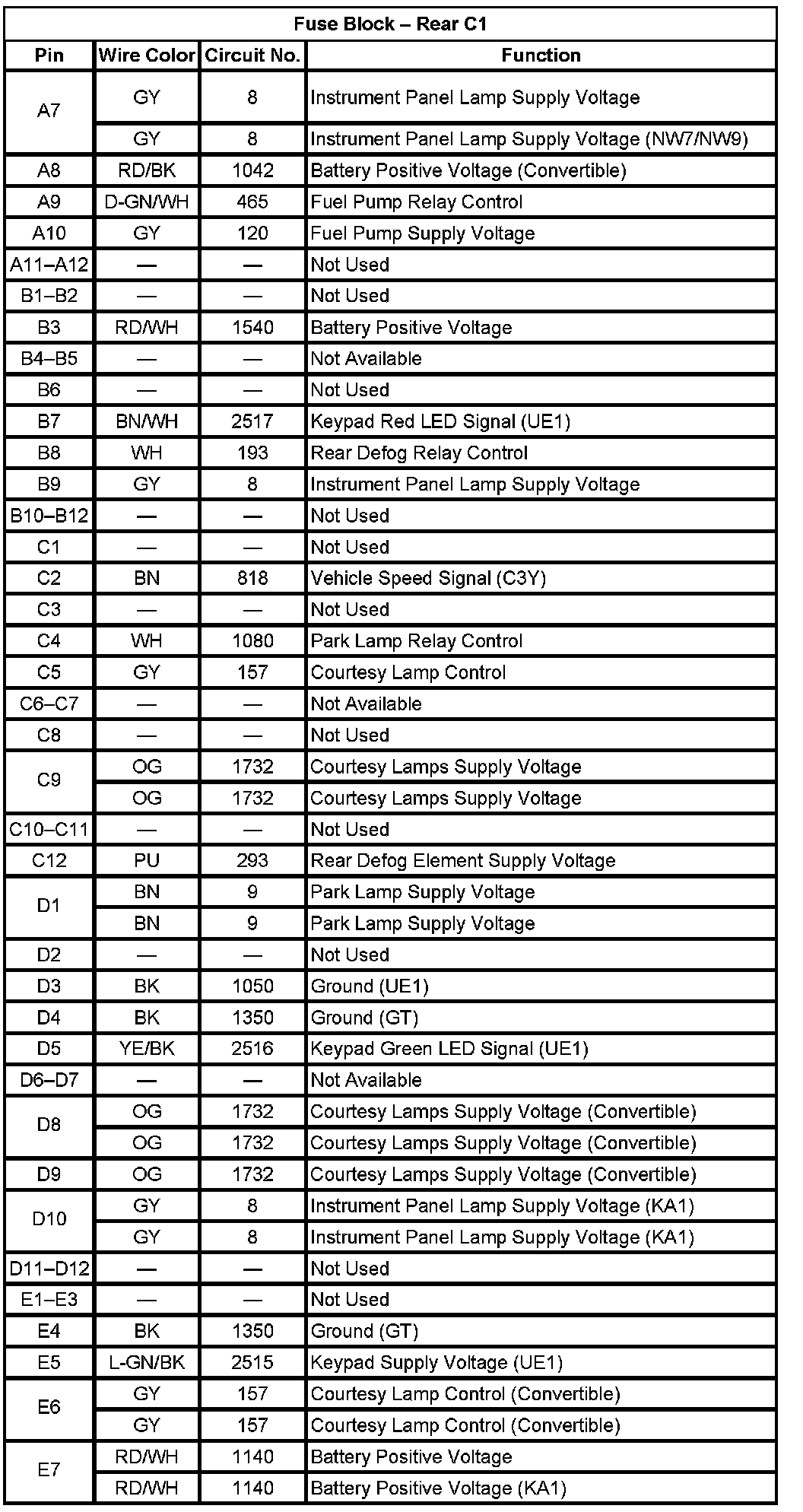

Fuse Block - Rear C1 (Pin A7 To E7):

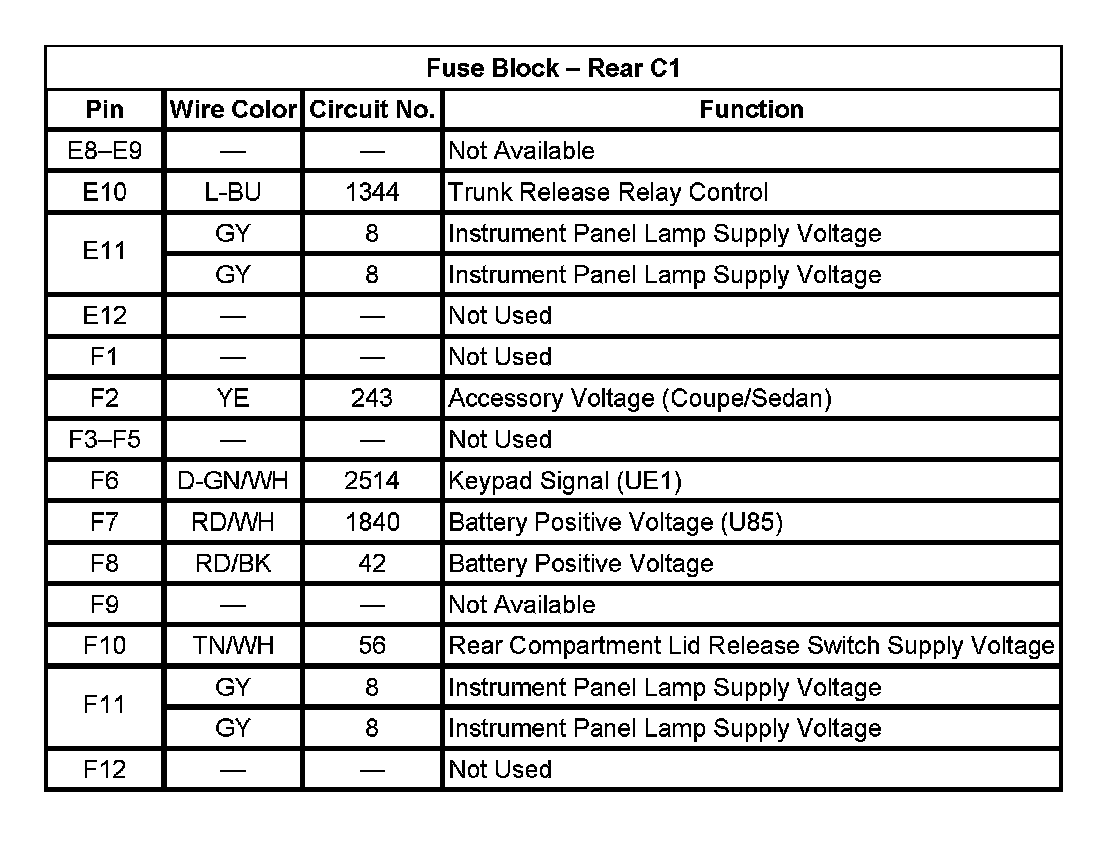

Fuse Block - Rear C1 (Pin E8 To F12):

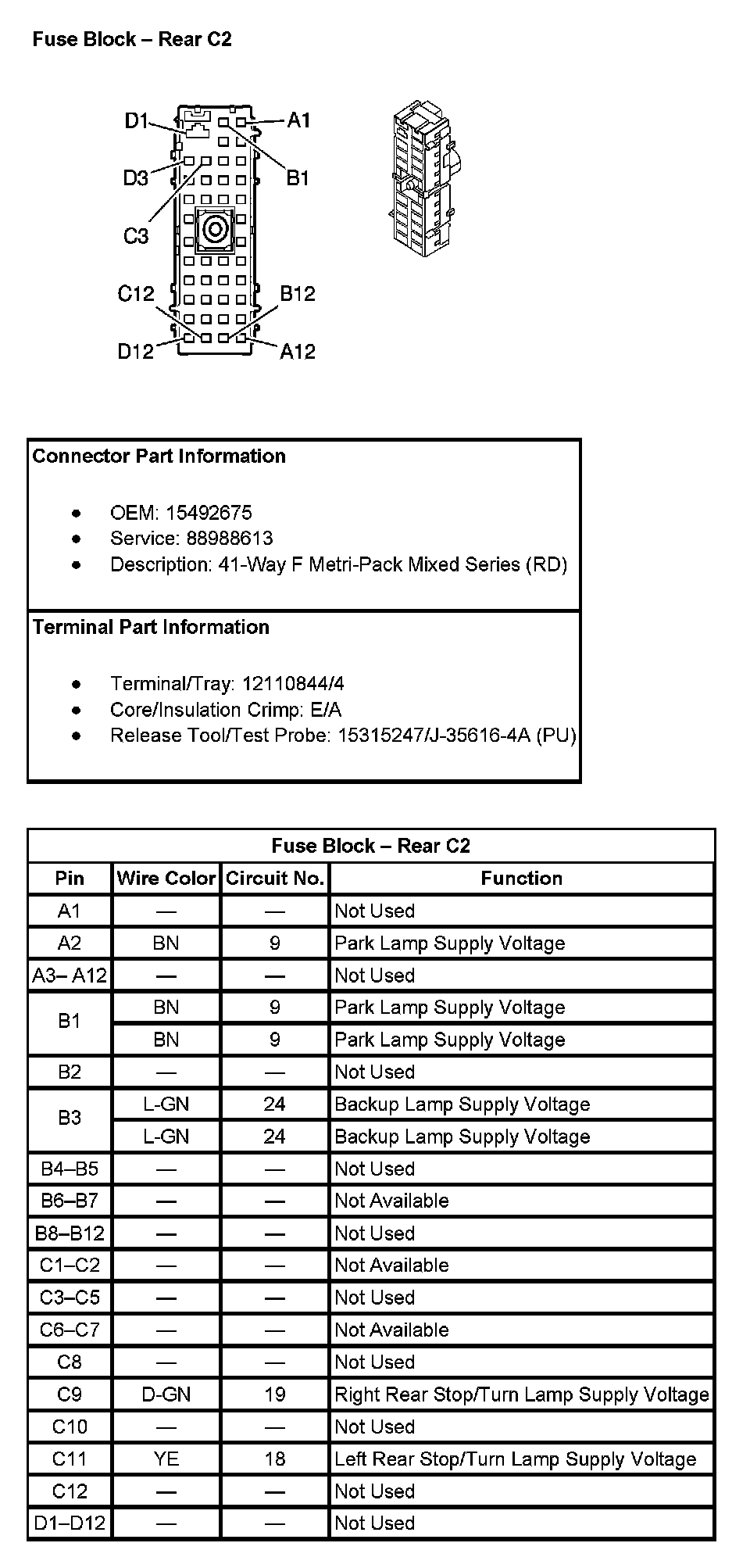

Fuse Block - Rear C2 (Pin A1 To D12):

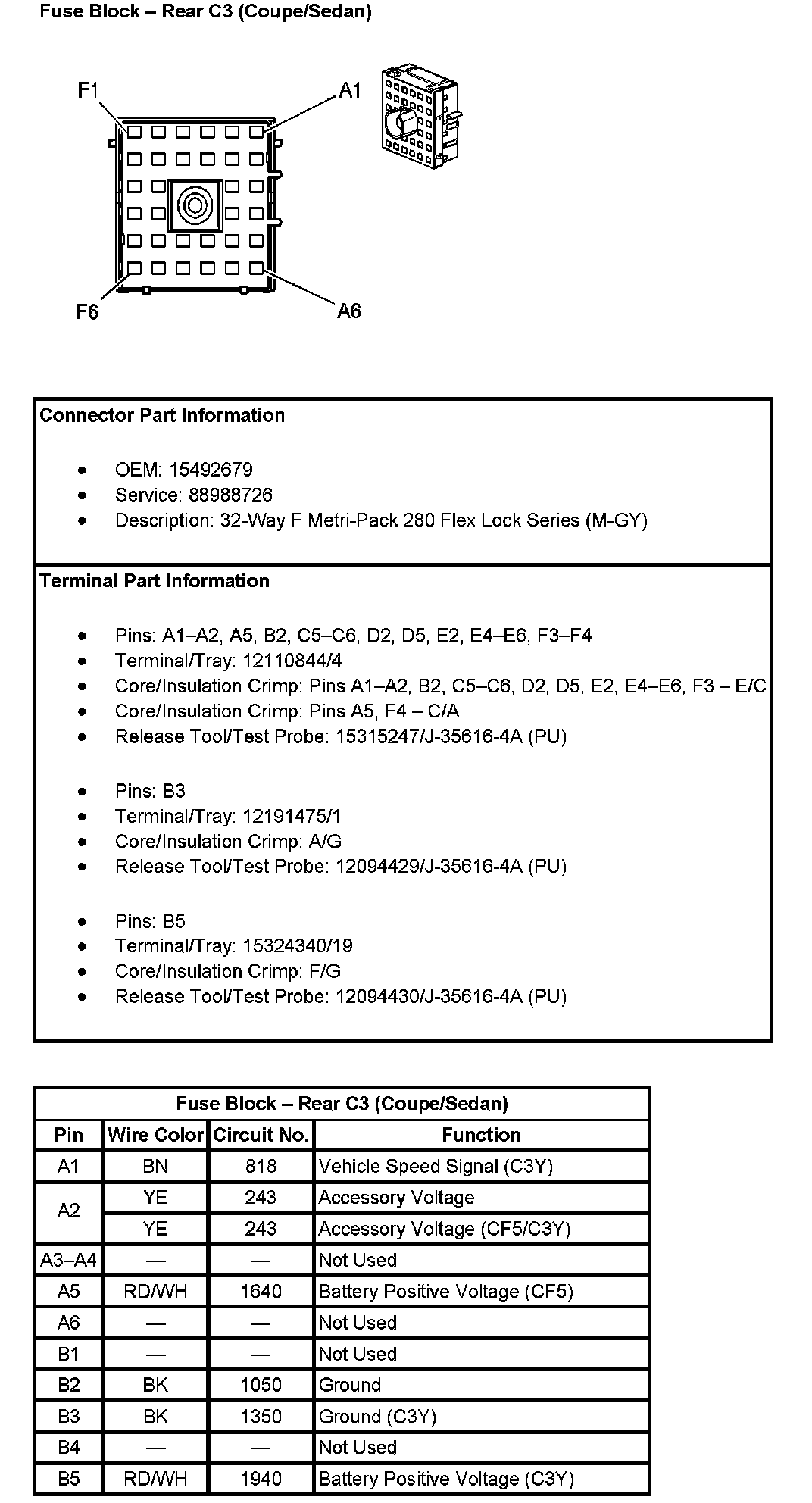

Fuse Block - Rear C3 (Coupe/Sedan) (Pin A1 To B5):

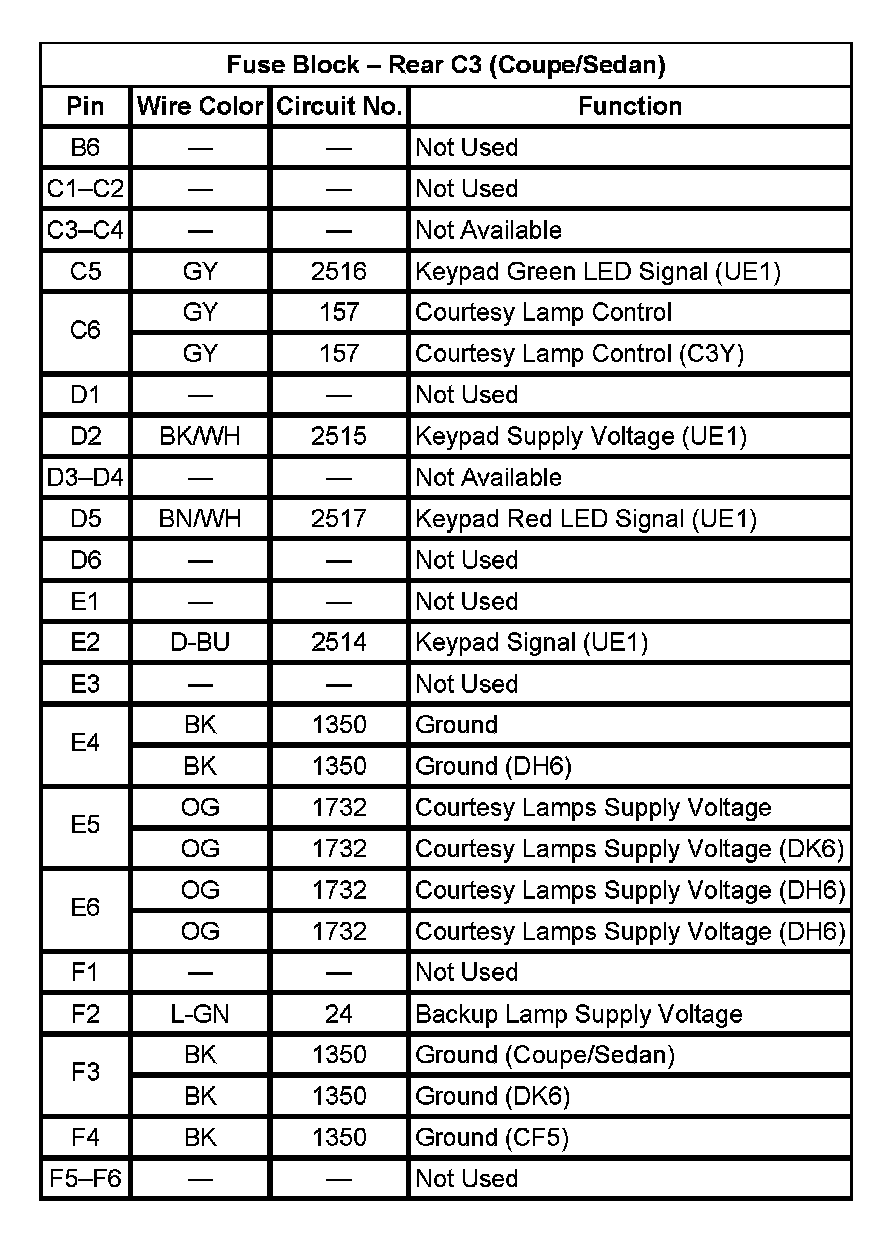

Fuse Block - Rear C3 (Coupe/Sedan) (Pin C1 To F6):

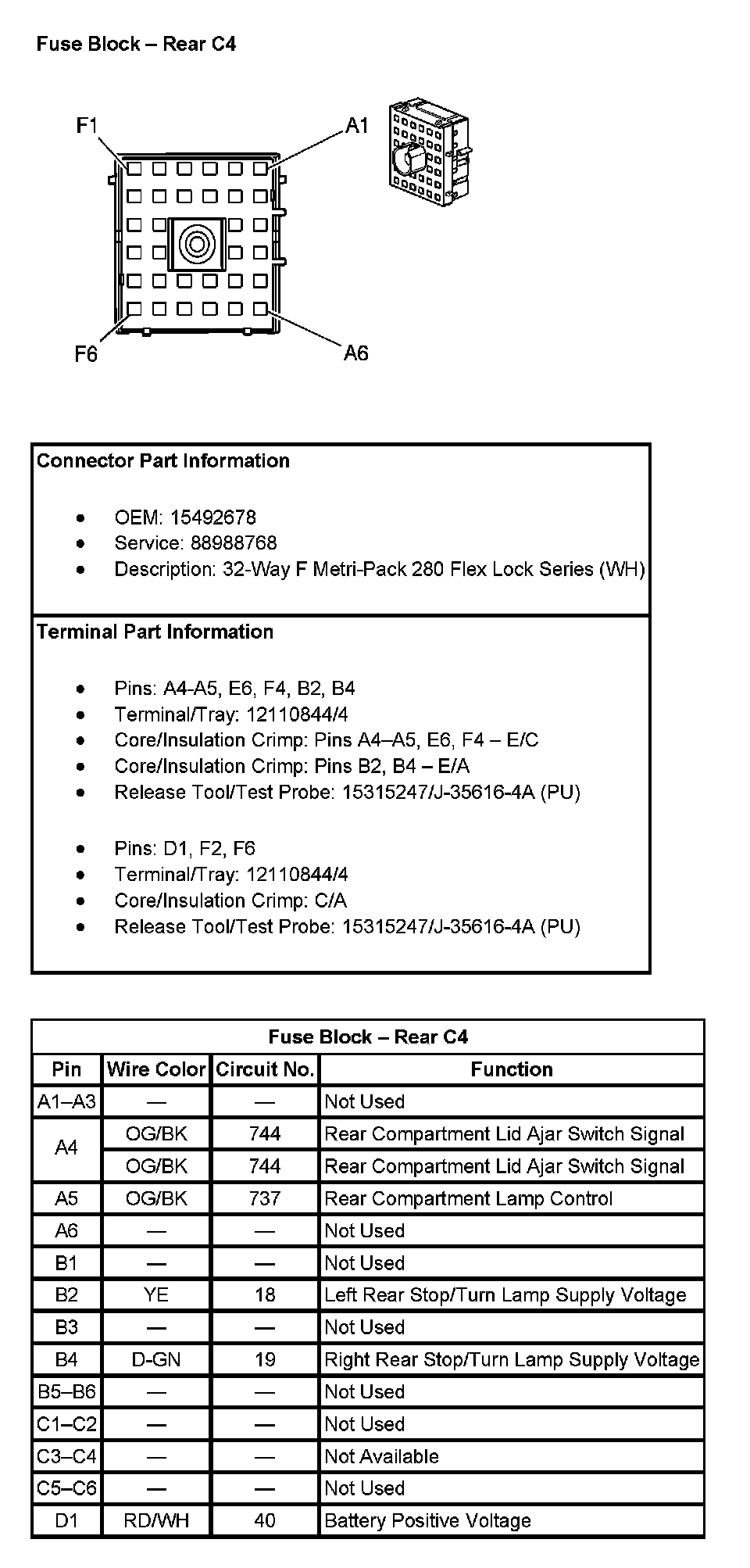

Fuse Block - Rear C4 (Pin A1 To D1):

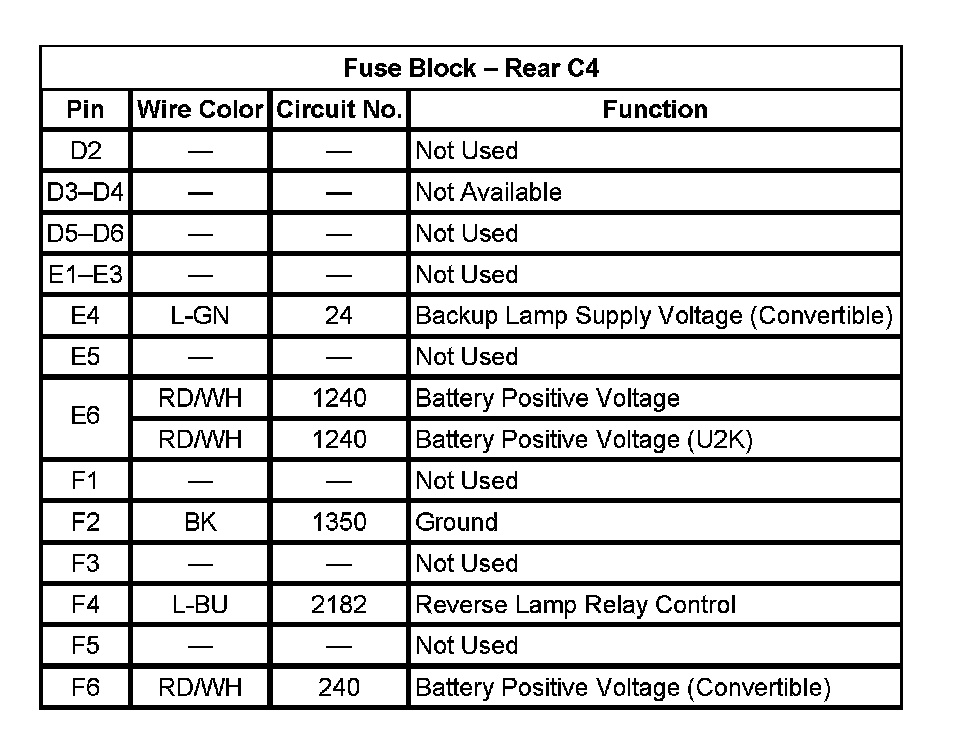

Fuse Block - Rear C4 (Pin D2 To F6):
