System Diagram

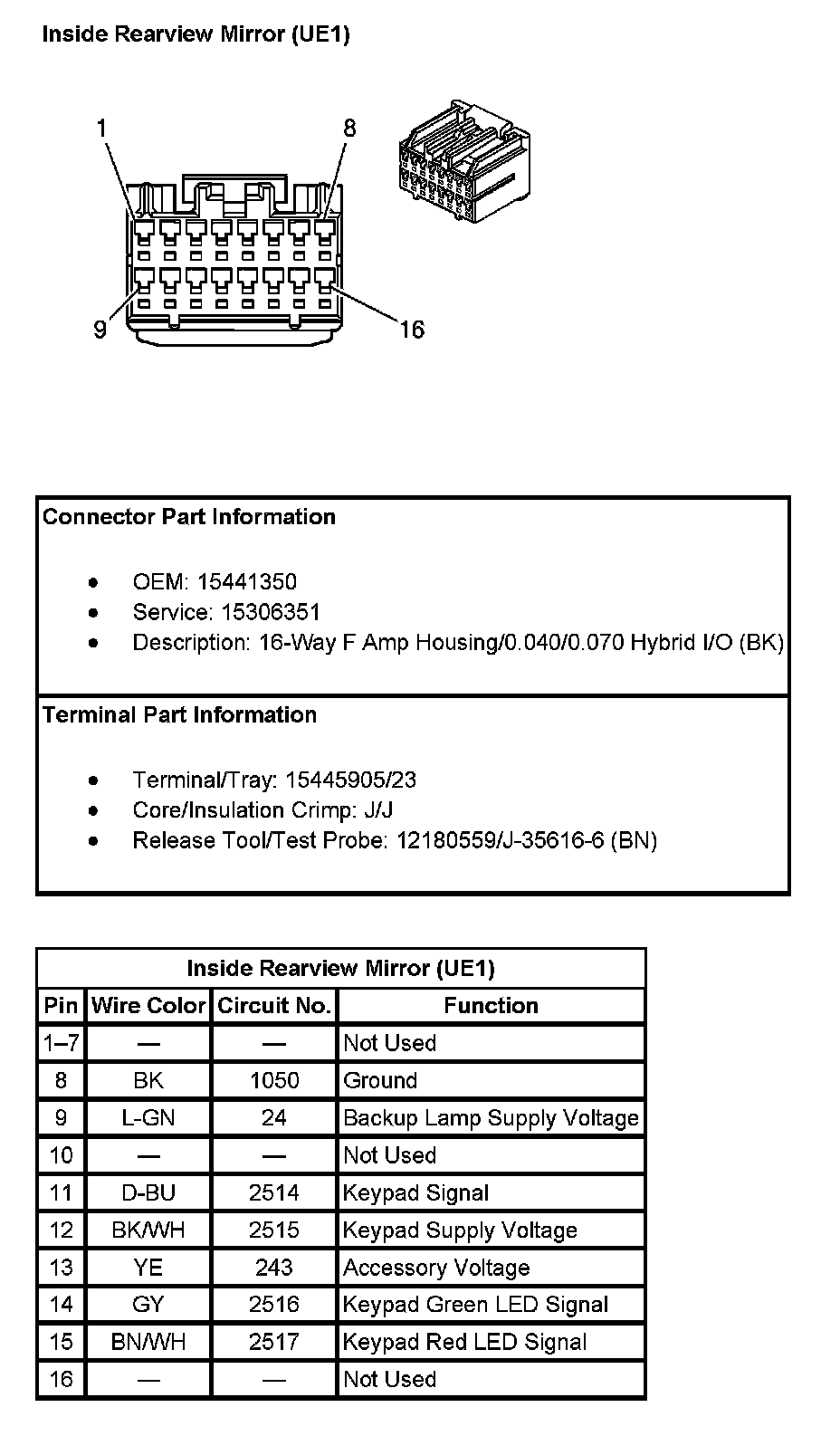

Inside Rearview Mirror (with RPO Code UE1):



Outside Rearview Mirror - Driver:



Outside Rearview Mirror - Passenger:
