Heated Seat Control Module - Driver

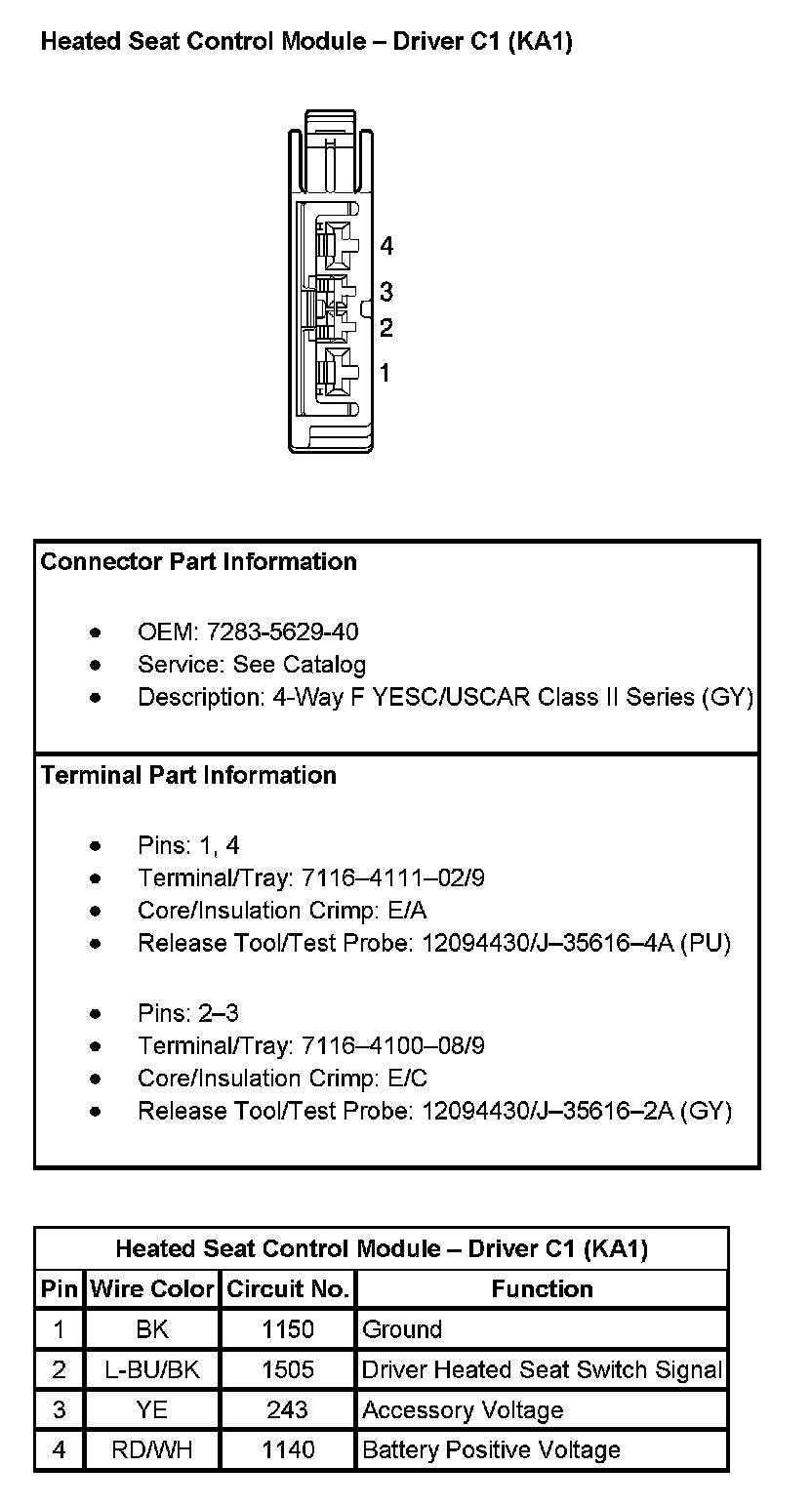

Heated Seat Control Module - Driver C1 (with RPO Code KA1):

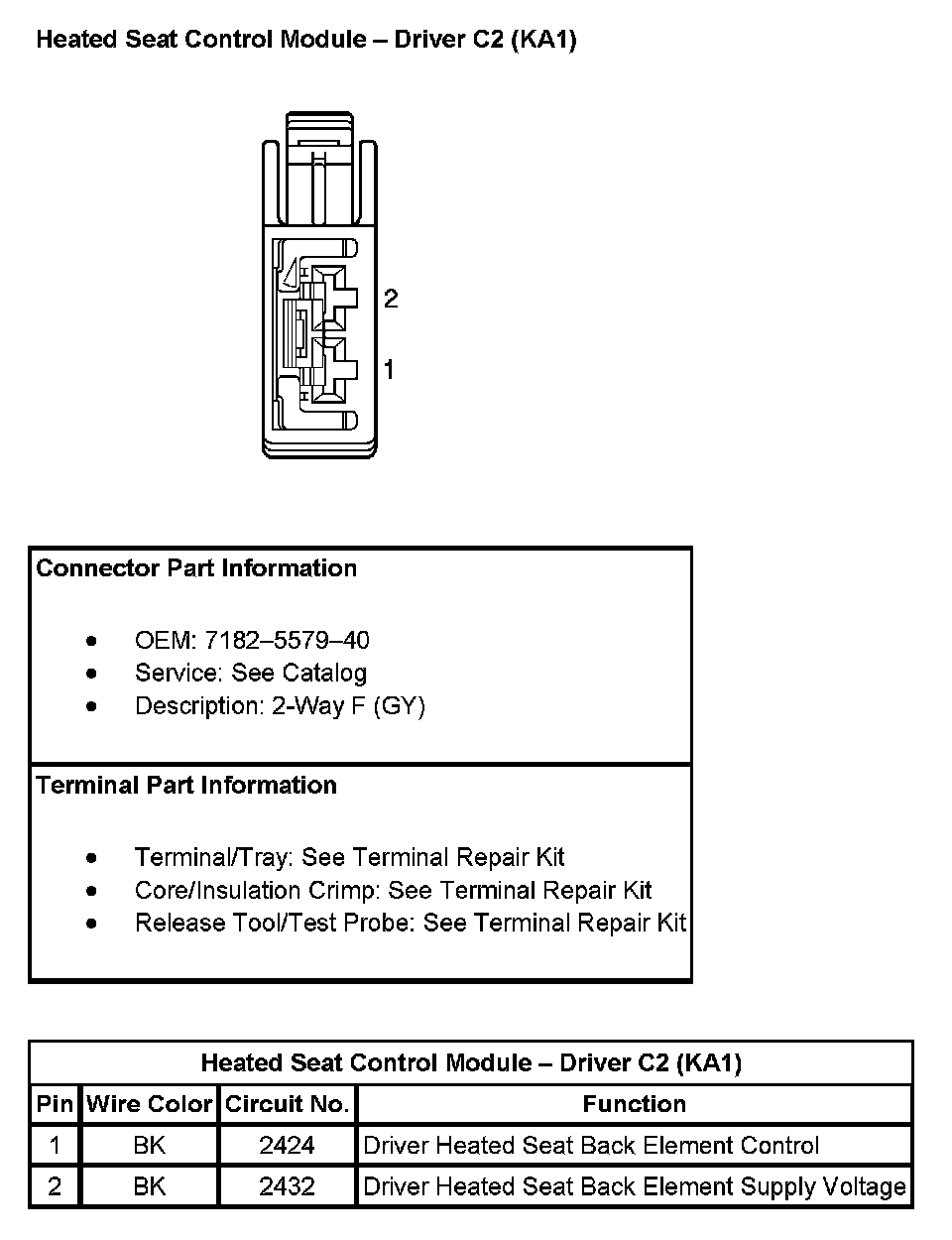

Heated Seat Control Module - Driver C2 (with RPO Code KA1):

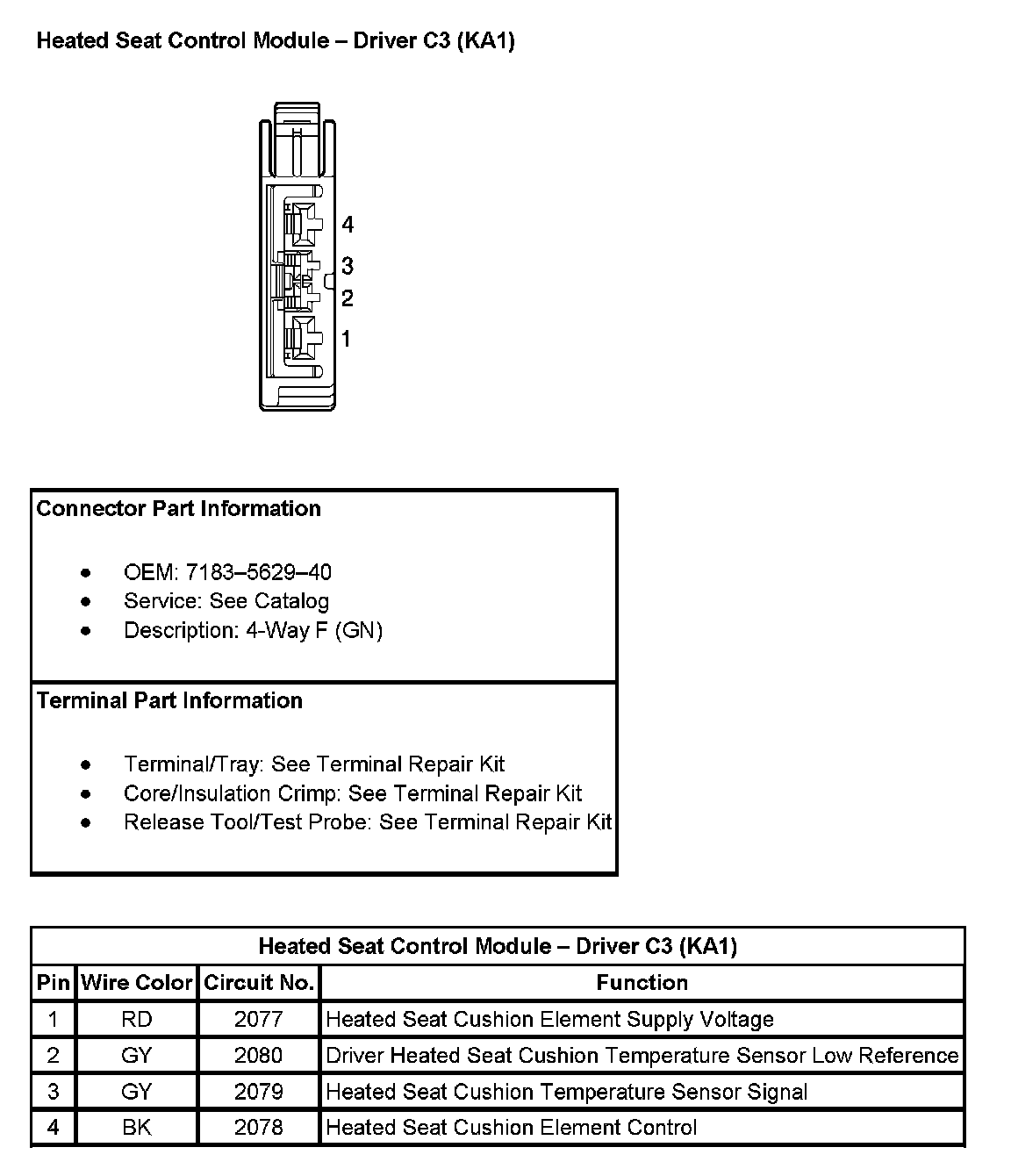

Heated Seat Control Module - Driver C3 (with RPO Code KA1):
