Heated Seat Control Module - Passenger

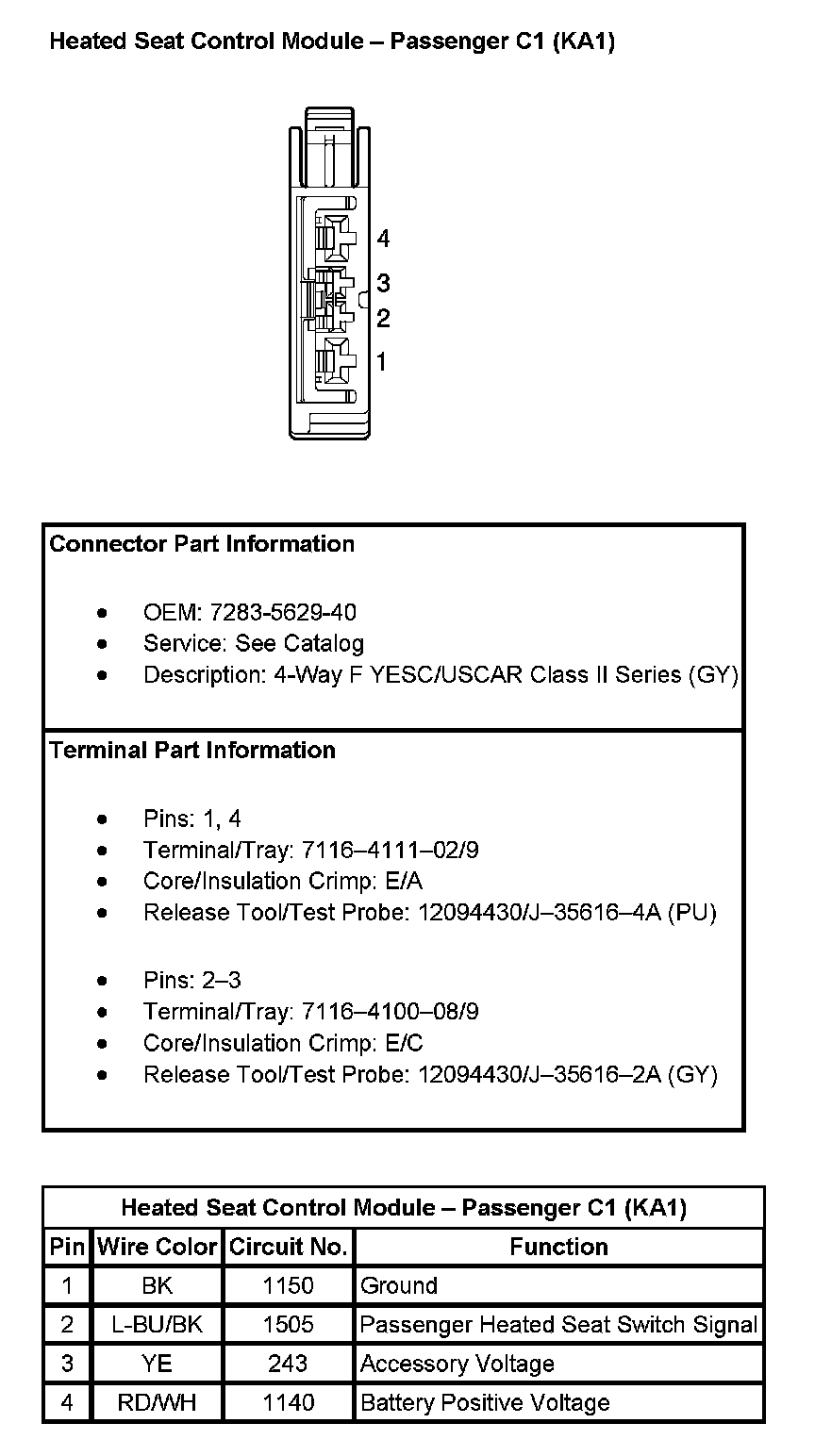

Heated Seat Control Module - Passenger C1 (with RPO Code KA1):

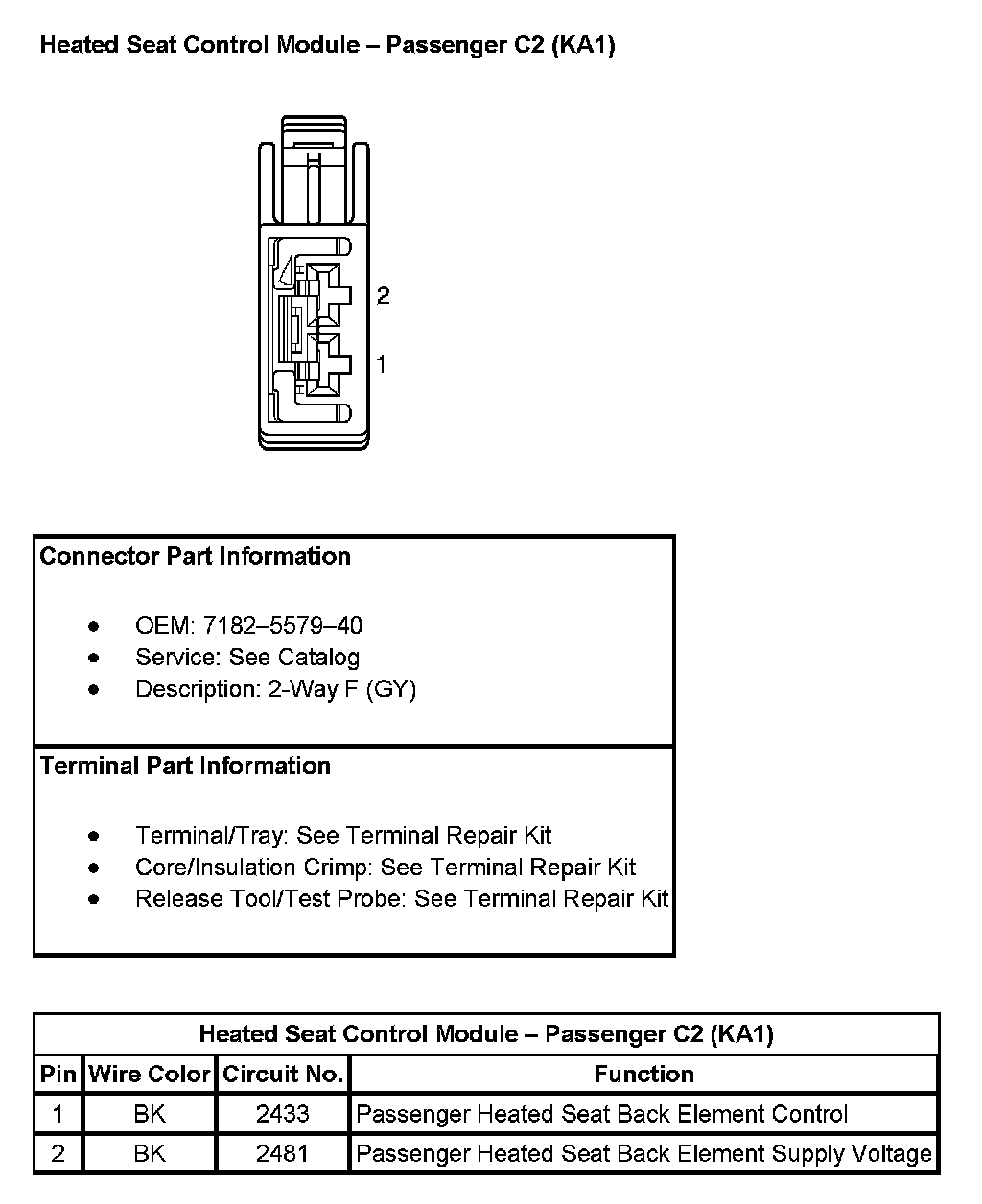

Heated Seat Control Module - Passenger C2 (with RPO Code KA1):

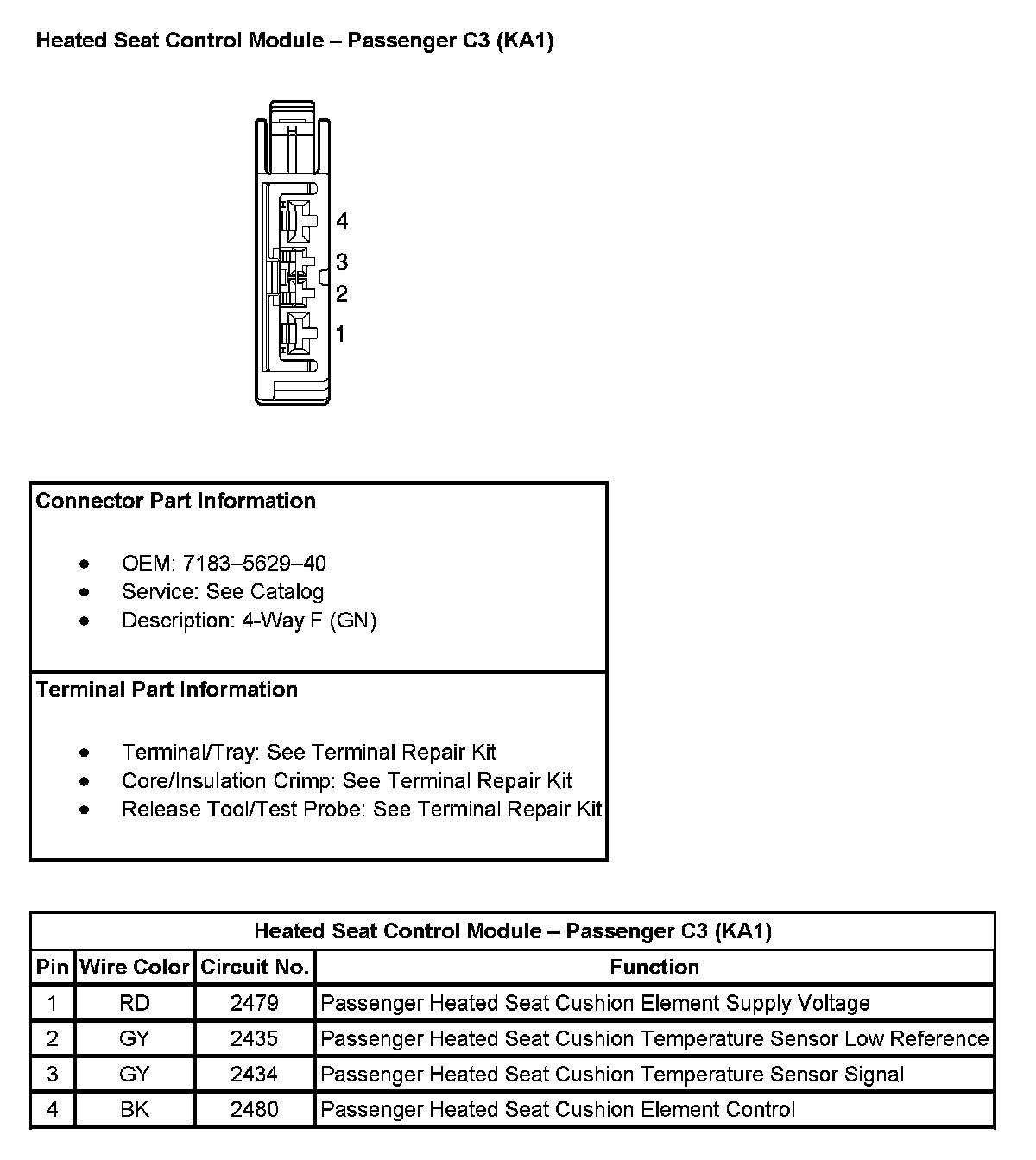

Heated Seat Control Module - Passenger C3 (with RPO Code KA1):
