Seat Temperature Switch

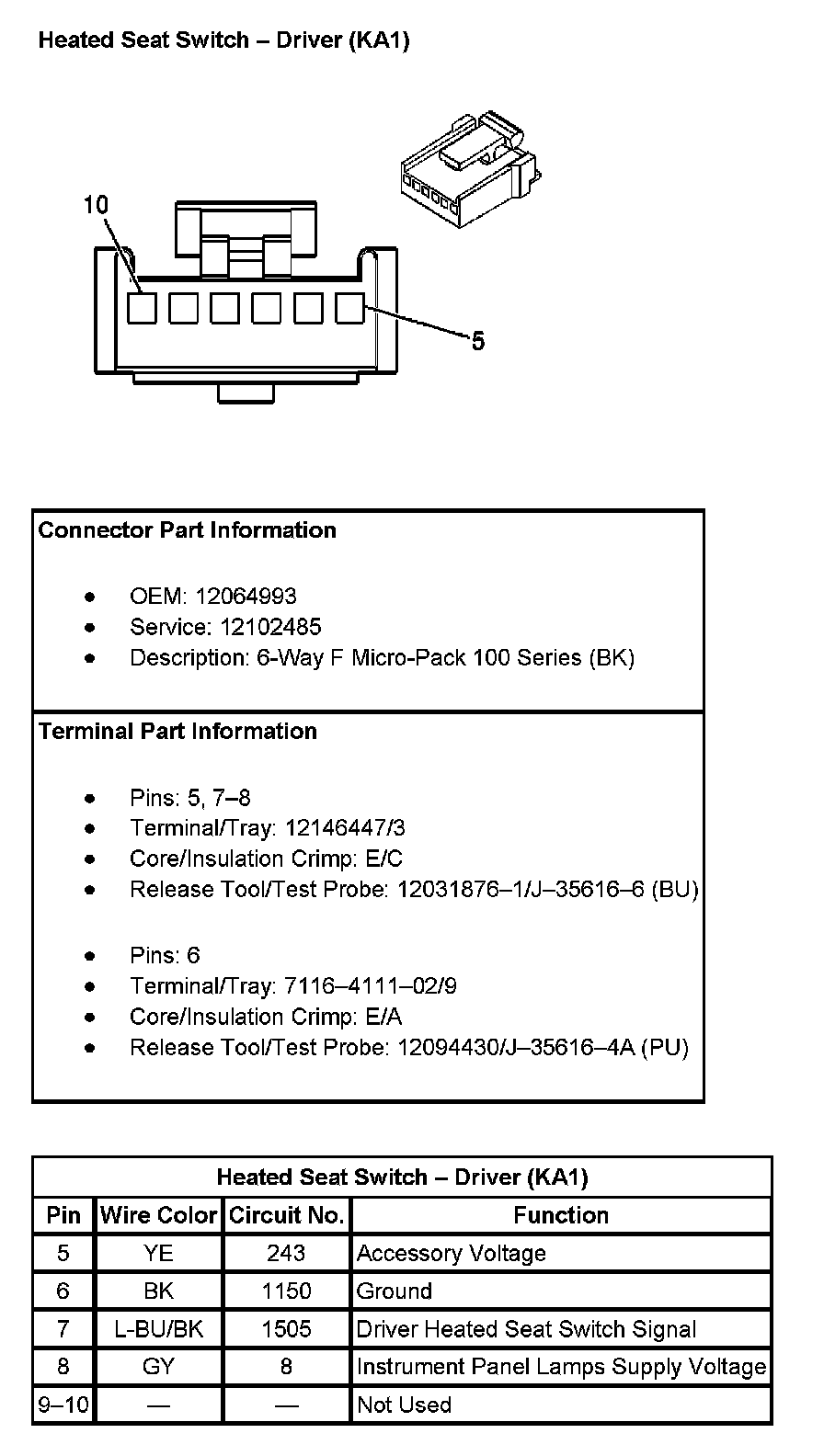

Heated Seat Switch - Driver (with RPO Code KA1):

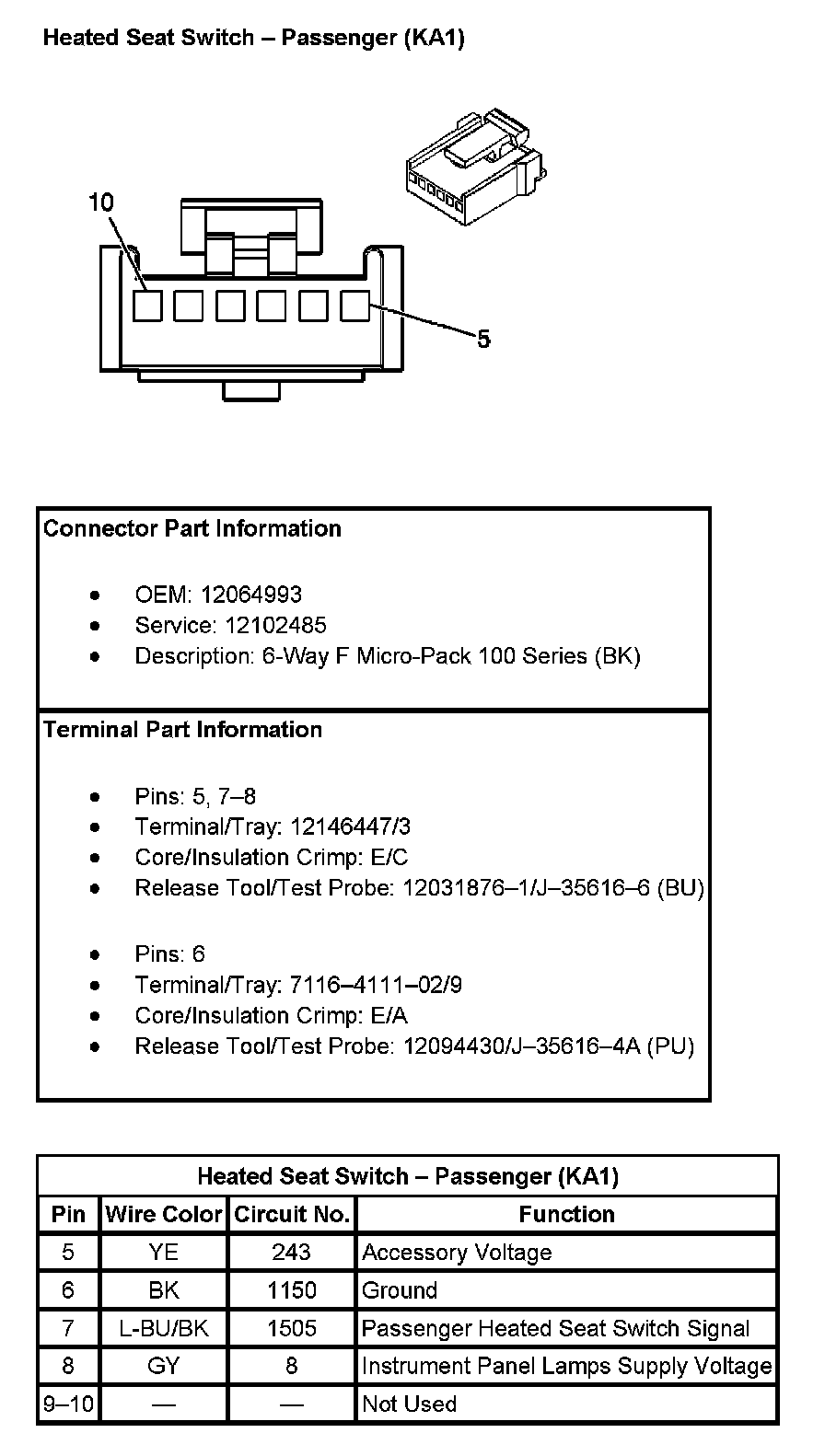

Heated Seat Switch - Passenger (with RPO Code KA1):
