Steering Angle Sensor, Traction Control

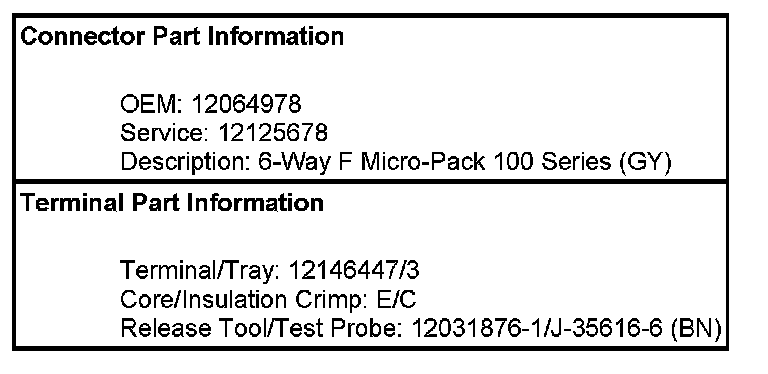

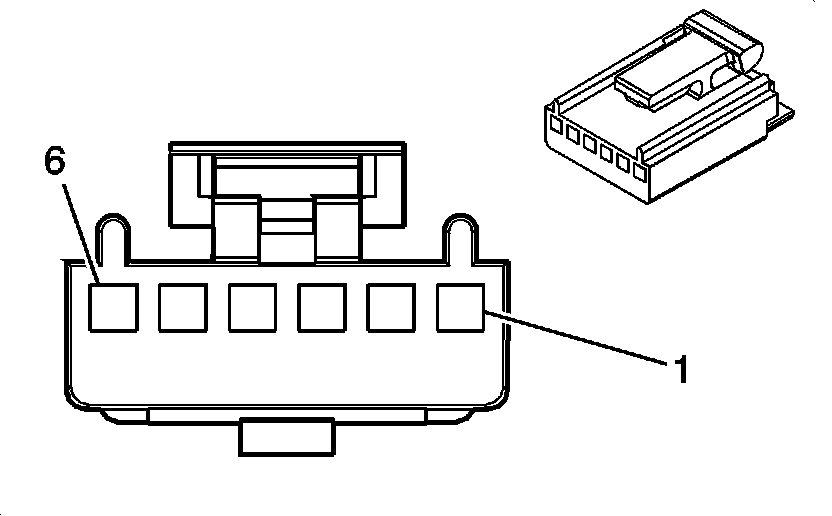

Steering Wheel Position Sensor (FX3)

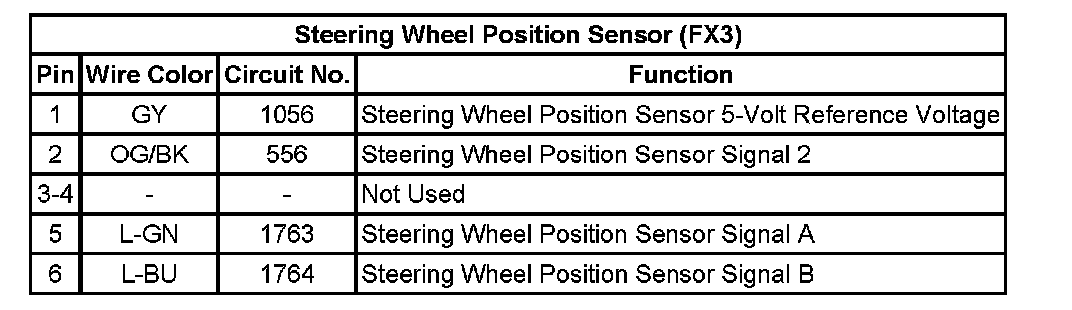

Steering Wheel Position Sensor (FX3):
