Home >> Pontiac >> 2007 >> G6 L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sunroof / Moonroof Module >> Sunroof Control Module (With RPO Code CF5)

April 5, 2026: LEMON Manuals is launched! Read the announcement.

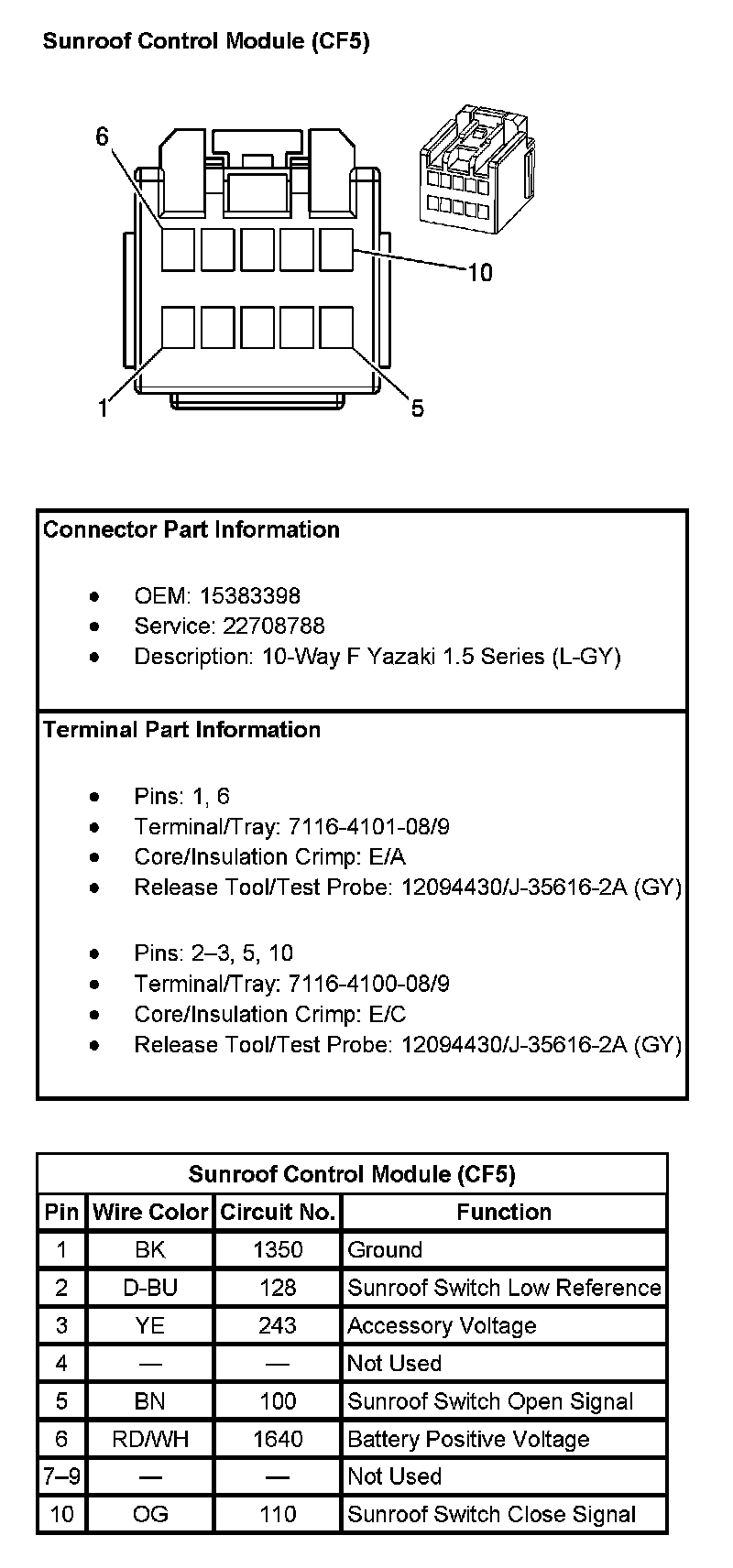

Sunroof Control Module (With RPO Code CF5)

Sunroof Control Module (With RPO Code CF5):
