Turn Signal Lamp

Park/Turn Signal Lamp - LF:

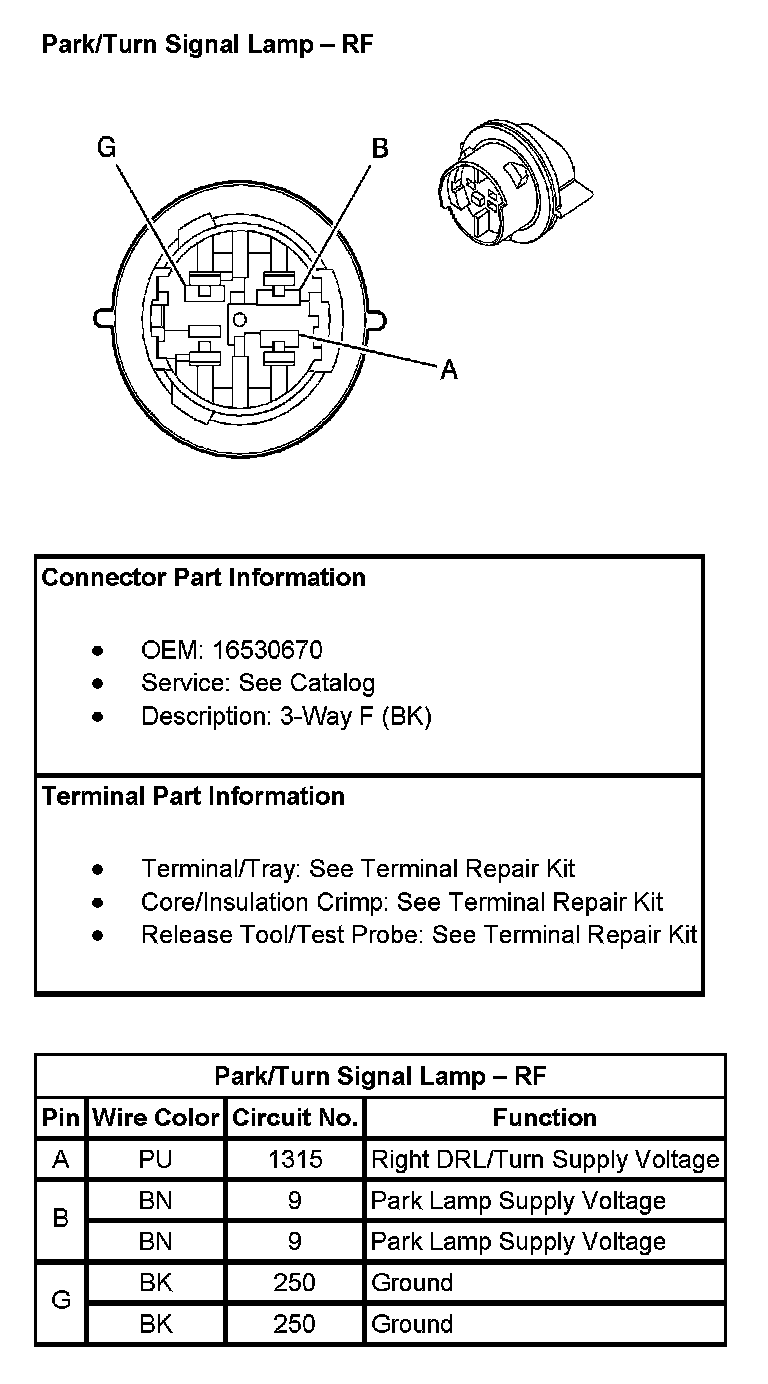

Park/Turn Signal Lamp - RF:



Tail/Stop And Turn Signal Lamp - Left:



Tail/Stop And Turn Signal Lamp - Right:
