Input Shaft, M/T

Disassembled Views

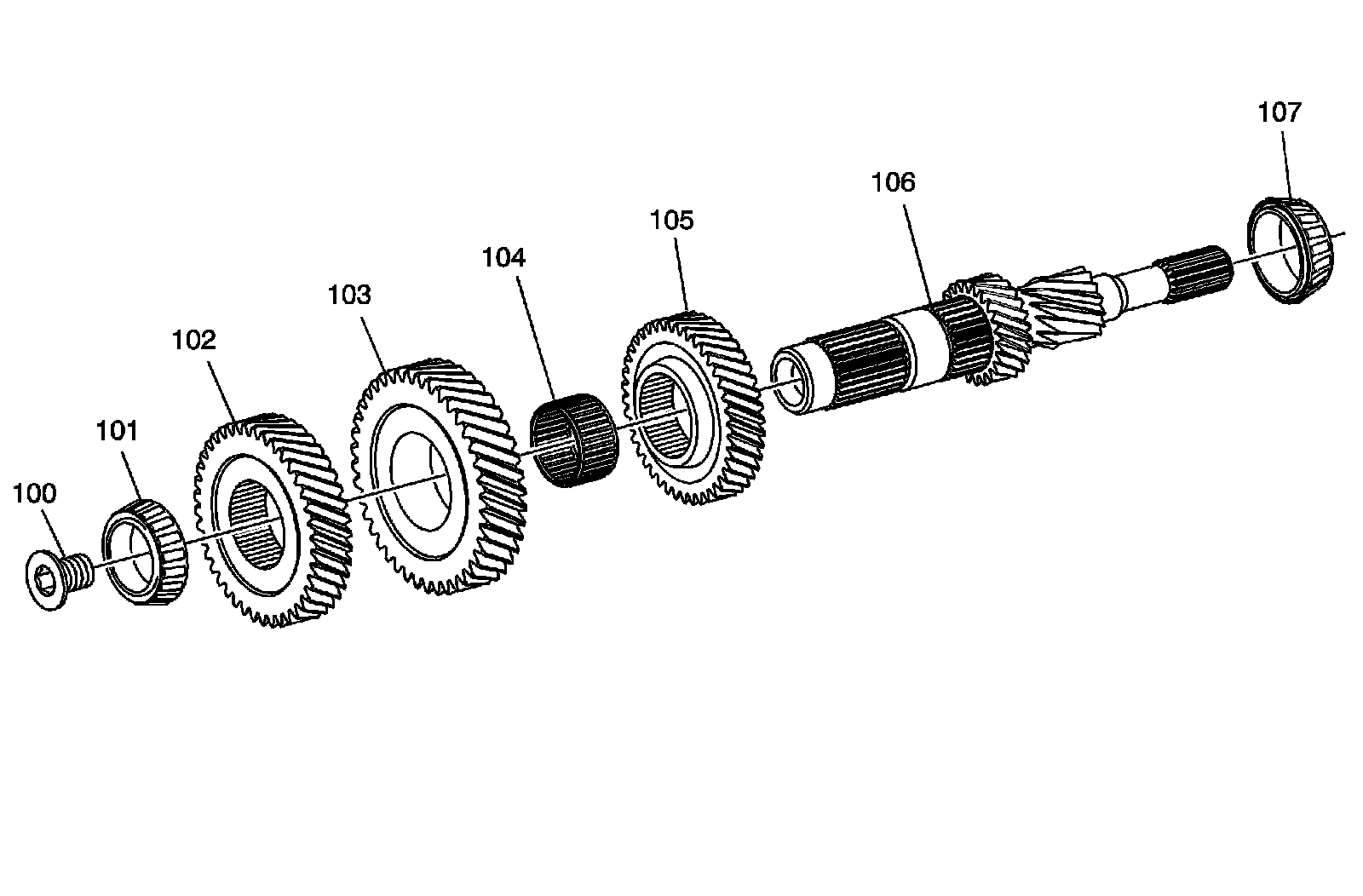

Input Shaft Components

Input Shaft Components:

100 - Input Shaft Bearing Bolt/Screw
101 - Input Shaft Bearing Assembly
102 - 6th Gear
103 - 4th Gear
104 - Input Shaft Spacer
105 - 3rd and 5th Gear
106 - Input Shaft
107 - Input Shaft Bearing Assembly
