Control Assembly: Locations

HVAC Component Views

Instrument Panel

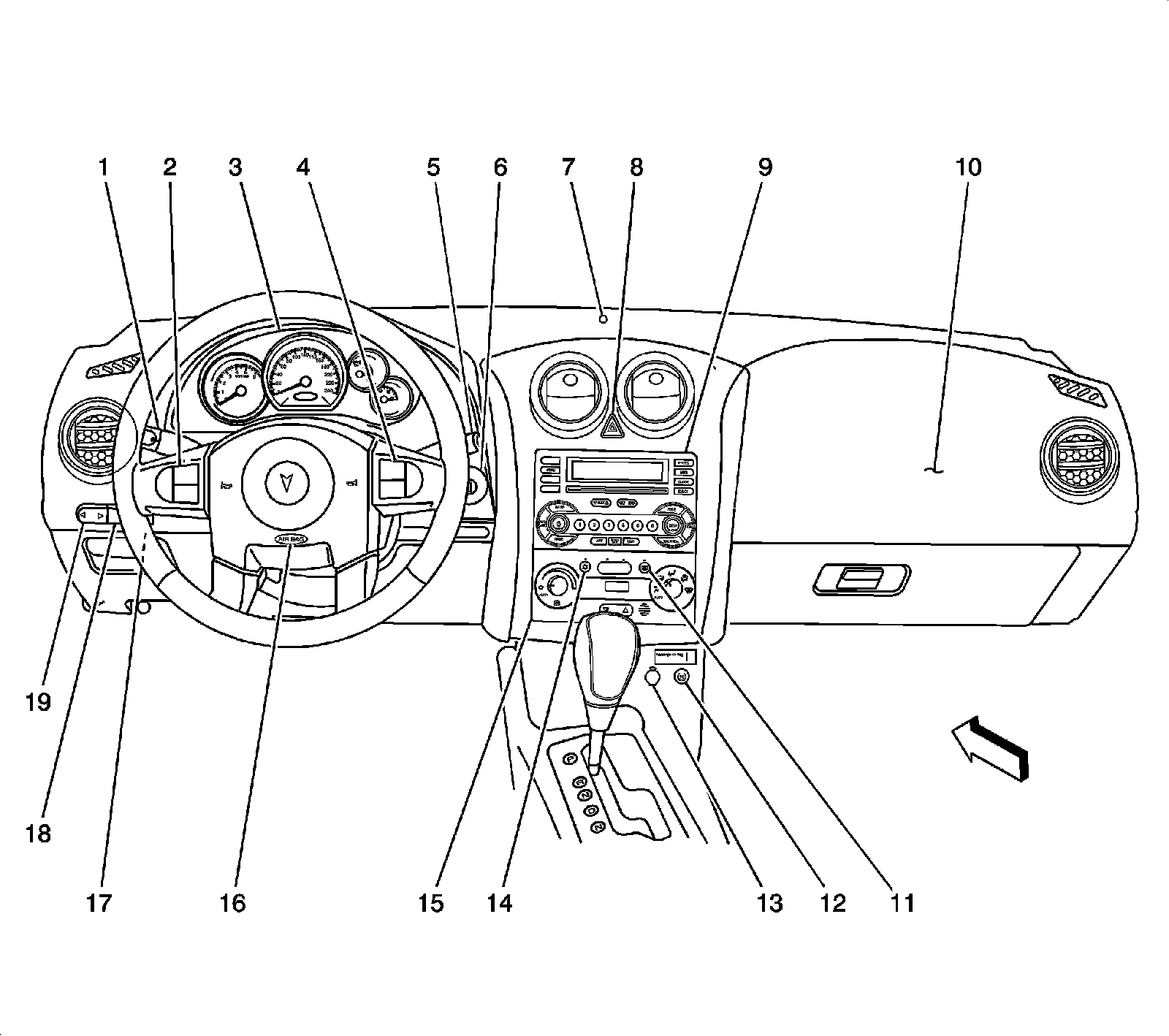

Instrument Panel:

1 - Turn Signal/Multifunction Switch
2 - Steering Wheel Controls - Left
3 - Instrument Panel Cluster (IPC)
4 - Steering Wheel Controls - Right
5 - Windshield Wiper/Washer Switch
6 - Ignition Switch
7 - Ambient Light Sensor
8 - Hazard Switch
9 - Radio
10 - Inflatable Restraint I/P Module
11 - Rear Window Defogger Switch
12 - Traction Control Switch (NW7/NW9)
13 - Cigar Lighter
14 - A/C Request Switch
15 - HVAC Control Module
16 - Inflatable Restraint Steering Wheel Module
17 - Fog Lamp Switch
18 - I/P Dimmer Switch
19 - Adjustable Pedals Position Switch
