HVAC - Automatic



HVAC Control Module Replacement

Removal Procedure

1. Remove the instrument panel (I/P) center trim panel.

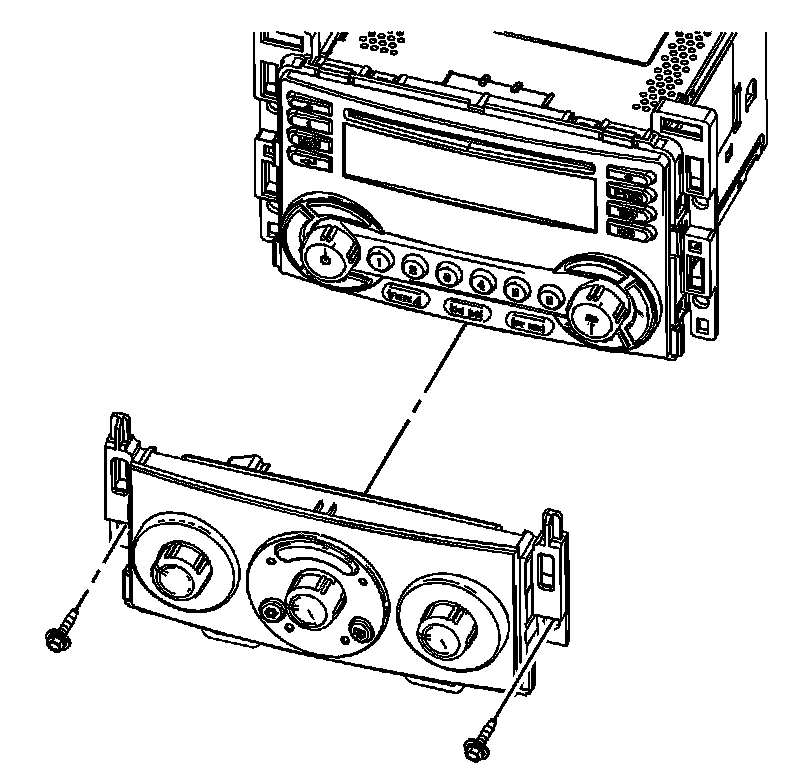

2. Remove the HVAC control module screws.




3. Remove the HVAC control module.
4. Remove the HVAC control module wire harness connectors.

Installation Procedure

Important: The key should be in the OFF position when connecting the electrical connectors to ensure proper calibration.

1. Install the HVAC control module wire harness connectors.




2. Install the HVAC control module.

Notice: Refer to Fastener Notice.

3. Tighten the HVAC control module screws.

Tighten the screws to 2.5 N.m (22 lb in).

4. Install the I/P center trim panel.
5. Calibrate the actuator. Refer to Actuators Recalibration. Programming and Relearning
6. Refer to Programming and Relearning. Programming and Relearning.
