Rear Toe Adjustment

Rear Toe Adjustment

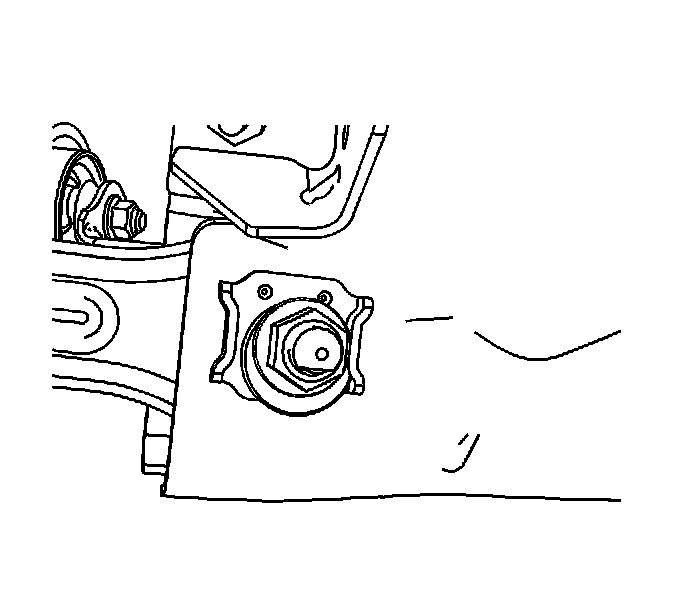

1. Loosen the inner toe link cam bolt and nuts.
2. Rotate the cam bolt to the required toe specification settings. Refer to Measuring Wheel Alignment.

Notice: Refer to Fastener Notice.

3. Maintain the toe setting while tightening the cam bolt nut.

Tighten the rear suspension adjustment link lock nut to 110 Nm (81 lb ft).

4. Check the toe setting after tightening.
5. Adjust the toe setting if necessary.
