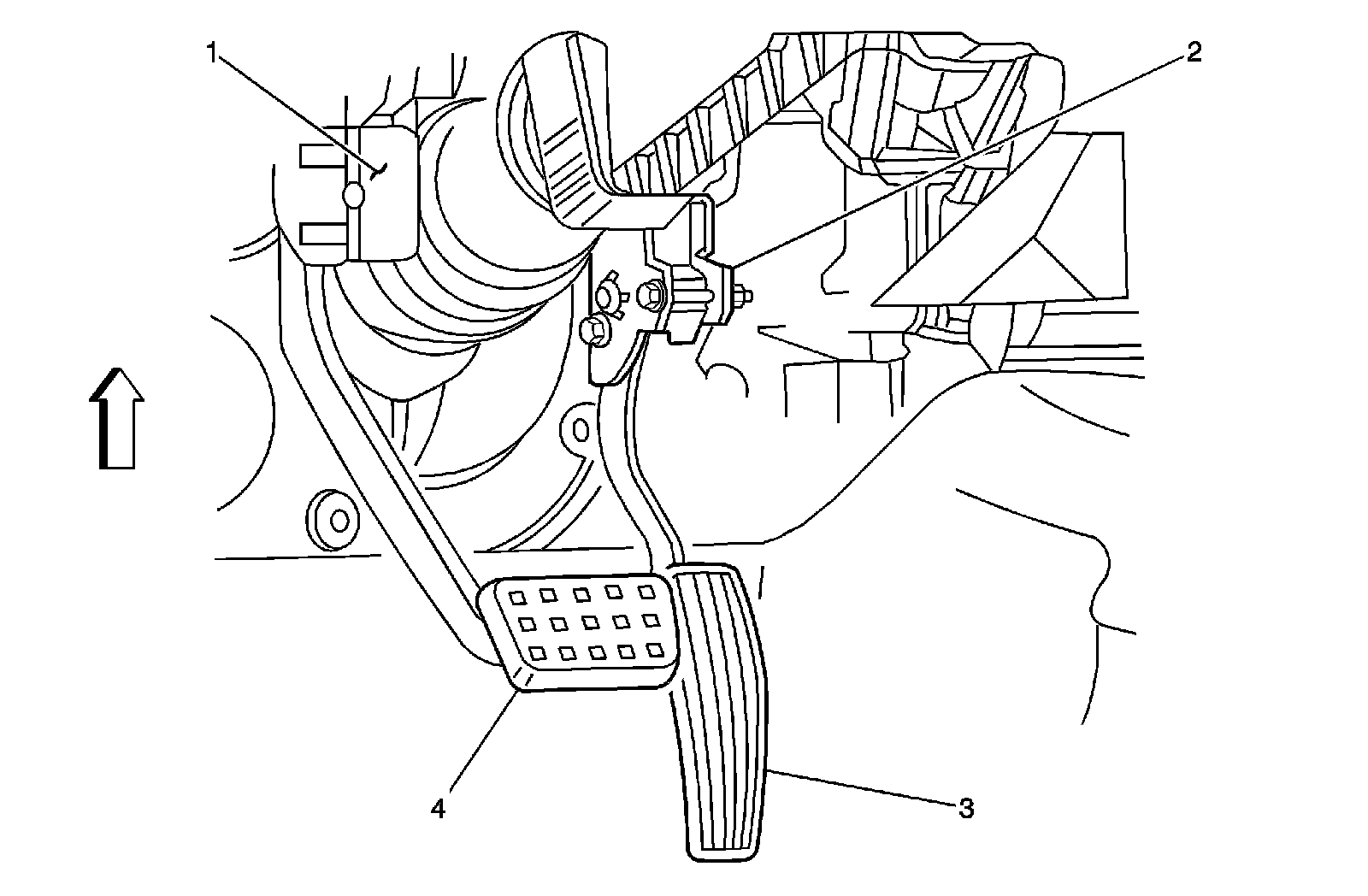

Accelerator Pedal Position Sensor: Locations

Engine Controls Component Views

Below the Left Side of the I/P




1 - Brake Pedal Position Sensor
2 - Accelerator Pedal Position (APP) Sensor
3 - Accelerator Pedal
4 - Brake Pedal
