Coolant Temperature Sensor/Switch (For Computer): Locations

Engine Controls Component Views

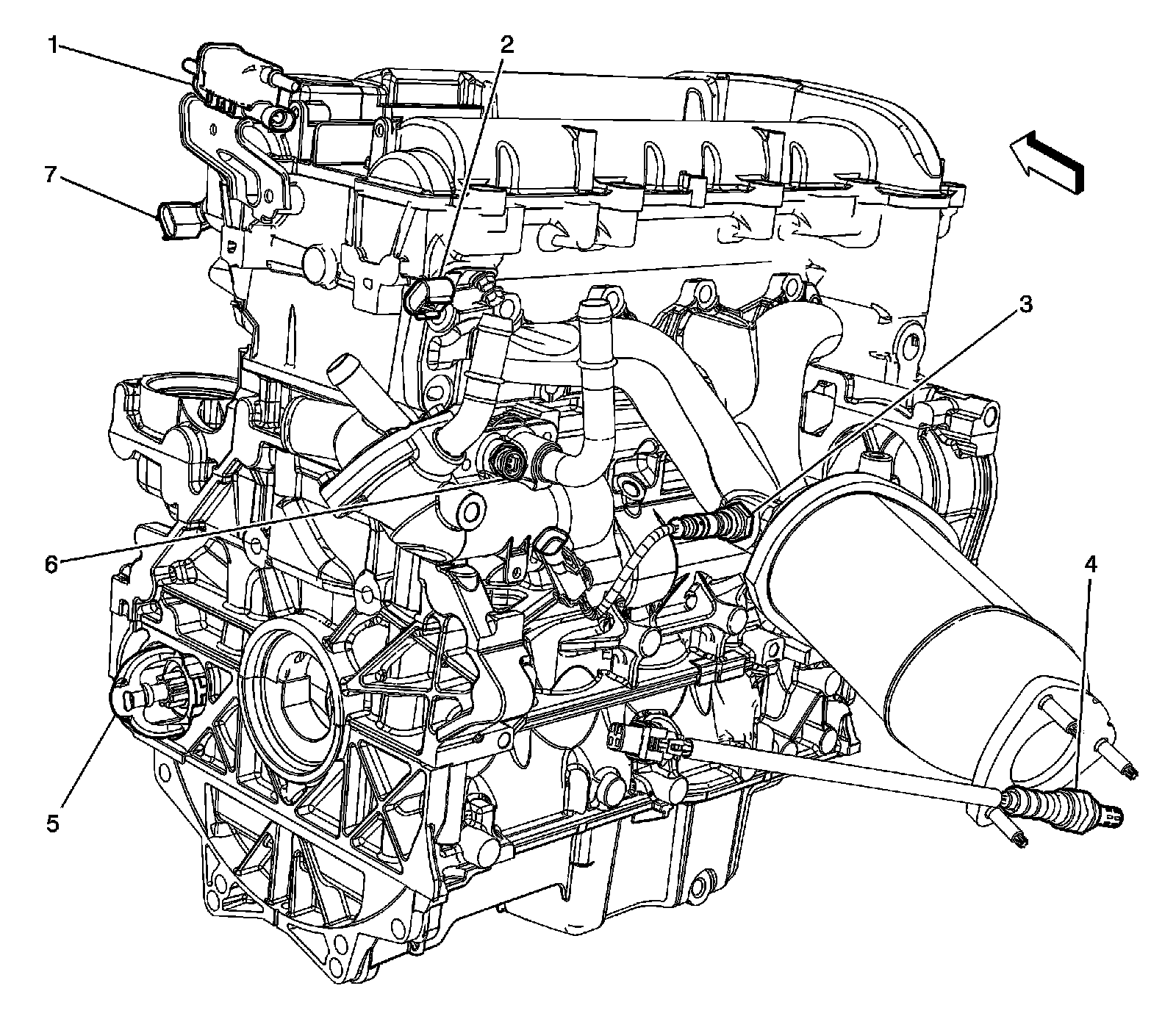

Rear of the Engine (LE5)




1 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
2 - Camshaft Position (CMP) Sensor - Exhaust
3 - Heated Oxygen Sensor (HO2S) 1
4 - Heated Oxygen Sensor (HO2S) 2
5 - Starter
6 - Engine Coolant Temperature (ECT) Sensor
7 - Camshaft Position (CMP) Sensor - Intake
