Fluid Pressure Sensor/Switch, A/T

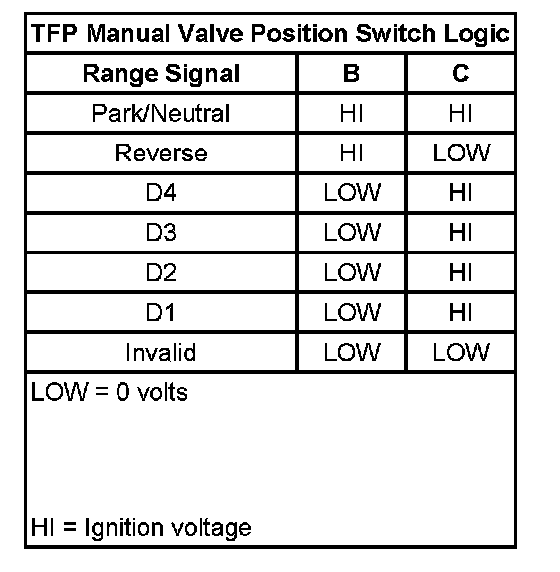

Transmission Fluid Pressure Manual Valve Position Switch Logic

Transmission Fluid Pressure Manual Valve Position Switch Logic:
