Transmission Internal Mode Switch Logic
Transmission Internal Mode Switch Logic

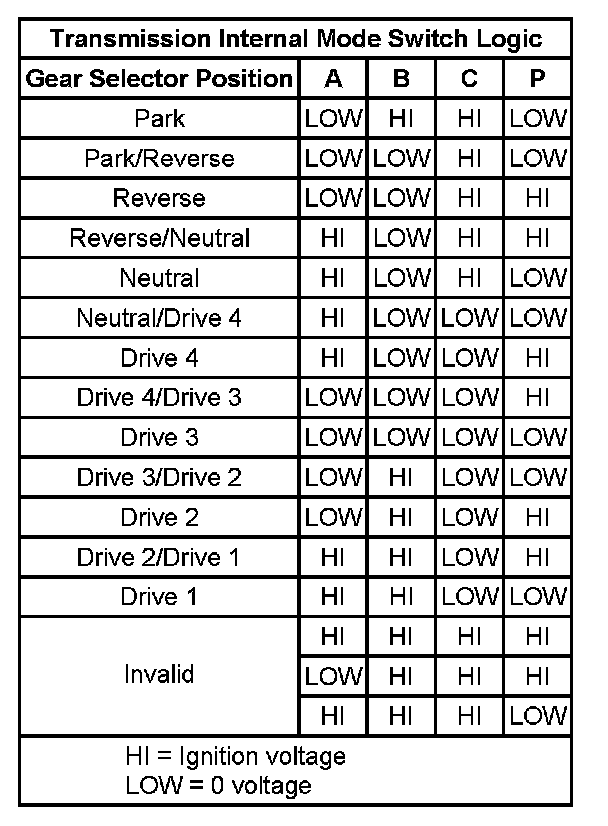

Transmission Internal Mode Switch Logic:
