Installation Procedure
Courtesy of GENERAL MOTORS CORP.
- Connect the electrical connector.

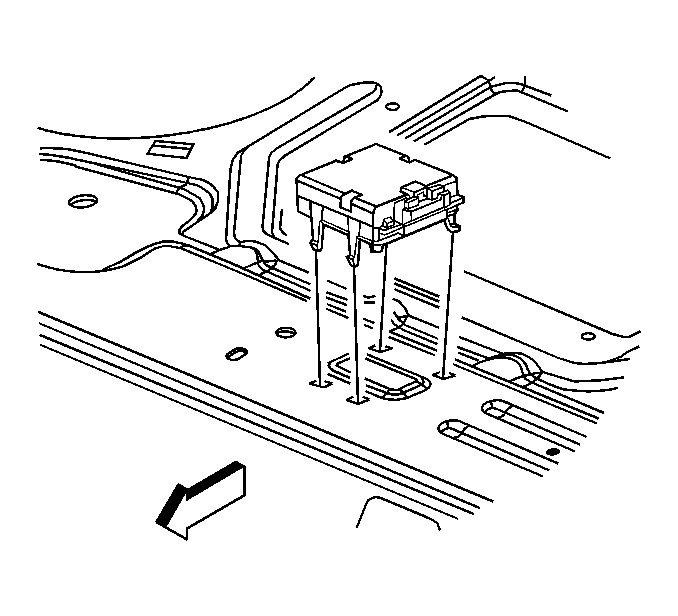

- Align the receiver retainer to the openings in the rear shelf. Install the receiver.
- Install the sound barrier.
- Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement
in Interior Trim.
- After replacement of the remote control door lock receiver, the transmitters will have to be programmed to the receiver. Refer to Transmitter Programming .
- Refer to Control Module References
for programming and setup information.
