Removal Procedure

    Fig 1: View Of Electrical Connector
    GM902859Courtesy of GENERAL MOTORS CORP.
  1. Remove the floor console. Refer to Front Floor Console Replacement .
  2. Disconnect the electrical connector.
    3. Fig 2: Pressing Traction Control Switch
    GM901526Courtesy of GENERAL MOTORS CORP.
  3. Disengage the retainers.

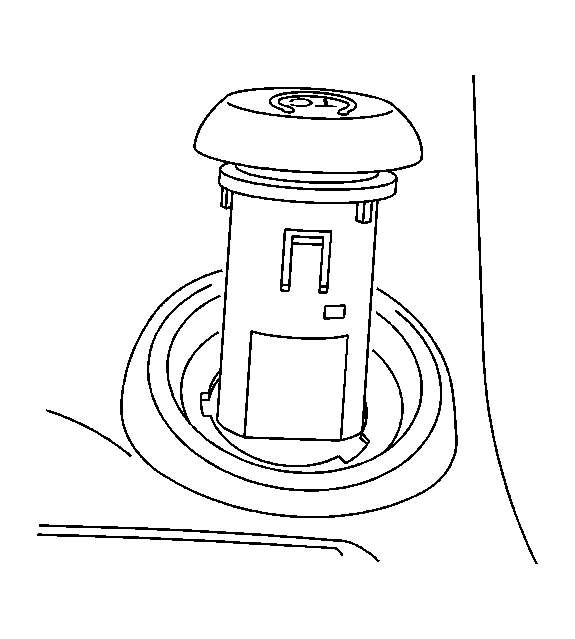

    4. Fig 3: View Of Traction Control Switch
    GM901518Courtesy of GENERAL MOTORS CORP.
  4. Press the switch from the bottom out the top of the floor console. Remove the traction control switch.
