Installation Procedure

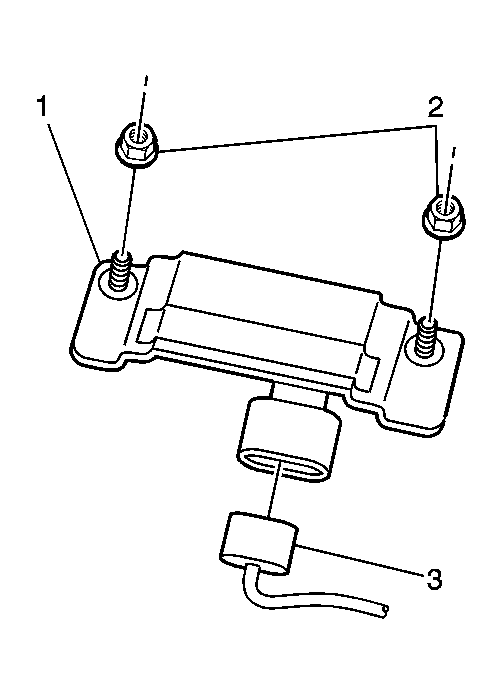

Fig 1: View Of Yaw Rate Sensor/Lateral Accelerometer & Mounting Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the 2 yaw rate sensor/lateral accelerometer nuts (2).
Tighten: Tighten the yaw rate sensor/lateral accelerometer mounting nuts to 6 N.m (53 lb in).

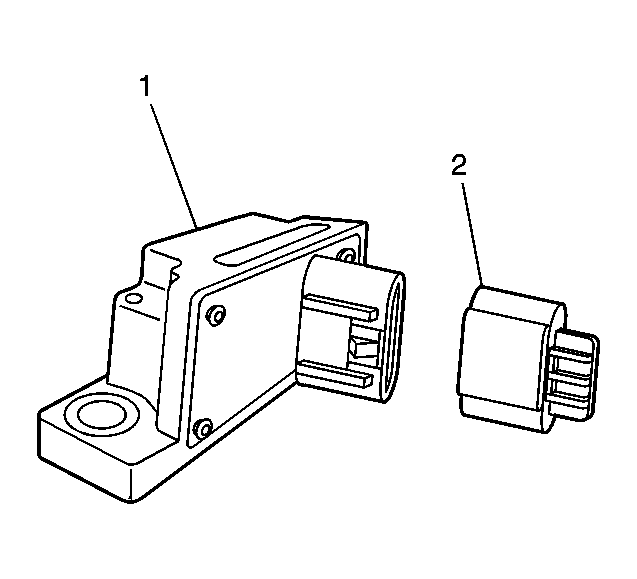

Fig 2: View Of Yaw Rate Sensor/Lateral Accelerometer & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the yaw rate sensor/lateral accelerometer electrical connector (2) to the yaw rate sensor/lateral accelerometer (1).
Install the front floor center console. Refer to Front Floor Console Replacement .
Perform the ABS Diagnostic System Check. Refer to Diagnostic Starting Point - Antilock Brake System .
