Antilock Brake System Schematics

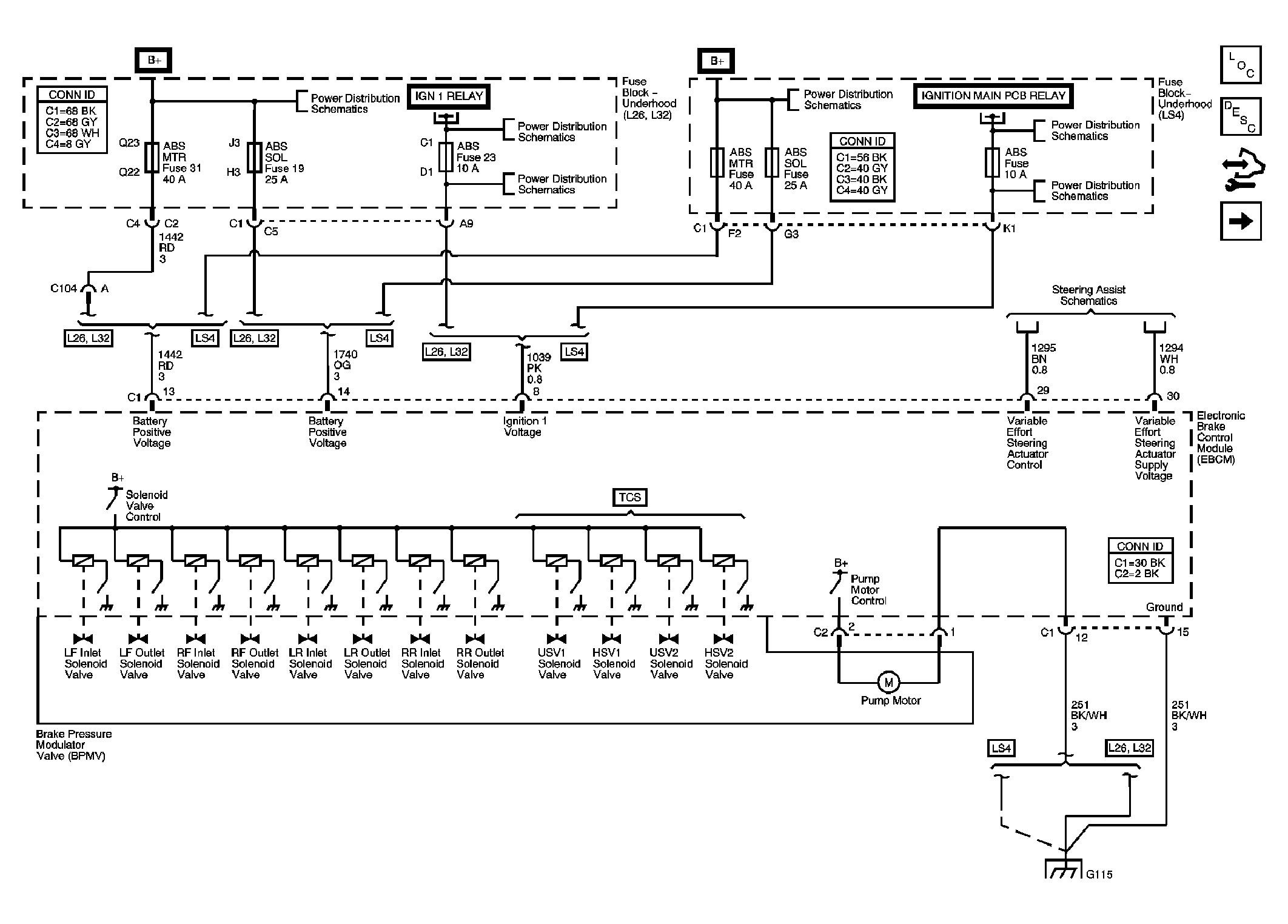

Fig 1: Power, Ground and Brake Pressure Modulator Valves

Courtesy of GENERAL MOTORS CORP.

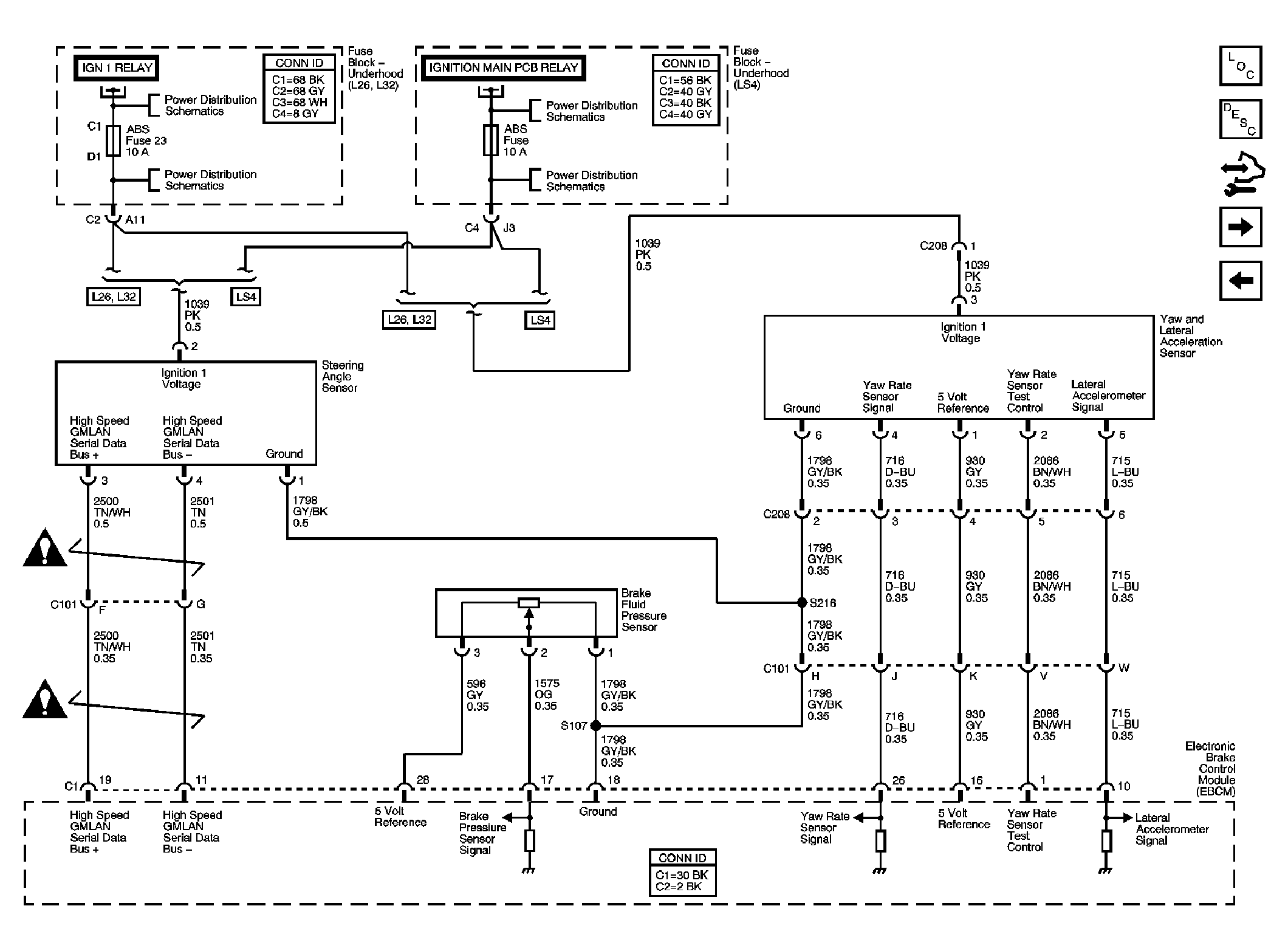

Fig 2: Indicators, ABS, Stability and Traction Controls

Courtesy of GENERAL MOTORS CORP.

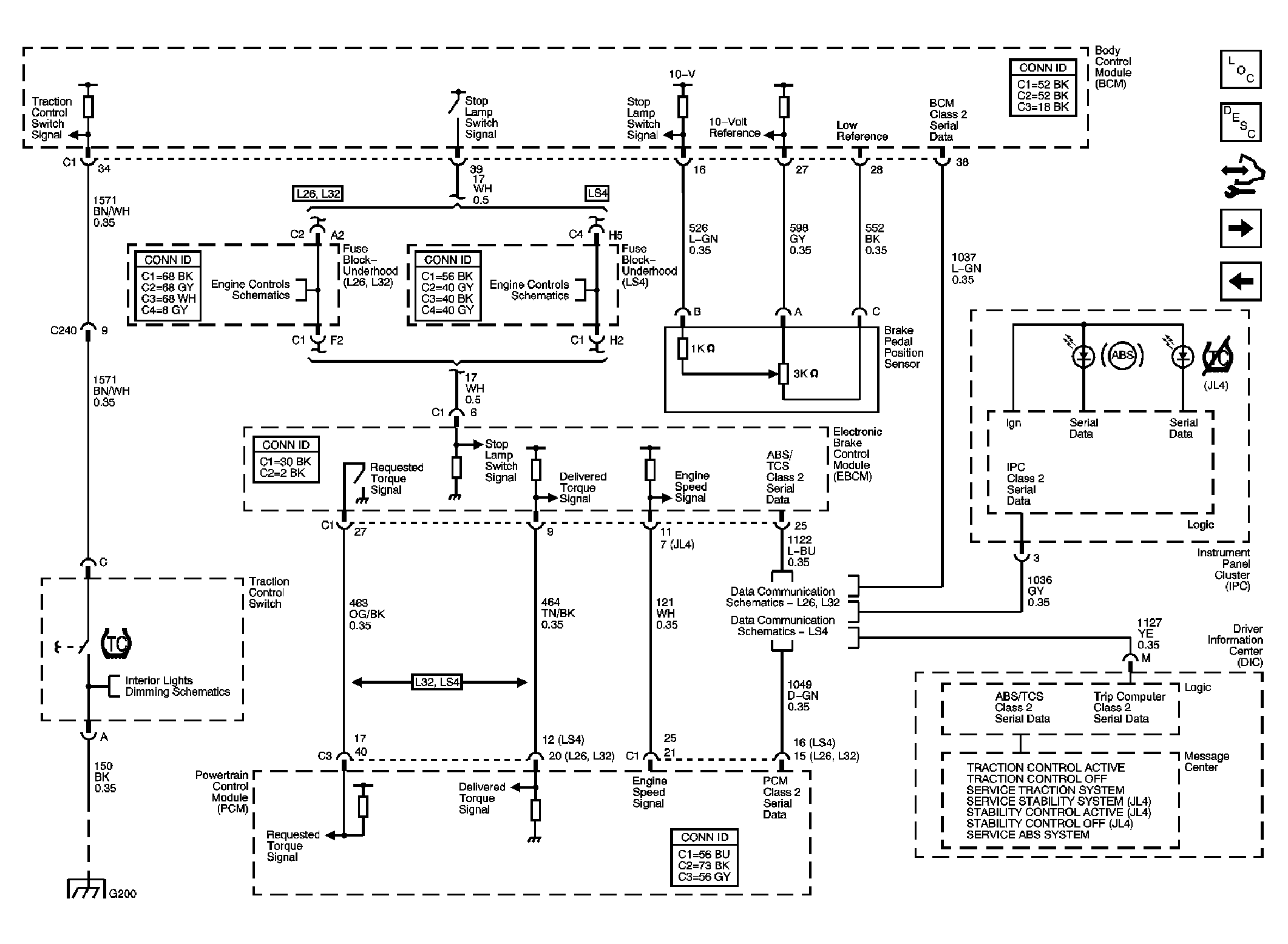

Fig 3: Stability Control Sensors - JL4

Courtesy of GENERAL MOTORS CORP.

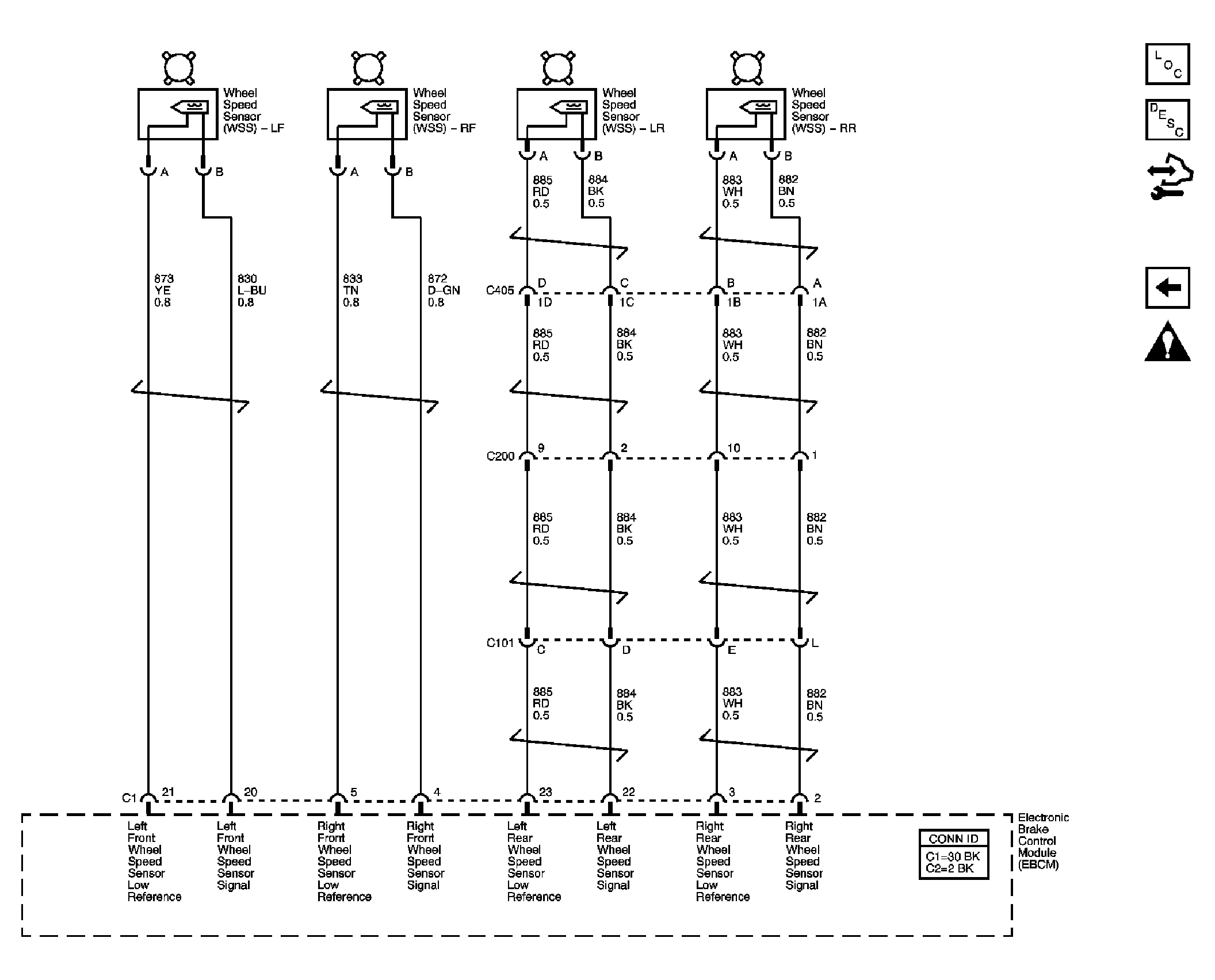

Fig 4: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
