Component Location Graphics
NOTE:
Figures may show multI/Ple component locations. Refer to appropriate table for proper figure references.

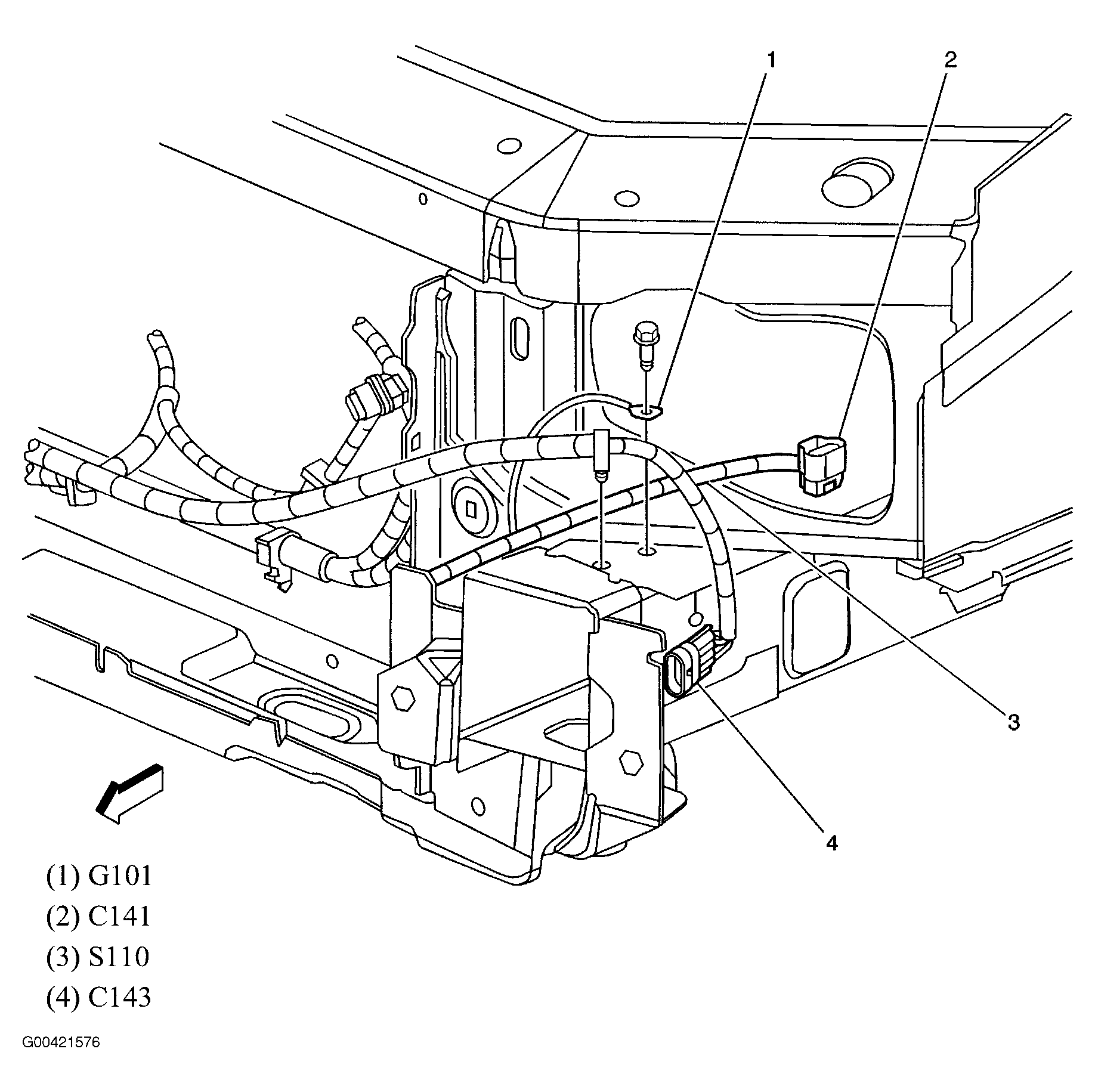

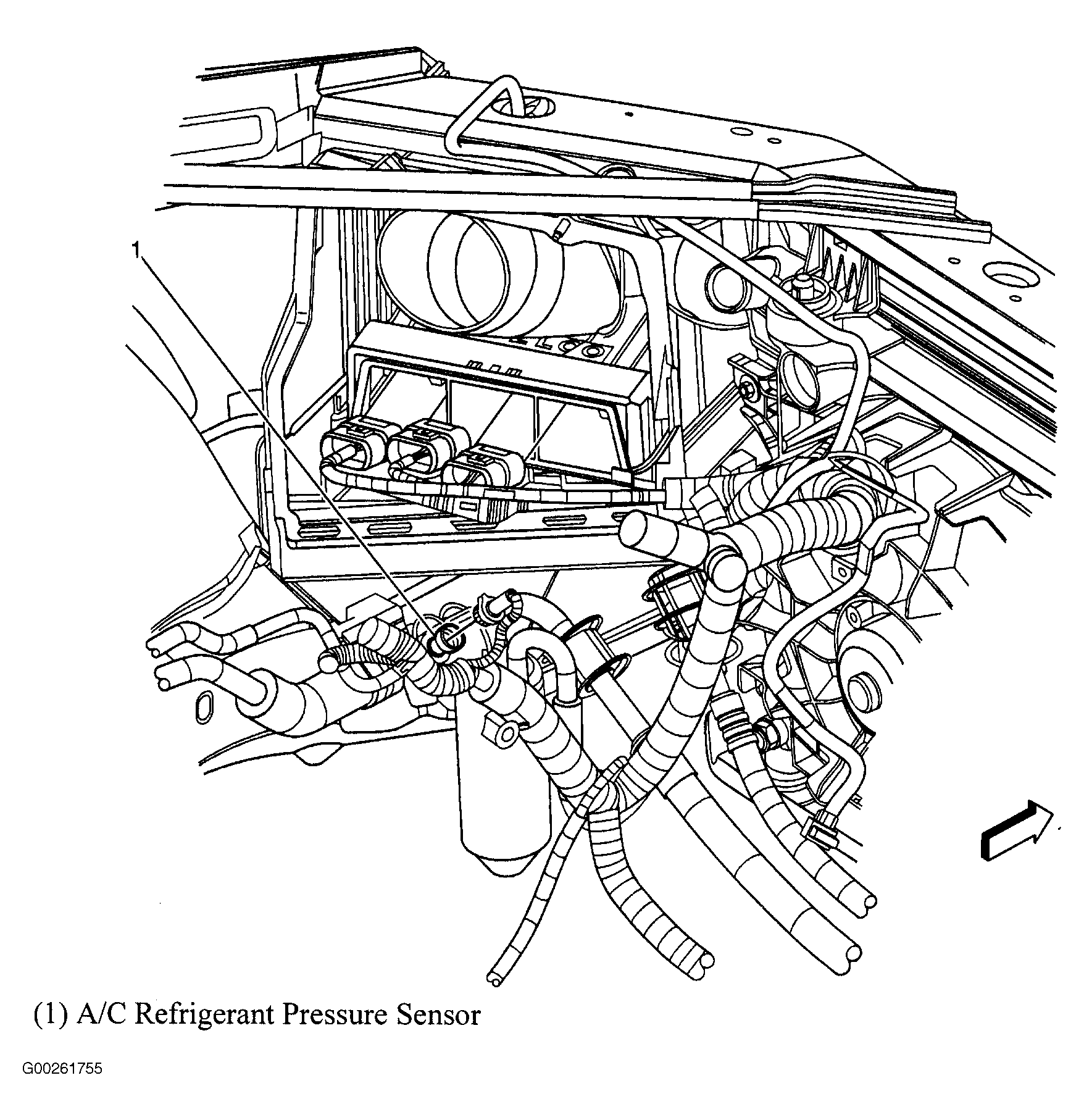

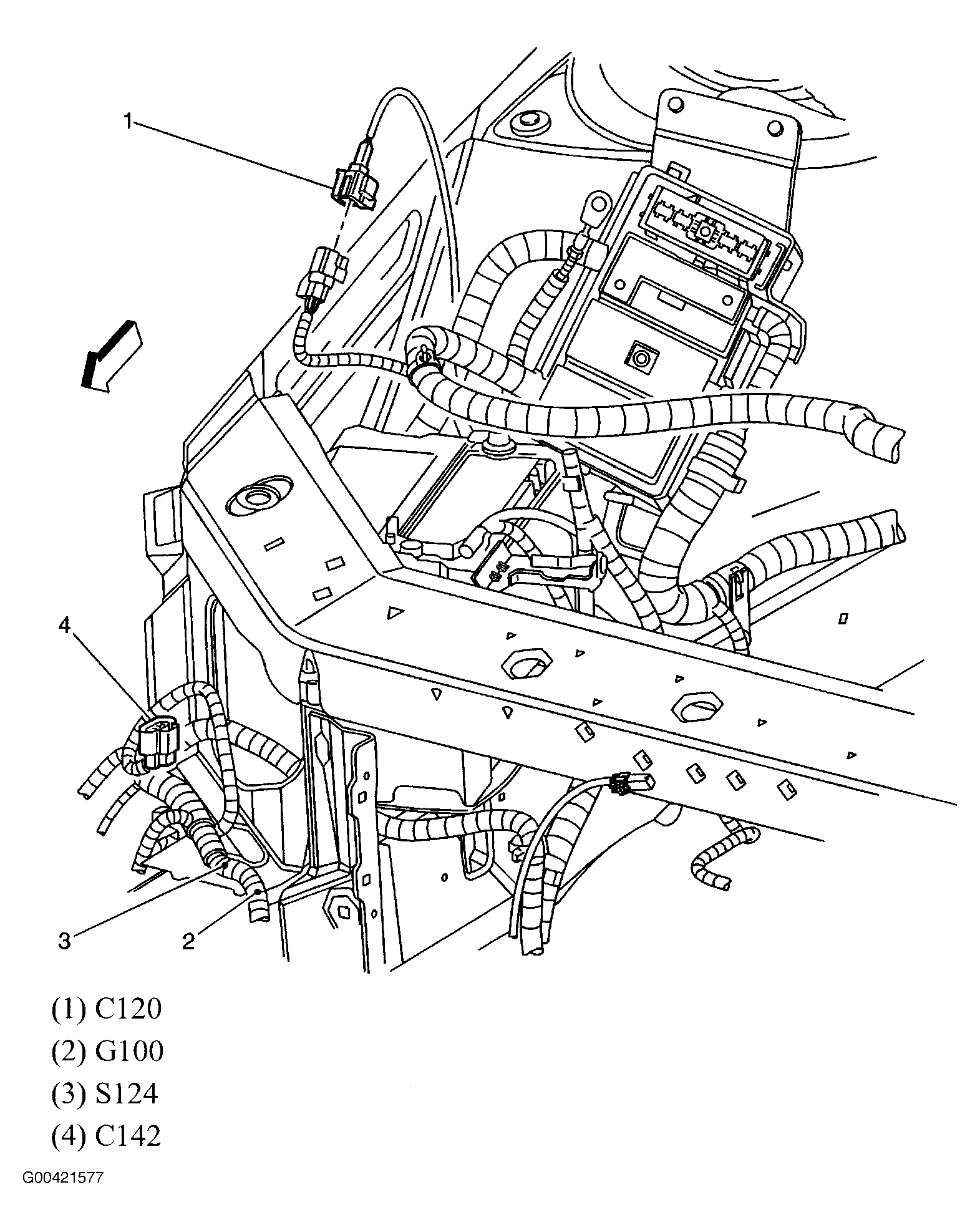

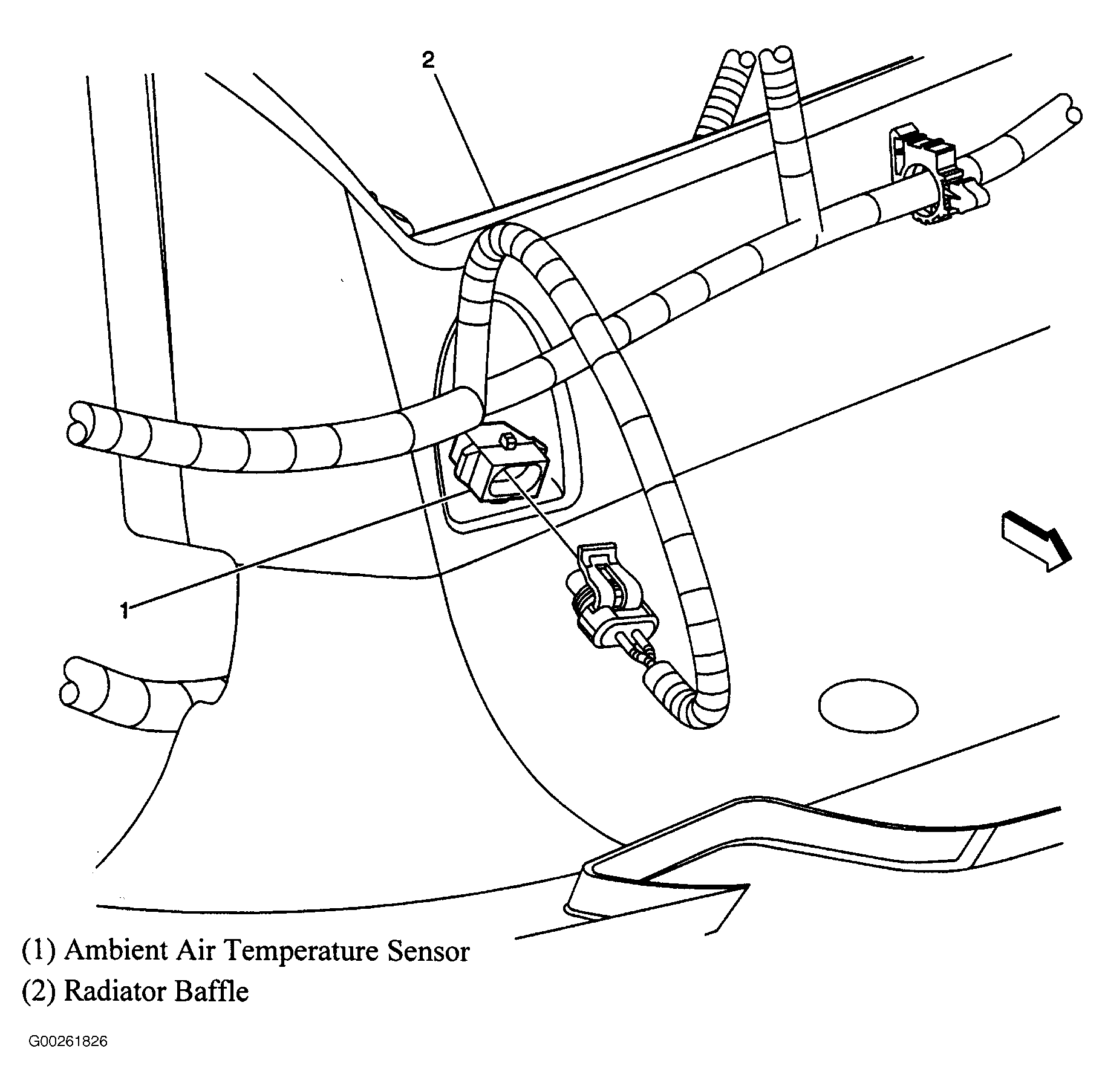

Fig 1: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

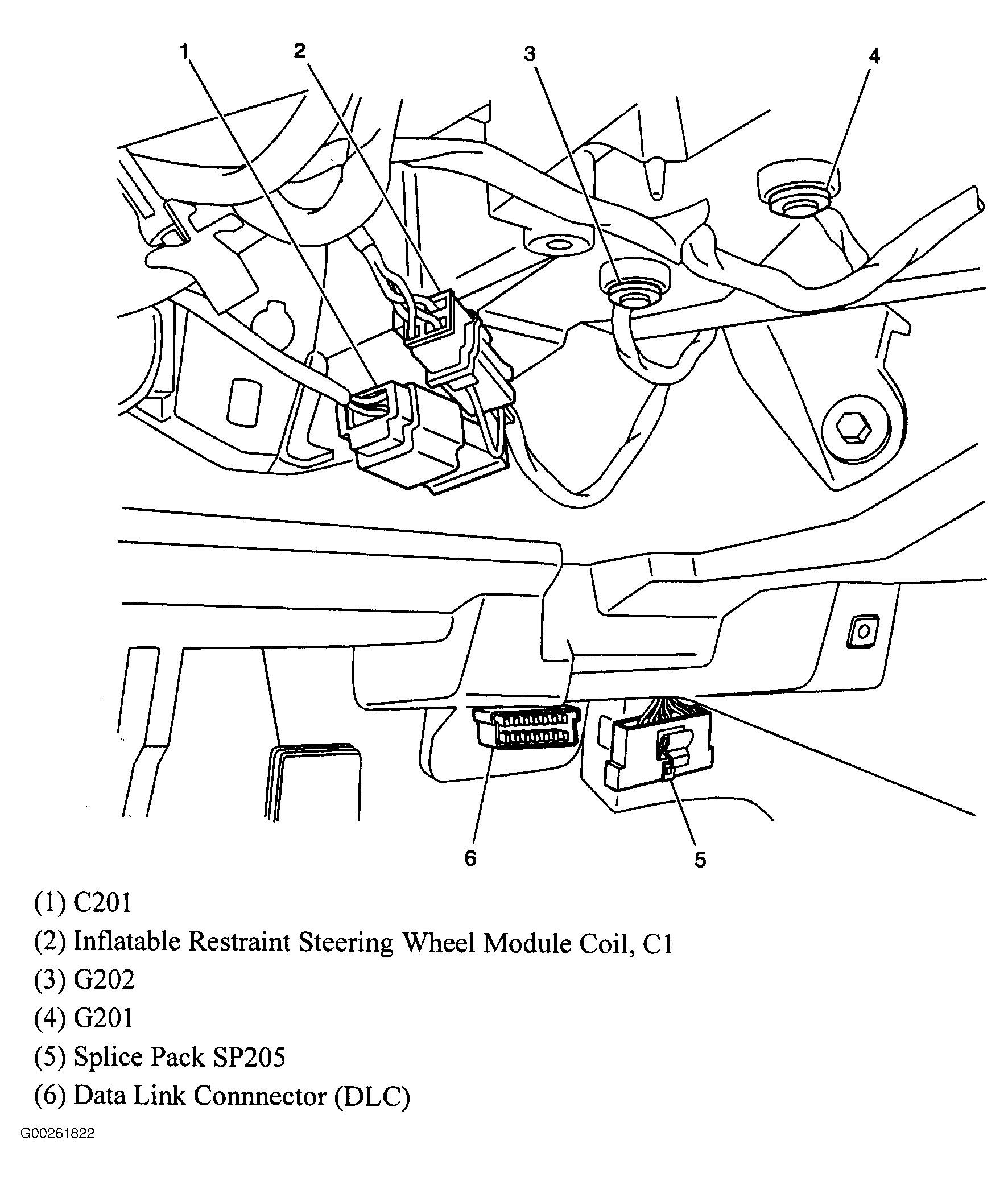

Fig 2: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

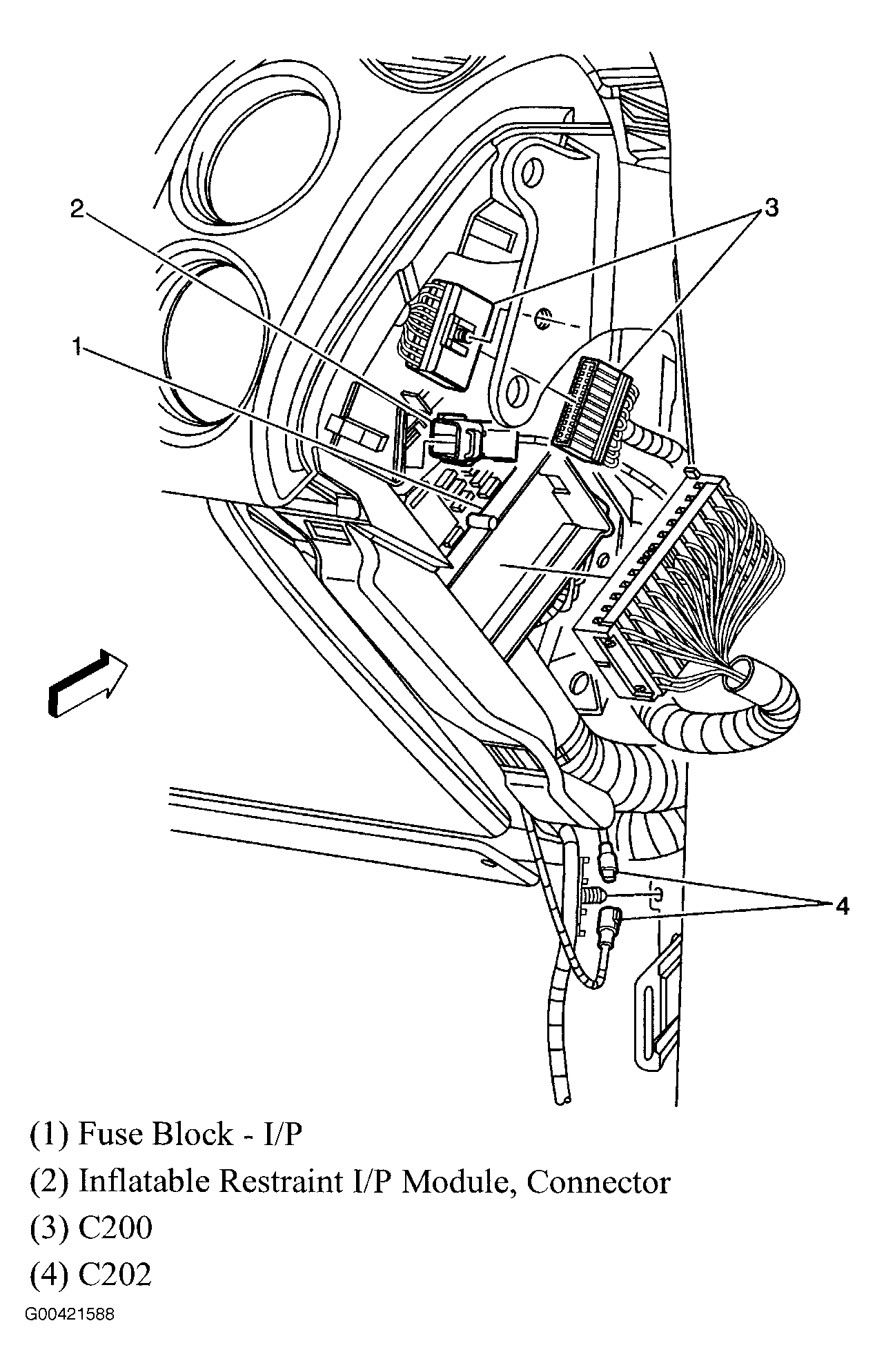

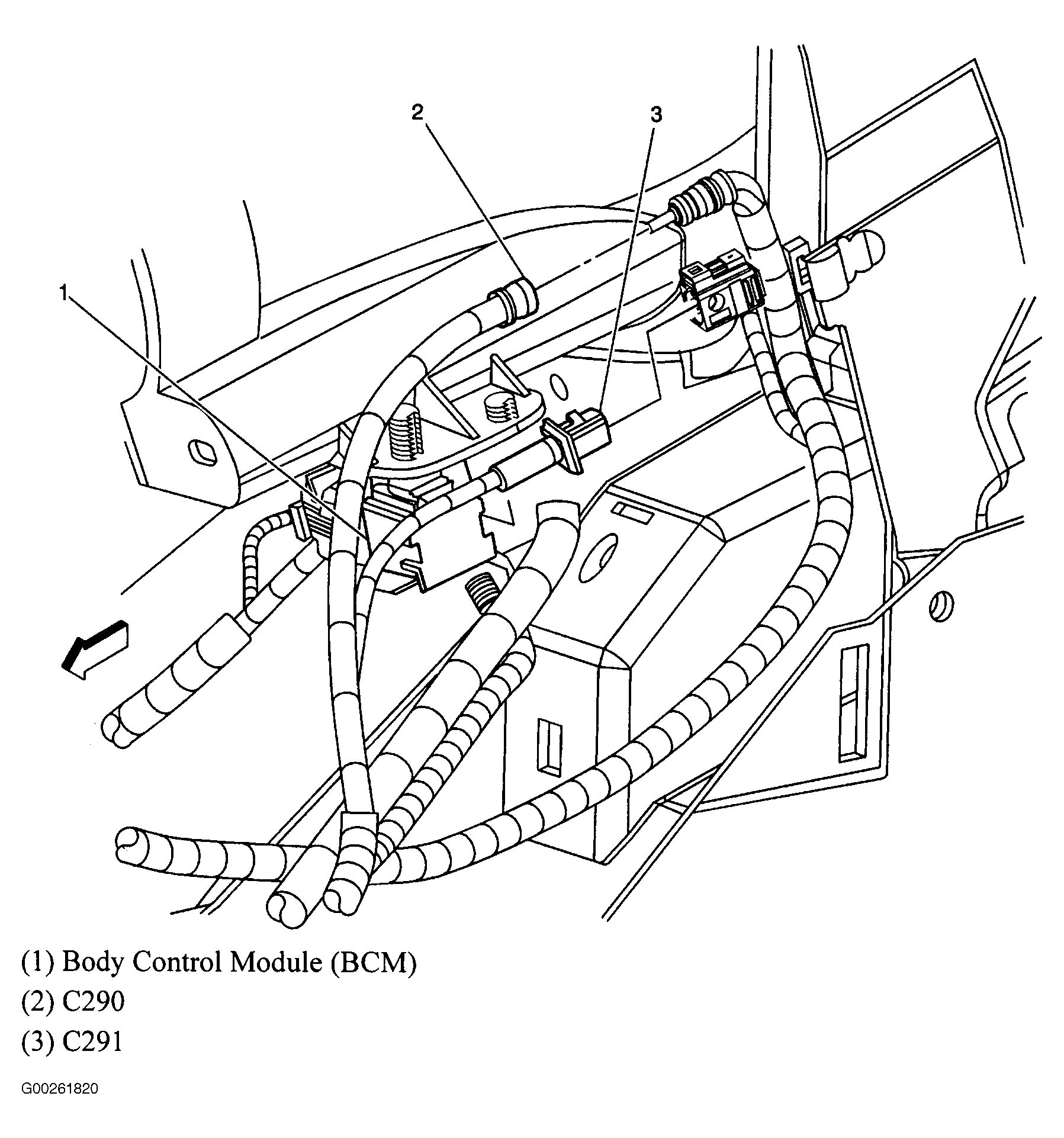

Fig 3: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

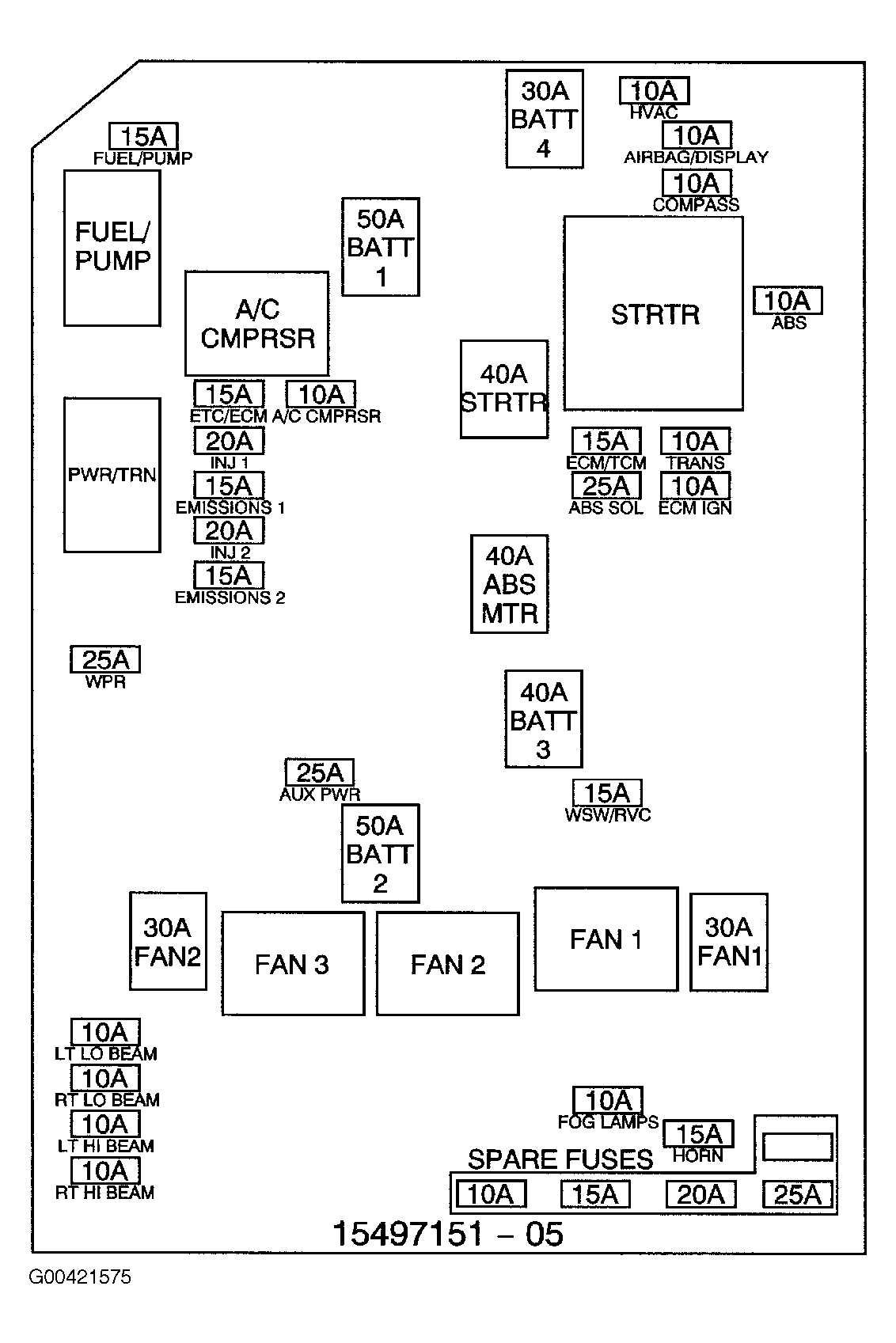

Fig 4: Underhood Fuse Block (3.8L)
Courtesy of GENERAL MOTORS CORP.

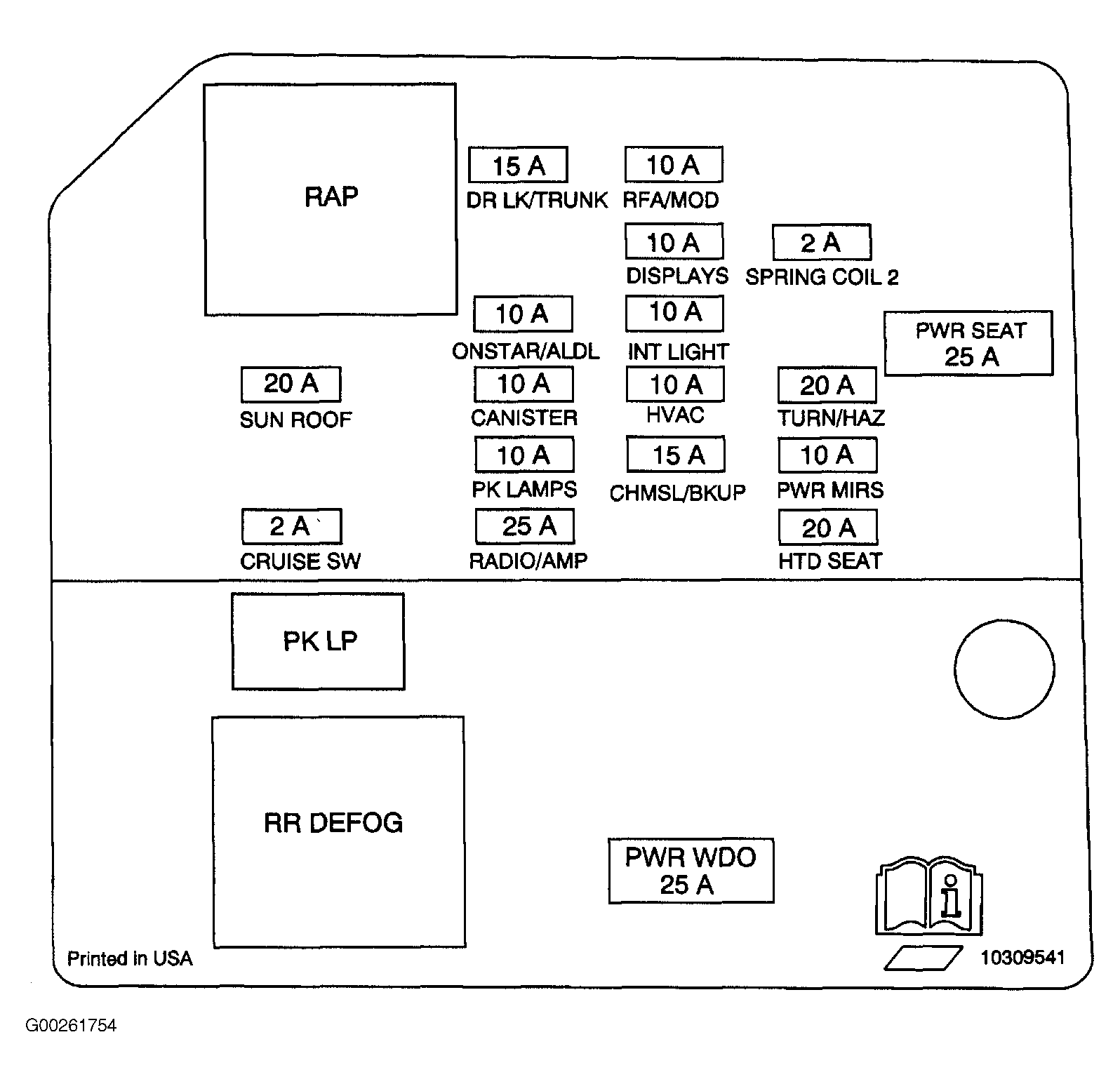

Fig 5: Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

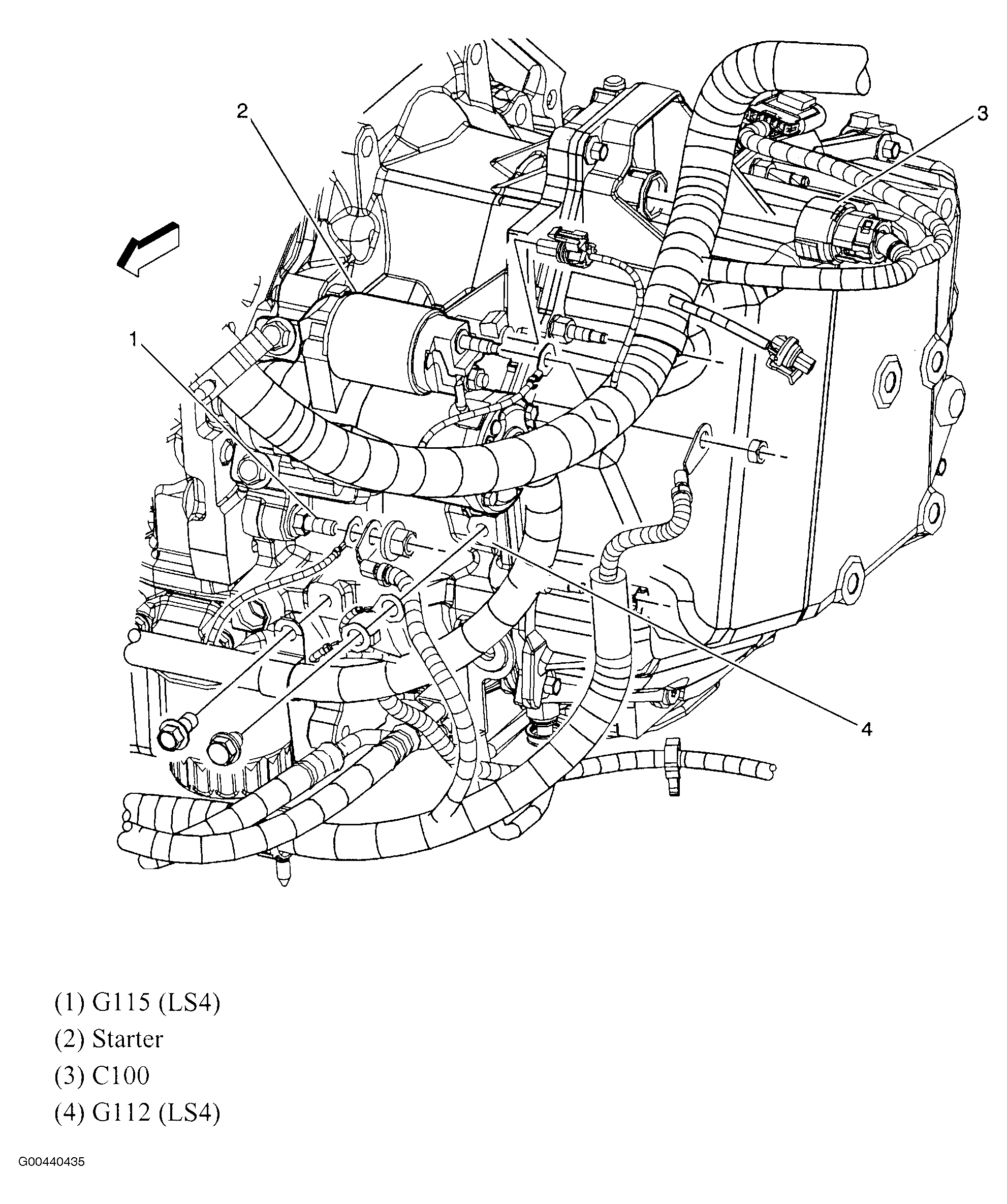

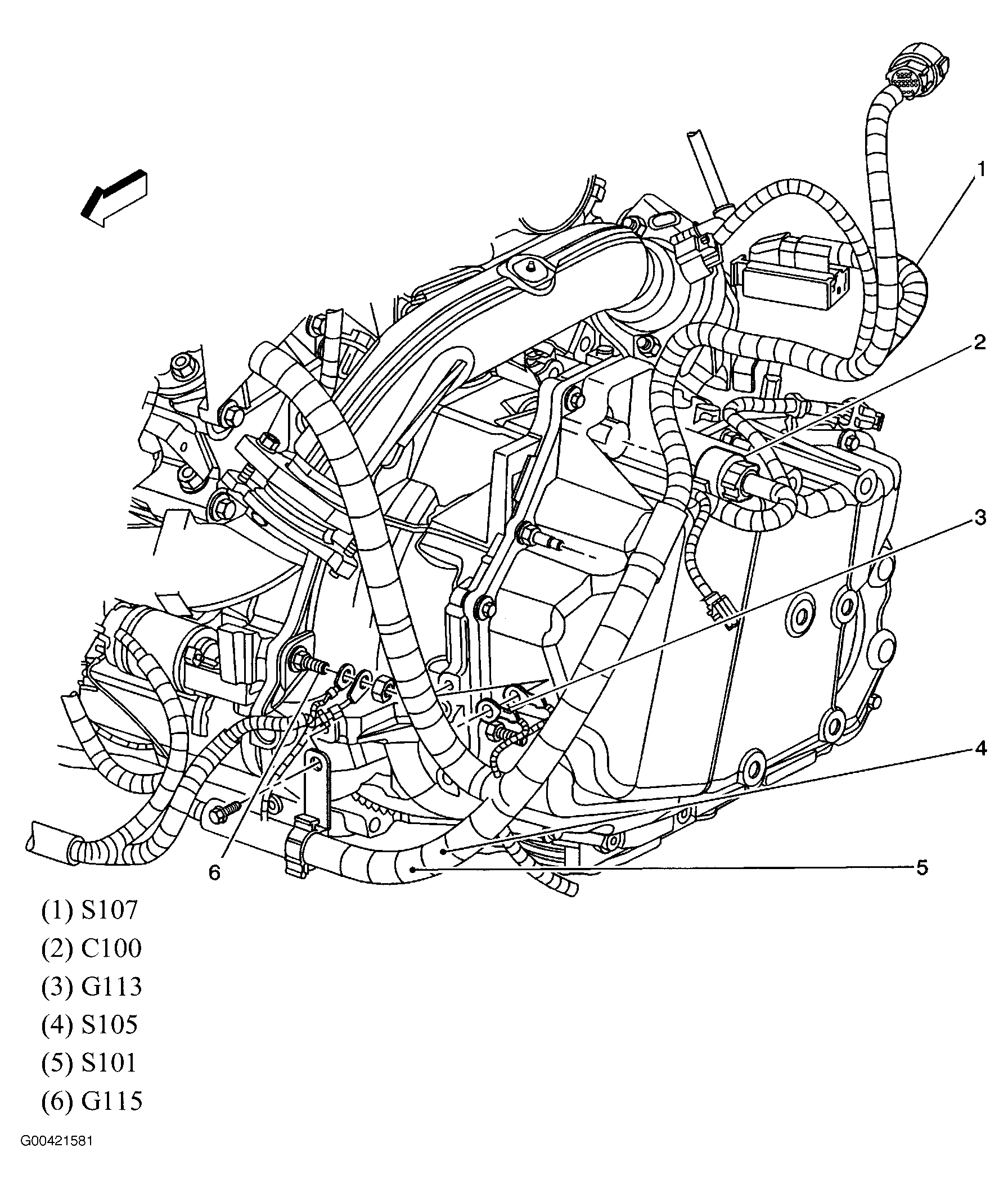

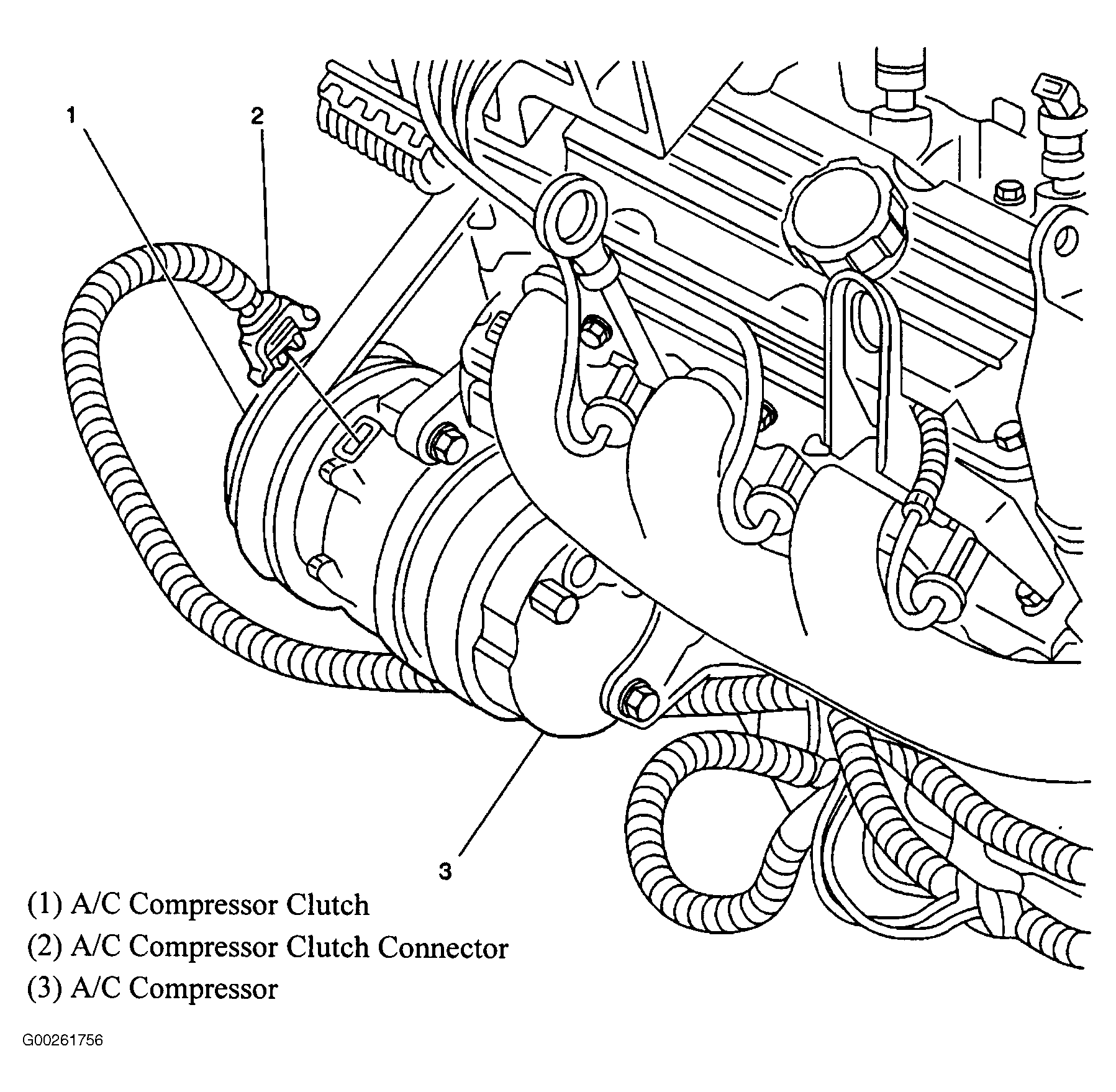

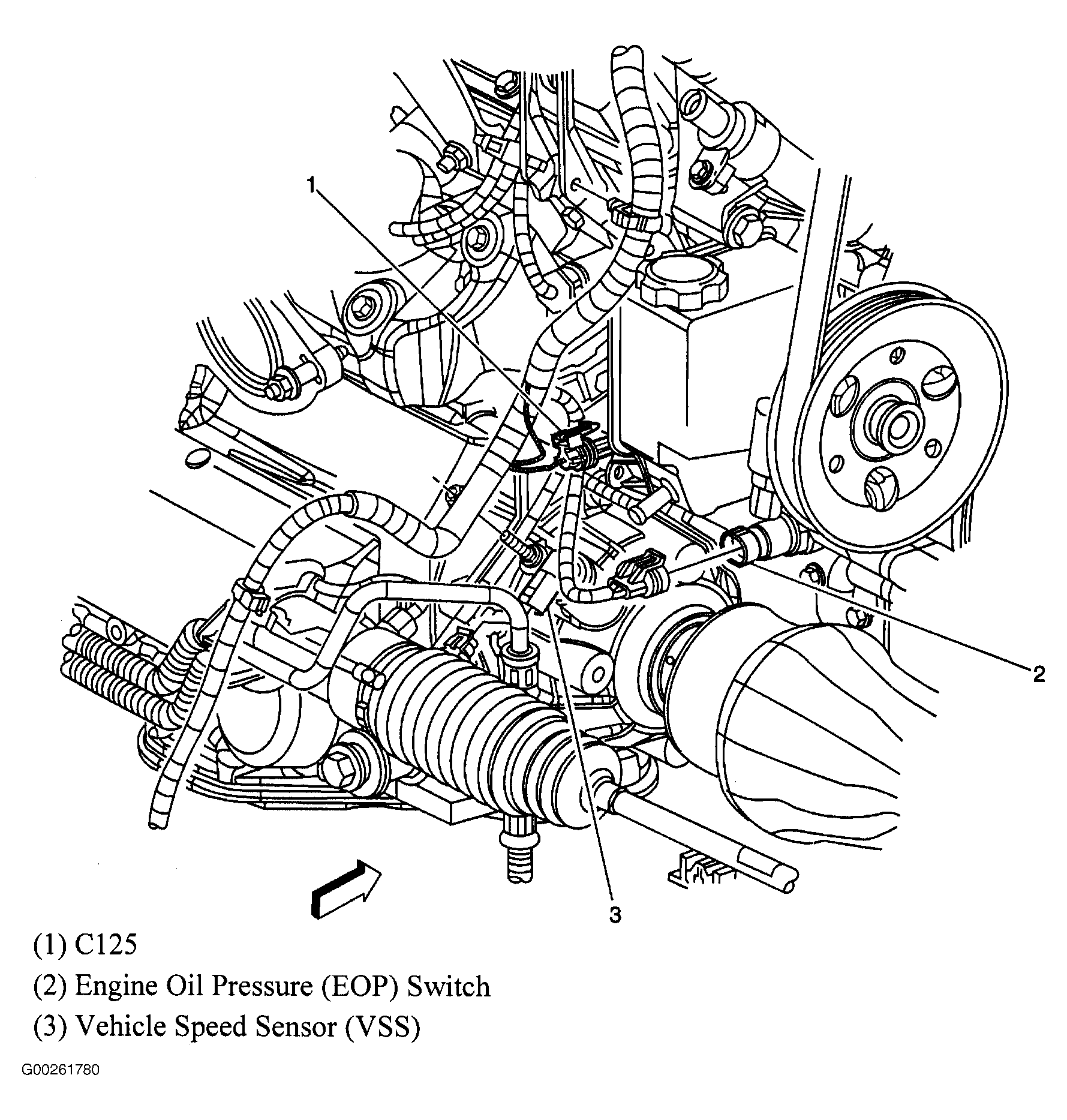

Fig 7: Lower Left Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

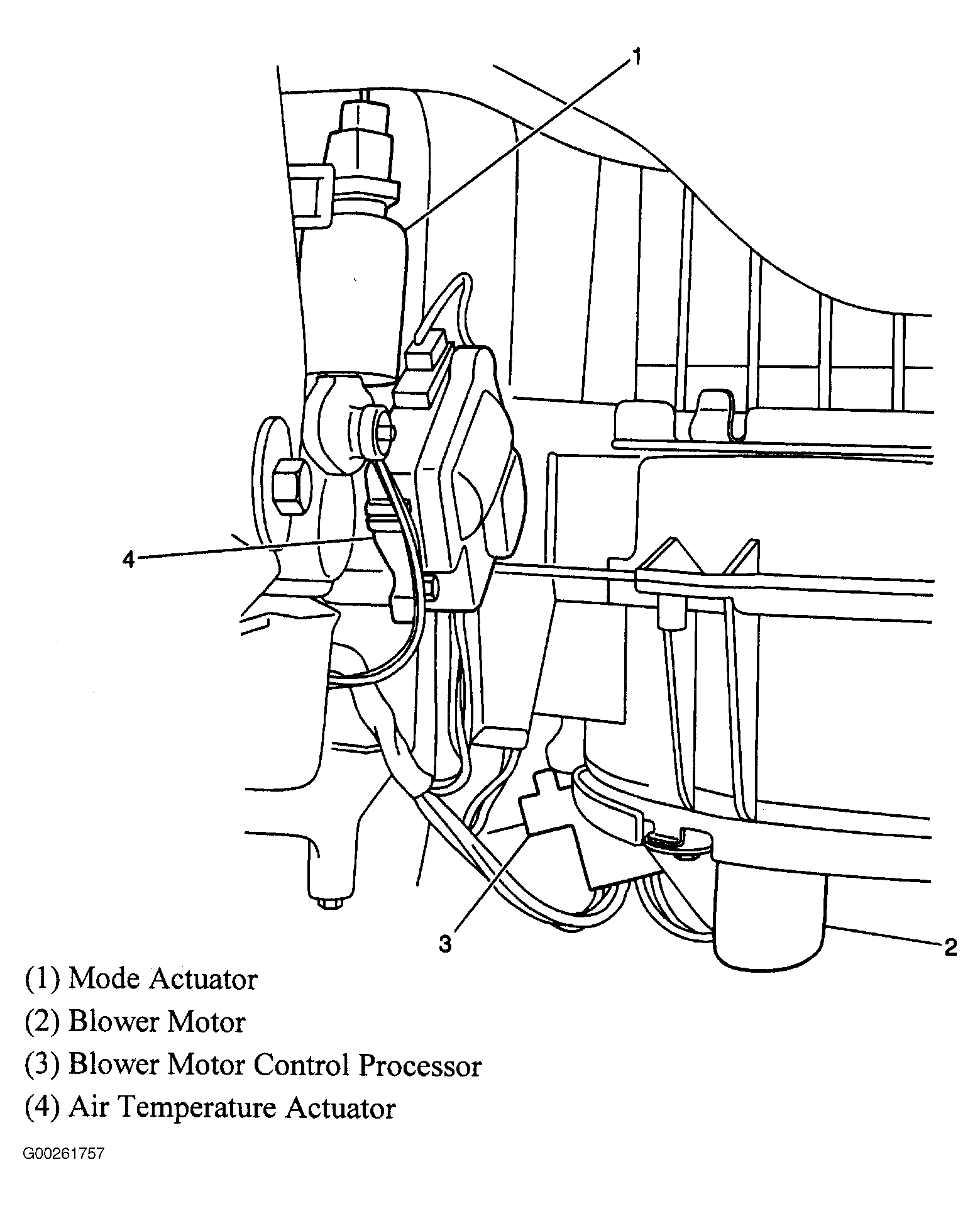

Fig 8: Lower Right Of Dash
Courtesy of GENERAL MOTORS CORP.

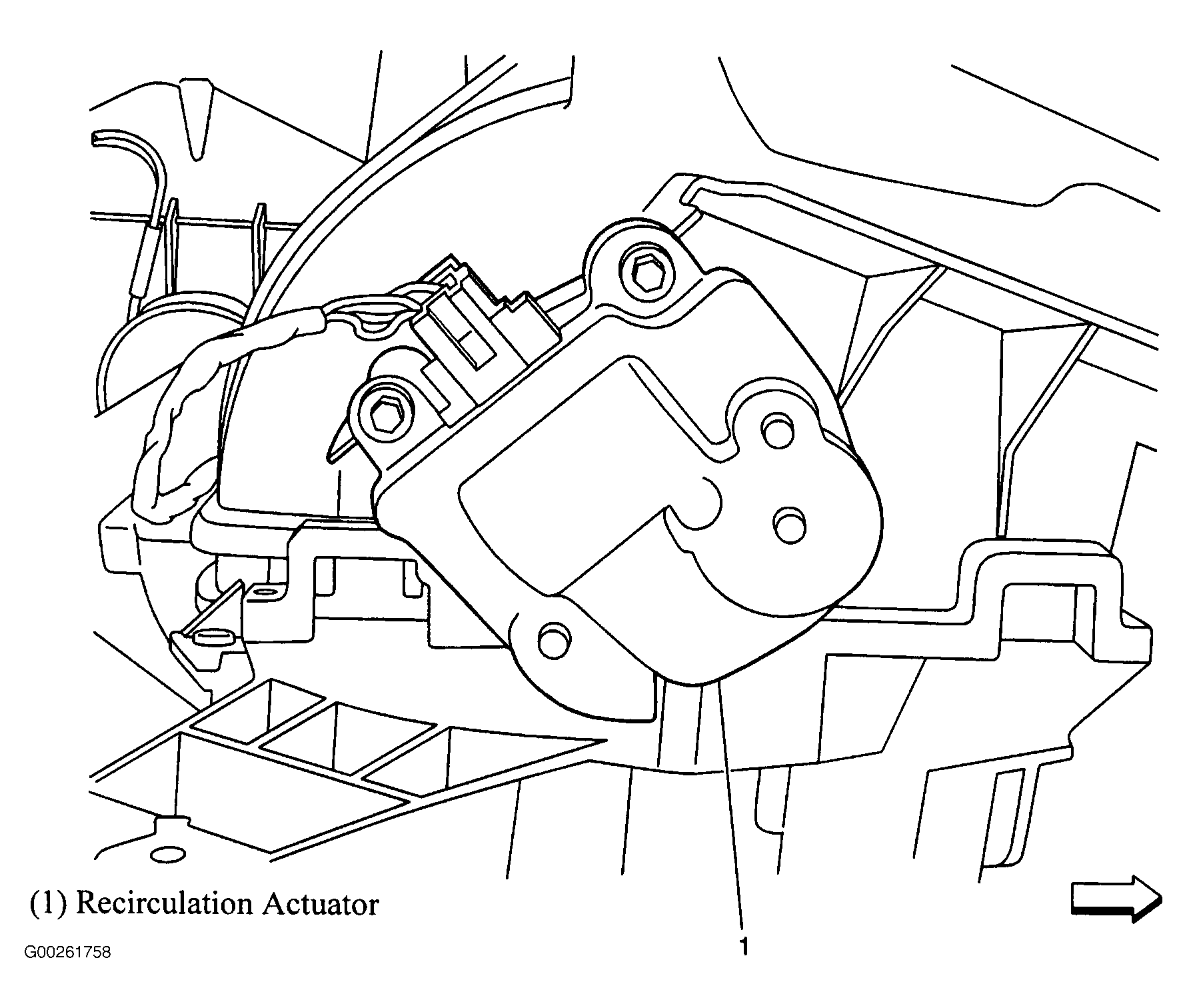

Fig 9: Right Footwell
Courtesy of GENERAL MOTORS CORP.

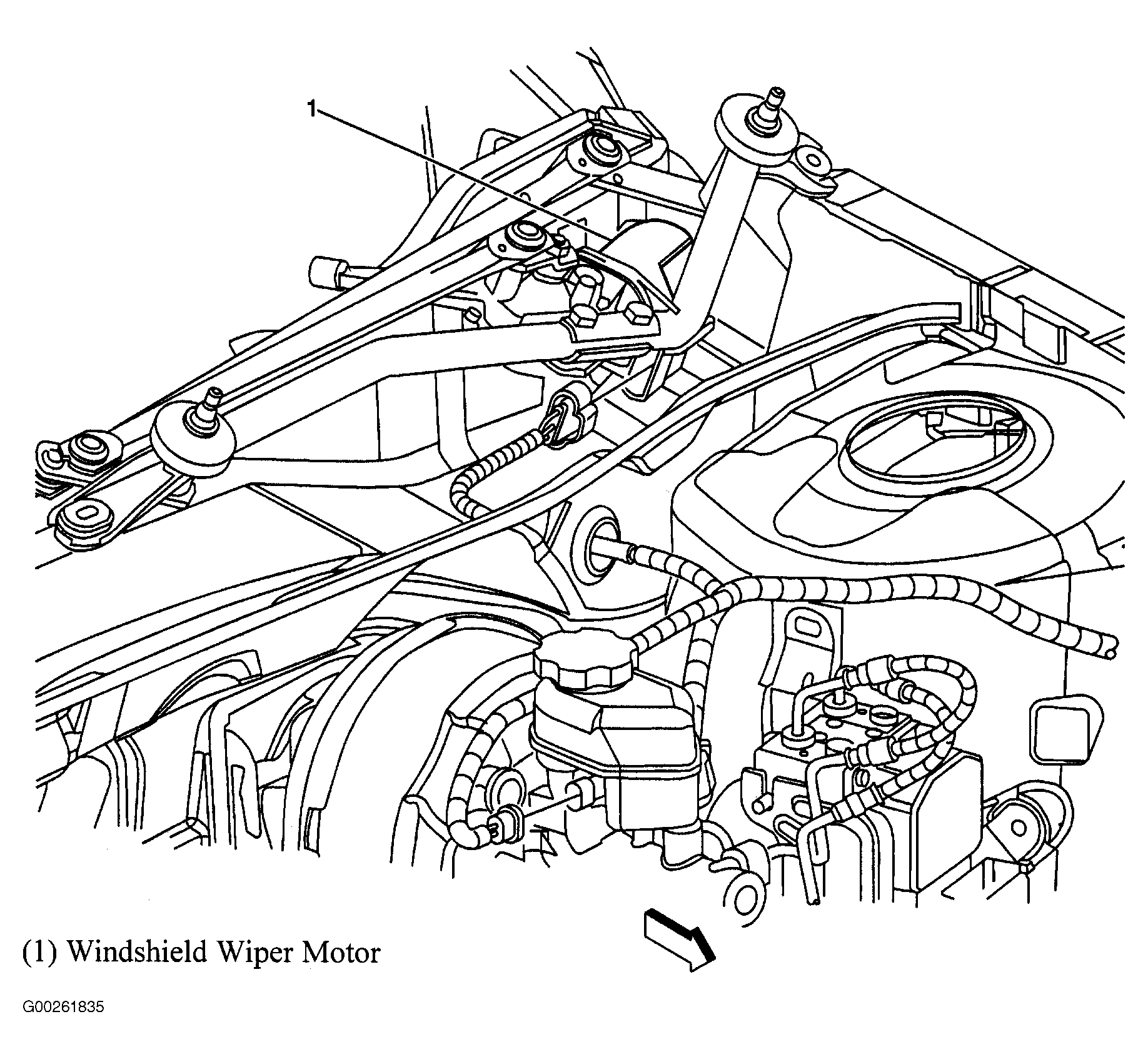

Fig 10: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

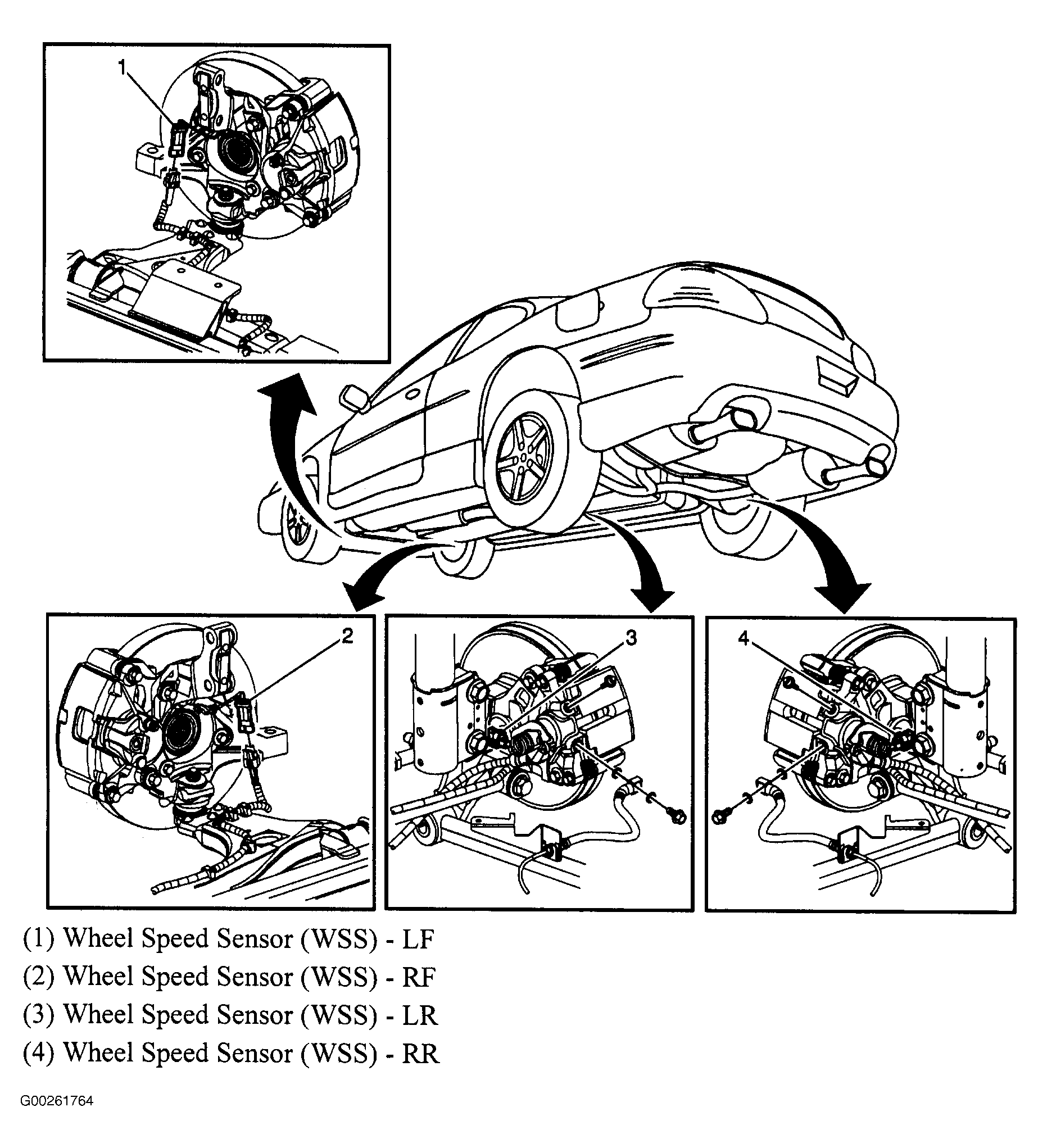

Fig 12: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 13: Steering Column Assembly (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Steering Column Assembly (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

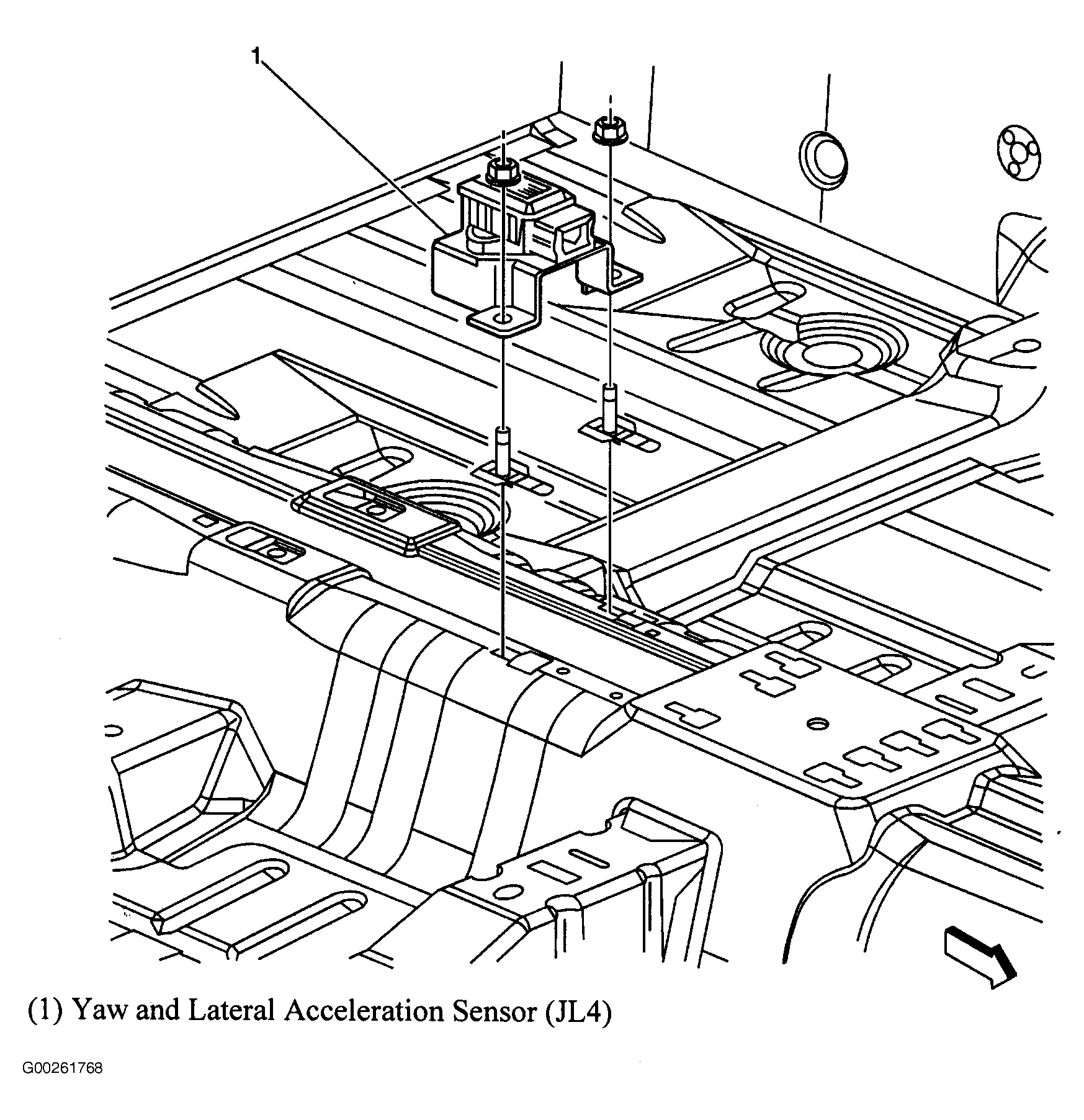

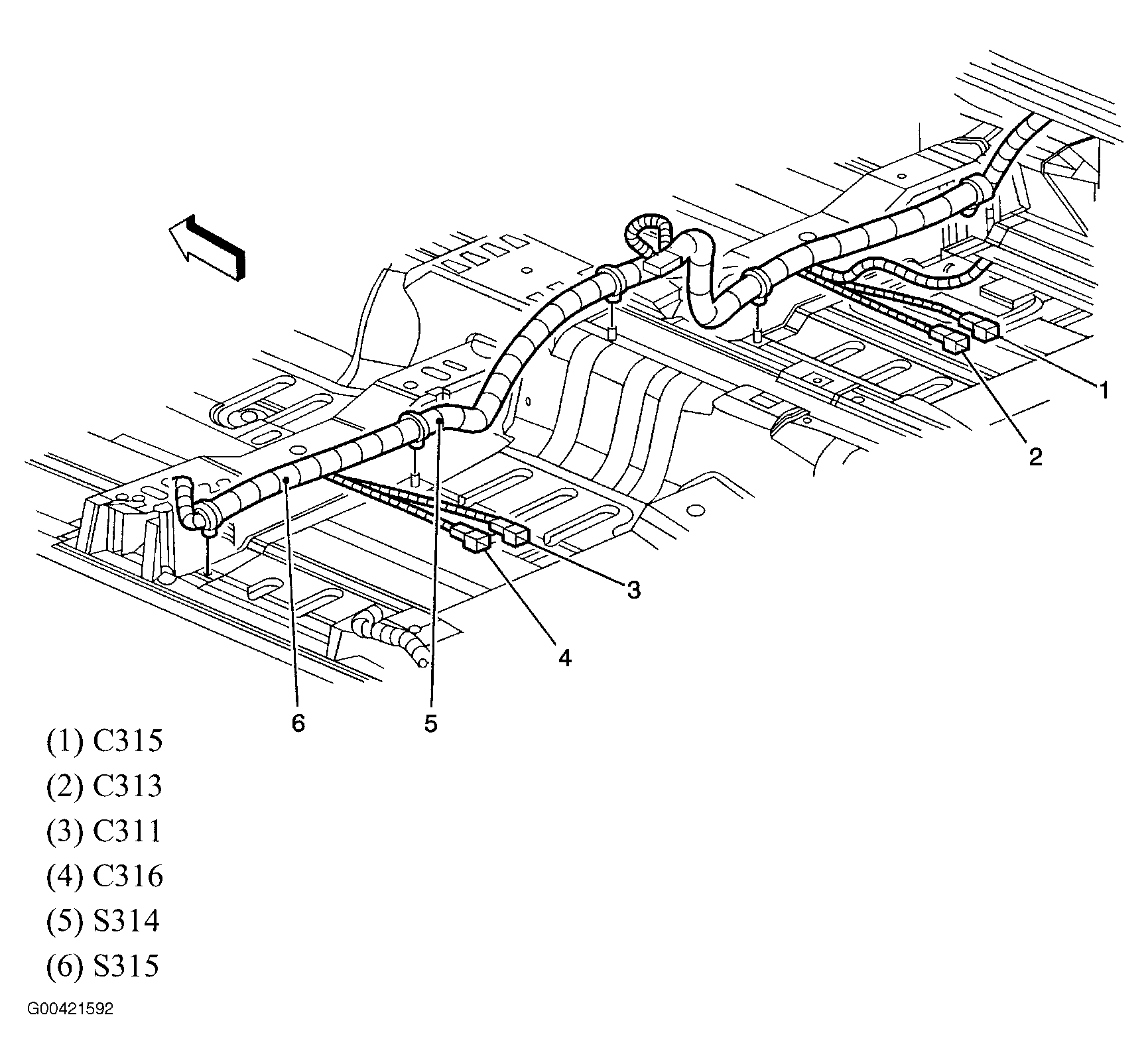

Fig 15: Under Floor Console
Courtesy of GENERAL MOTORS CORP.

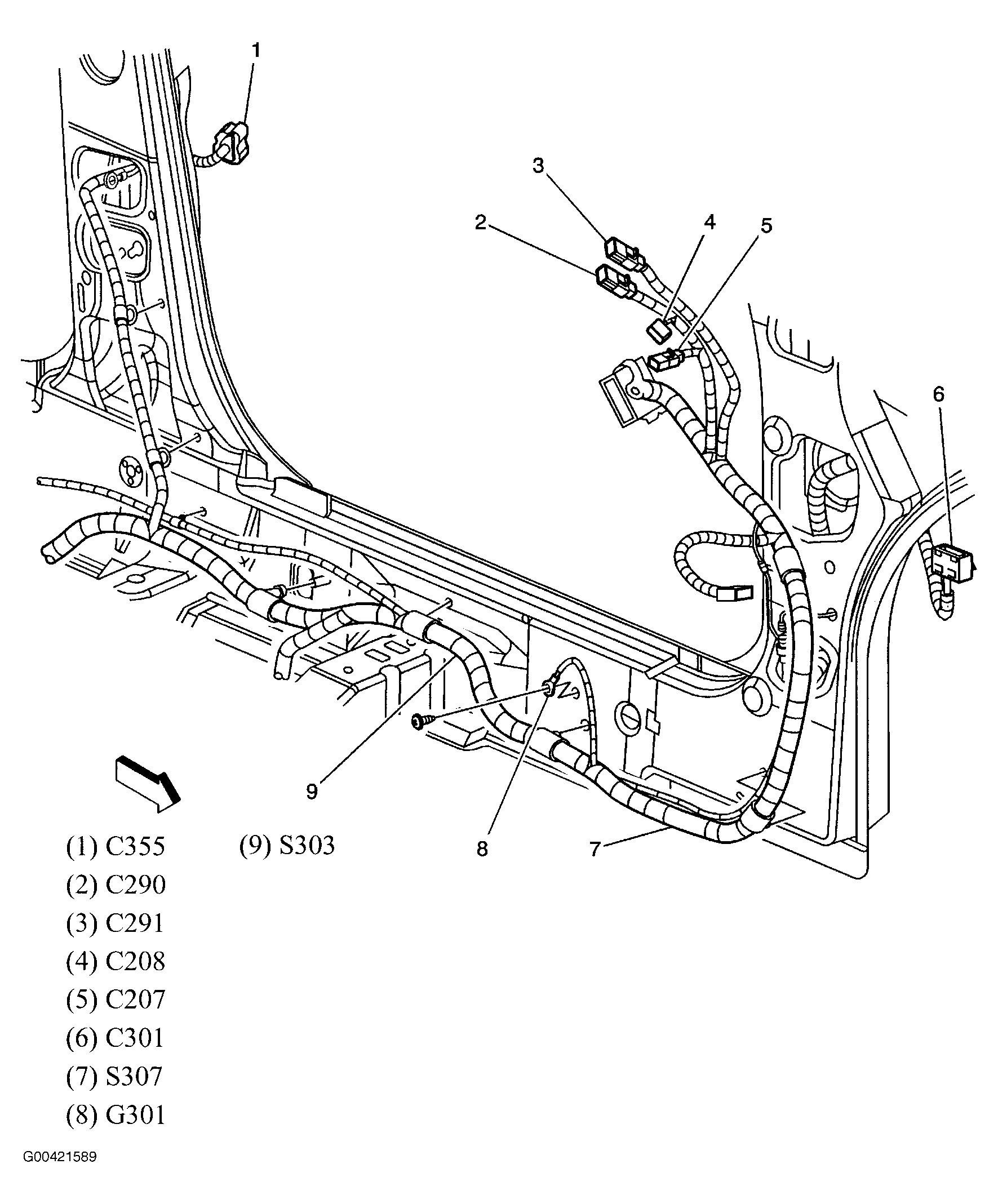

Fig 16: Left Rear Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

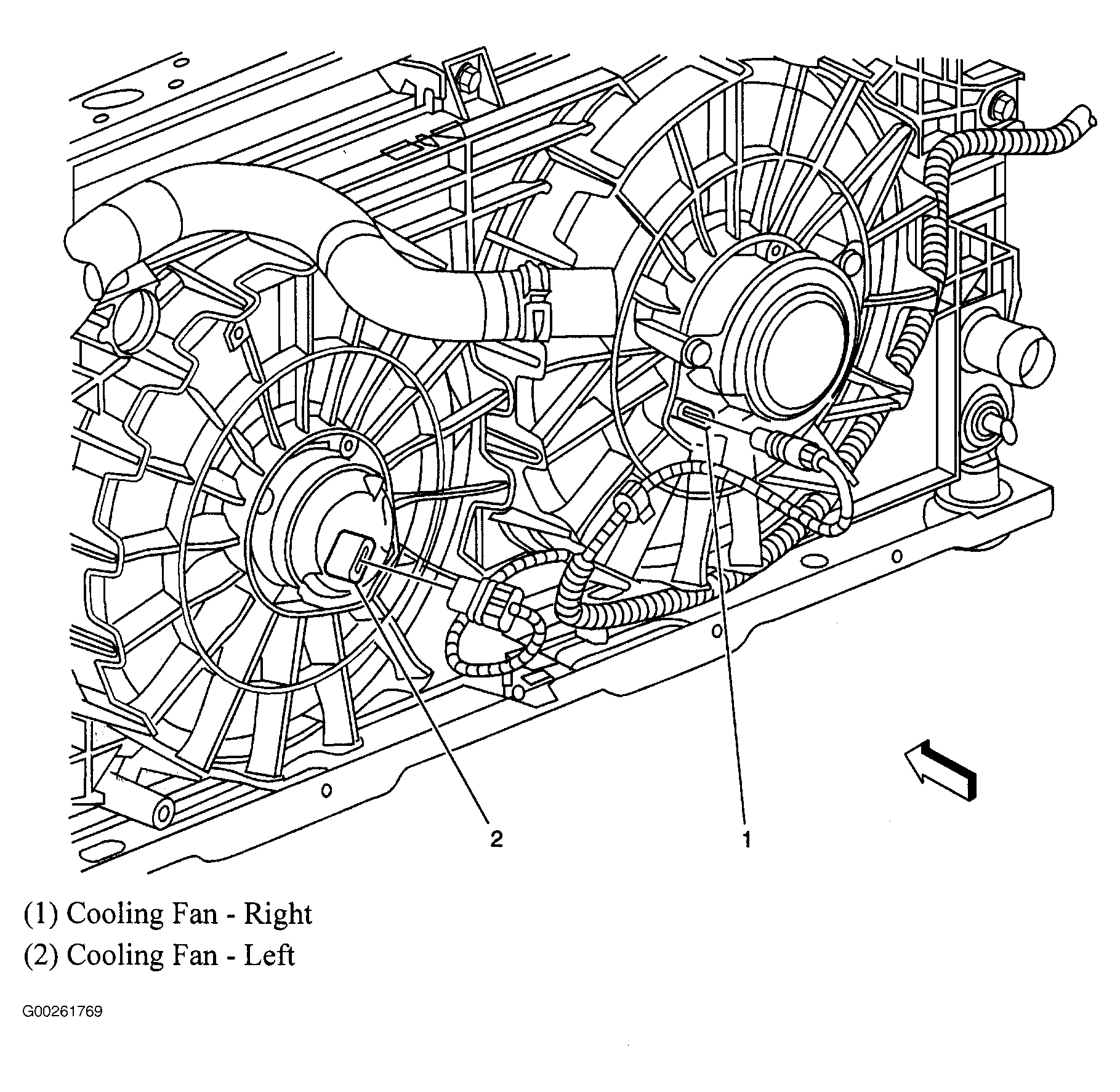

Fig 17: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 18: Upper Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

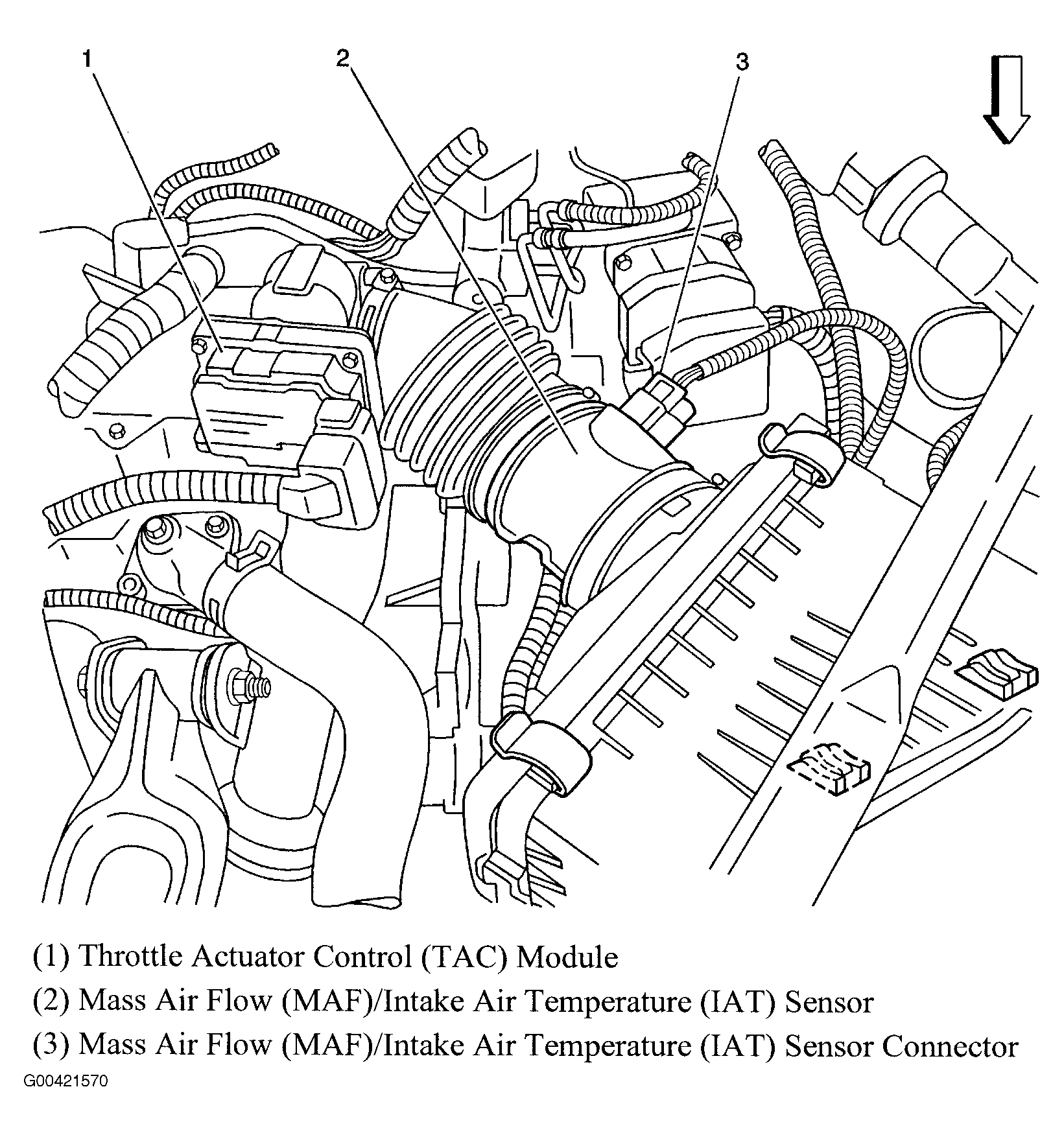

Fig 19: Left Front Of Engine Compartment (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Lower Right Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

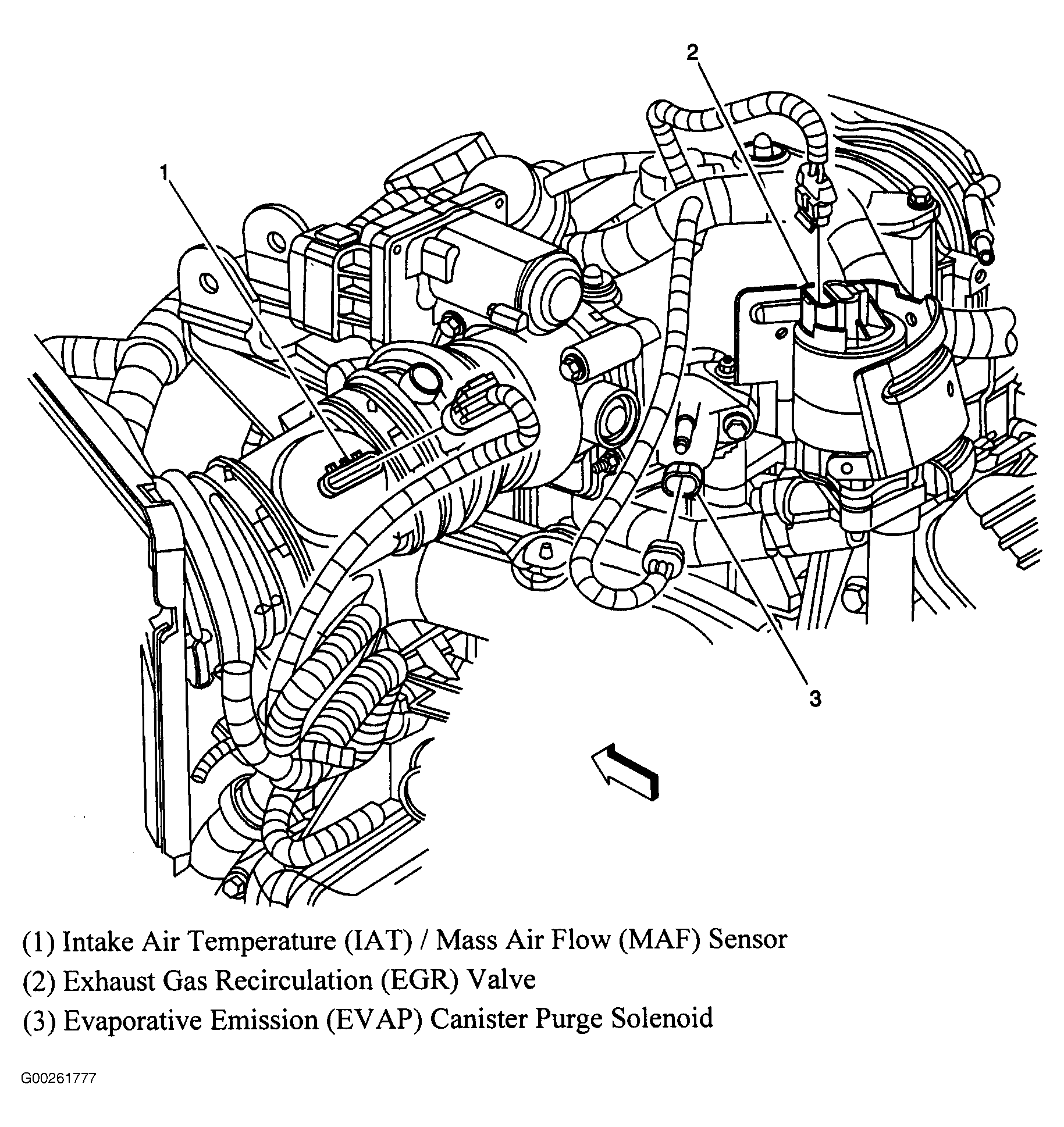

Fig 21: Upper Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

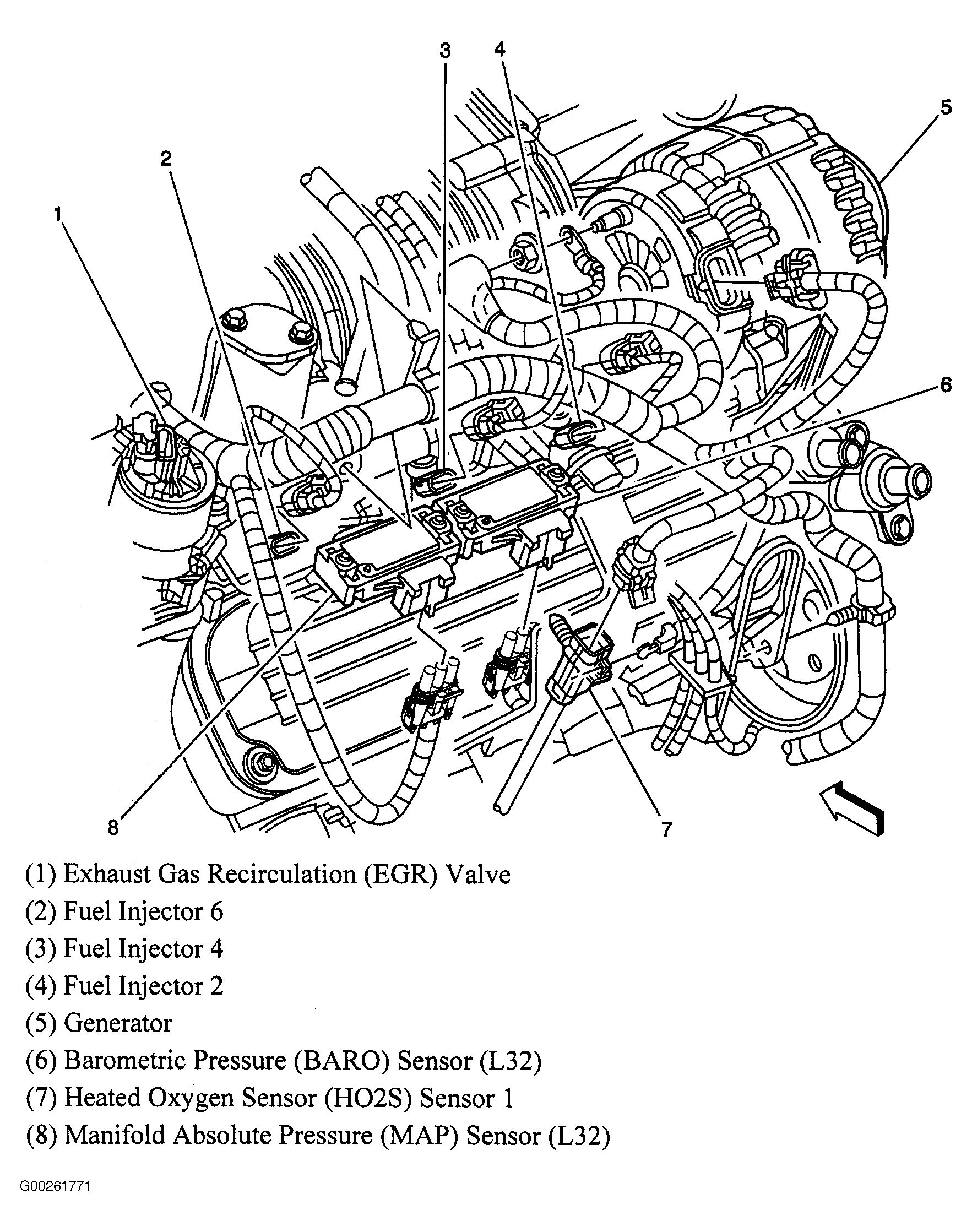

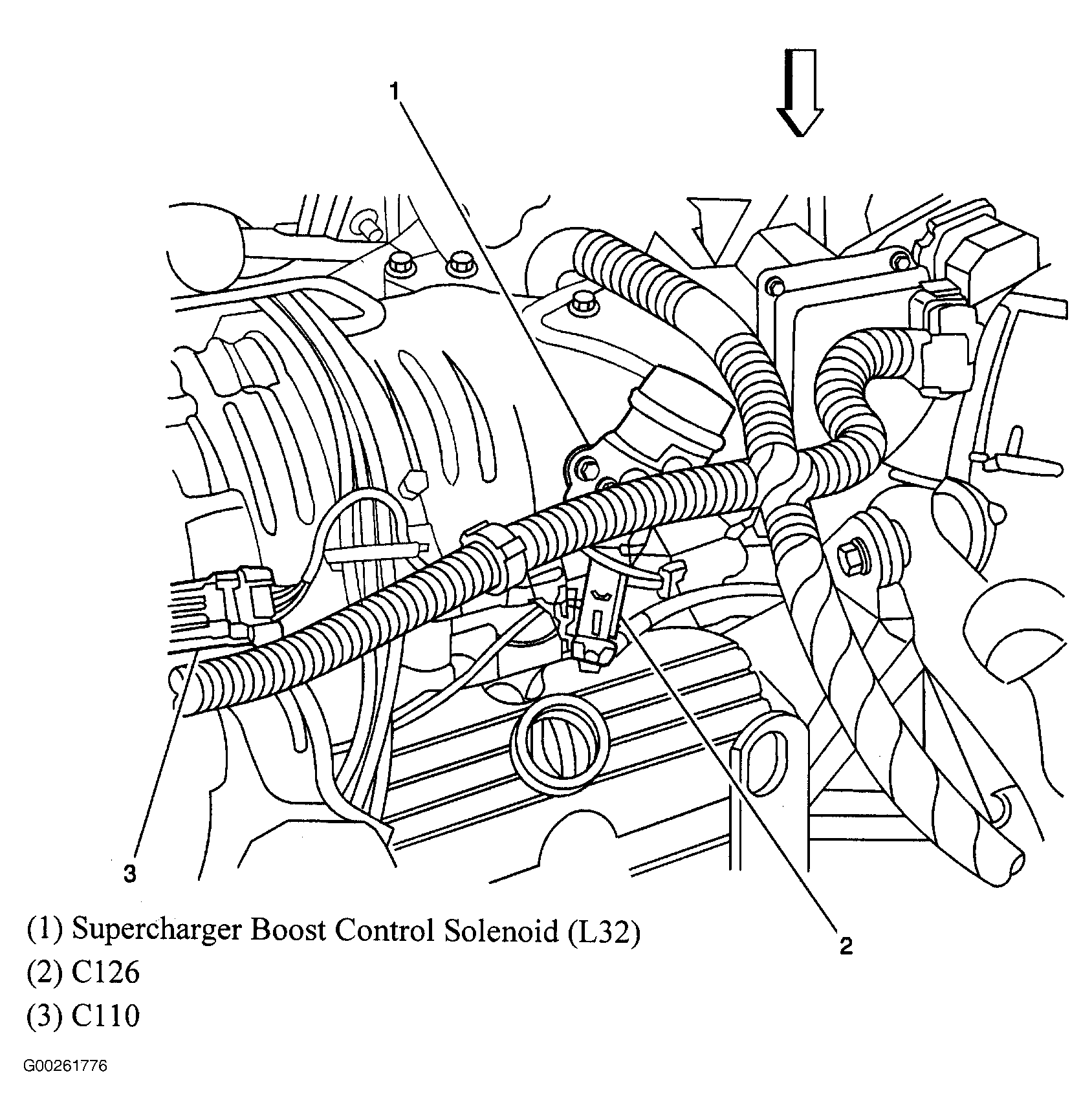

Fig 22: Top Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Upper Left Rear Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

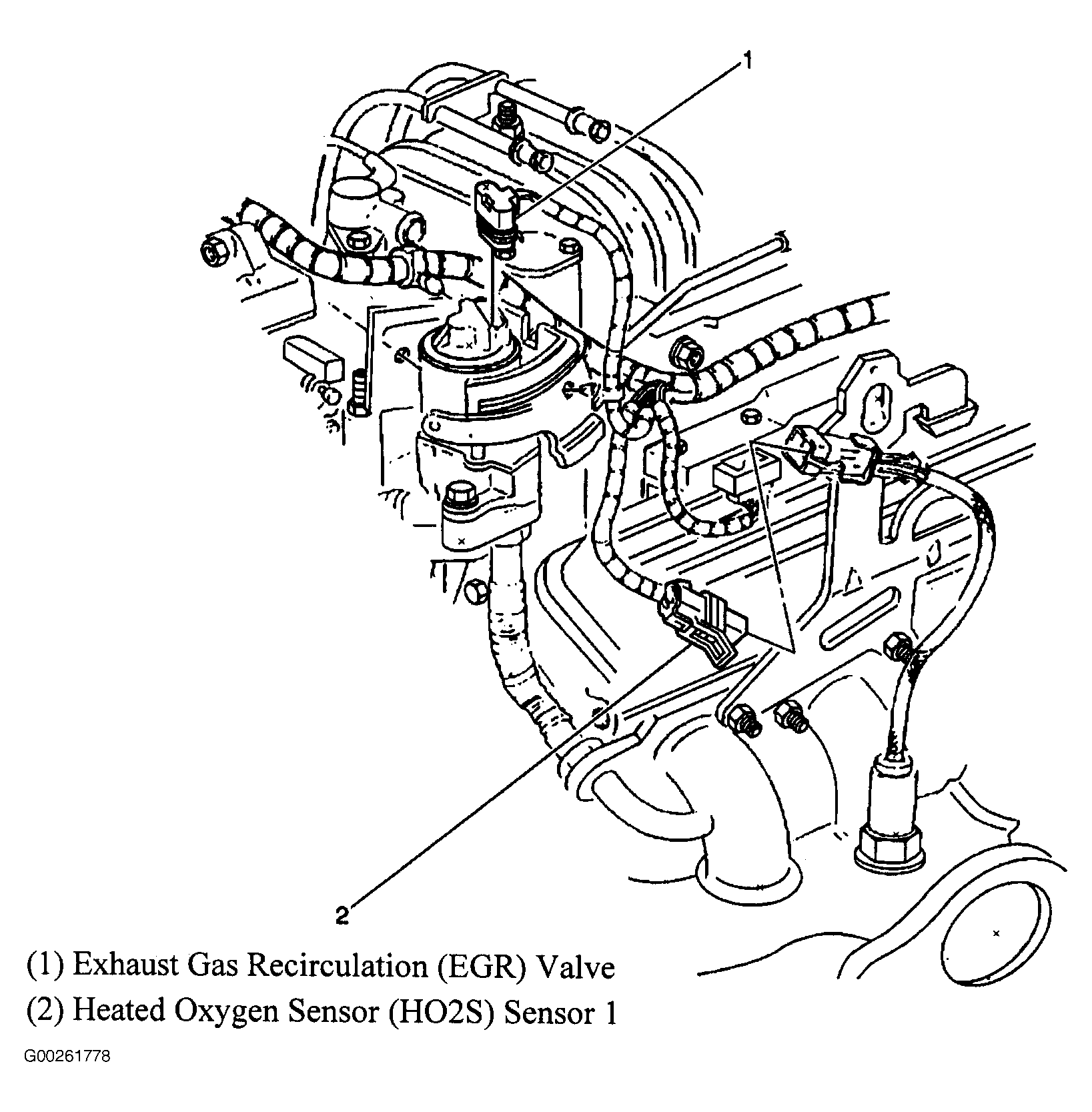

Fig 25: Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

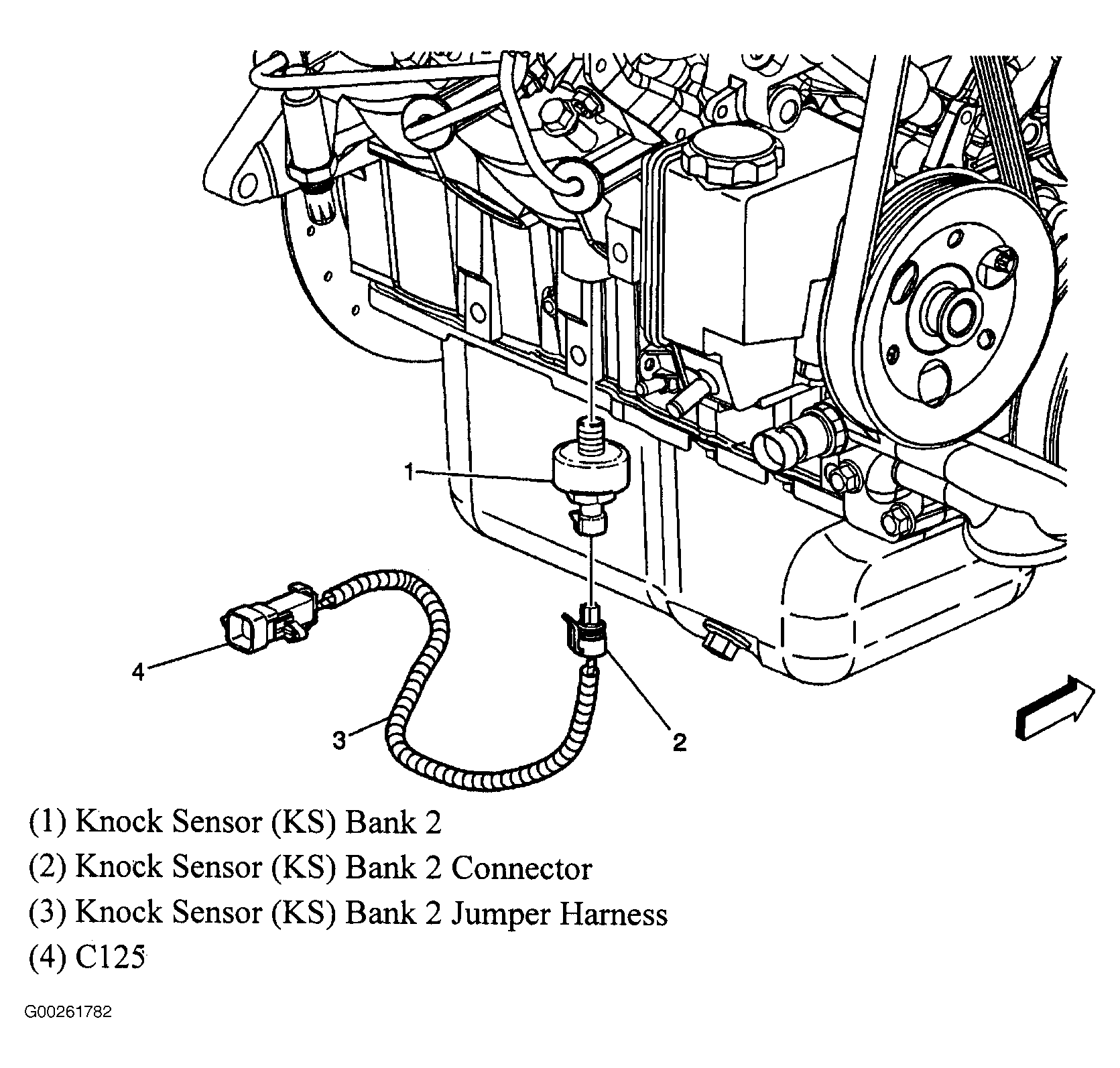

Fig 26: Lower Front Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

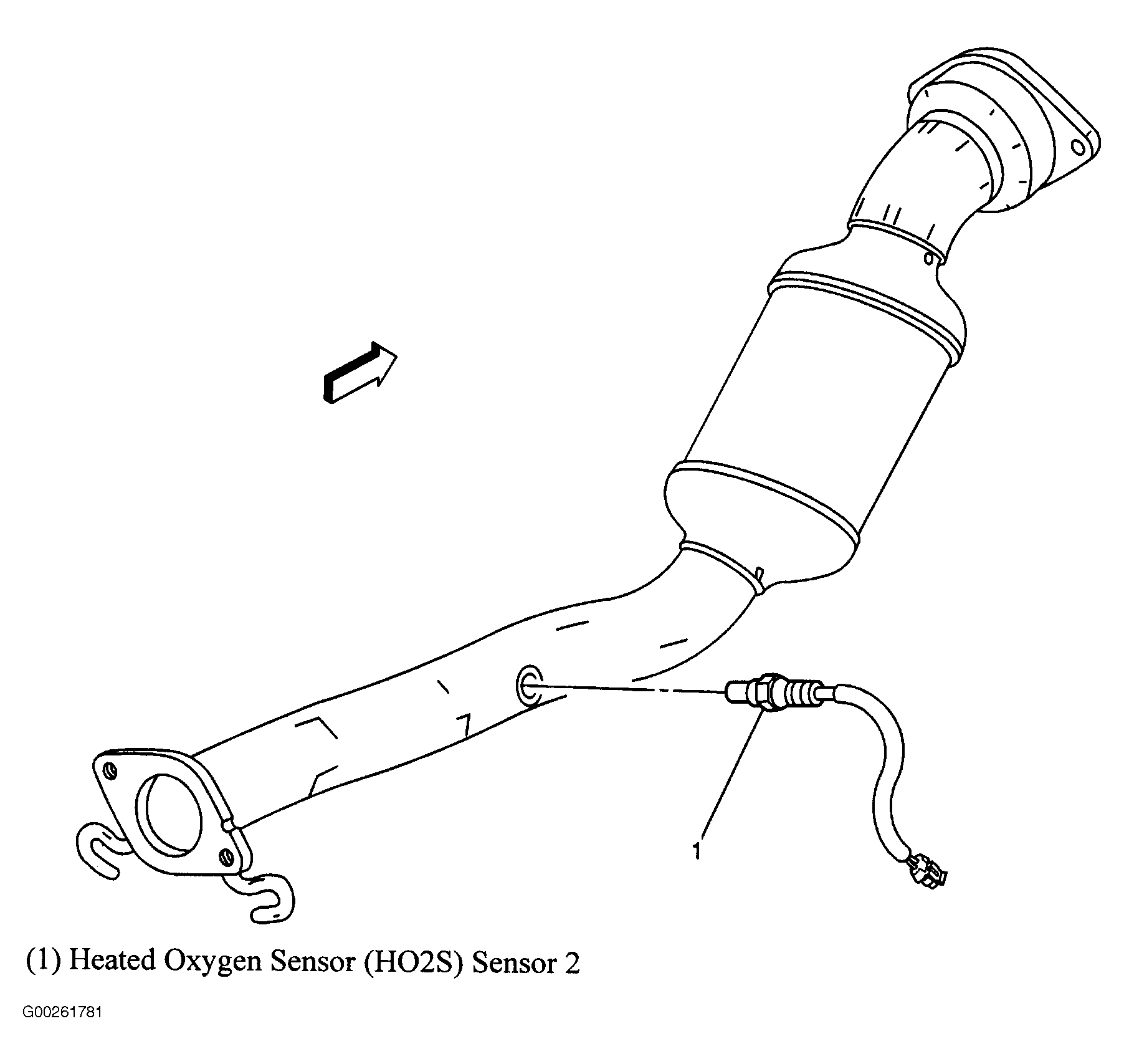

Fig 27: Exhaust
Courtesy of GENERAL MOTORS CORP.
Fig 28: Right Side Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

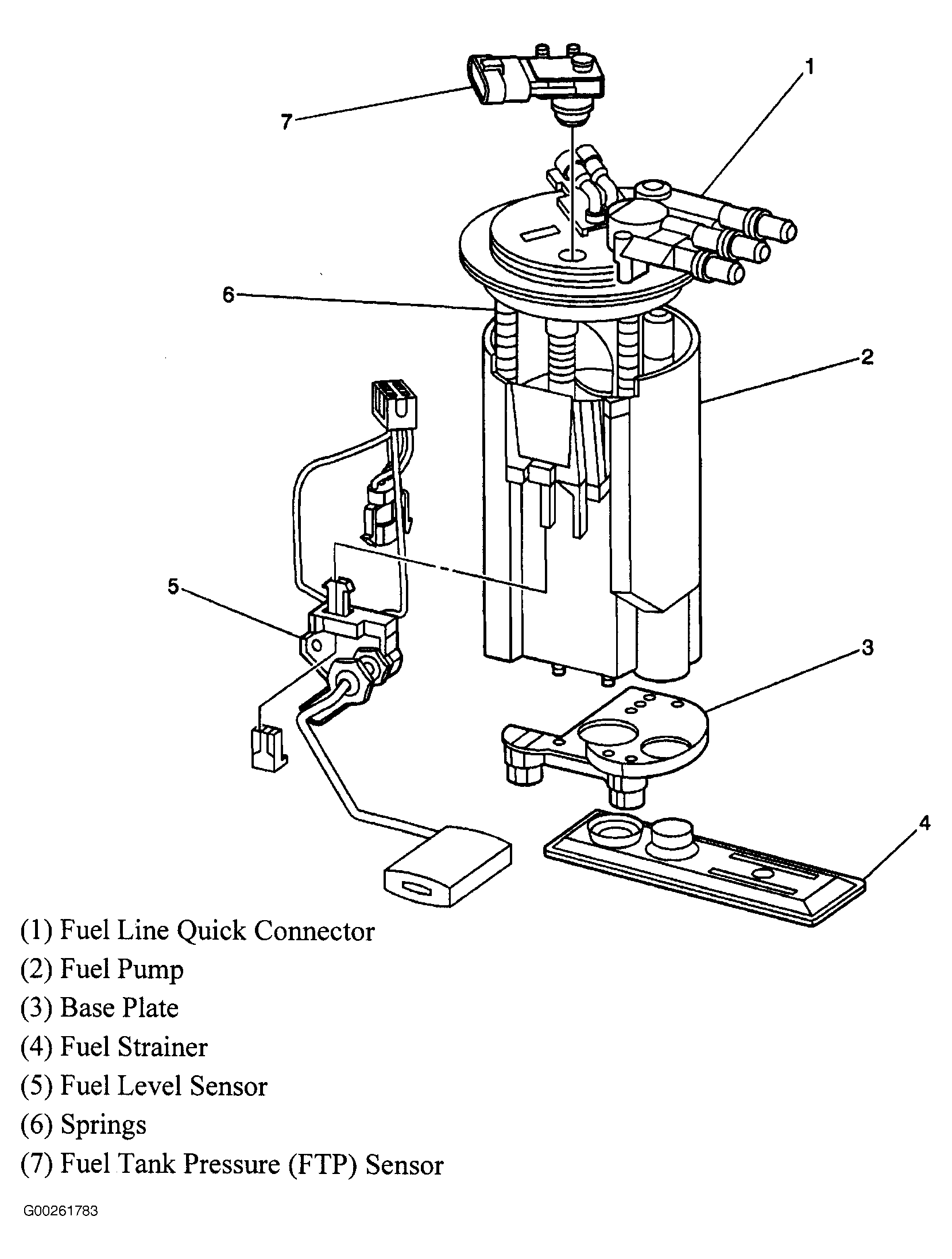

Fig 29: Fuel Pump & Sender Assembly
Courtesy of GENERAL MOTORS CORP.

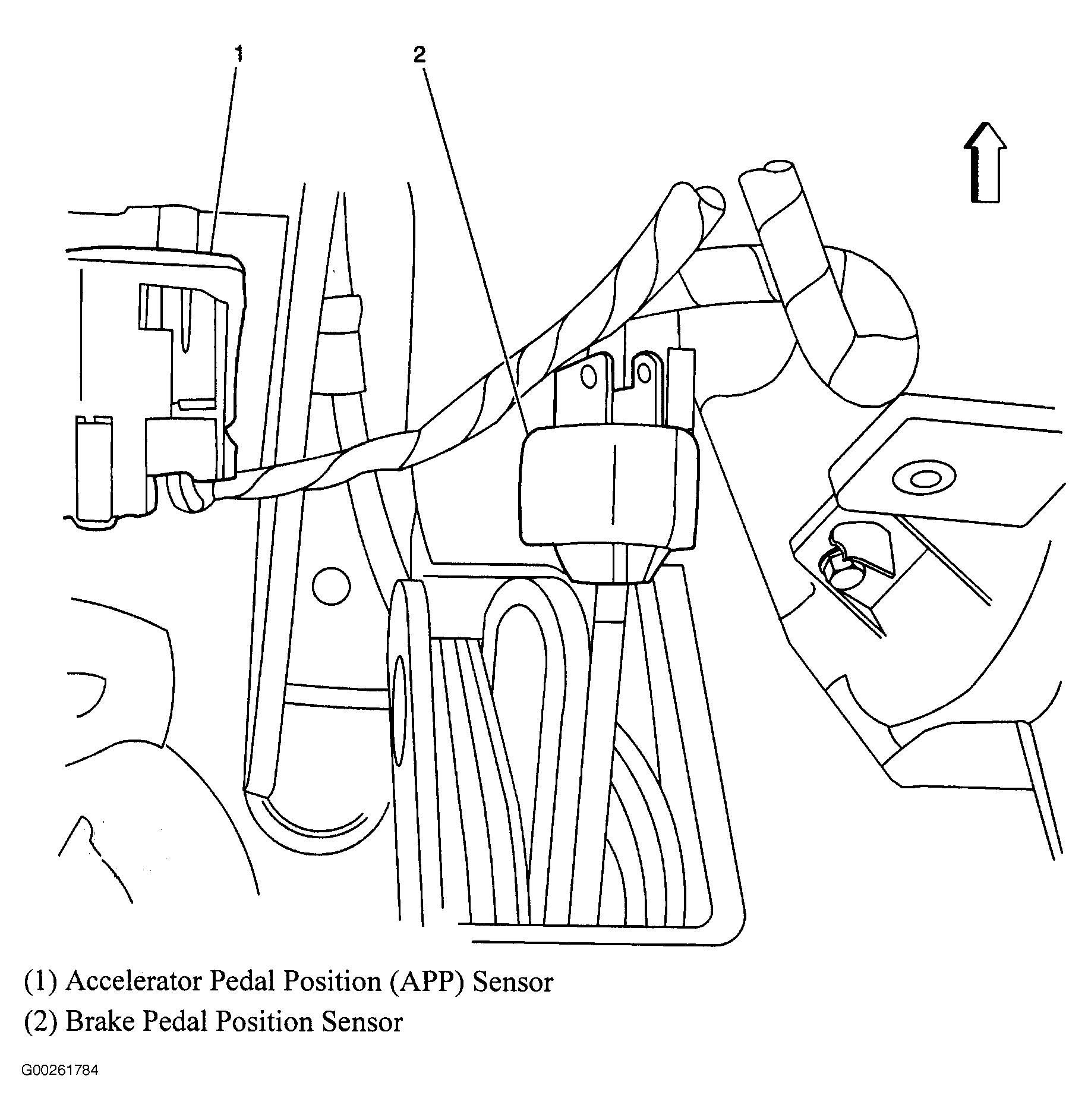

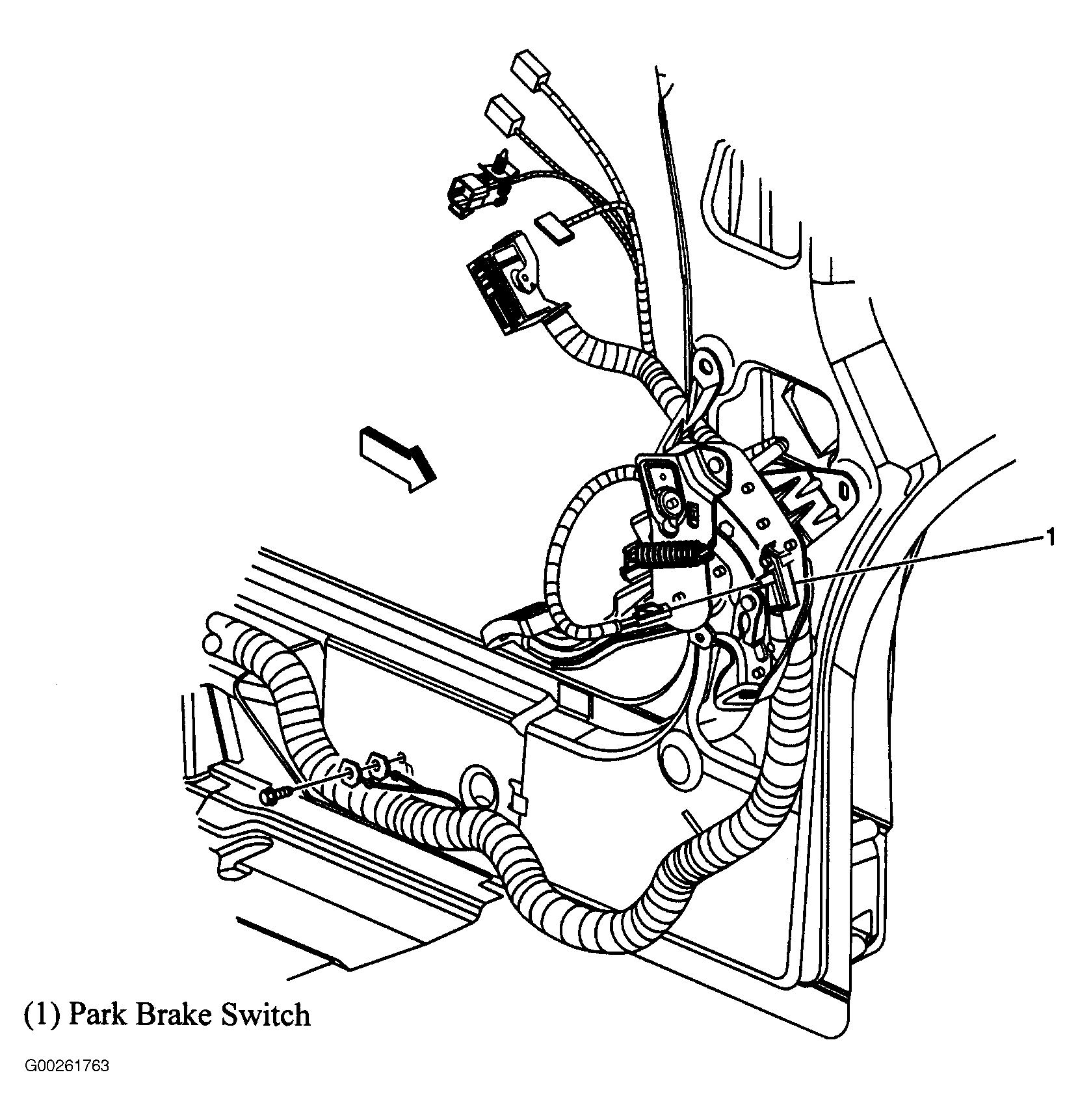

Fig 30: Left Footwell
Courtesy of GENERAL MOTORS CORP.

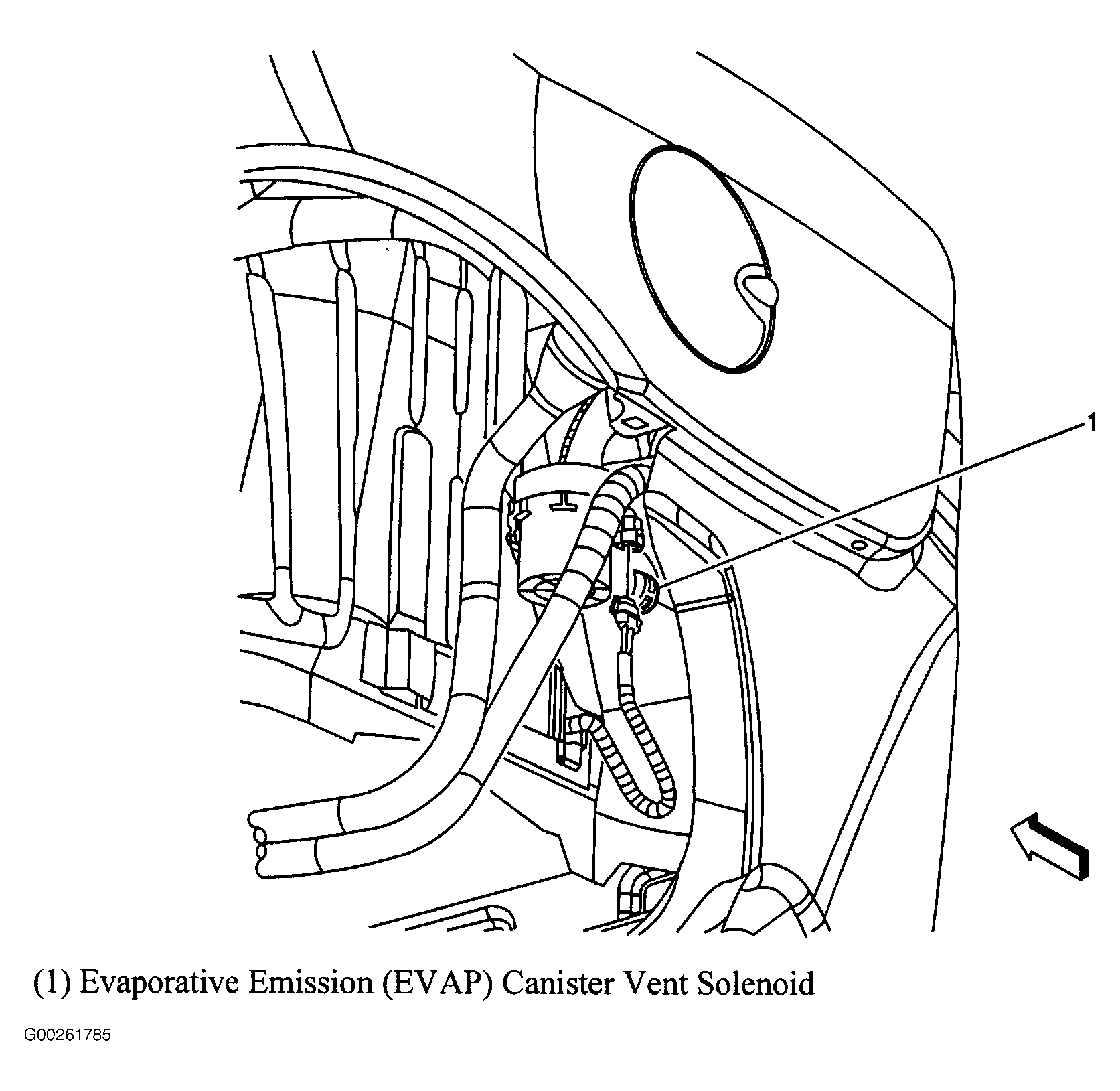

Fig 31: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

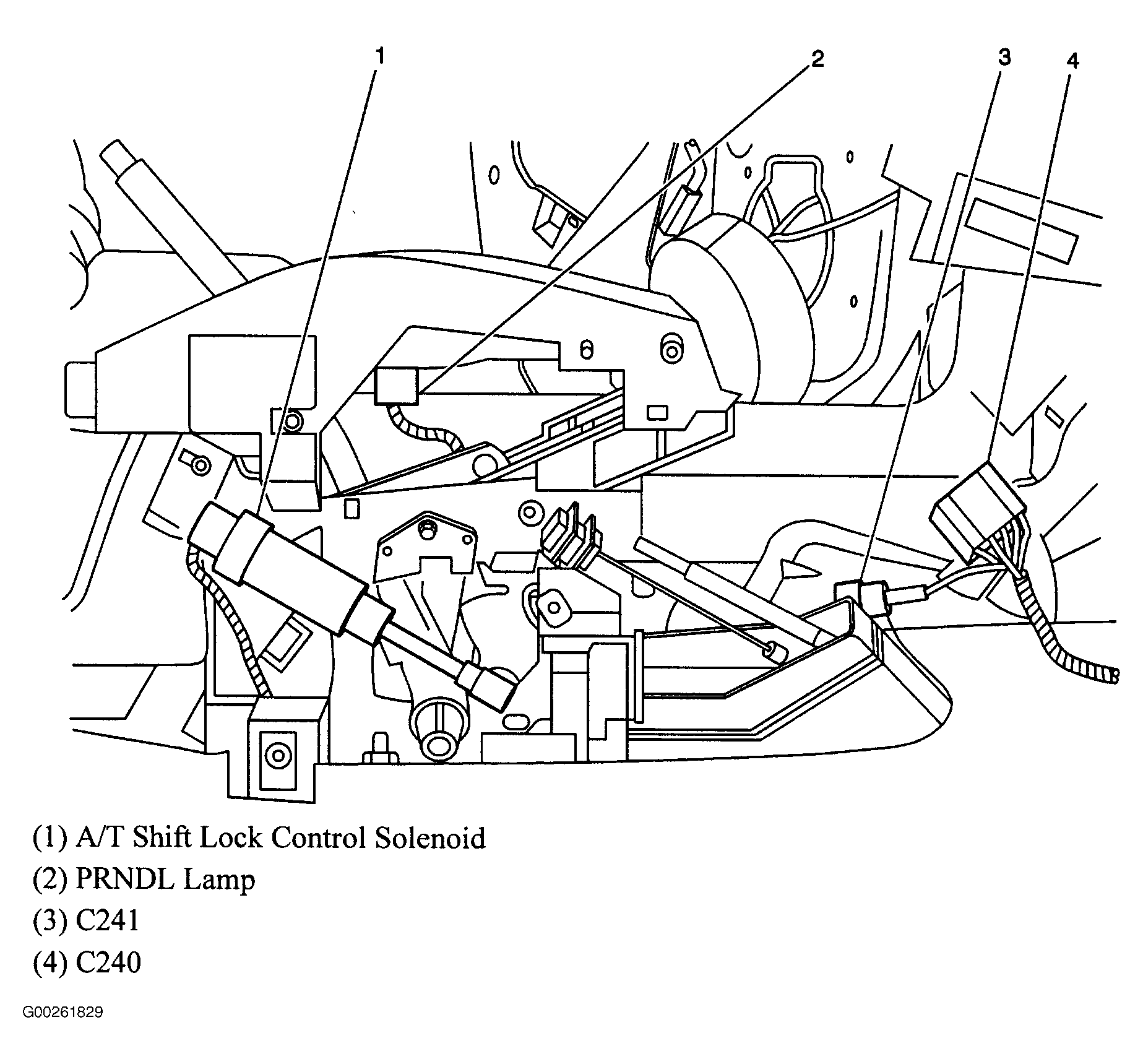

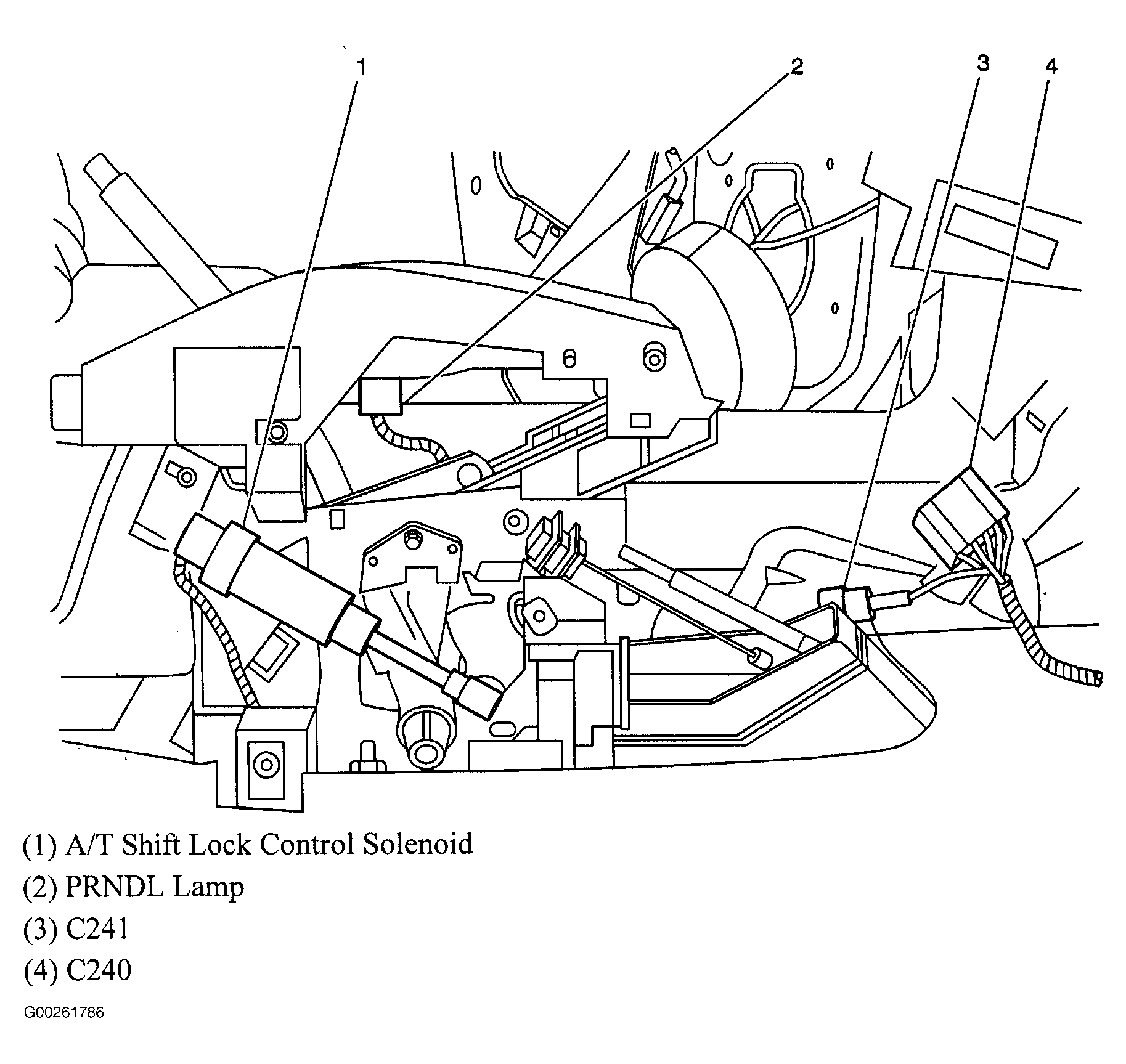

Fig 32: Automatic Transmission Shift Lock Control Components
Courtesy of GENERAL MOTORS CORP.

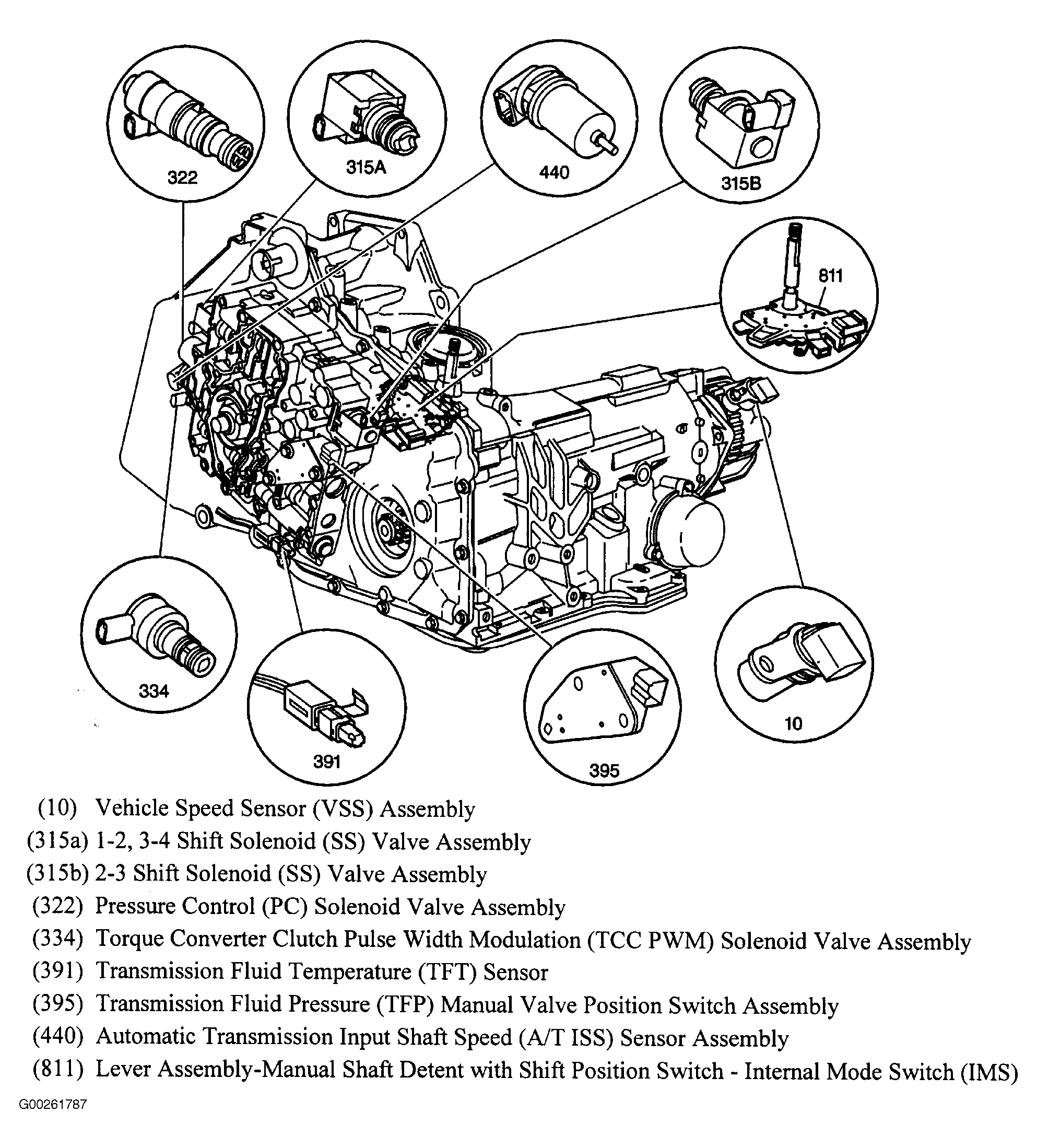

Fig 33: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

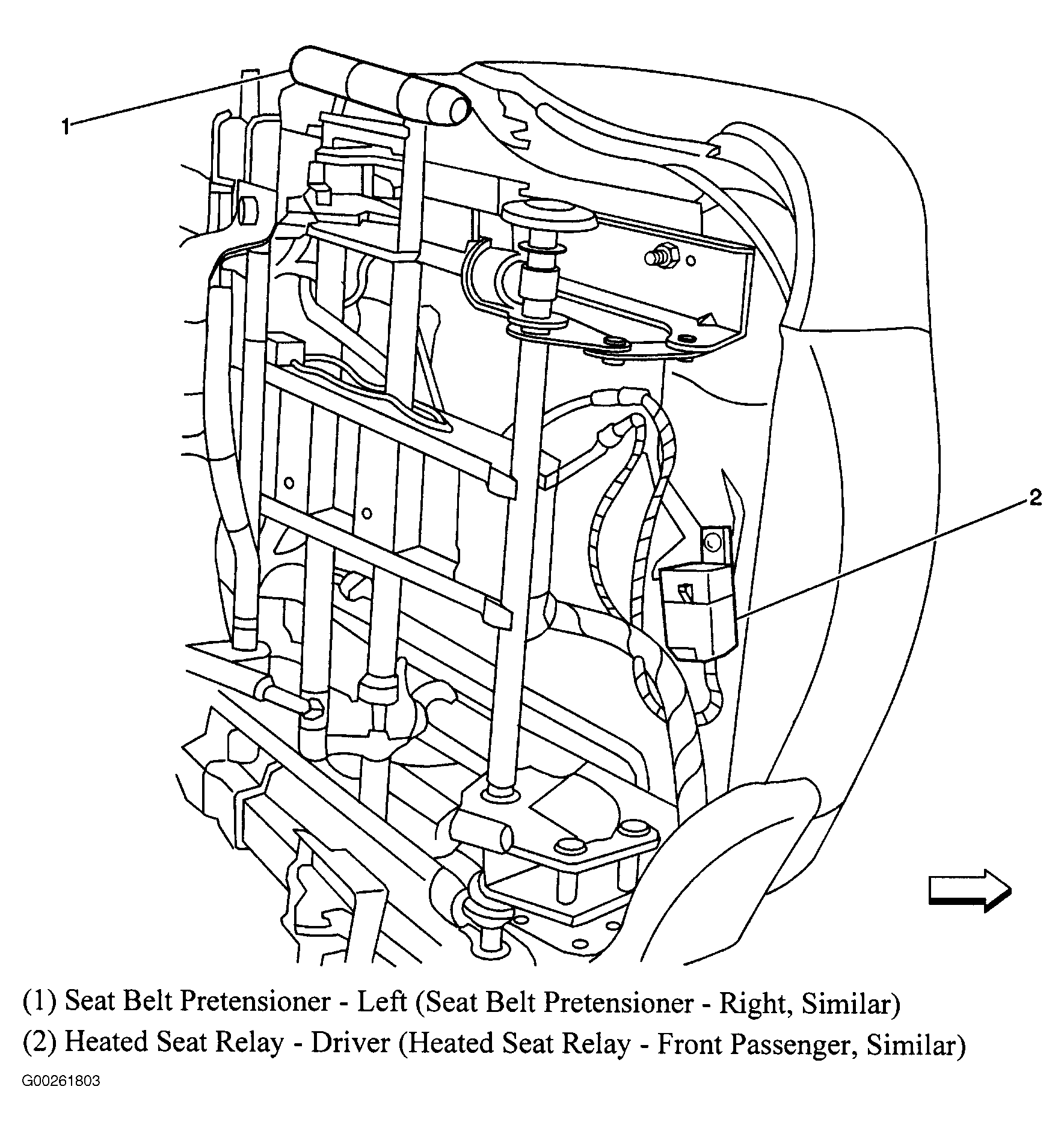

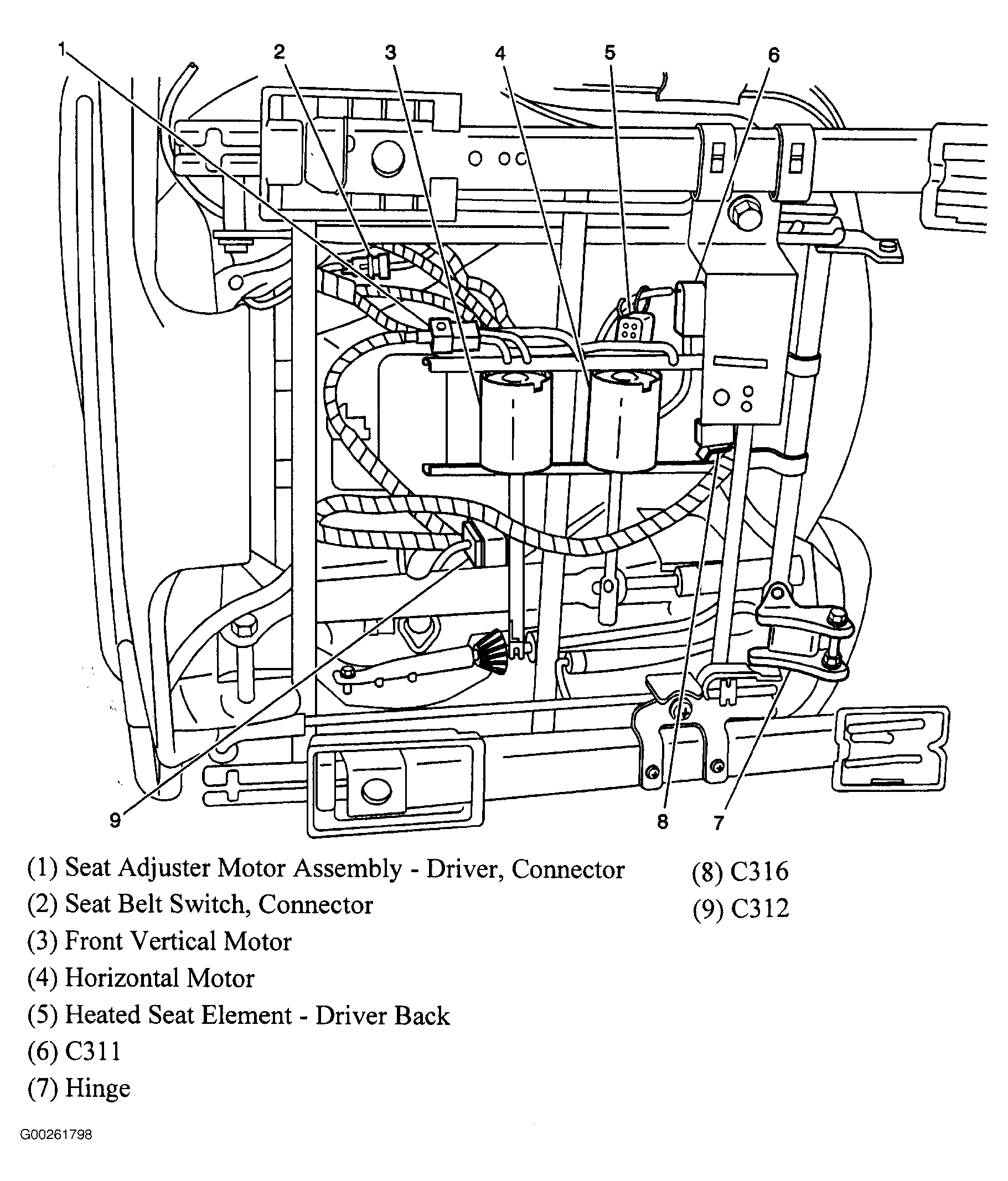

Fig 34: Underside Of Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

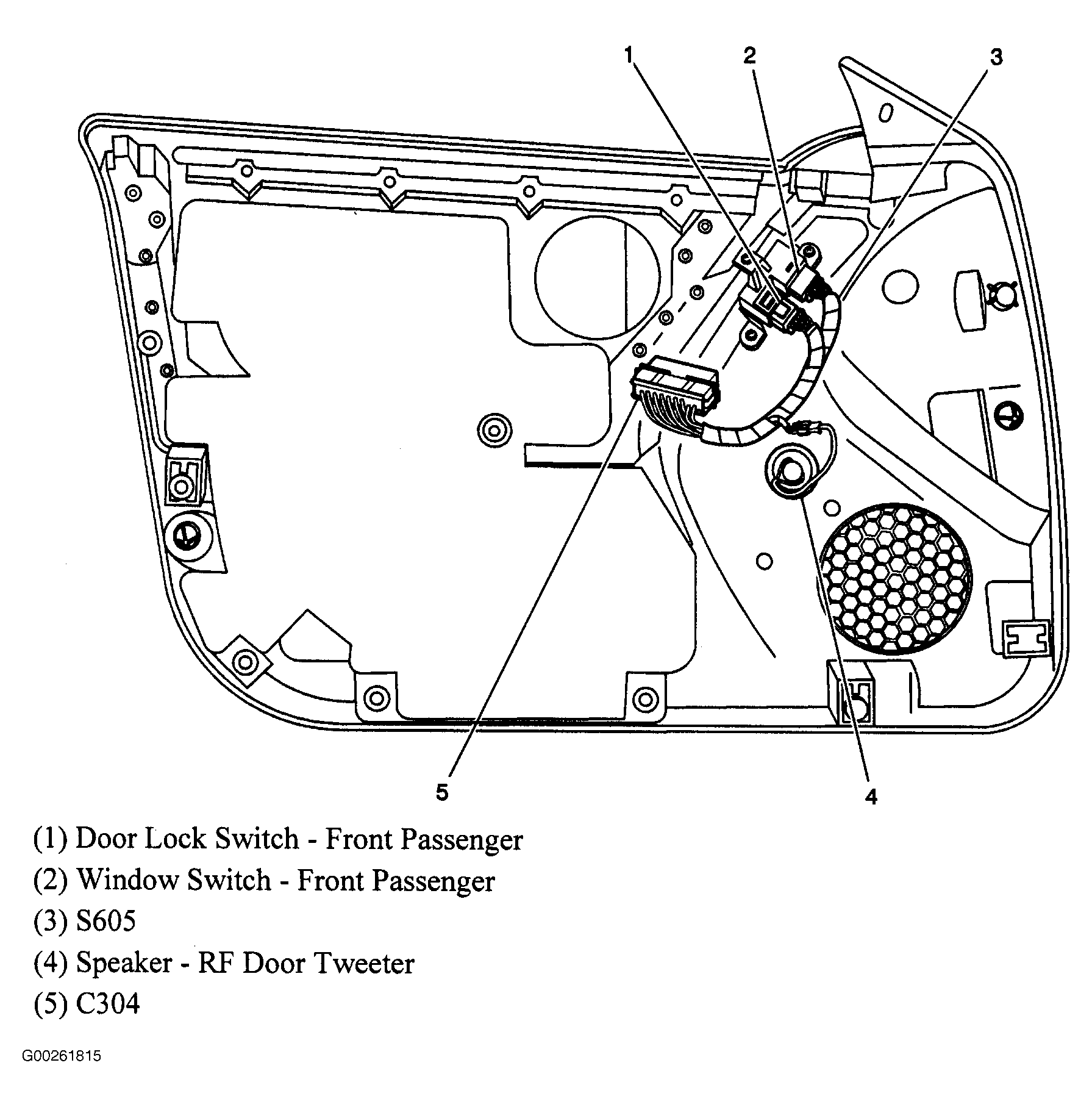

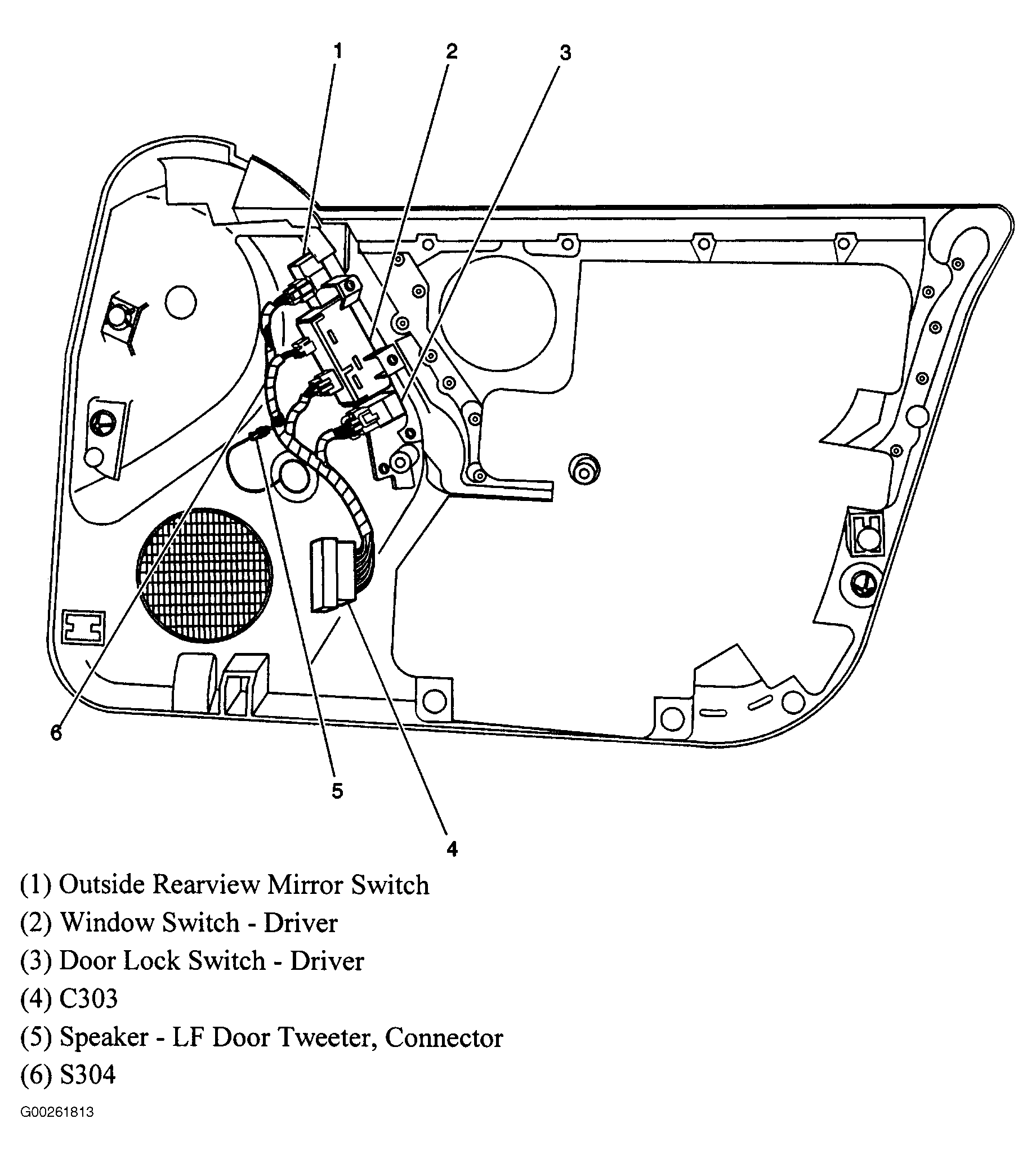

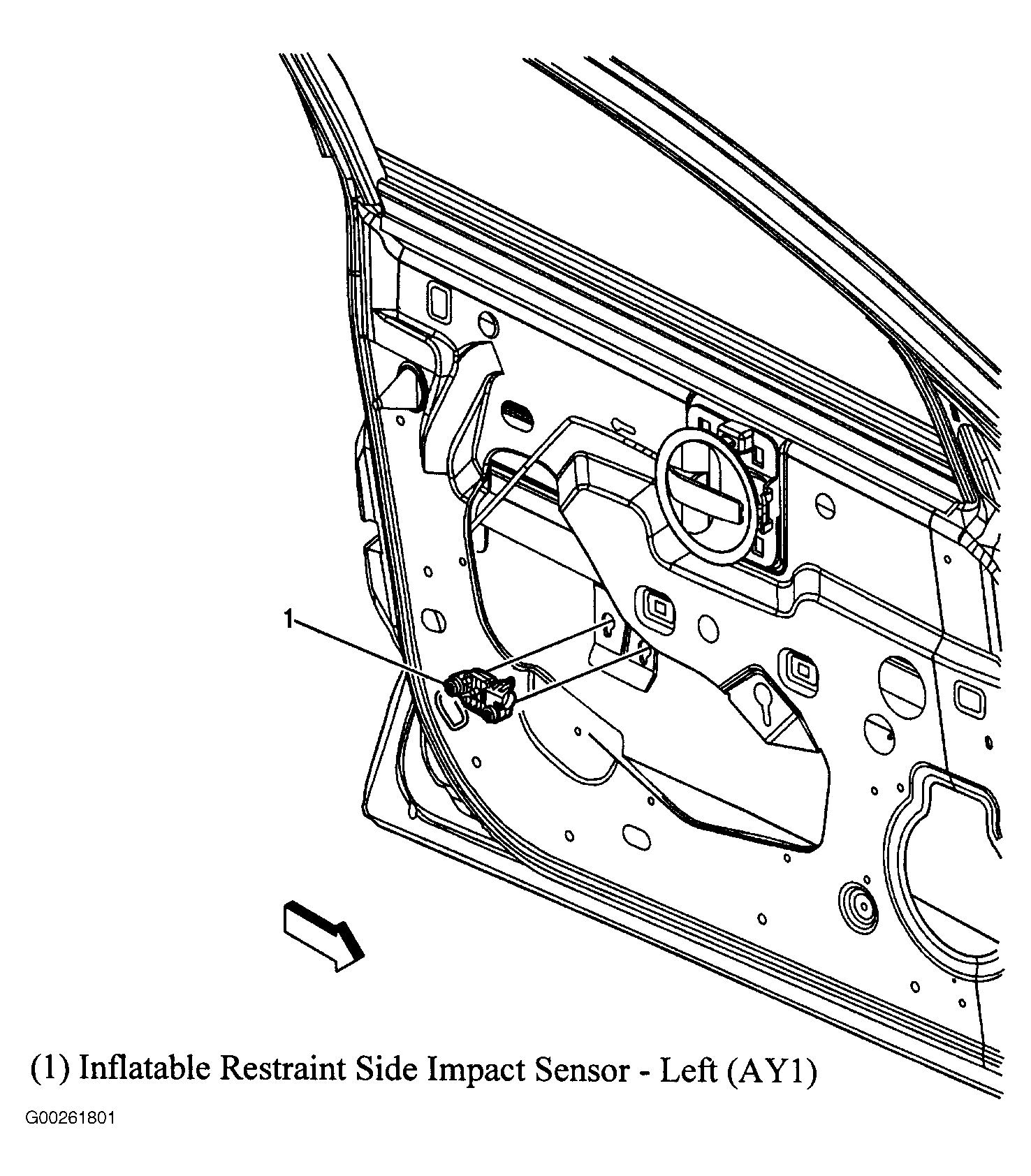

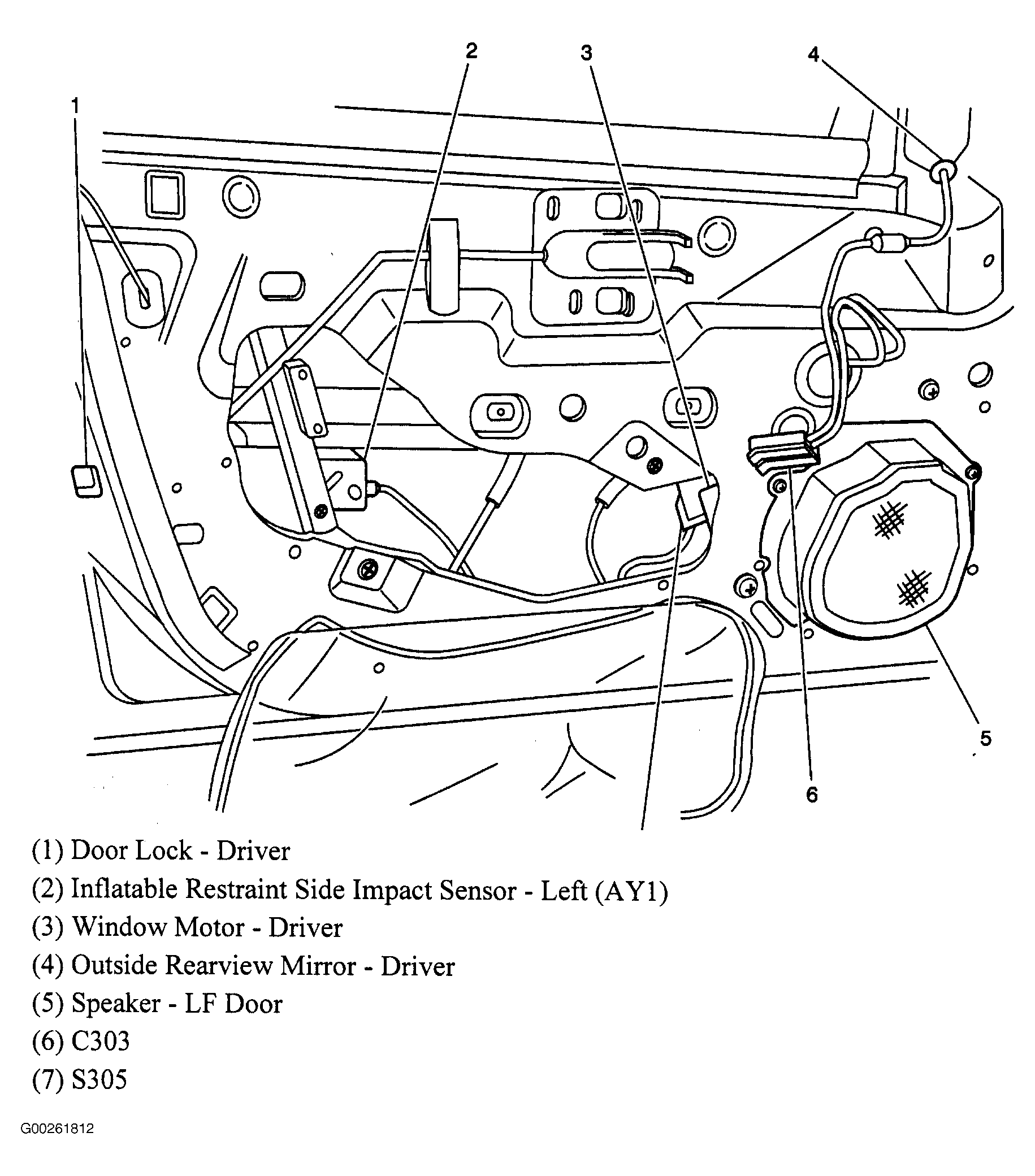

Fig 36: Driver Door
Courtesy of GENERAL MOTORS CORP.

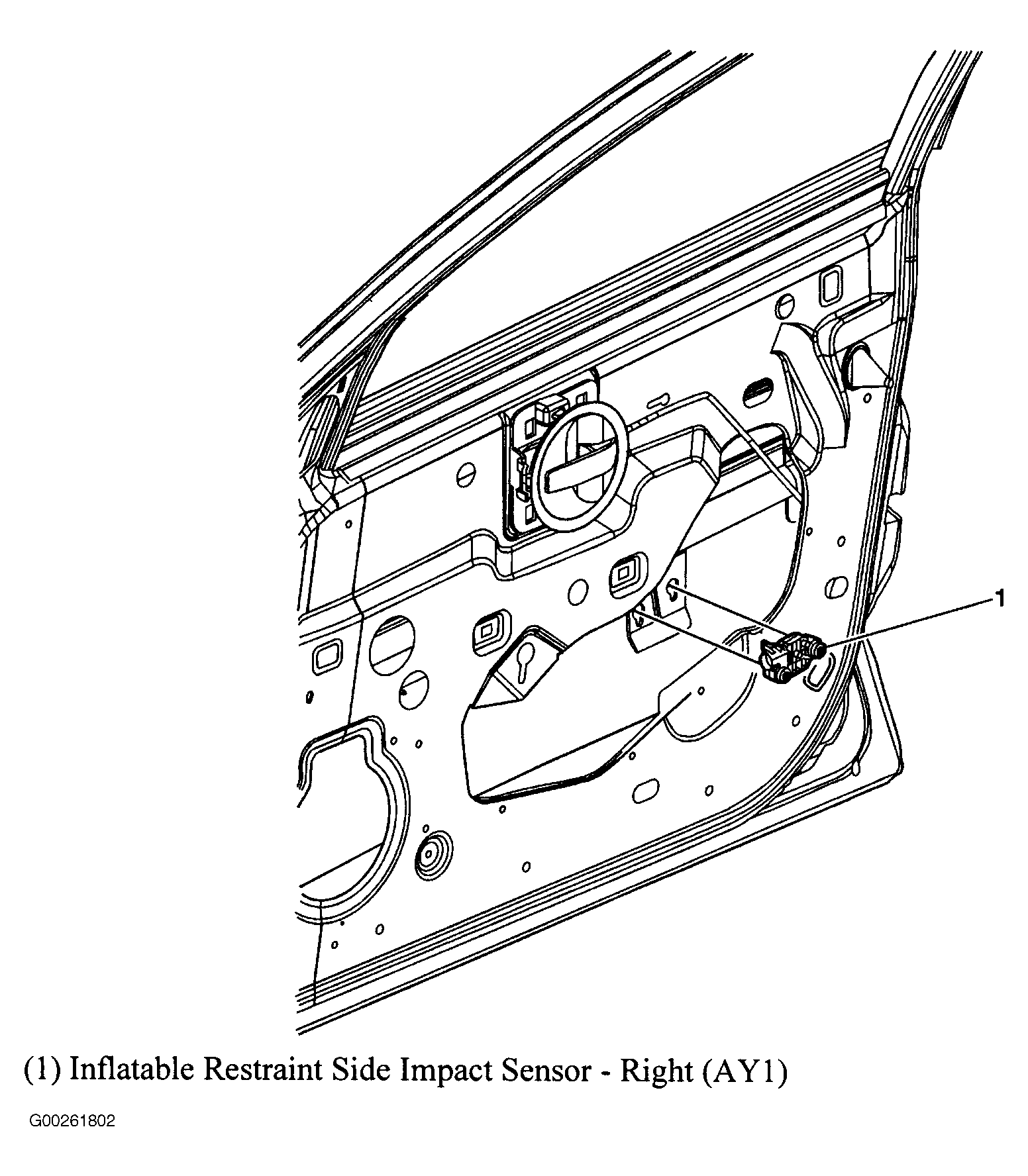

Fig 37: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 38: Underside Of Front Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

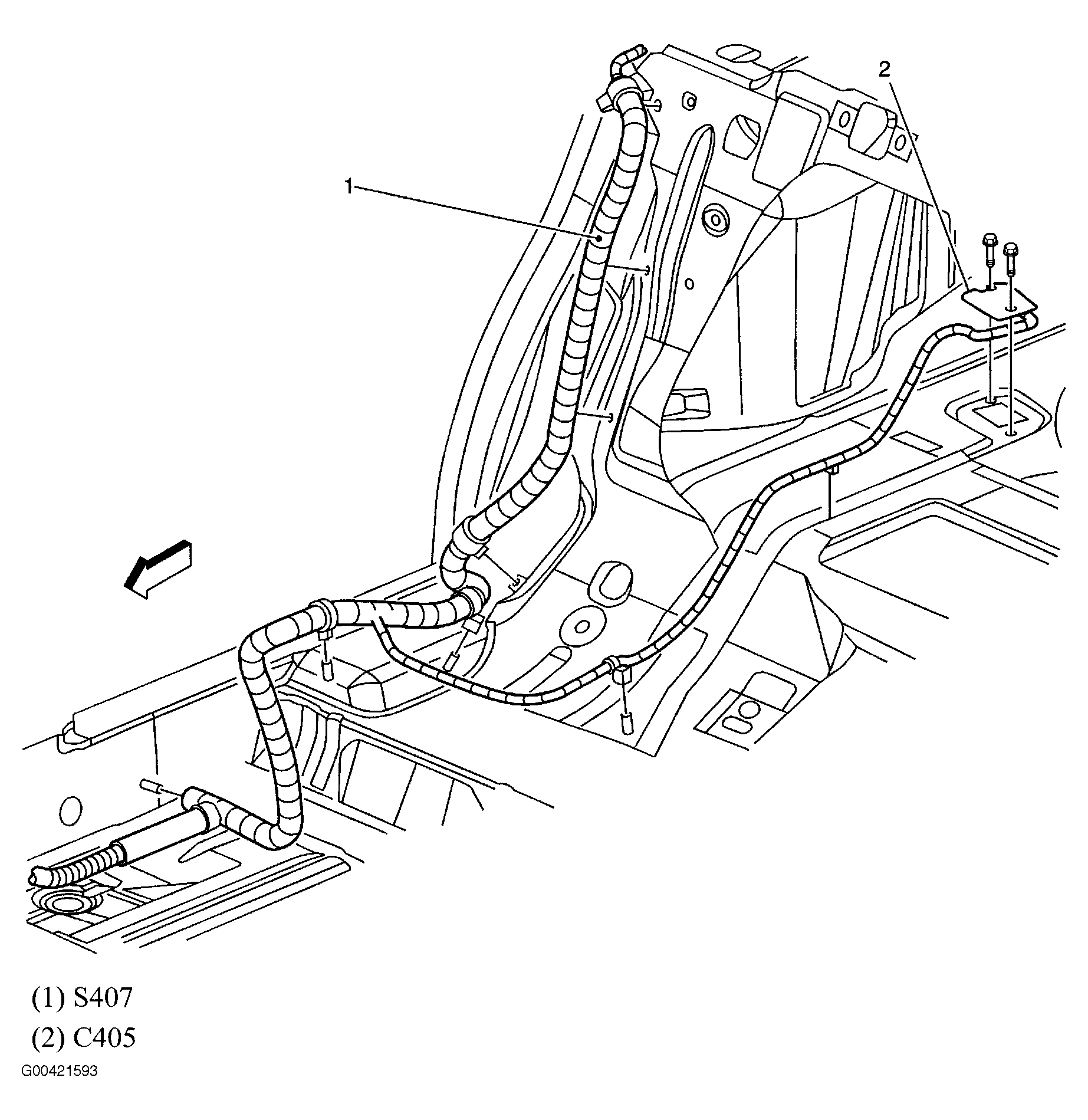

Fig 40: Left Rear Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

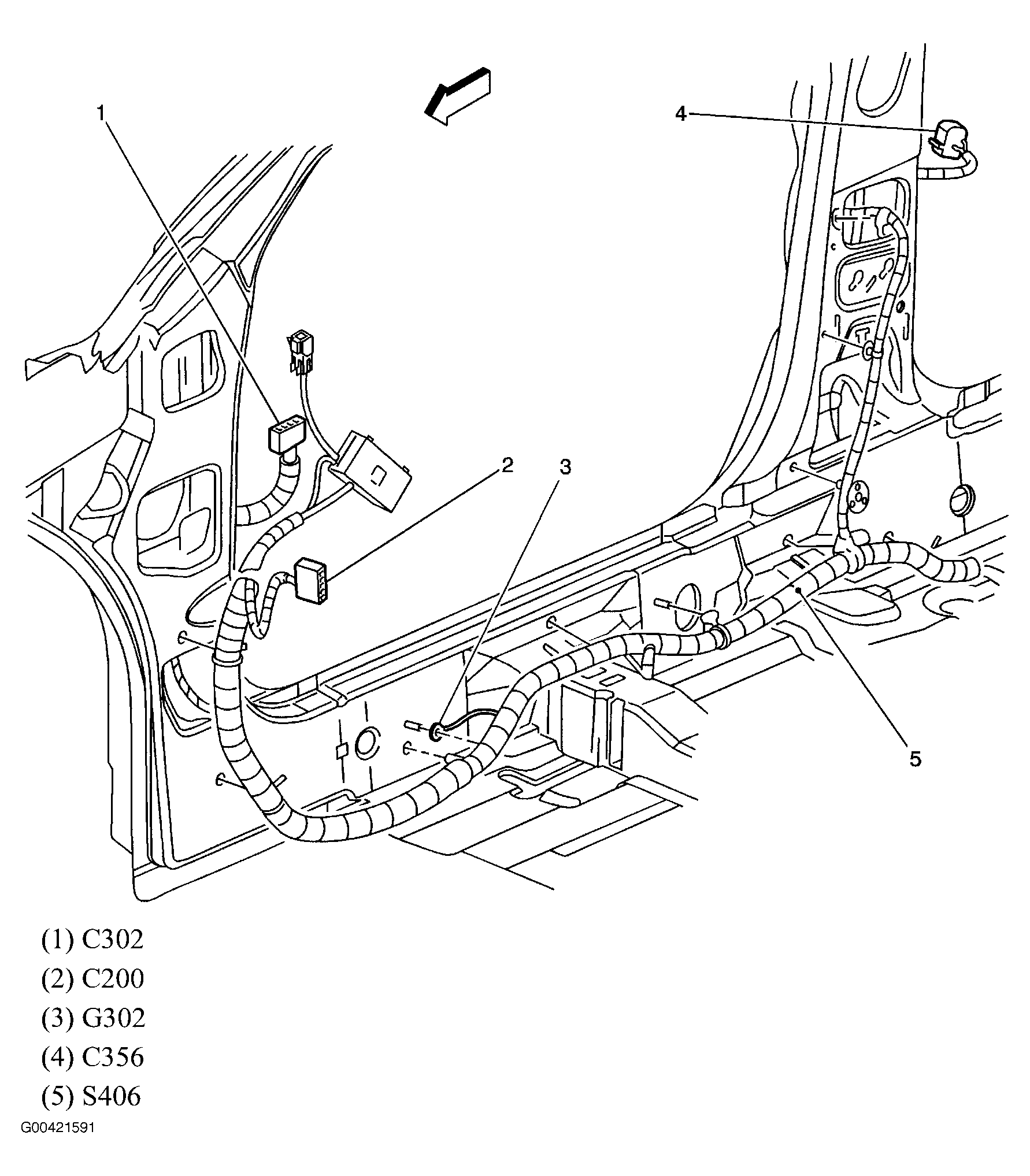

Fig 41: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

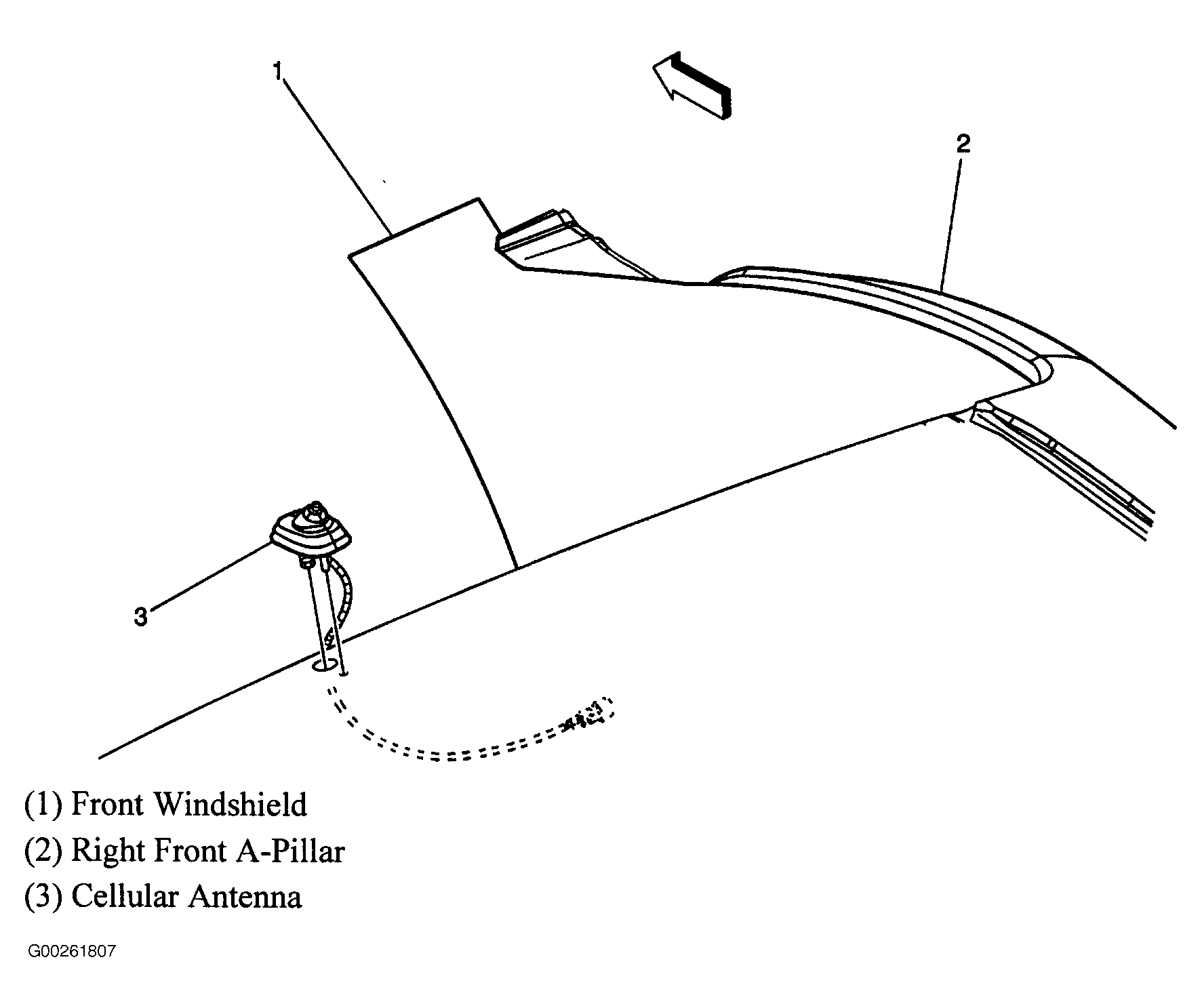

Fig 42: Front Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 43: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 44: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 45: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 46: Driver's Door
Courtesy of GENERAL MOTORS CORP.

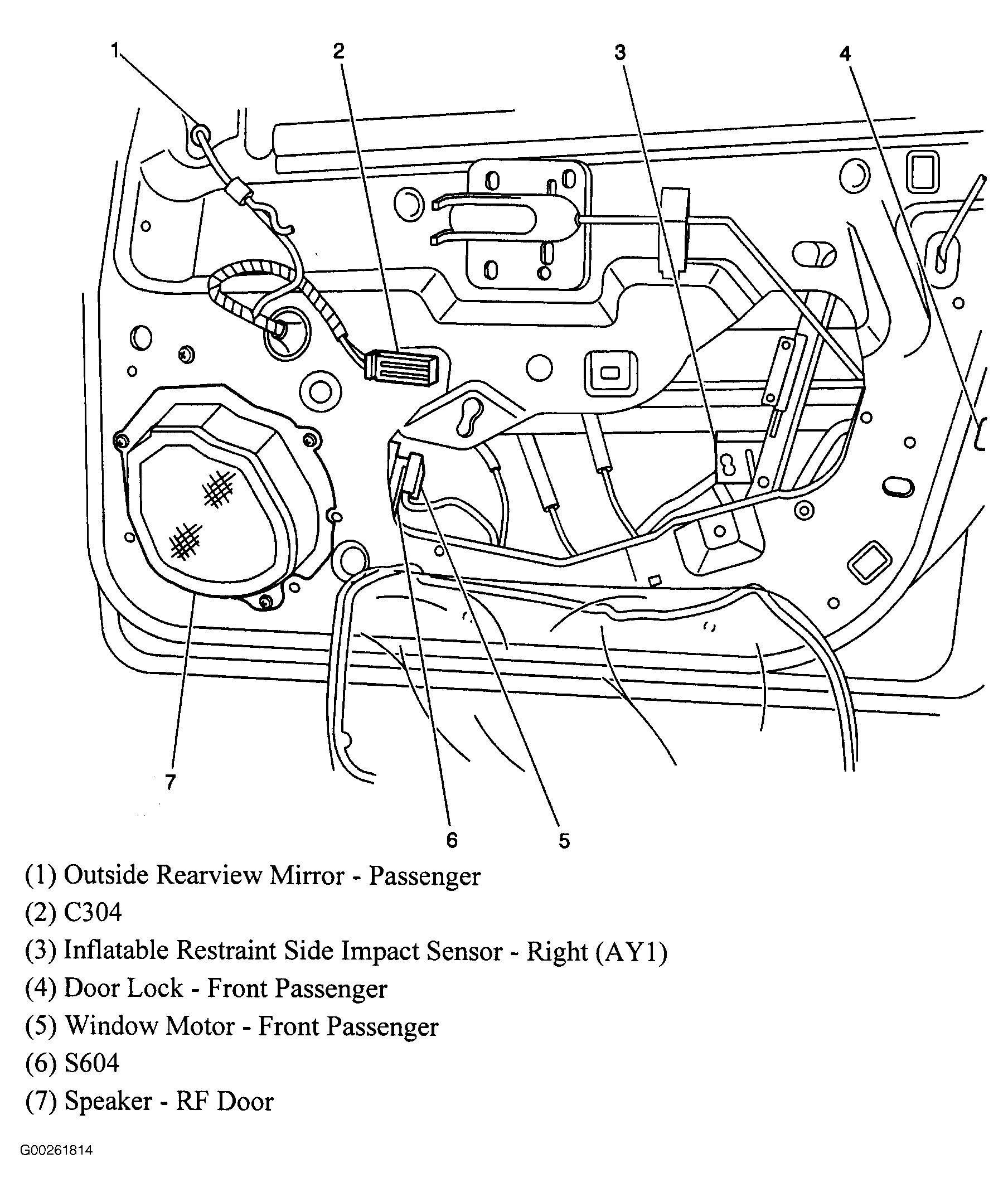

Fig 47: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 48: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 49: Center Rear Of Roof
Courtesy of GENERAL MOTORS CORP.

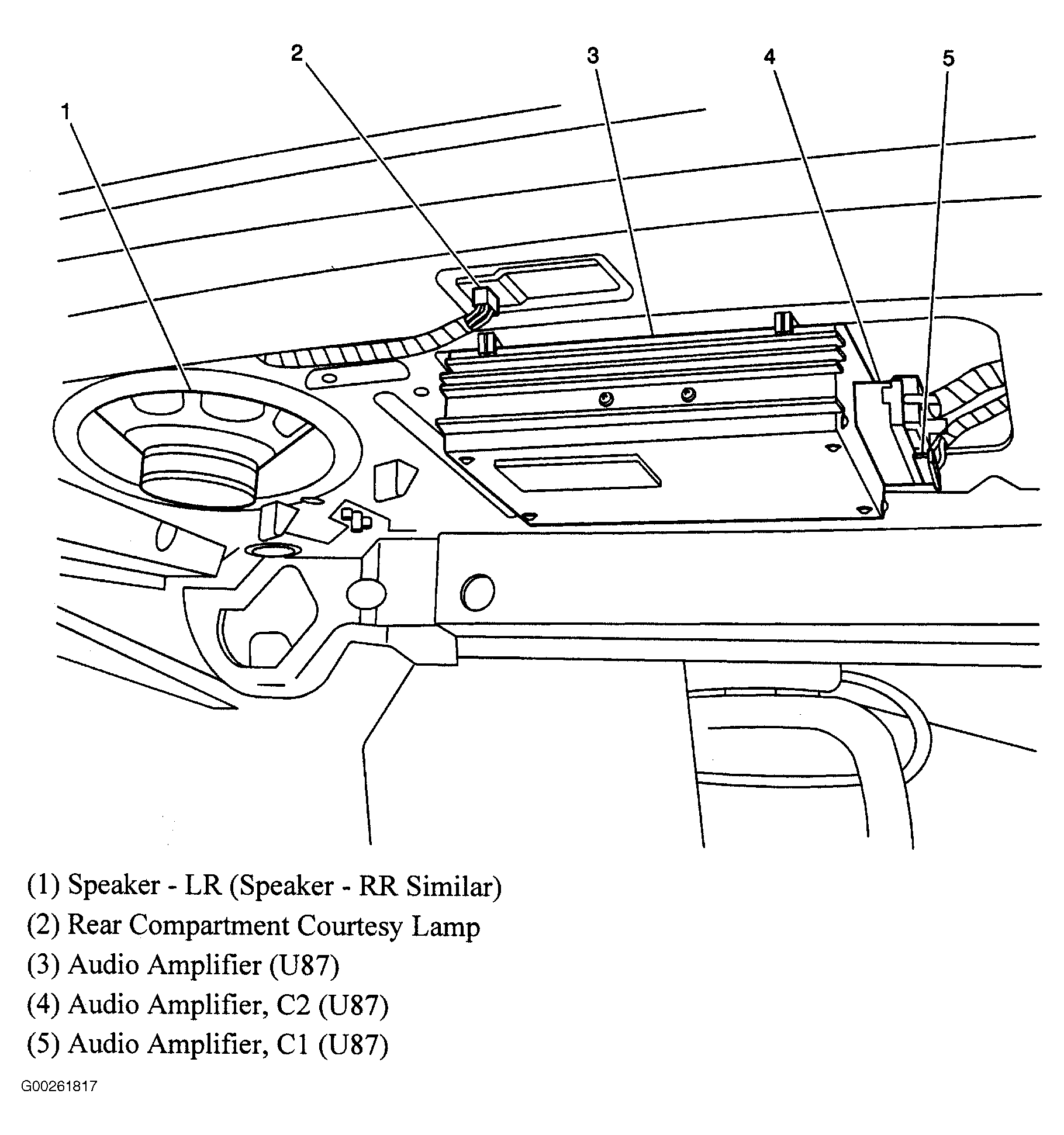

Fig 50: Underside Of Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 51: Left Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 52: Upper Left Side Of Left Footwell
Courtesy of GENERAL MOTORS CORP.

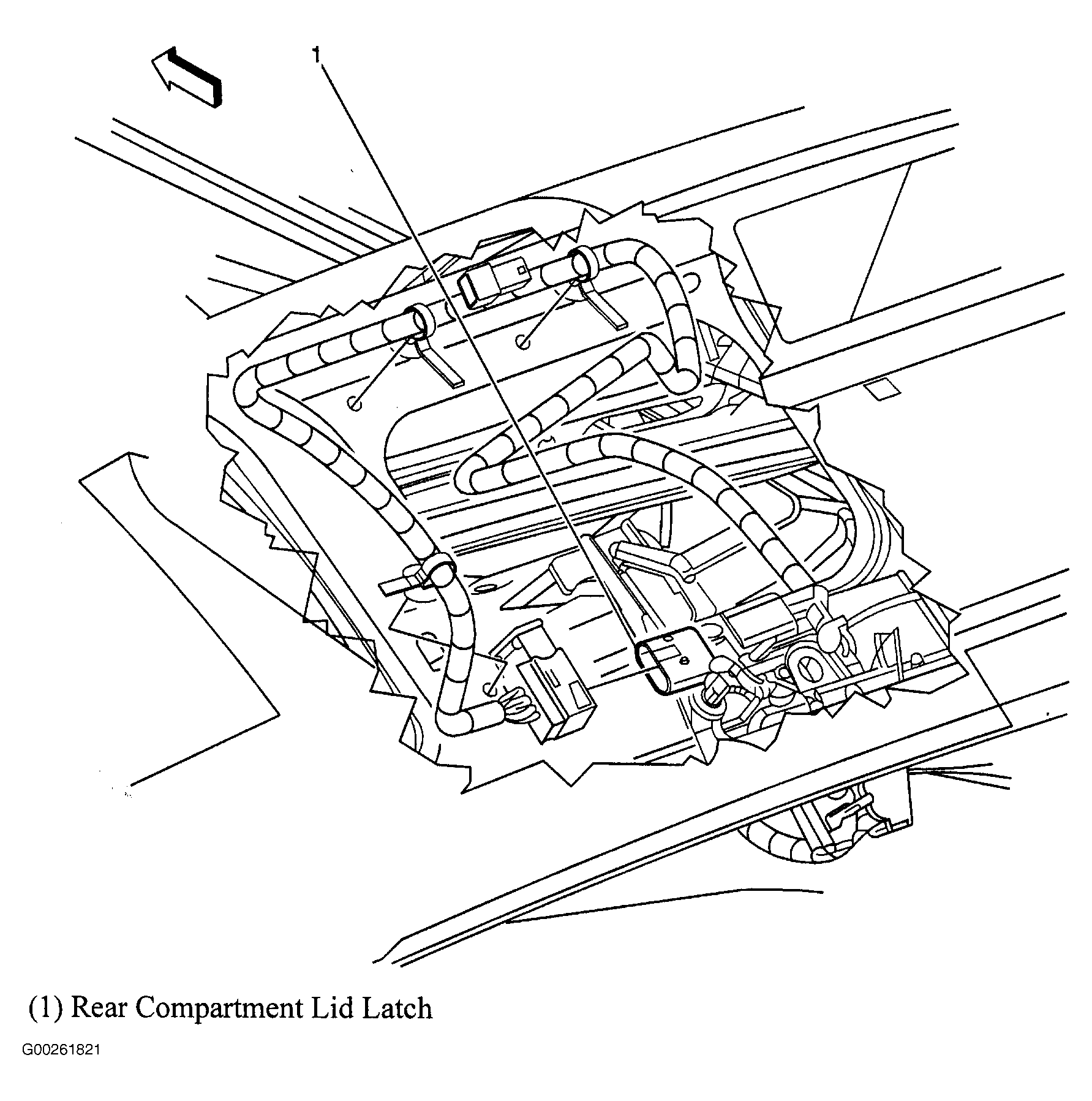

Fig 53: Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 54: Upper Right Side Of Left Footwell
Courtesy of GENERAL MOTORS CORP.

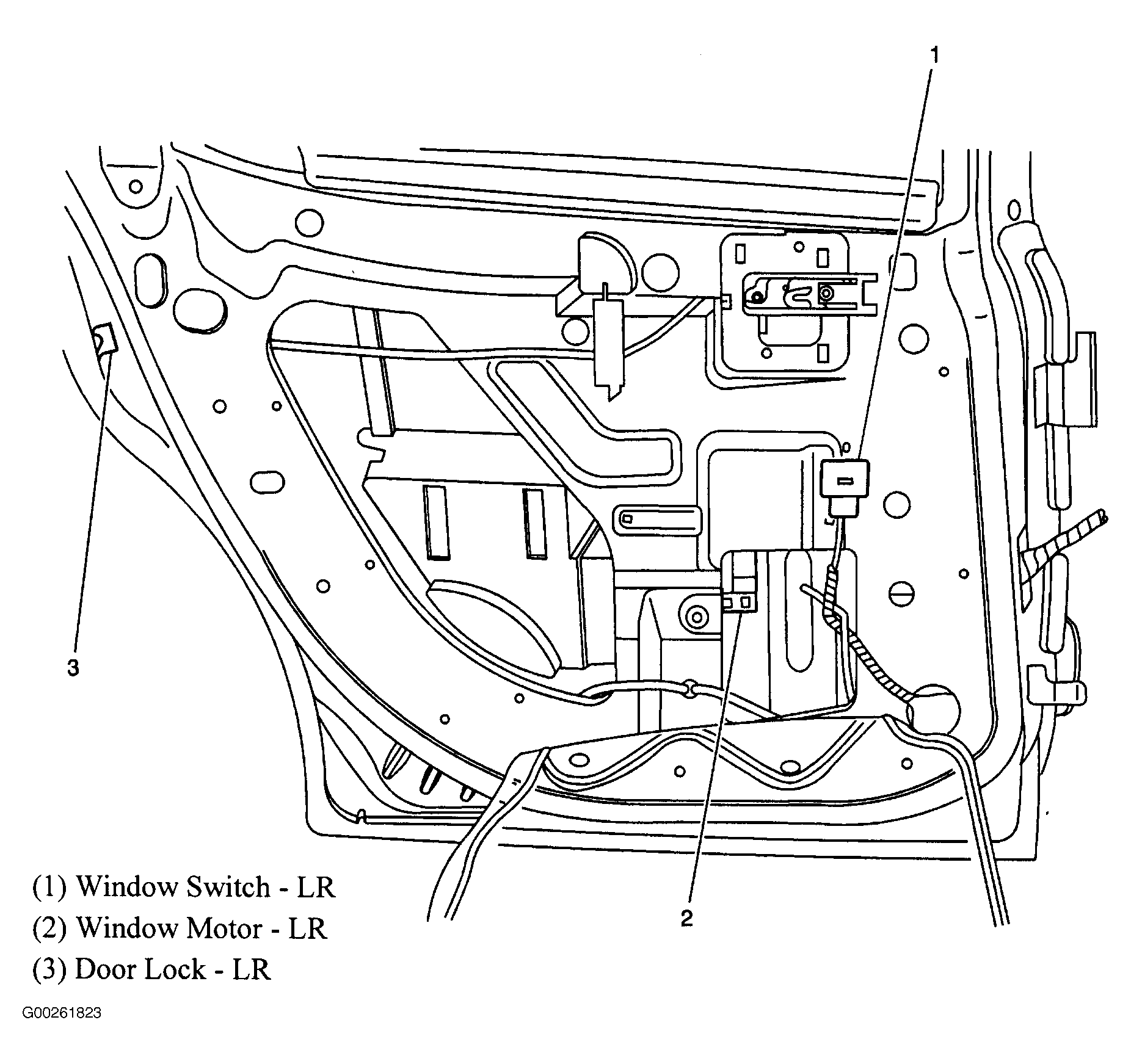

Fig 55: Left Rear Passenger Door
Courtesy of GENERAL MOTORS CORP.

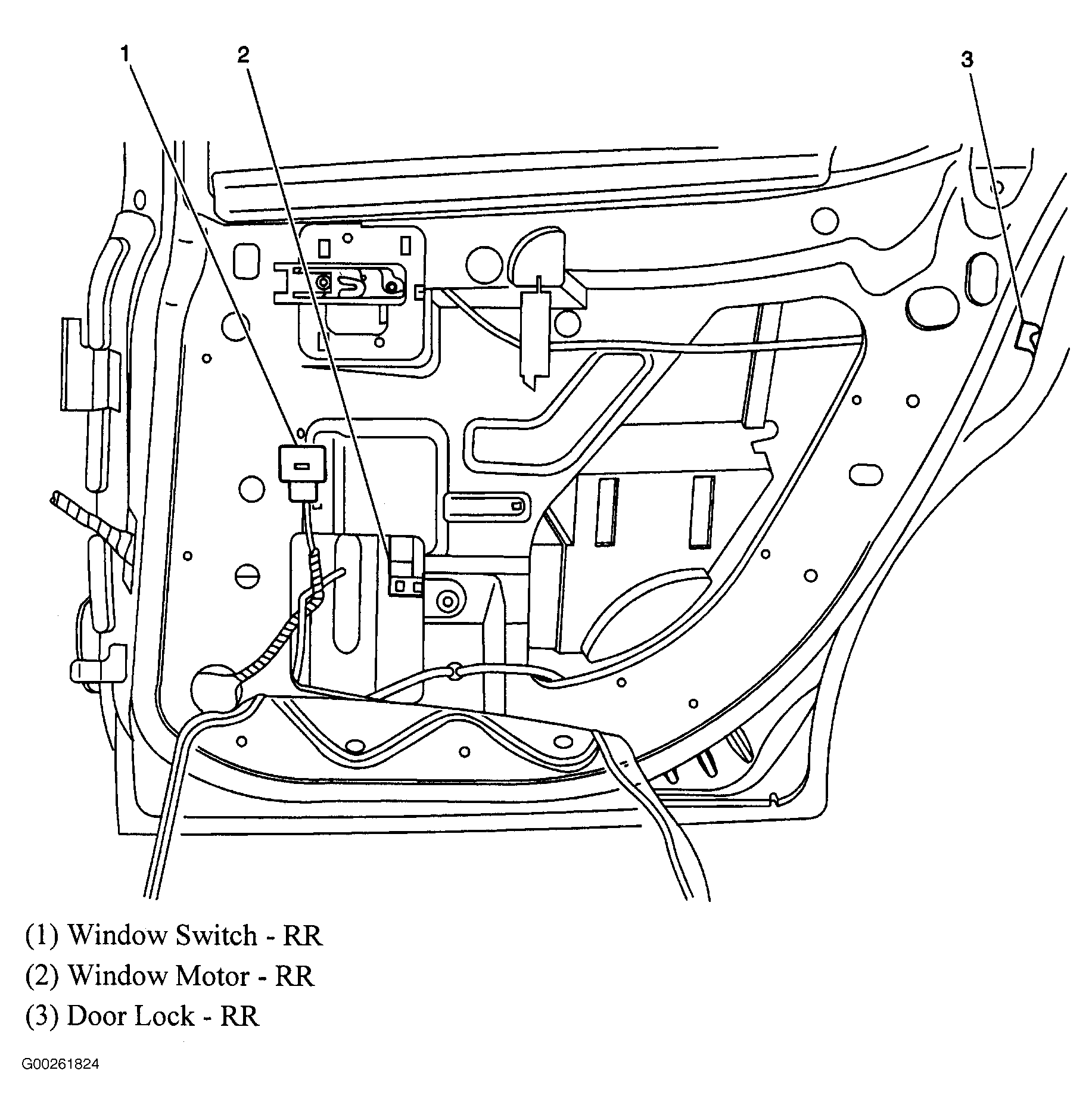

Fig 56: Right Rear Passenger Door
Courtesy of GENERAL MOTORS CORP.

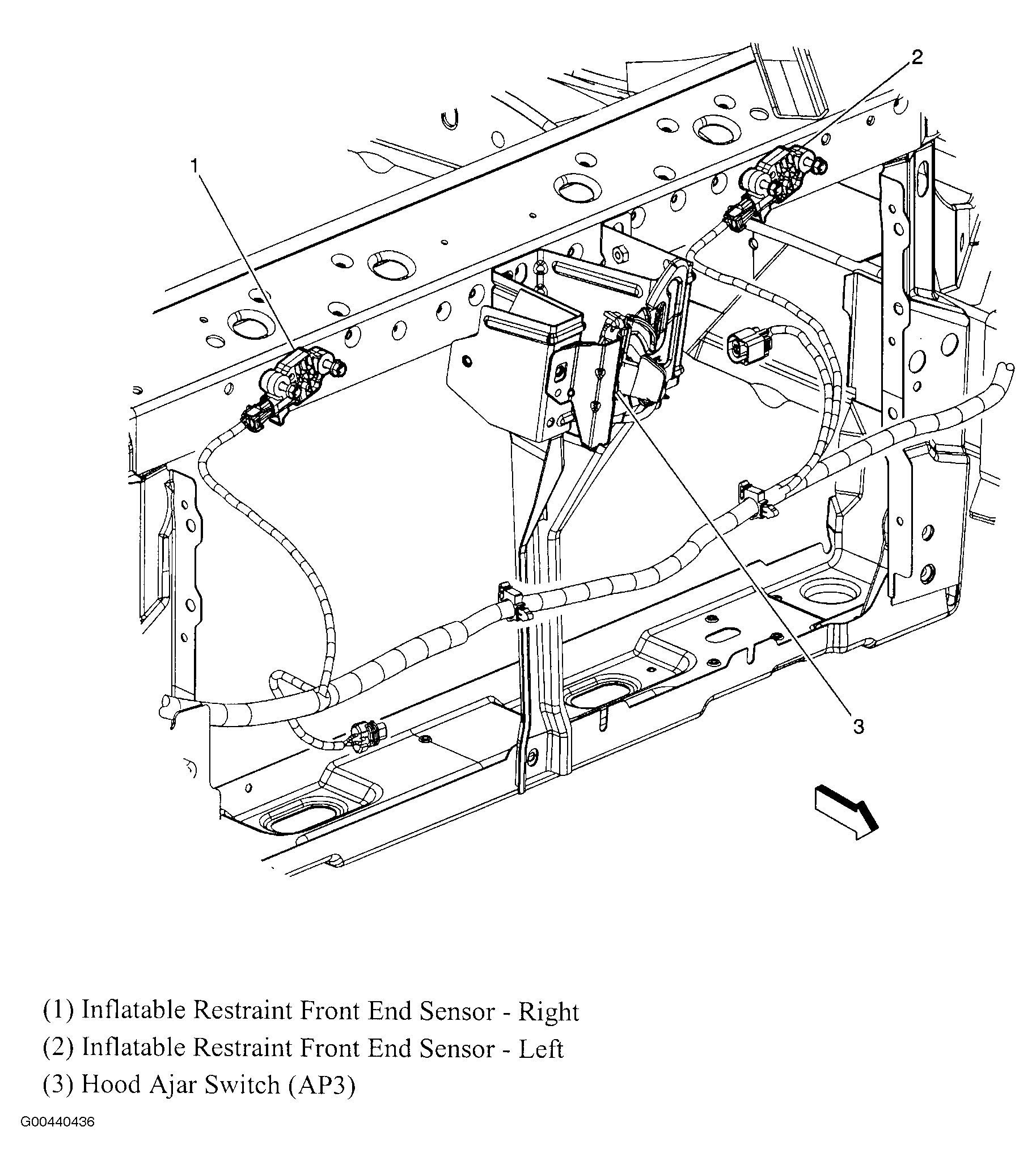

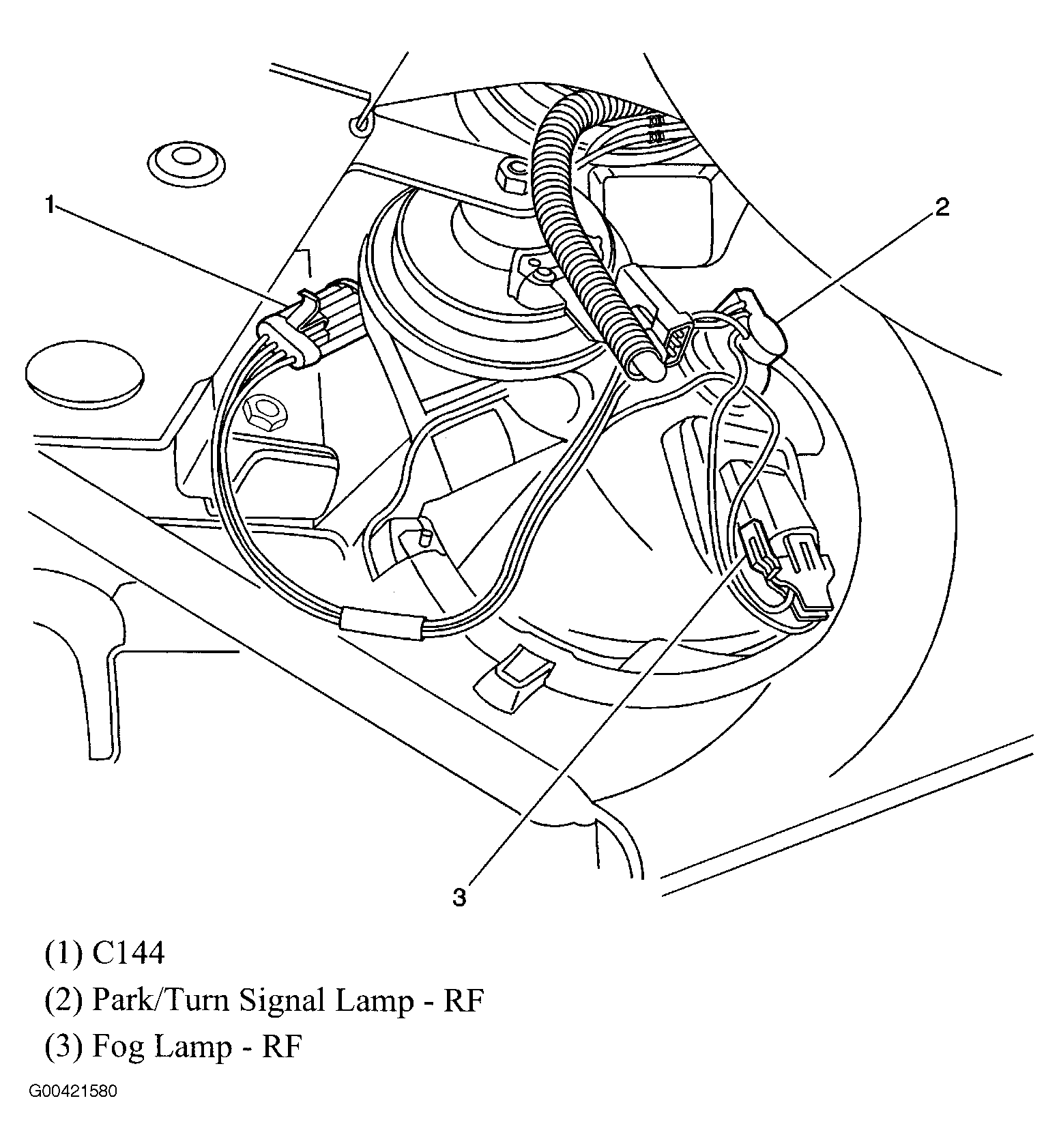

Fig 57: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 58: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 59: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 60: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

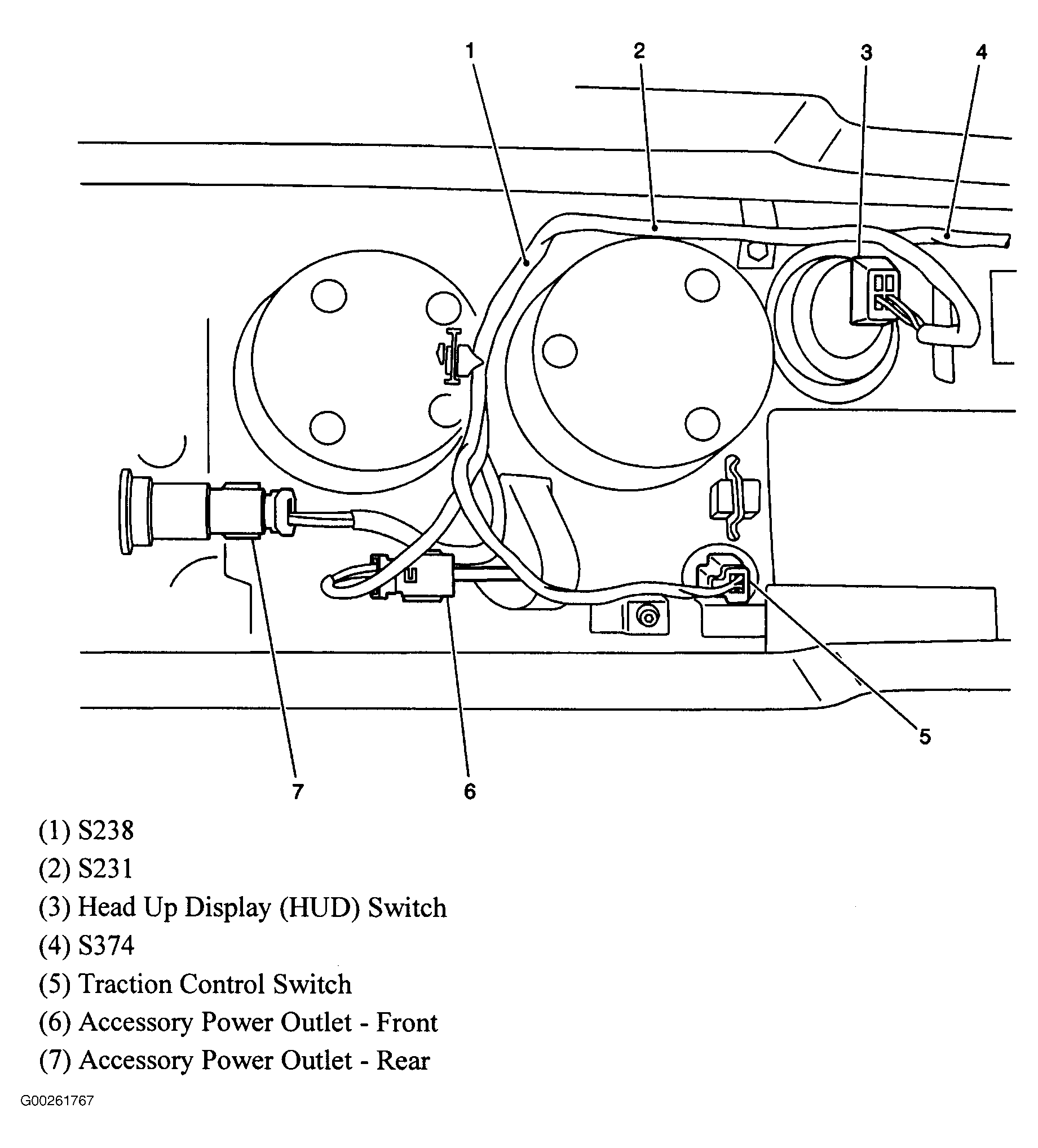

Fig 61: Inside Of Center Console
Courtesy of GENERAL MOTORS CORP.

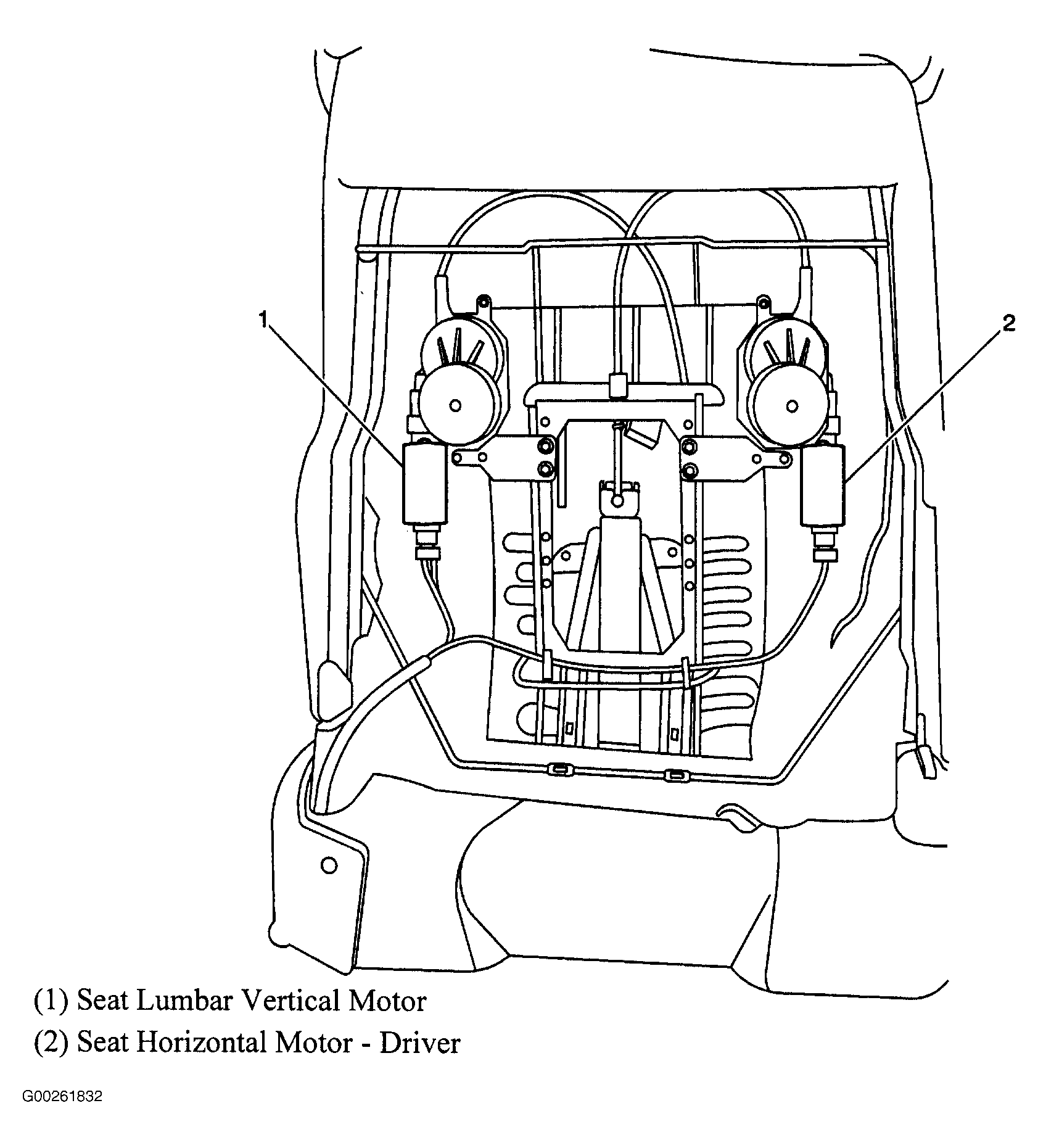

Fig 62: Rear Of Driver's Seat Back
Courtesy of GENERAL MOTORS CORP.

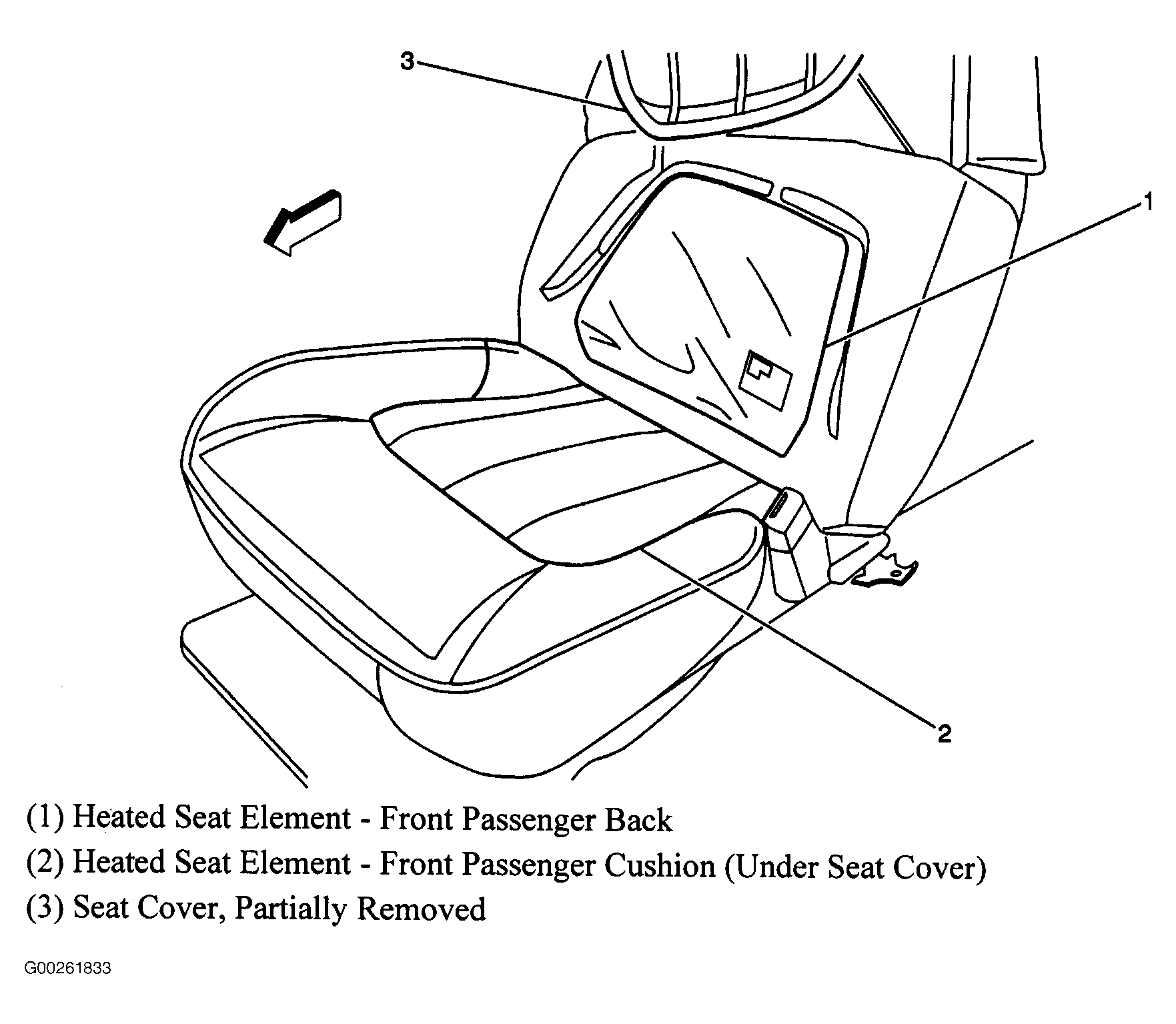

Fig 63: Passenger's Heated Seat Elements
Courtesy of GENERAL MOTORS CORP.
Fig 64: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 65: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

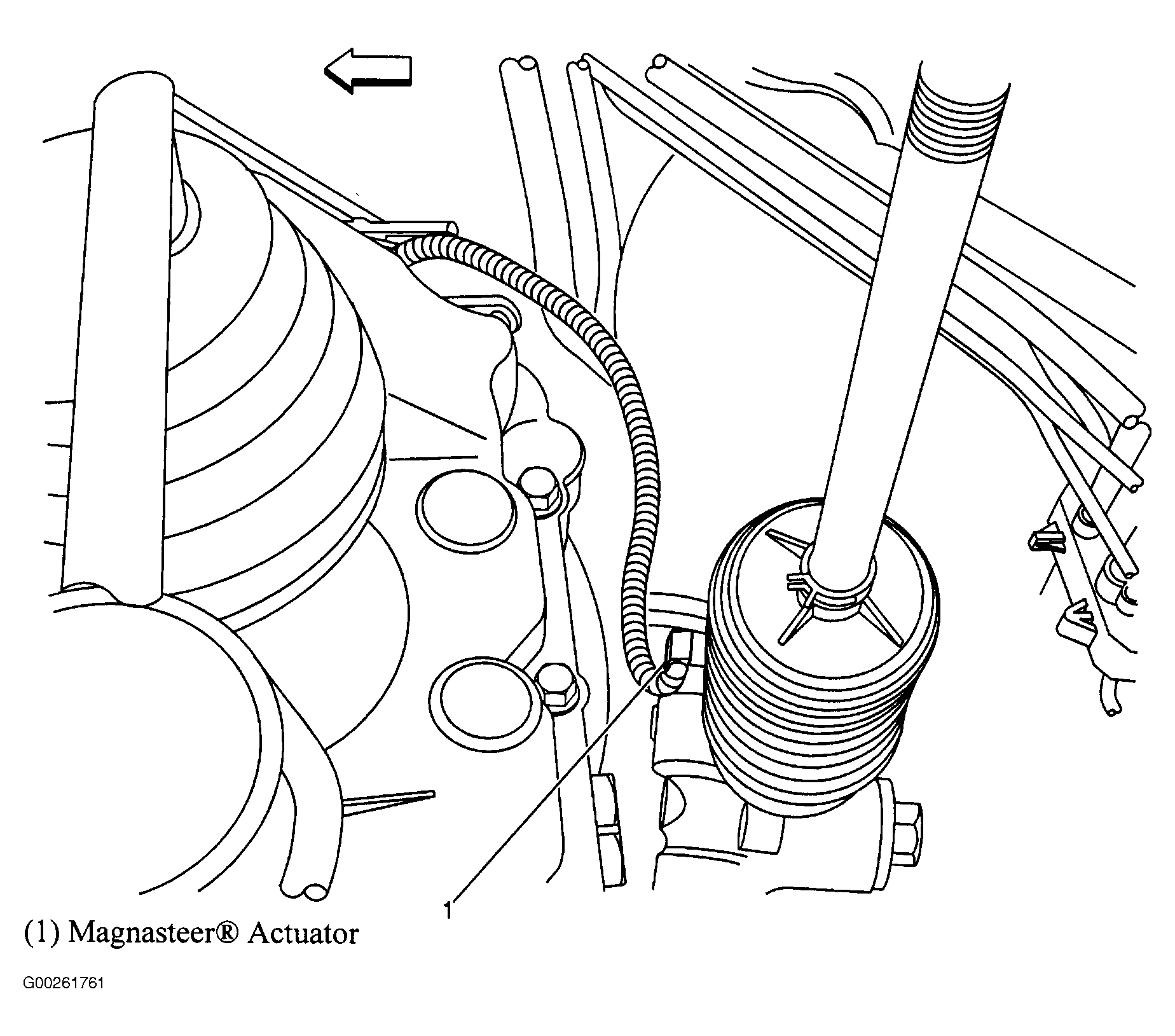

Fig 66: Steering System Components
Courtesy of GENERAL MOTORS CORP.

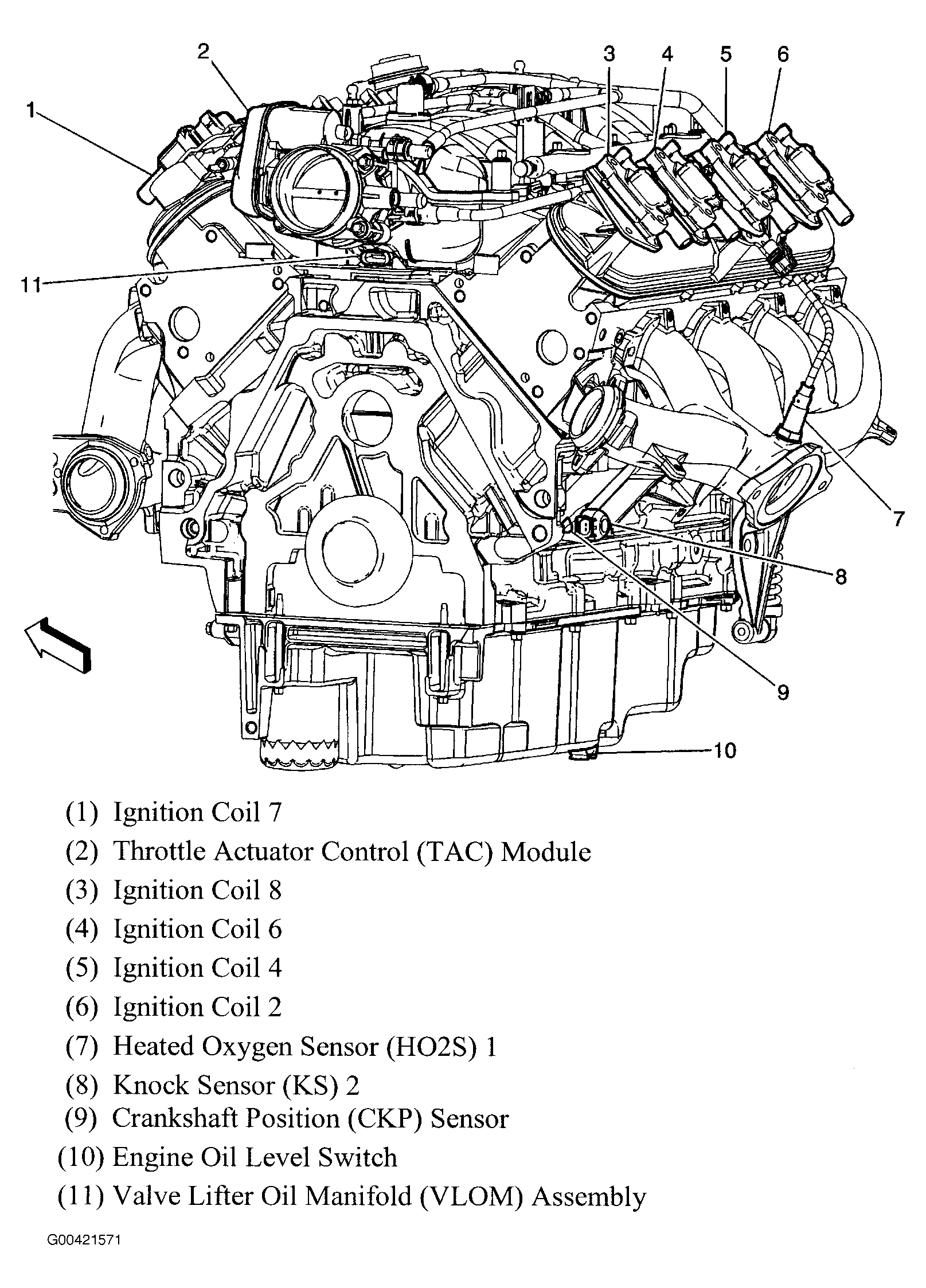

Fig 67: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Left Front Of Engine Compartment (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Left Front Of Engine Compartment (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Rear Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.

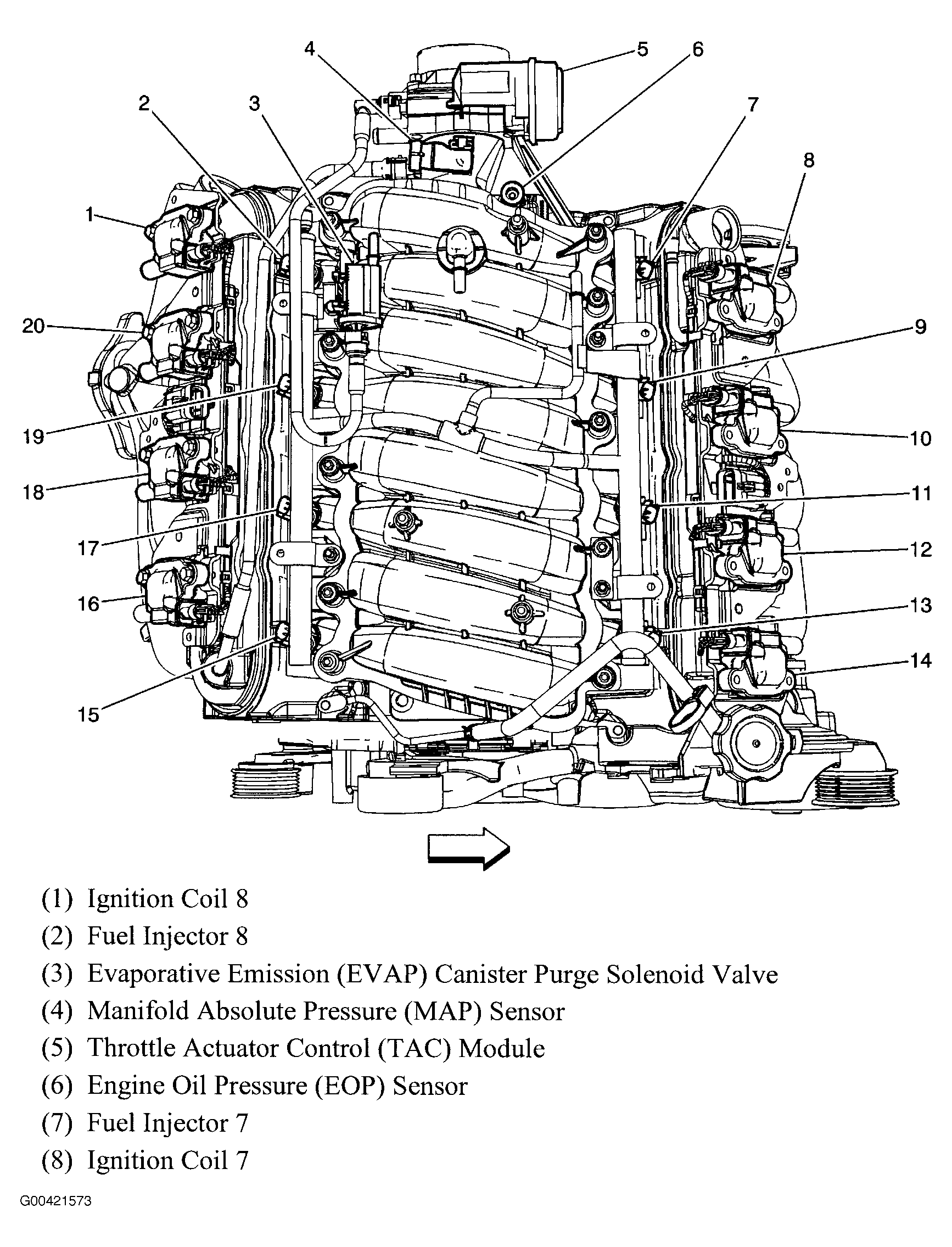

Fig 71: Top Of Engine (5.3L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Top Of Engine (5.3L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Underhood Fuse Block (5.3L)
Courtesy of GENERAL MOTORS CORP.

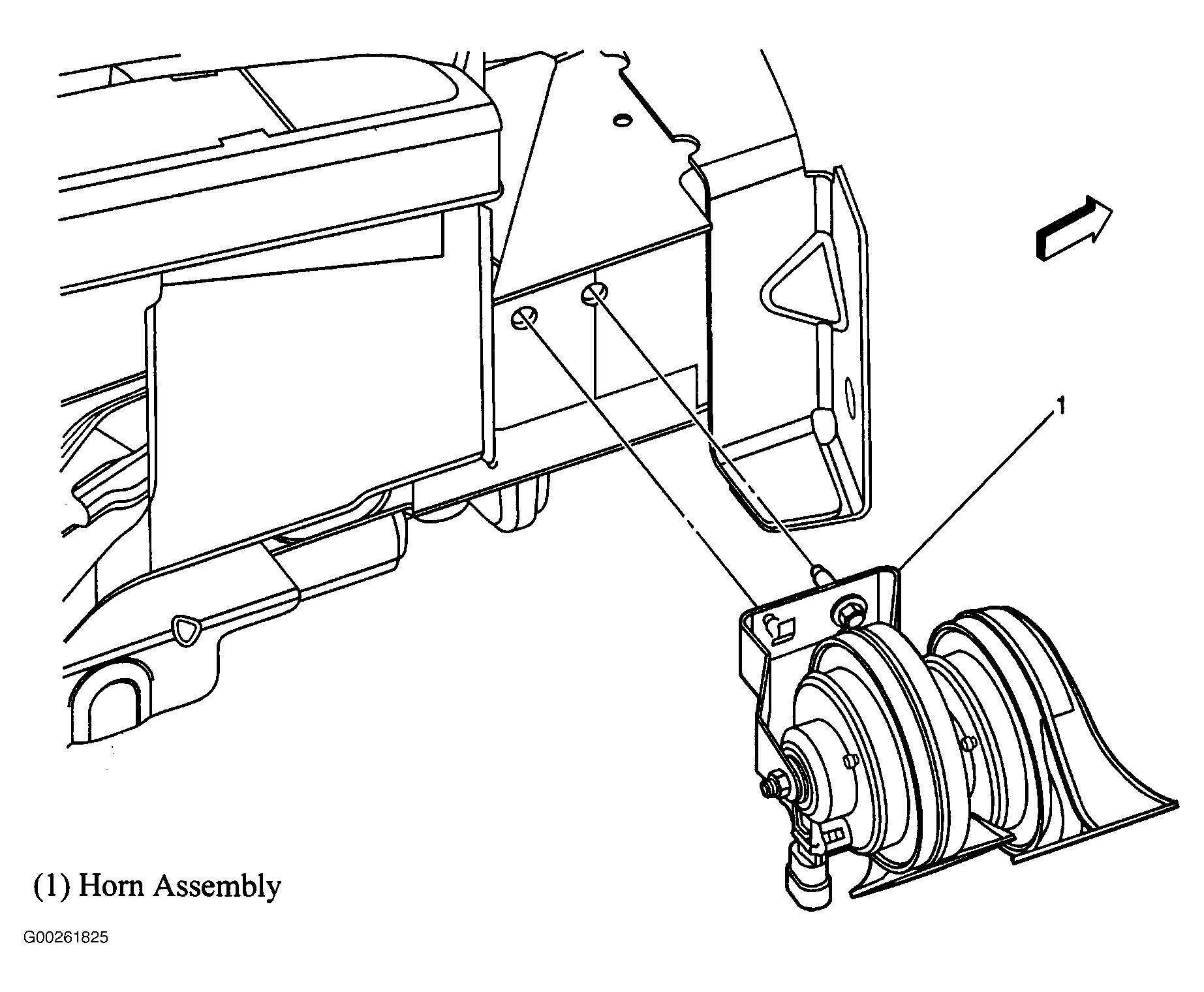

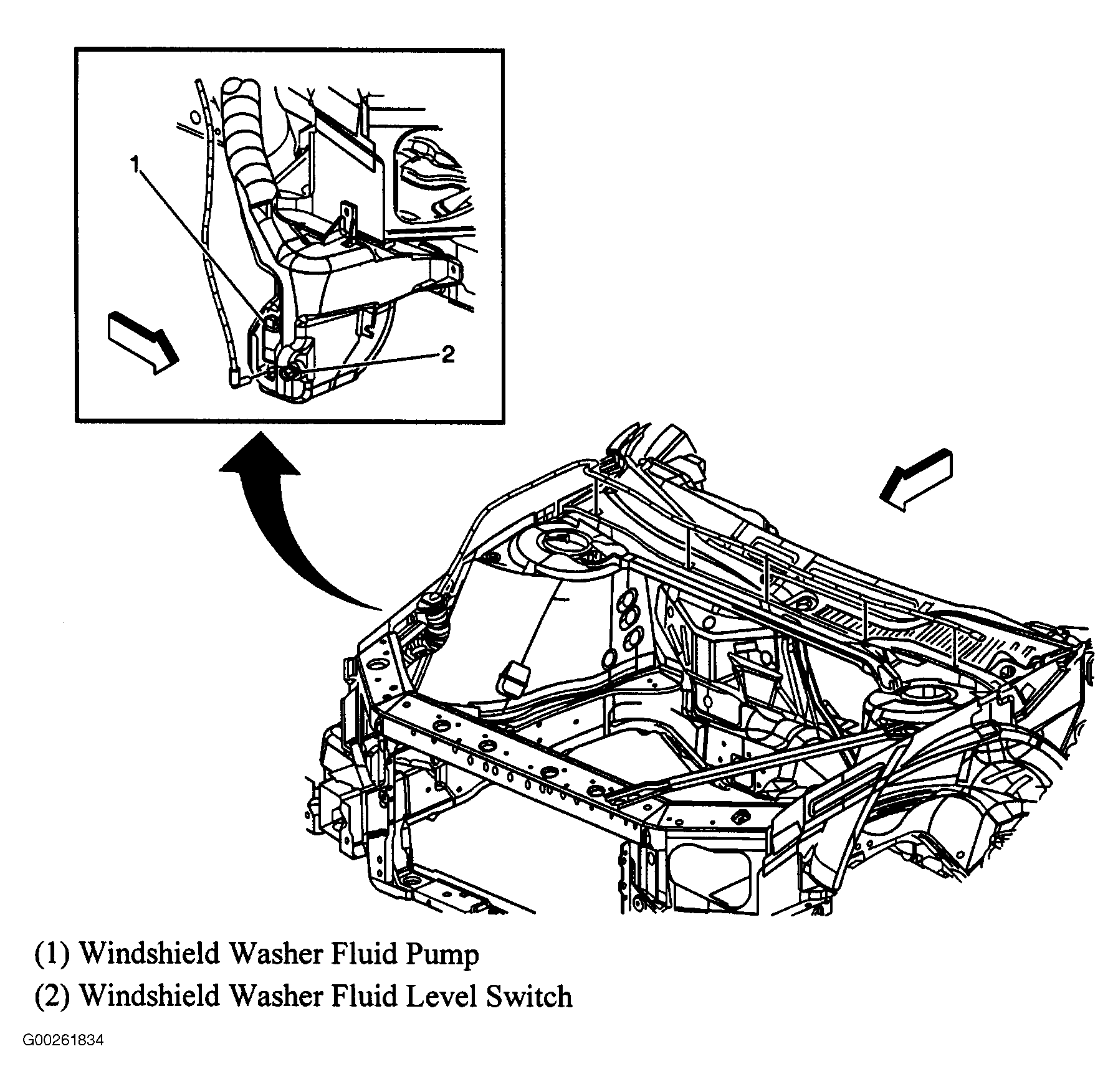

Fig 74: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 75: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 76: Right Front Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 77: Rear Of Engine (3.8L)
Courtesy of GENERAL MOTORS CORP.

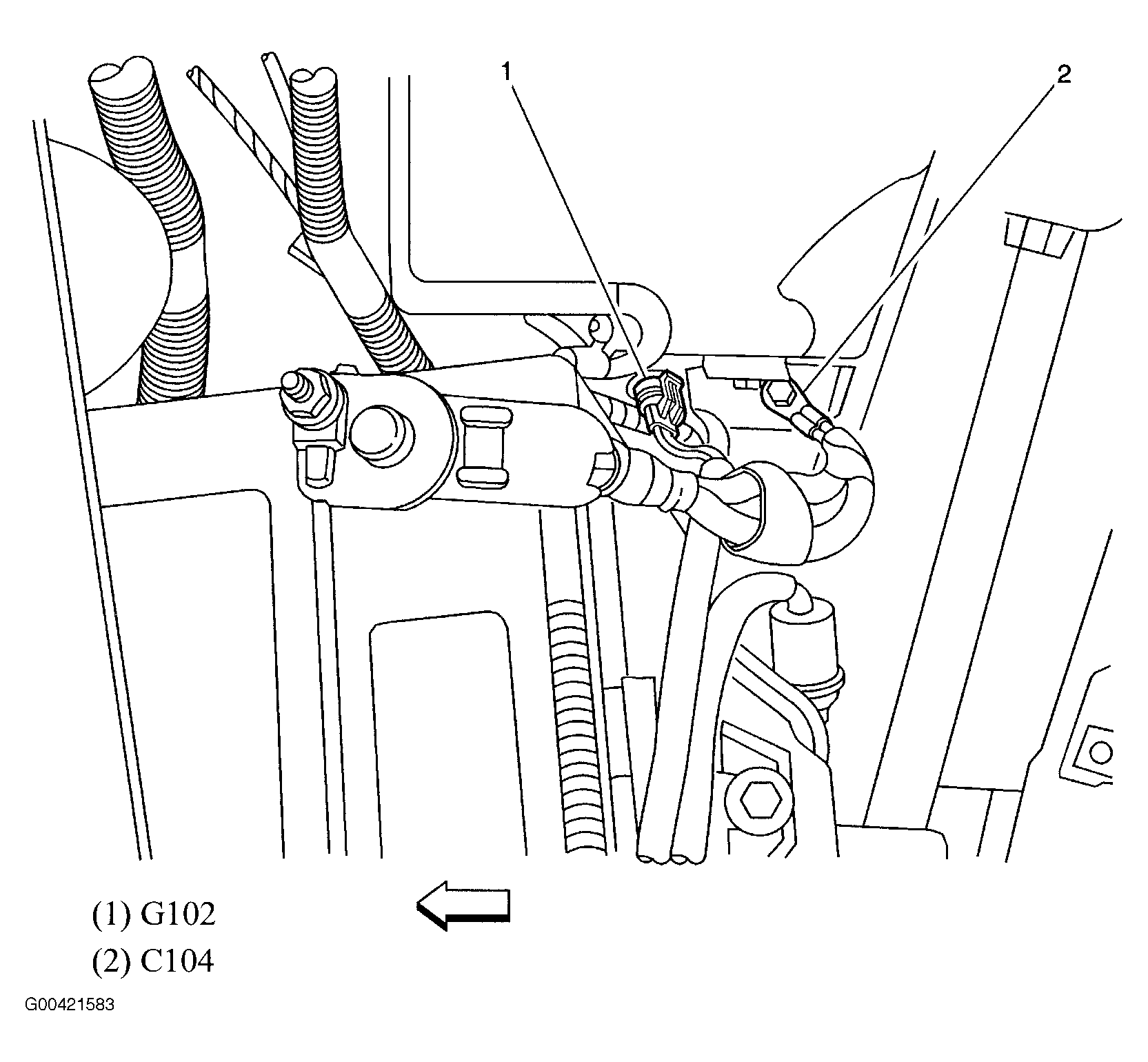

Fig 78: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

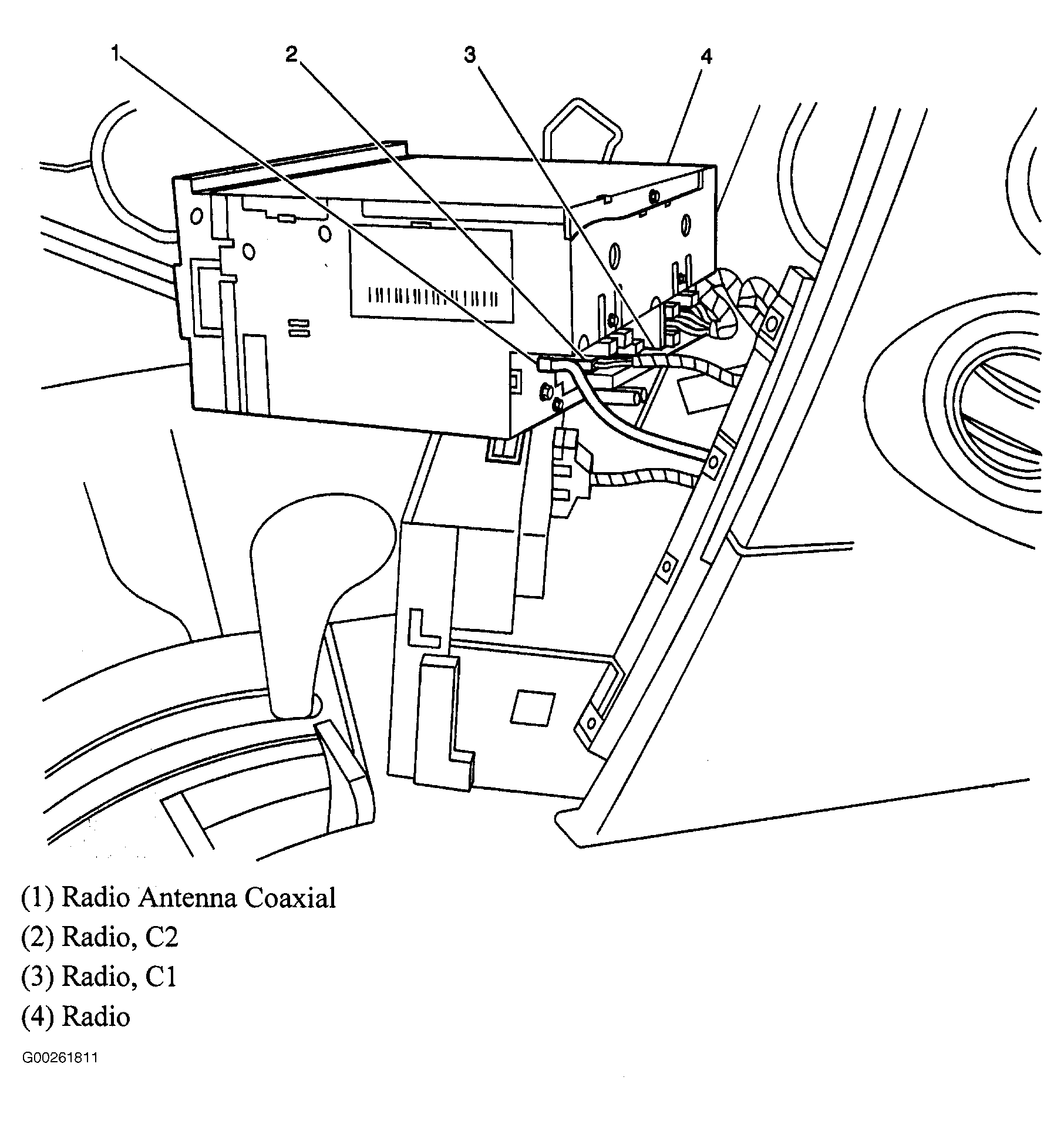

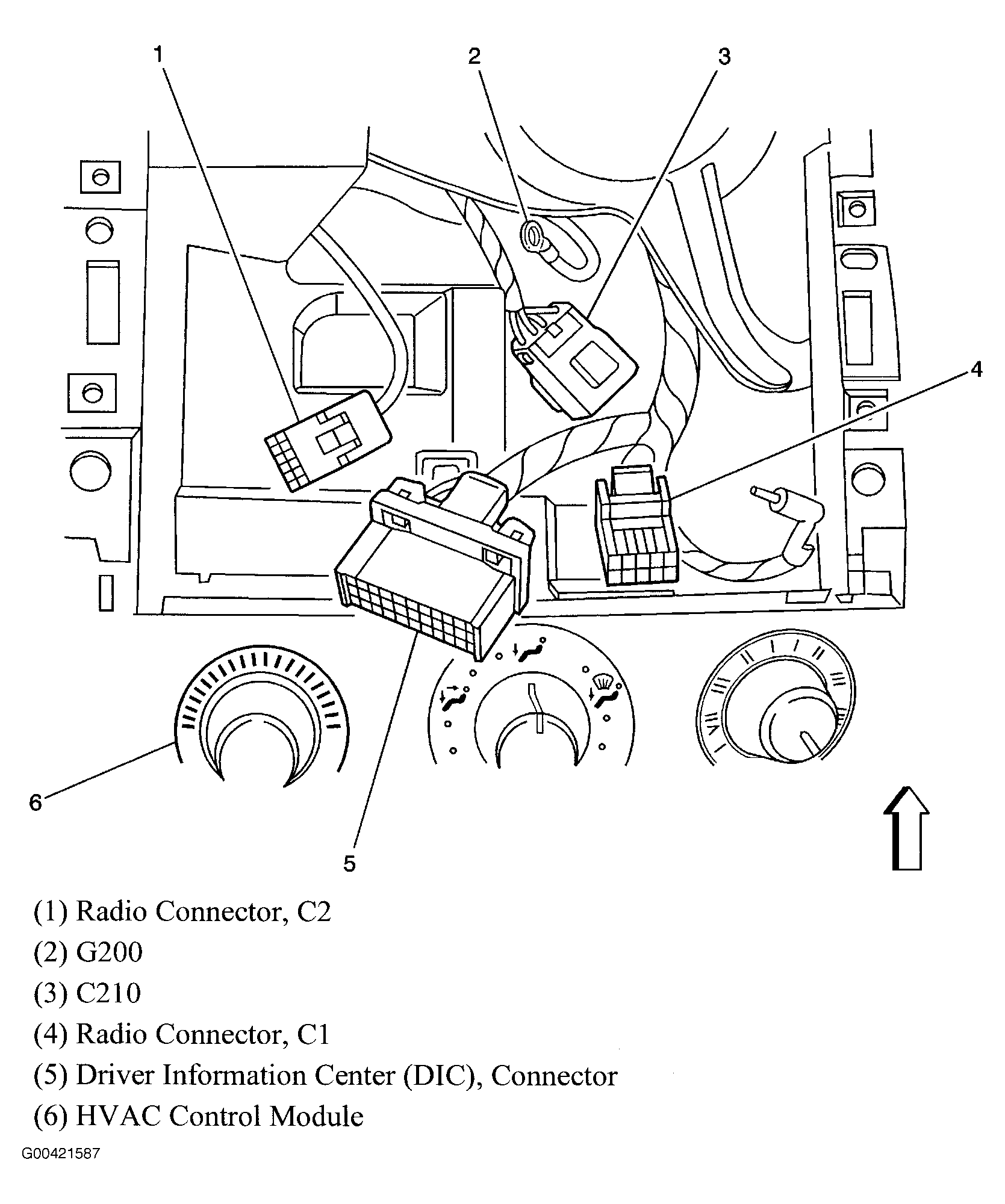

Fig 79: Center Of Dash, Behind Radio
Courtesy of GENERAL MOTORS CORP.
Fig 80: Right End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 81: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 82: Right Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 83: Front Passenger Compartment, Under Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 84: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 85: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 86: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
