Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

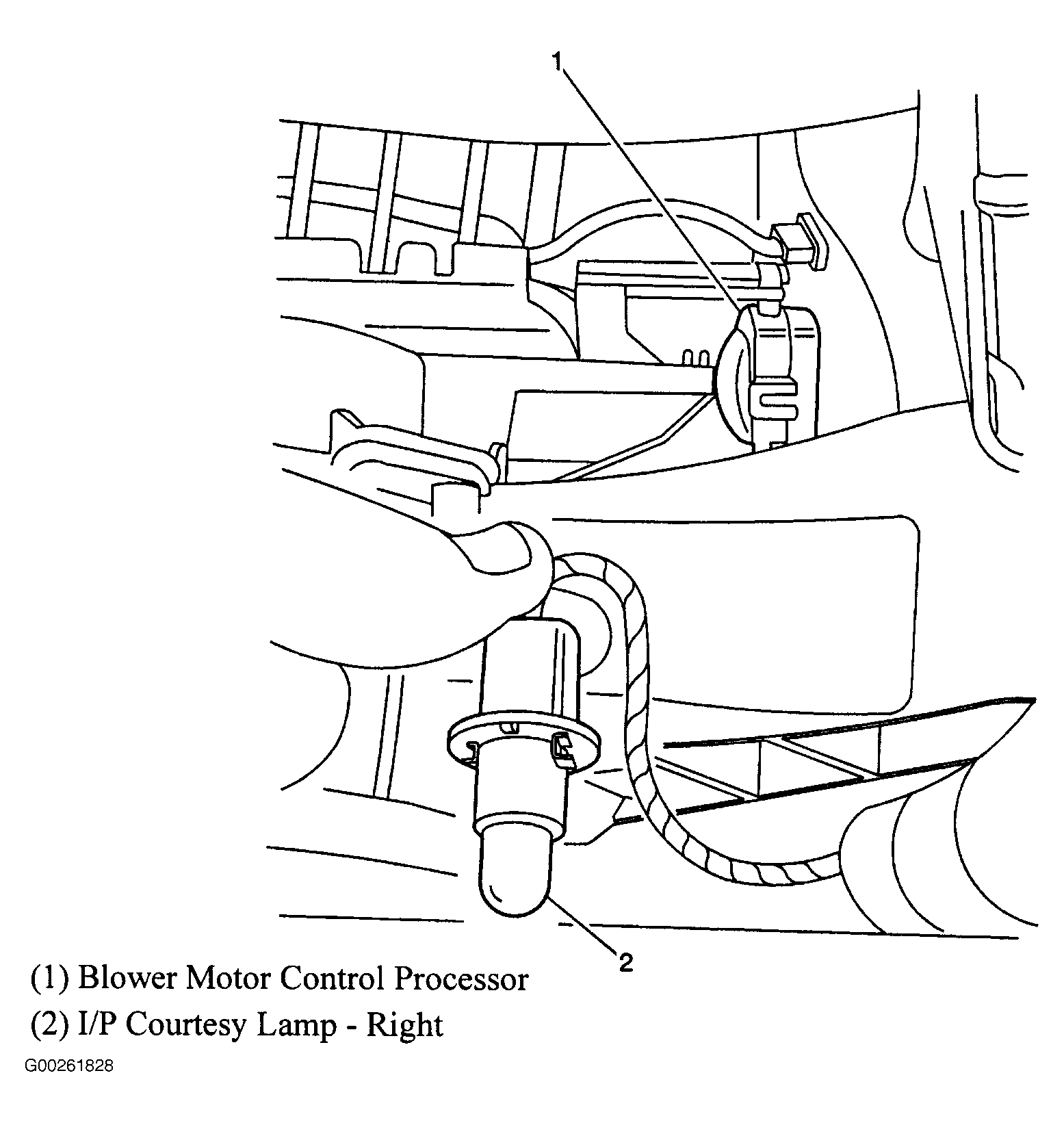

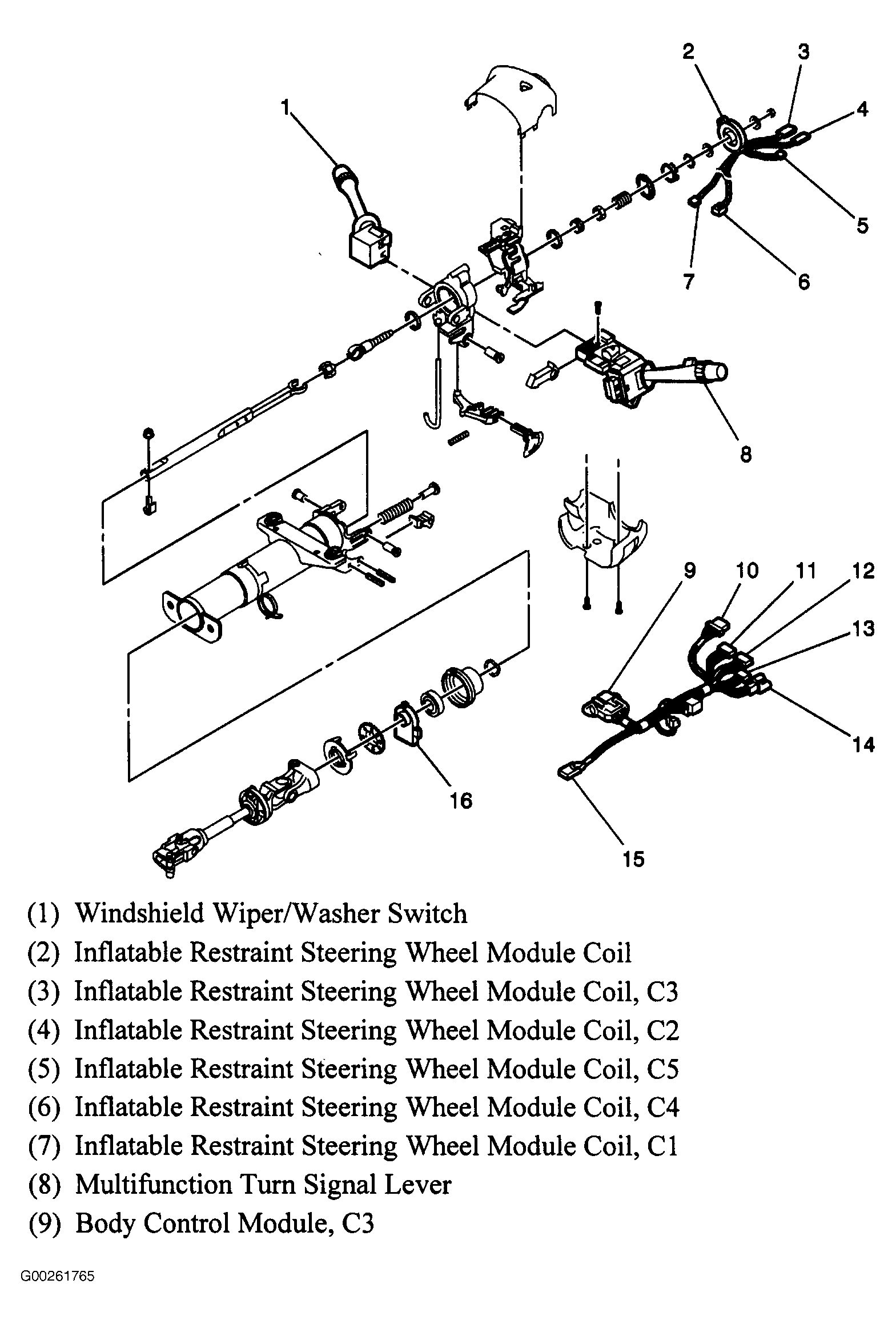

| Blower Motor Control Processor | On lower right side of dash. See Figure. |
| Body Control Module | Behind left side of dash, left of steering column. See Figure. |

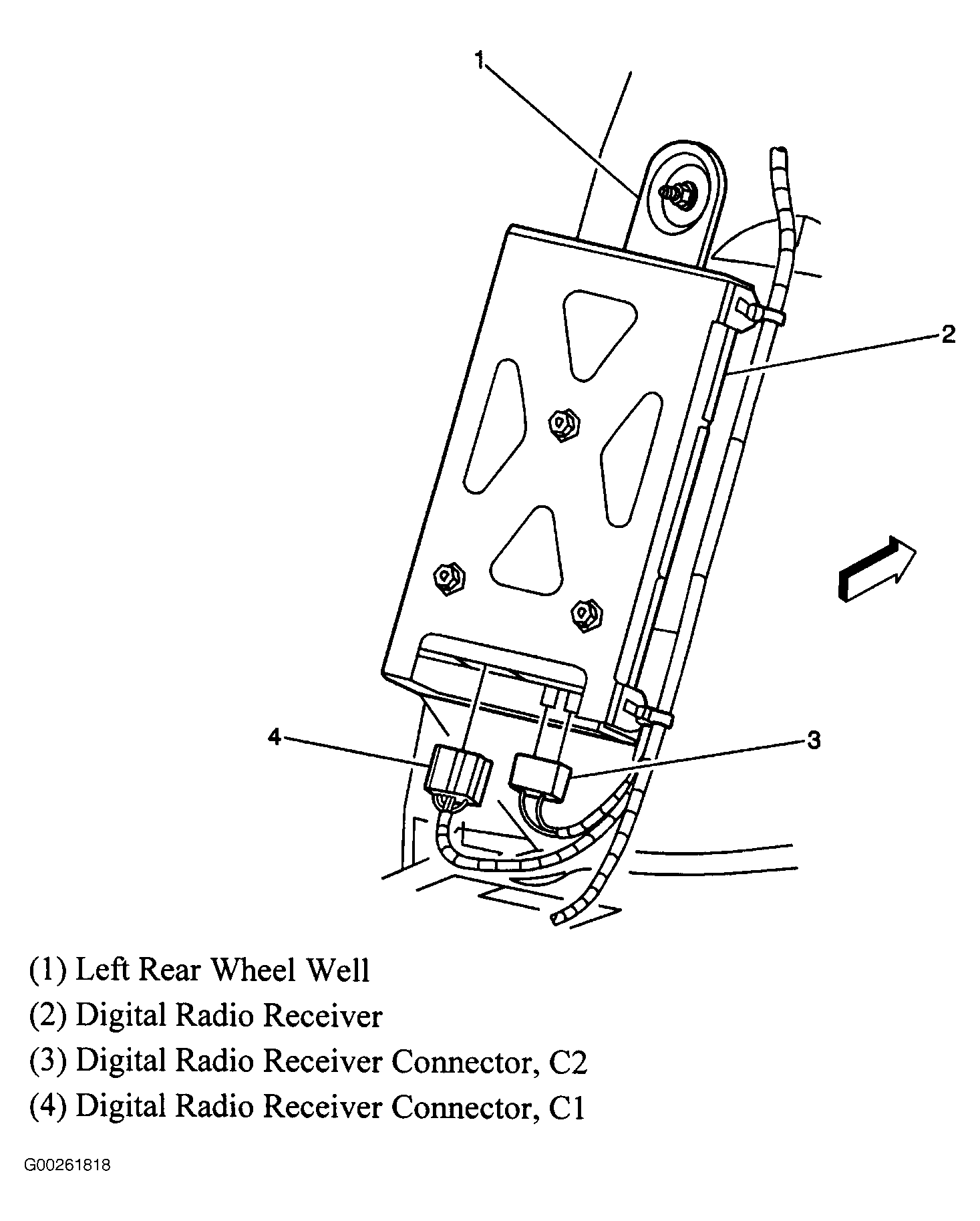

| Digital Radio Receiver | Left side of rear compartment. See Figure. |

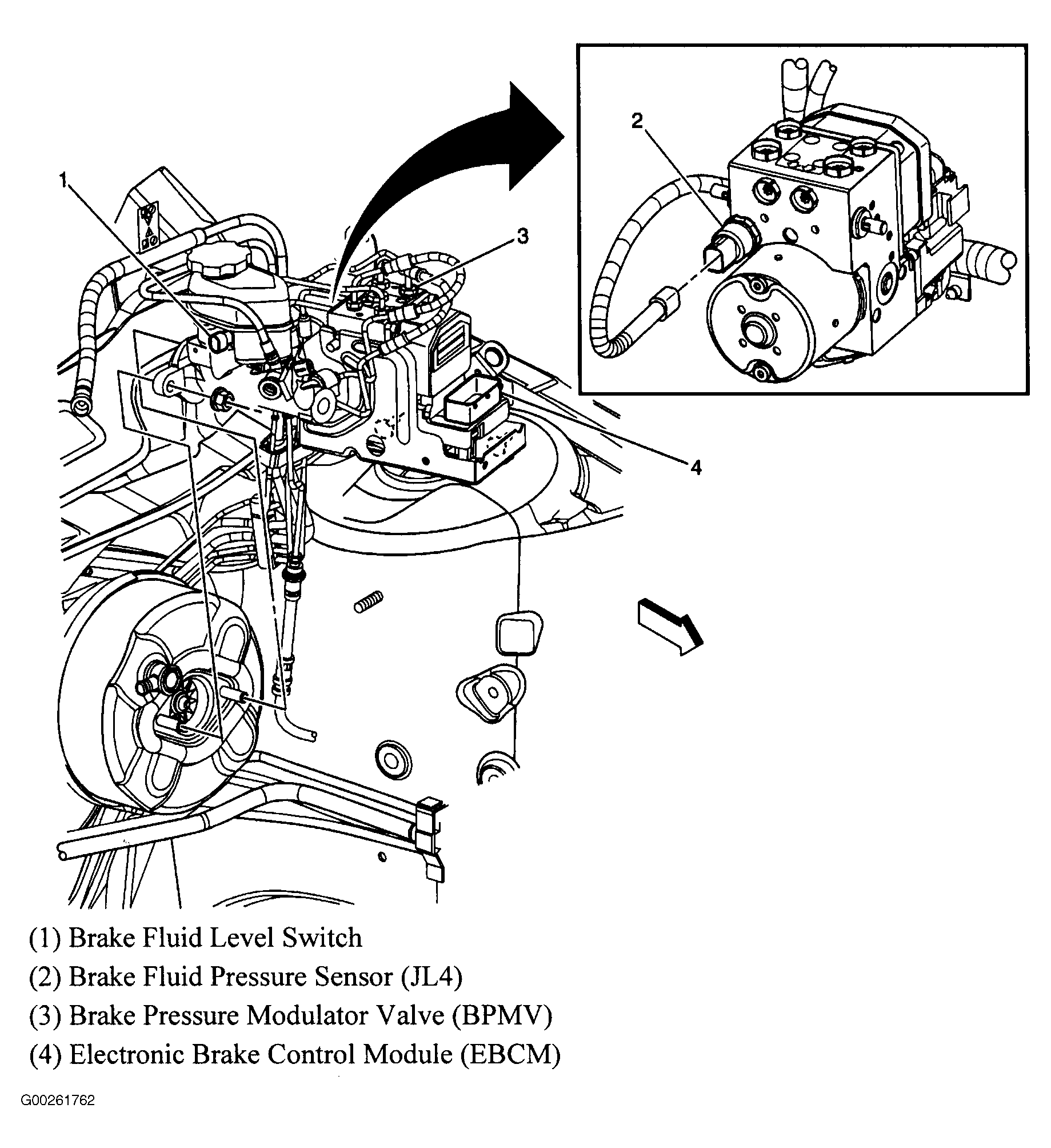

| Electronic Brake Control Module | Left side of engine compartment, part of brake pressure modulator valve. See Figure. |

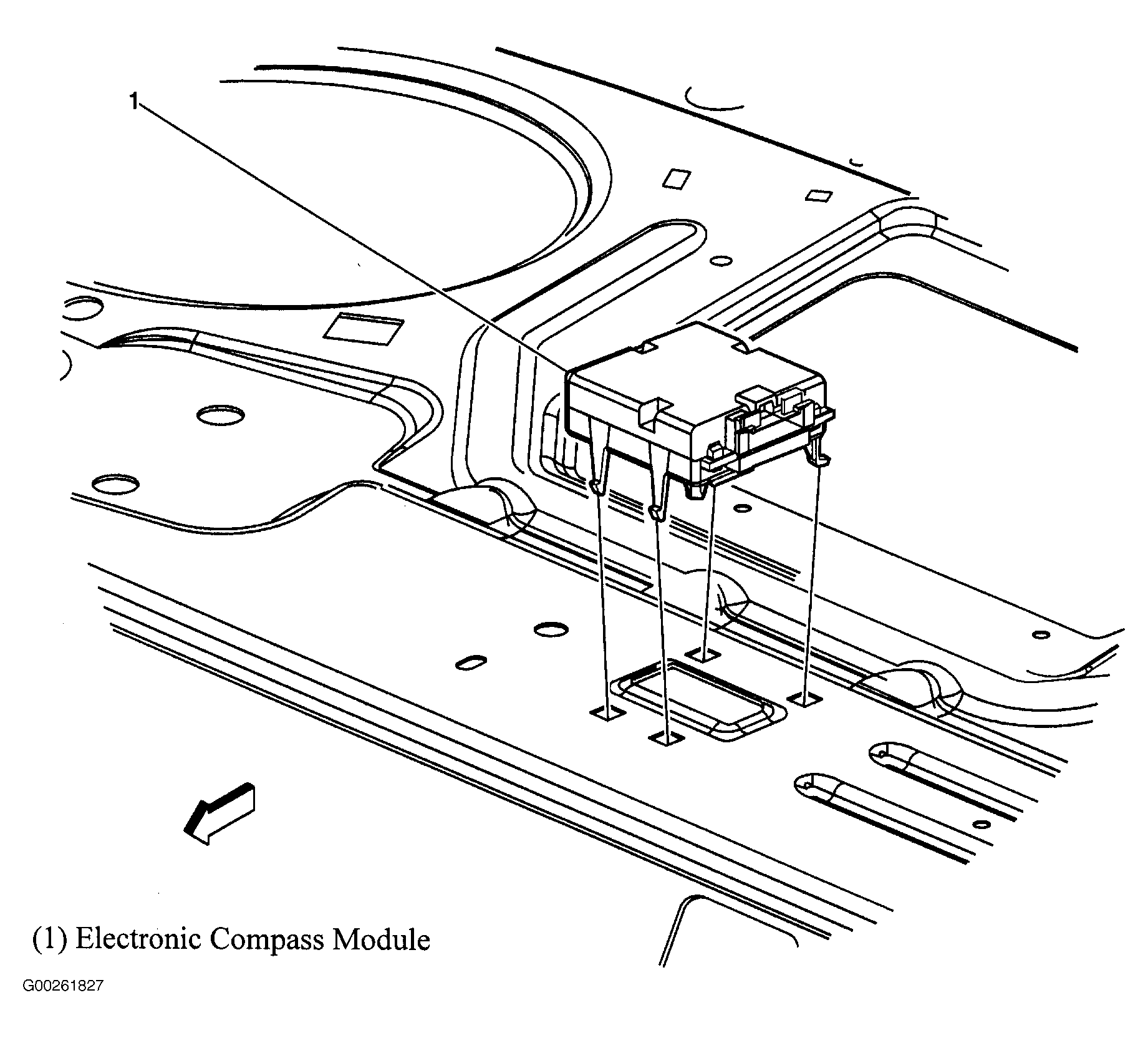

| Electronic Compass Module | Top left side of rear package shelf. See Figure. |

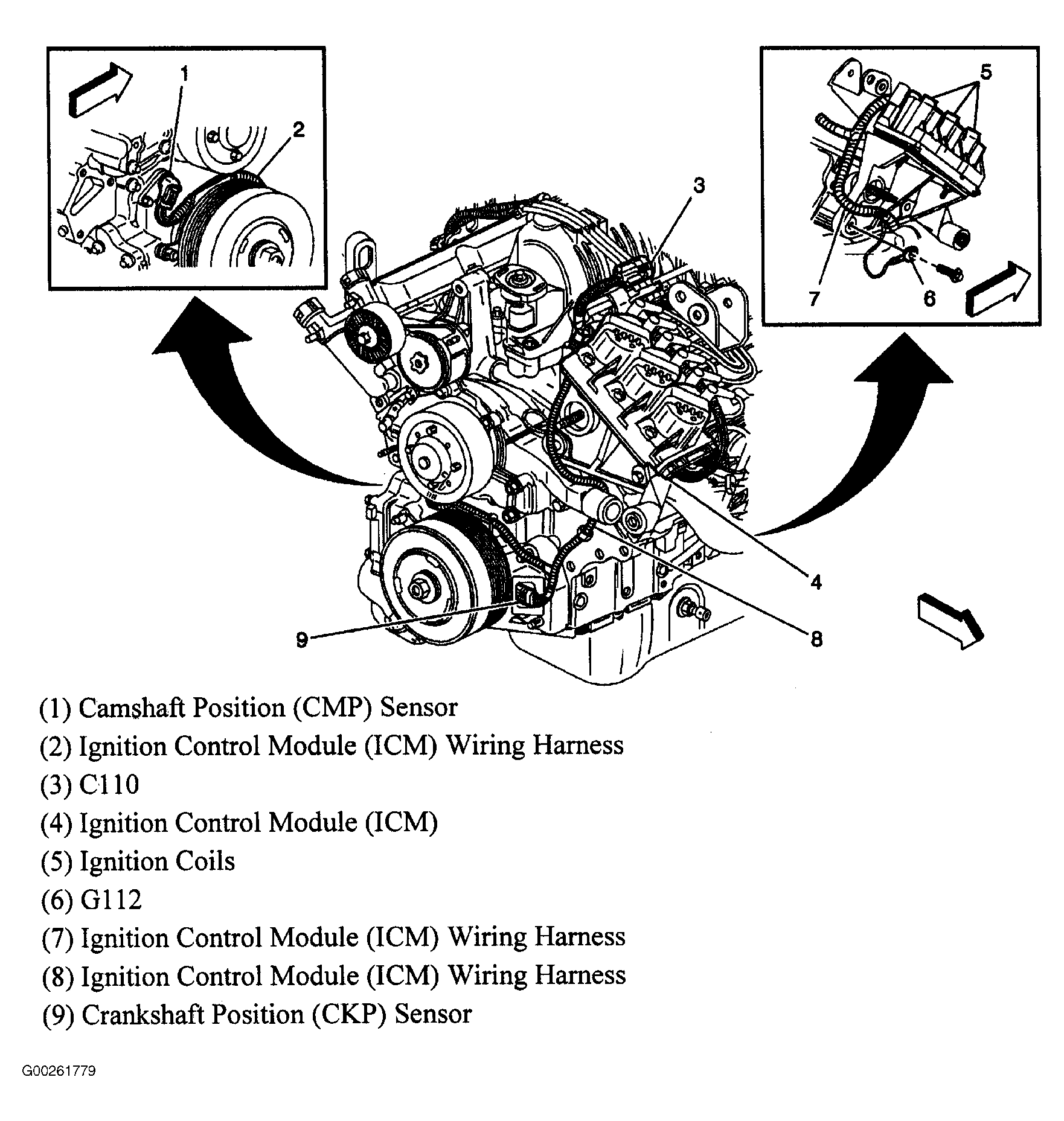

| Ignition Control Module (ICM) (3.8L) | Top left front of engine. See Figure. |

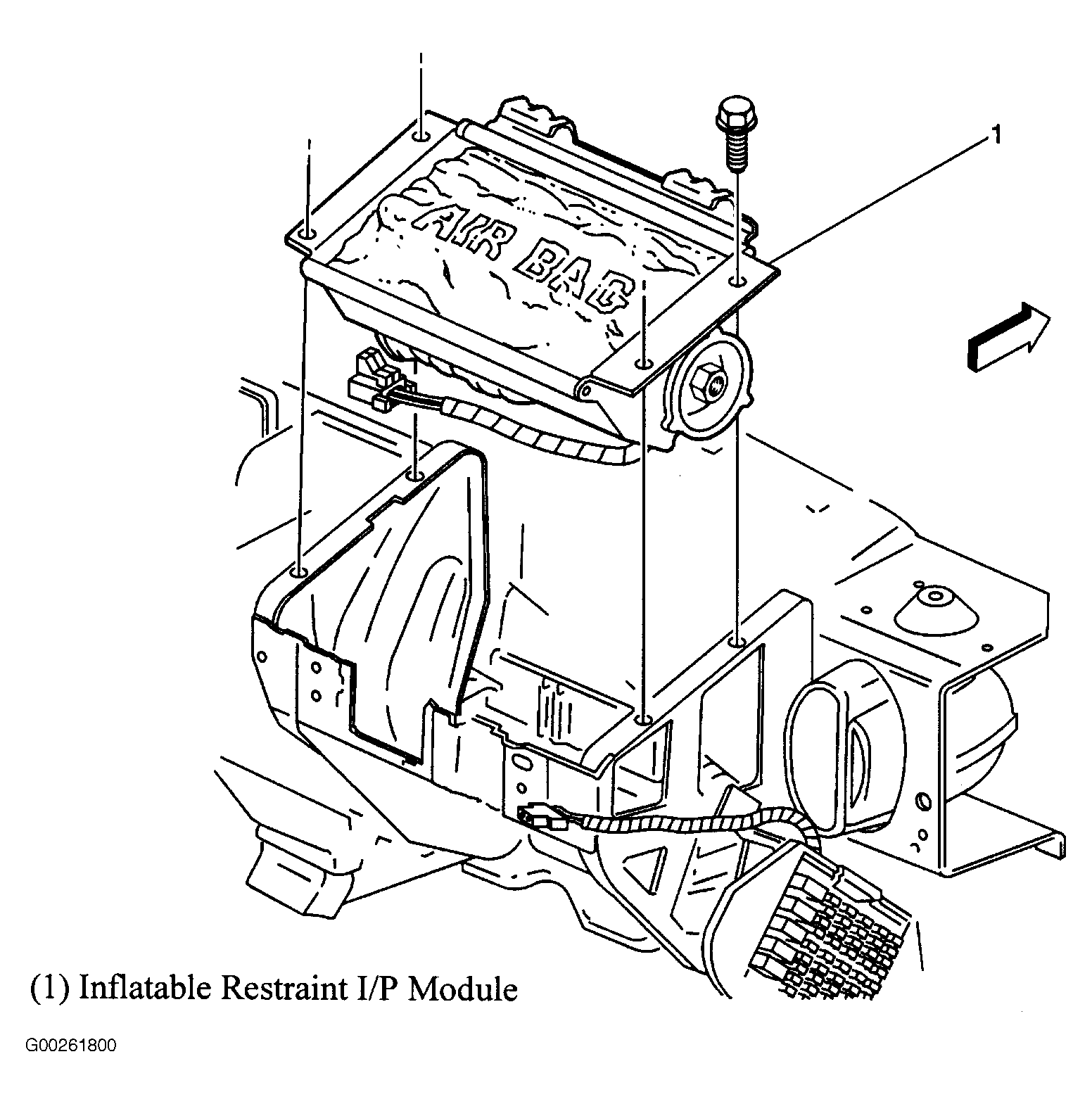

| Inflatable Restraint I/P Module | Behind right side of dash. See Figure. |

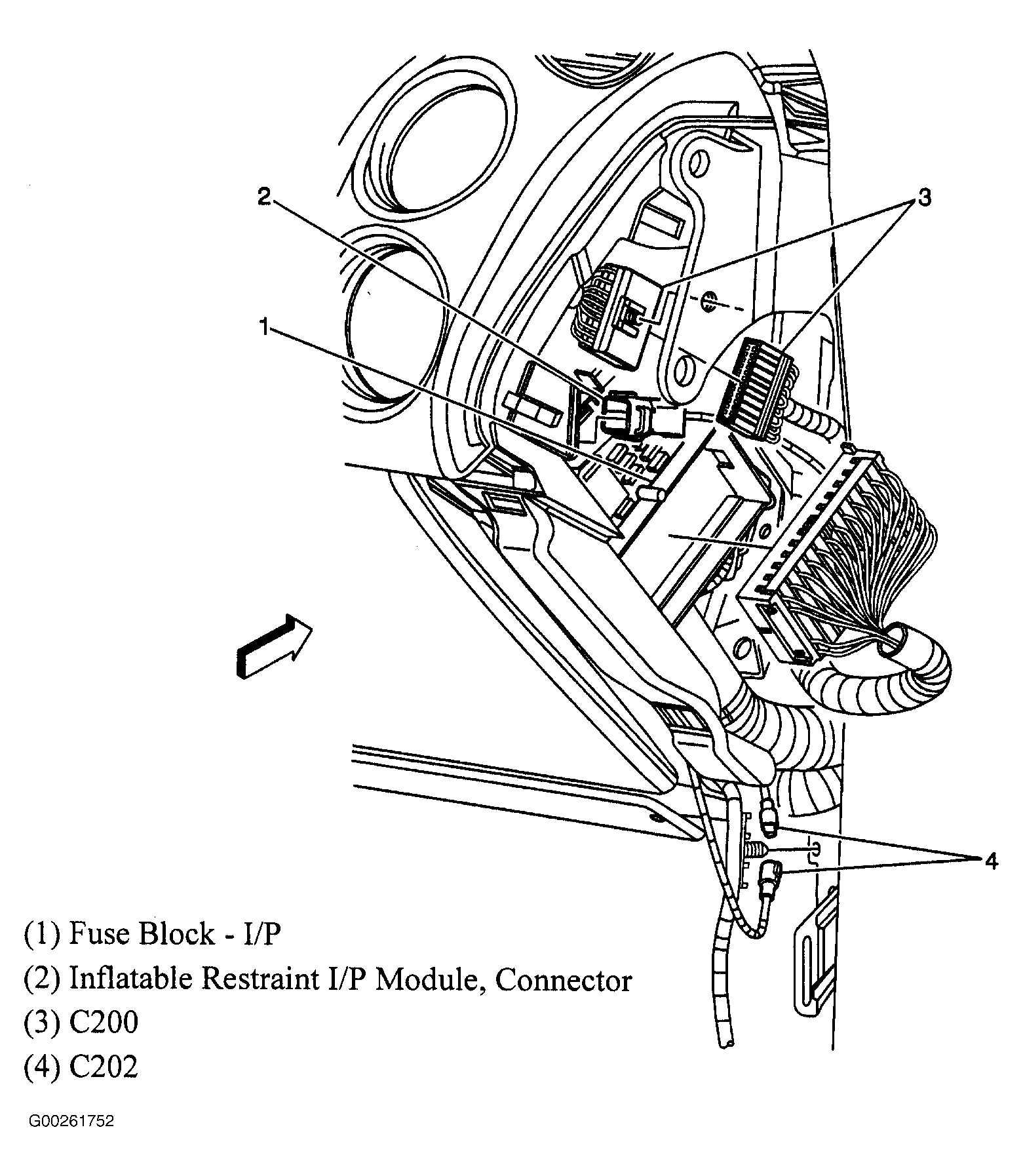

| Inflatable Restraint I/P Module Connector | Right side of dash. See Figure. |

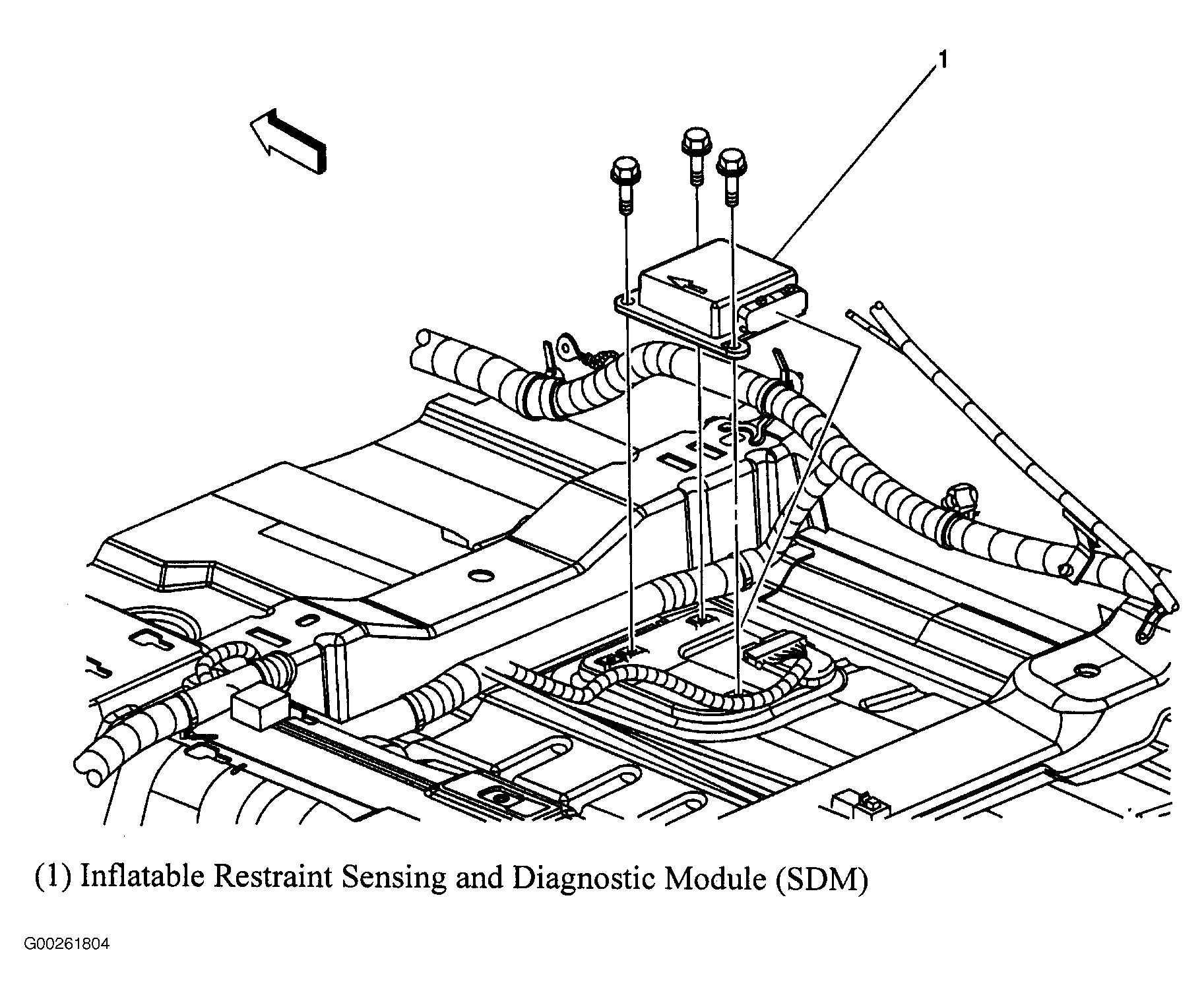

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under right front seat. See Figure. |

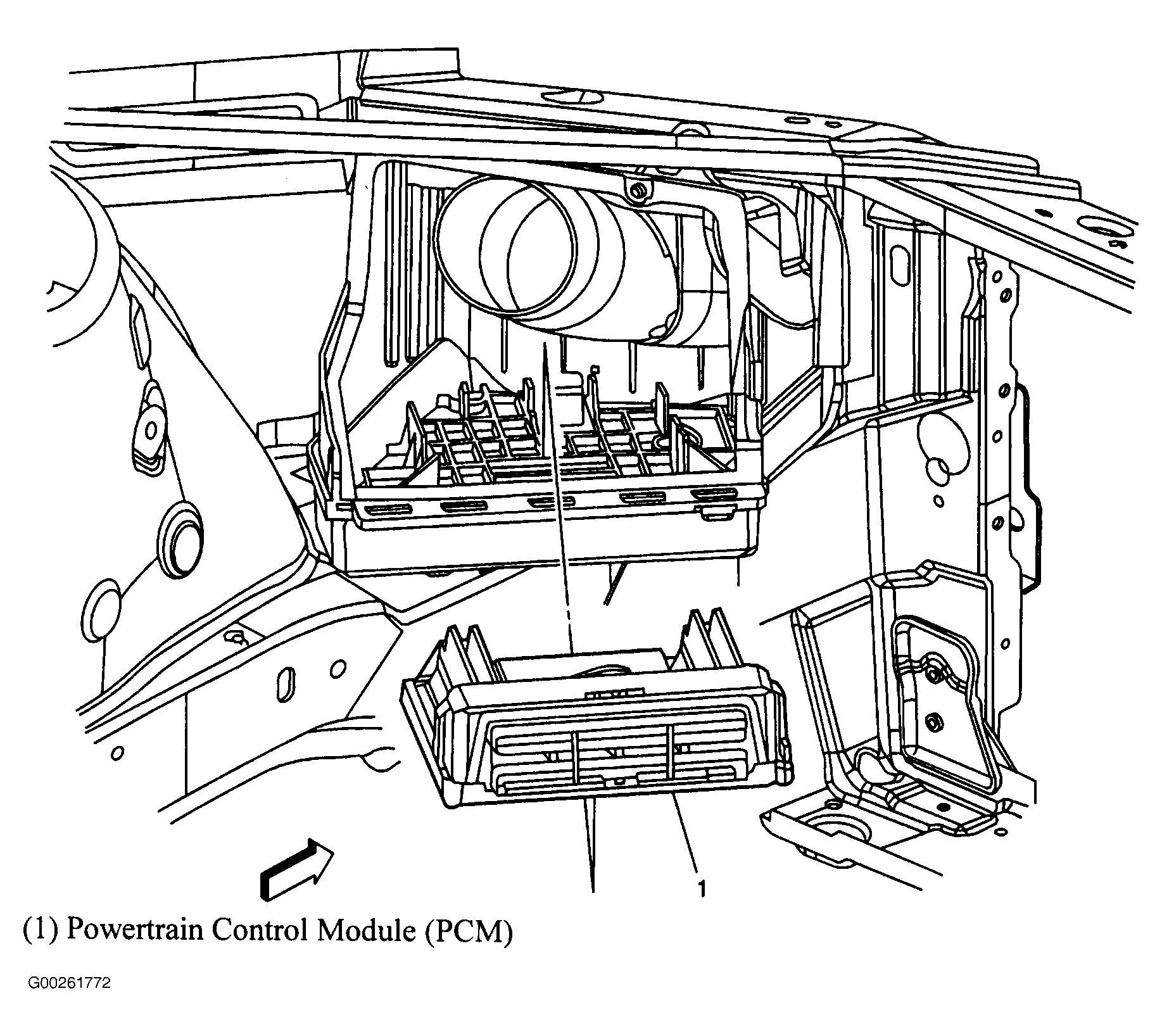

| Powertrain Control Module (3.8L) | Left front side of engine compartment, in air cleaner assembly. See Figure. |
| Powertrain Control Module (5.3L) | Left side of engine compartment, inside air cleaner assembly. See Figure. |

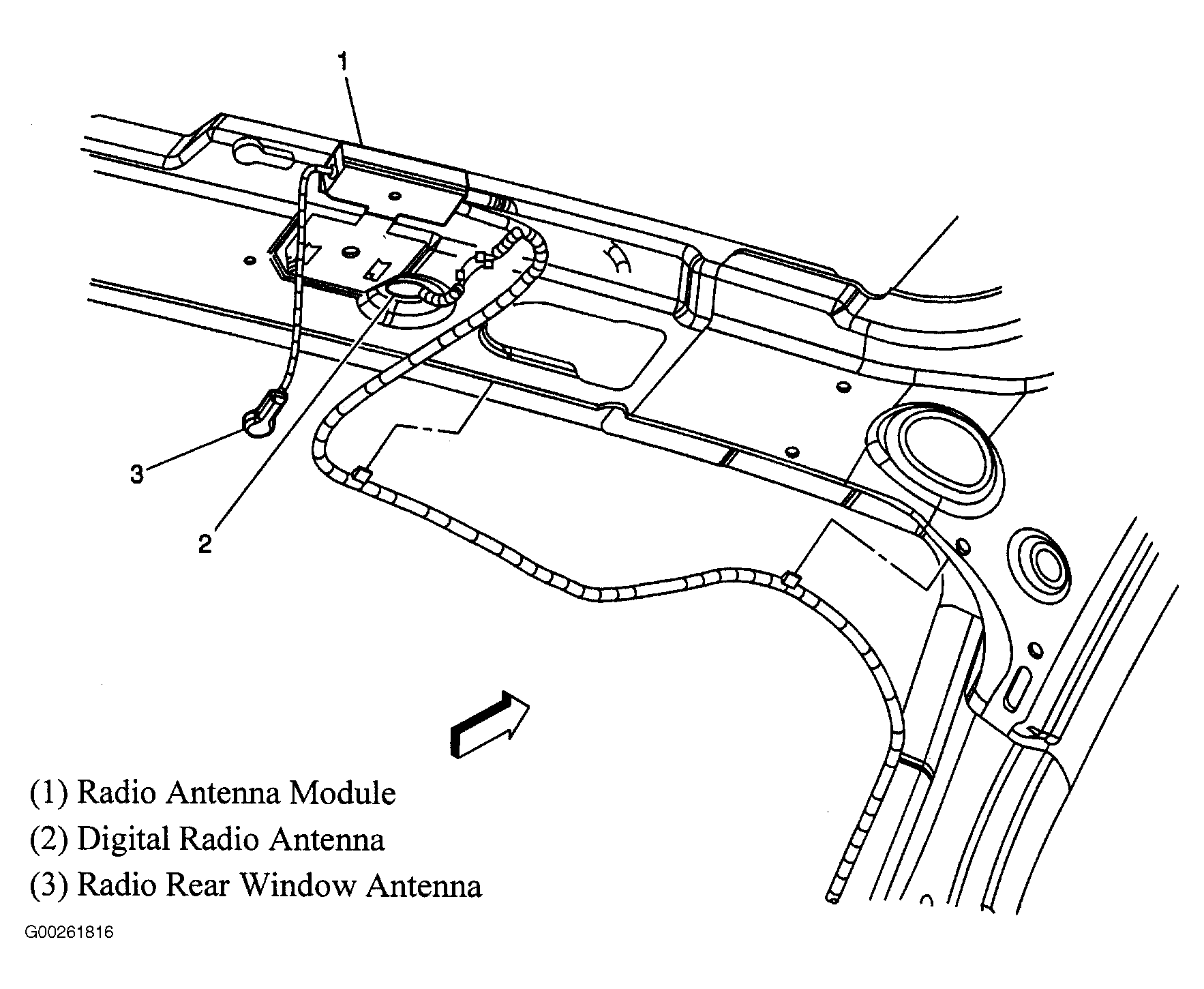

| Radio Antenna Module | Center rear of roof. See Figure. |
| Remote Control Door Lock Receiver (RCDLR) | On rear shelf panel. |

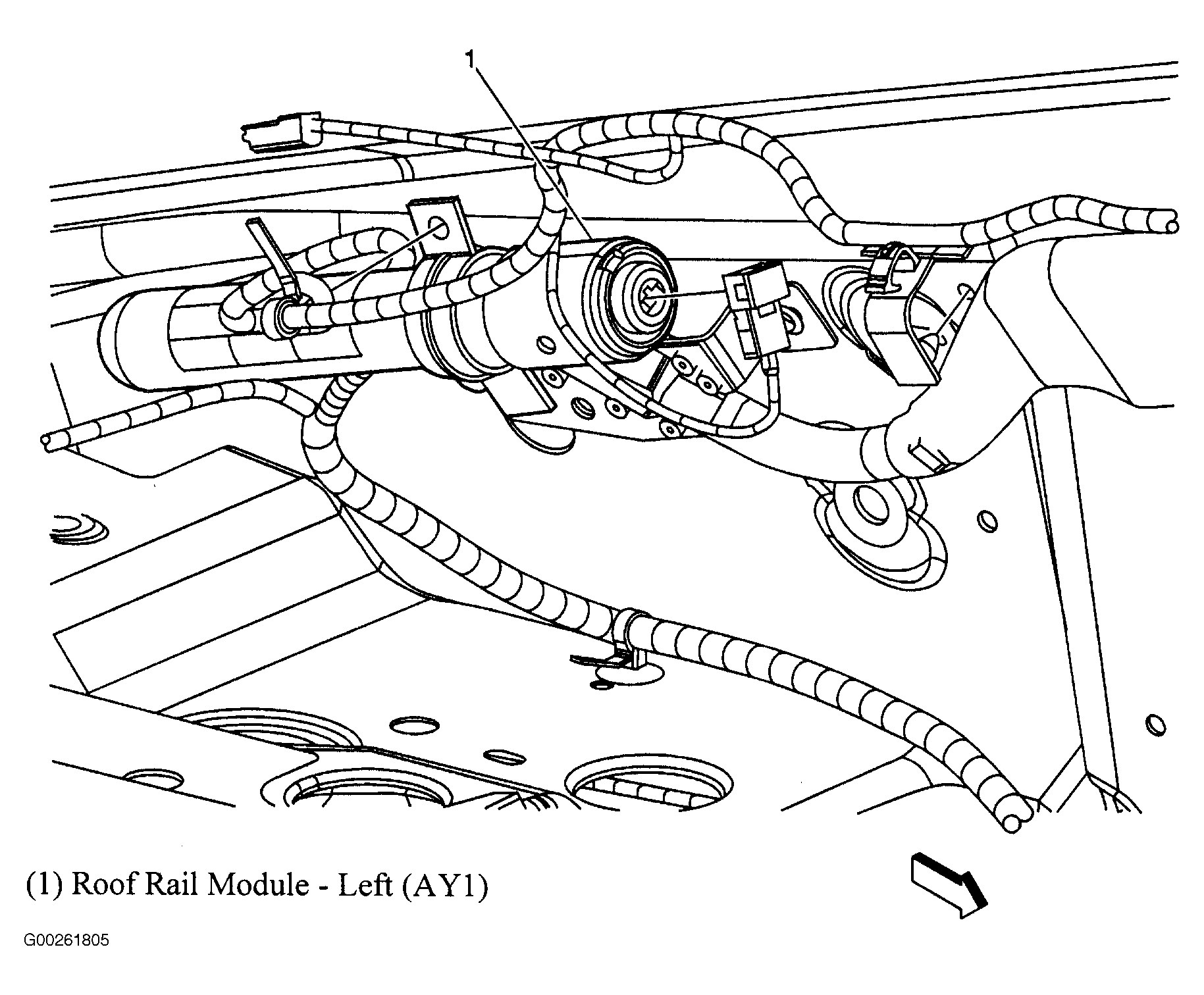

| Roof Rail Module-Left | Left rear of passenger compartment. See Figure. |

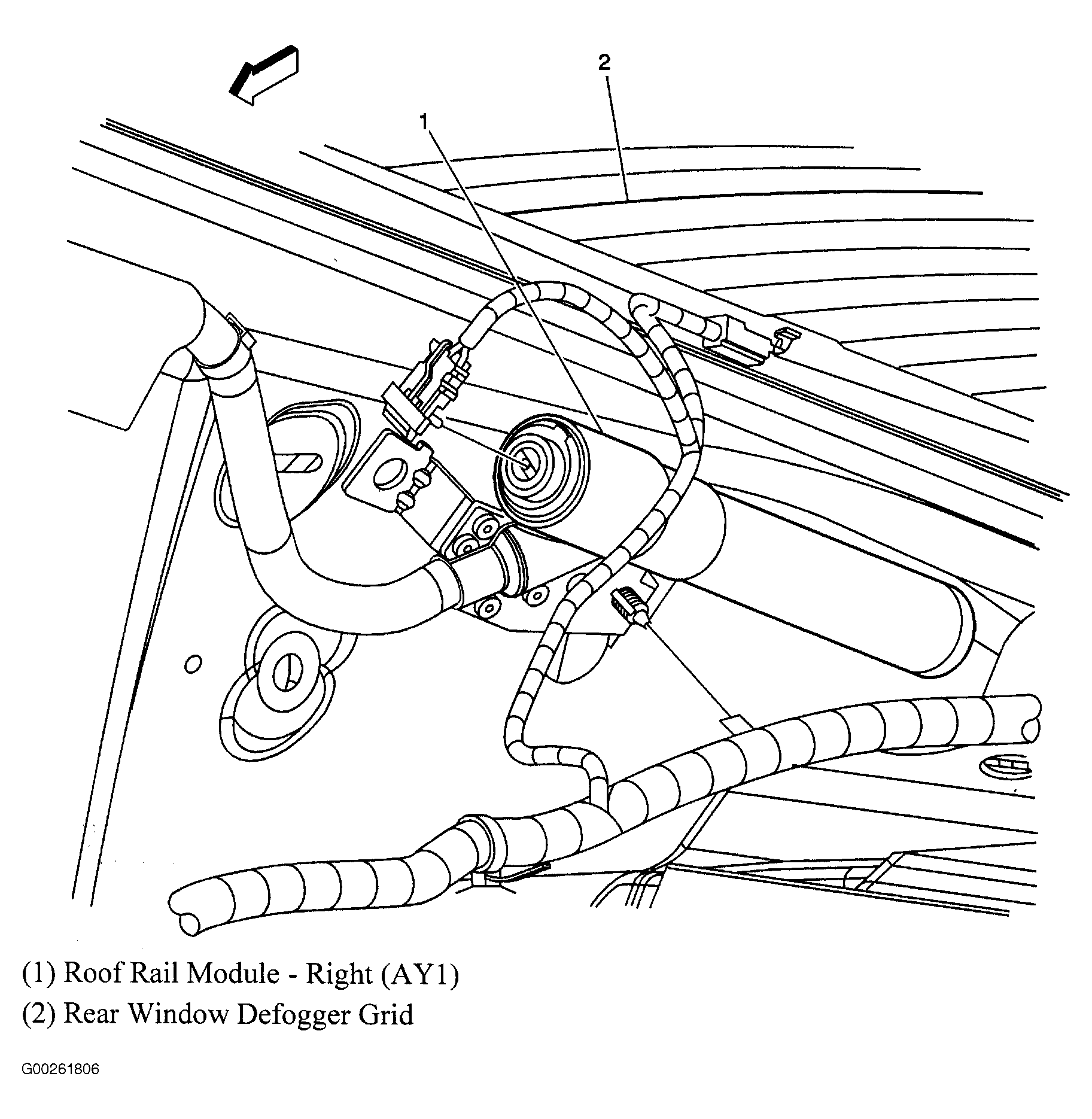

| Roof Rail Module-Right | Right rear of passenger compartment. See Figure. |

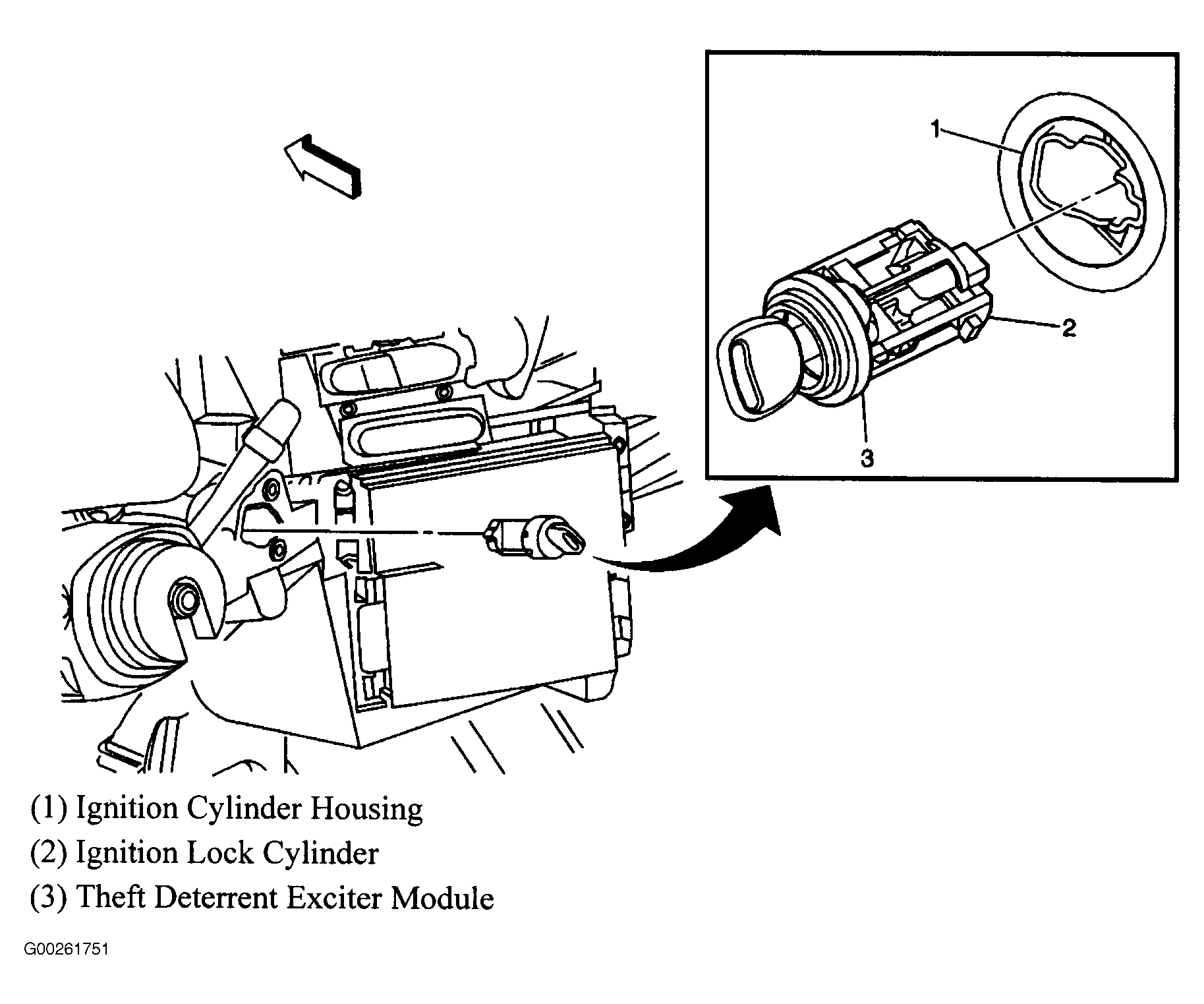

| Theft Deterrent Exciter Module | Part of ignition key cylinder. See Figure. |

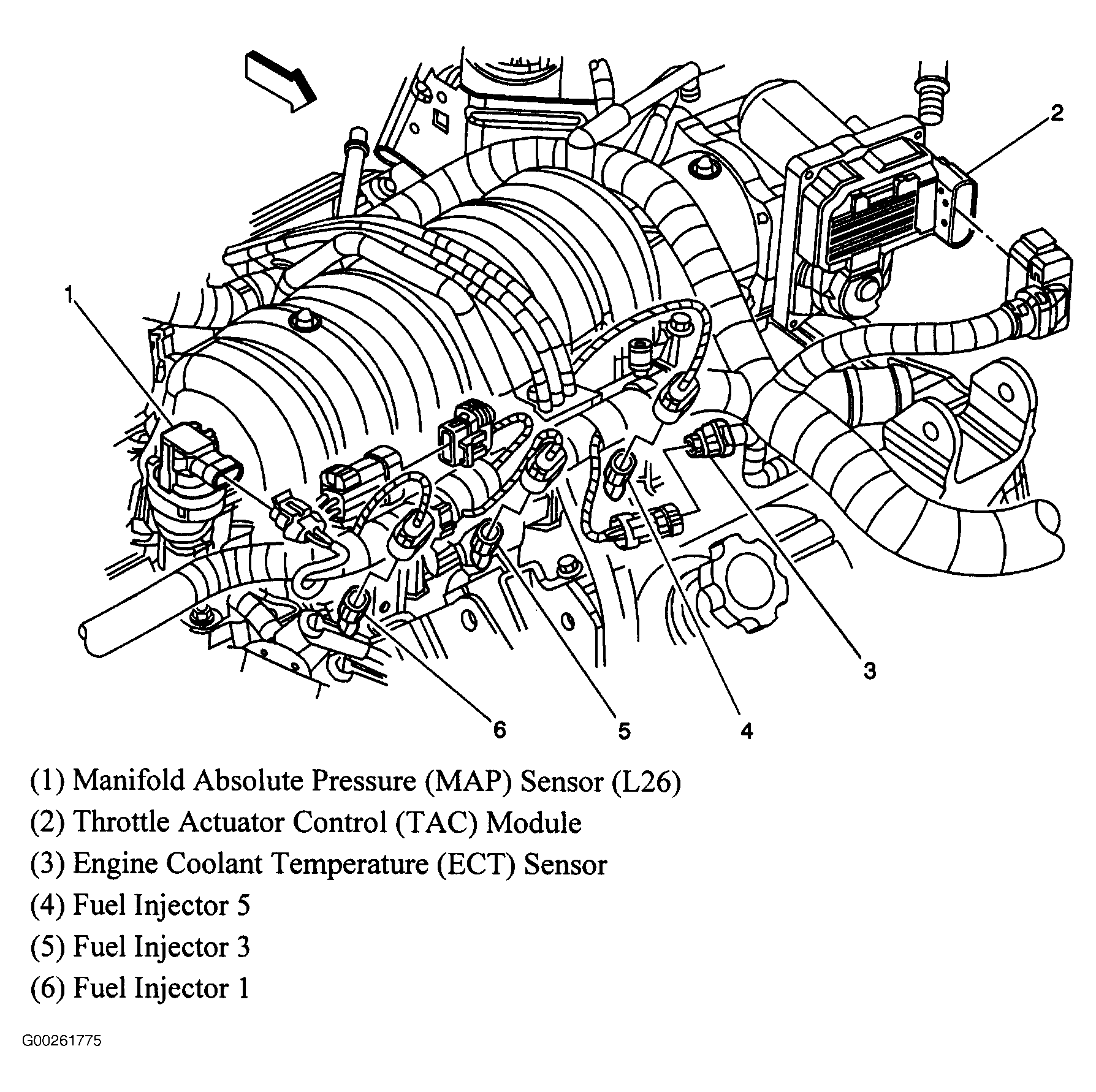

| Throttle Actuator Control (TAC) Module (3.8L) | On throttle body. See Figure. |

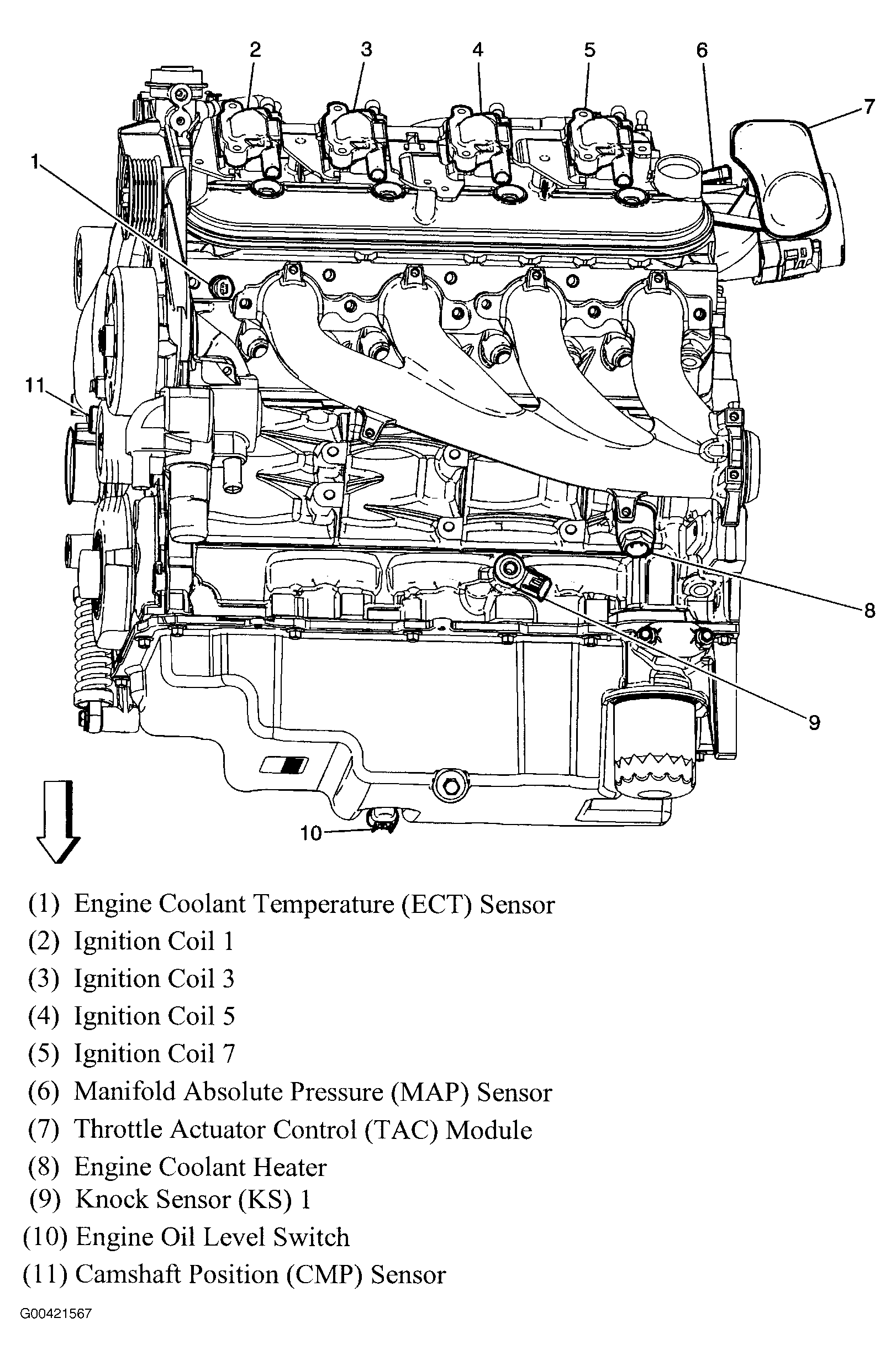

| Throttle Actuator Control (TAC) Module (5.3L) | Top rear of engine. See Figure. |

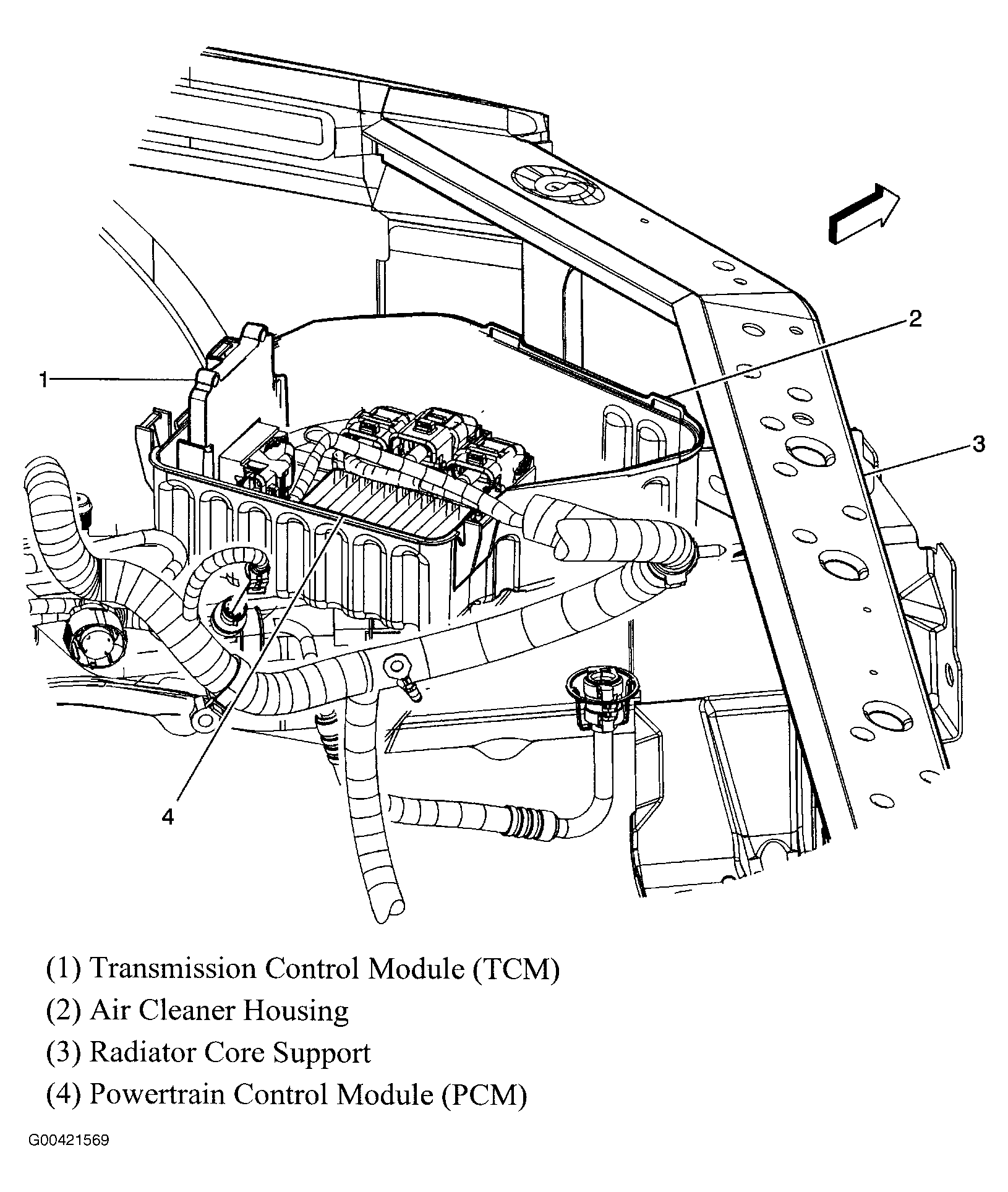

| Transmission Control Module | Left side of engine compartment, inside air cleaner assembly. See Figure. |

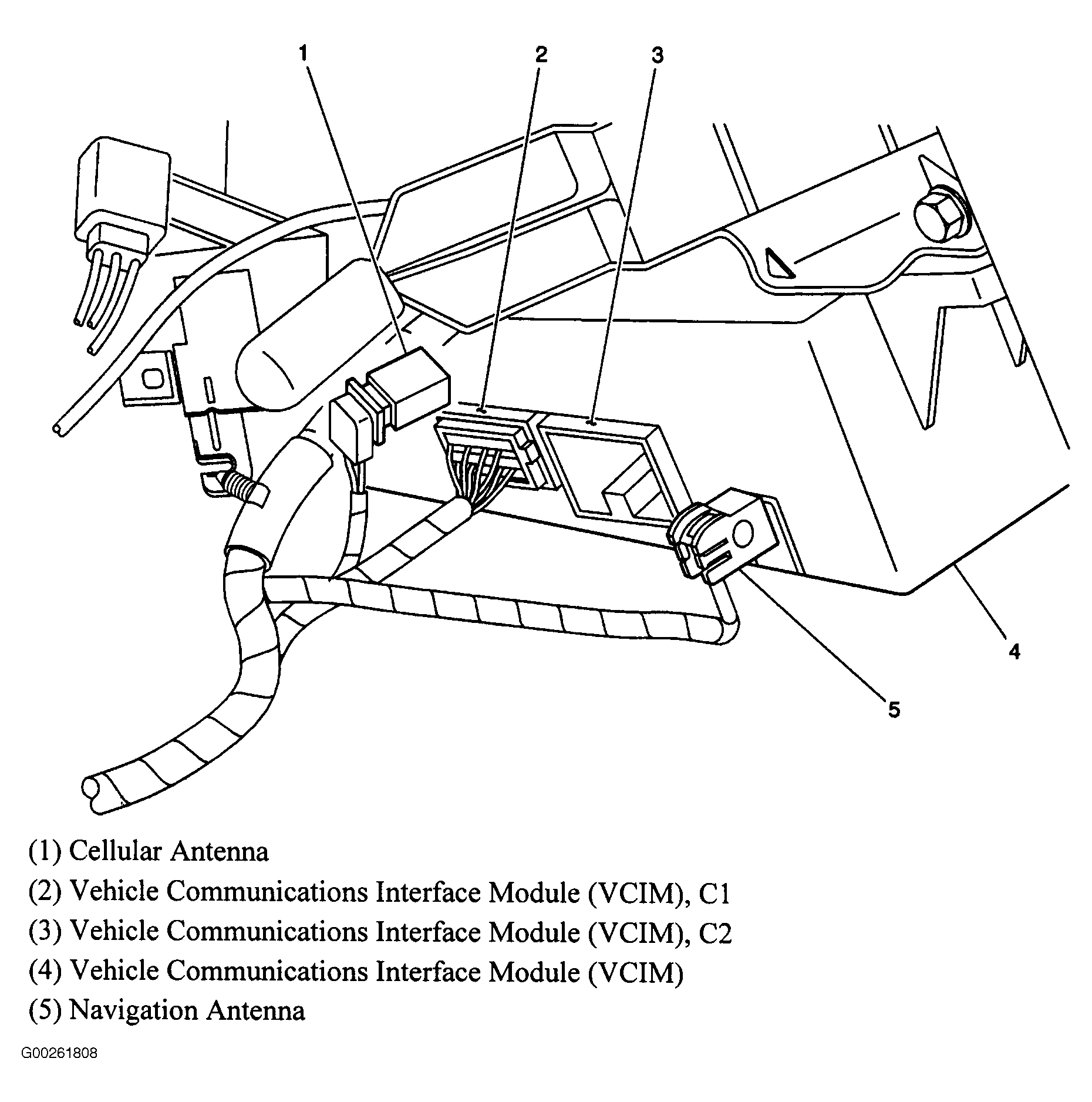

| Vehicle Communications Interface Module (VCIM) | In trunk, on left wheelwell. See Figure. |
