Seat Belt Component Views

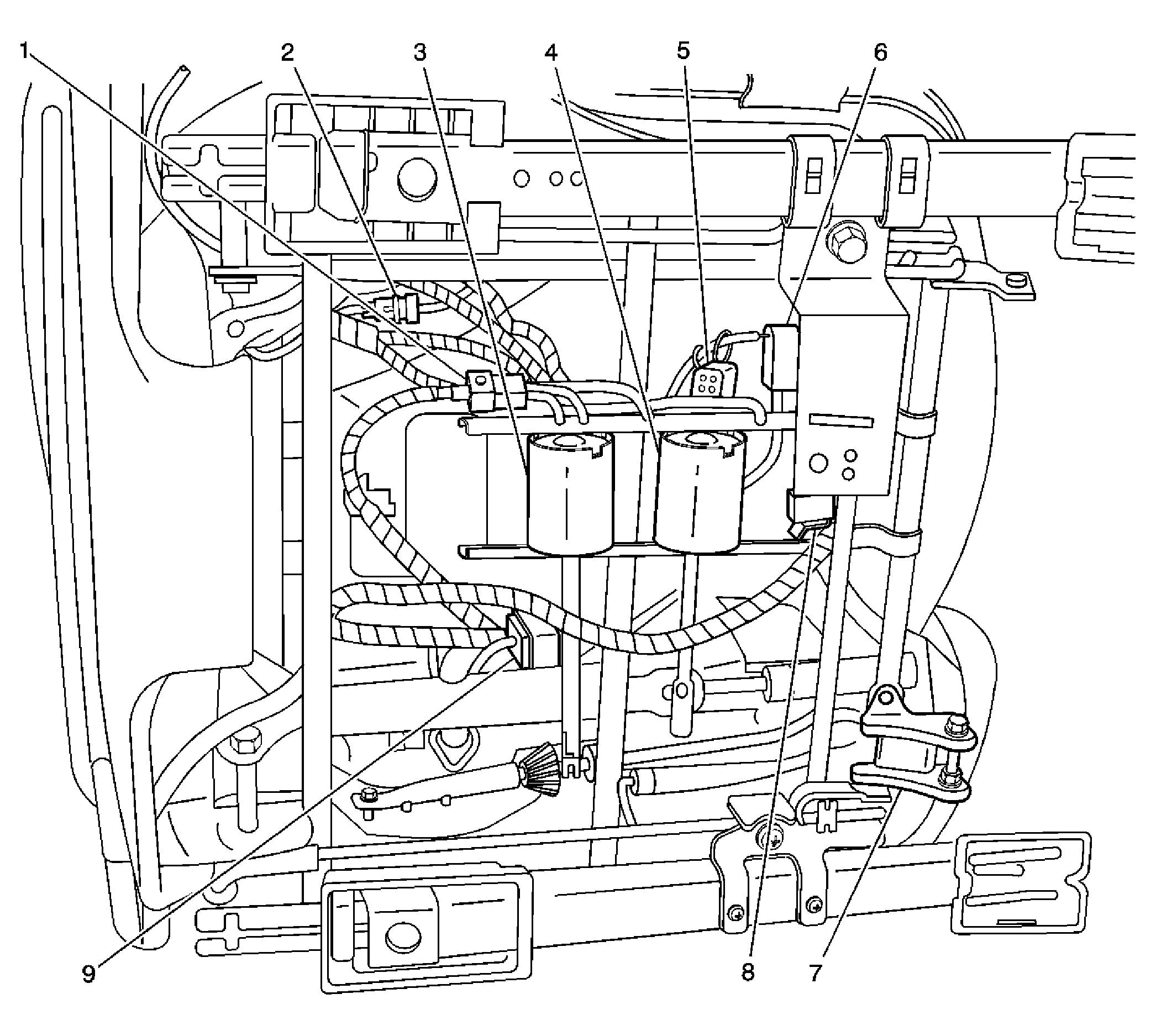

Fig 1: Under The Driver Seat Component Views
GM1215789Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Adjuster Motor Assembly - Driver Connector
2 Seat Belt Switch - Left, Connector
3 Front Vertical Motor
4 Horizontal Motor
5 Heated Seat Element - Driver Back
6 C311
7 Hinge
8 C316
9 C312
