Rear Toe Adjustment

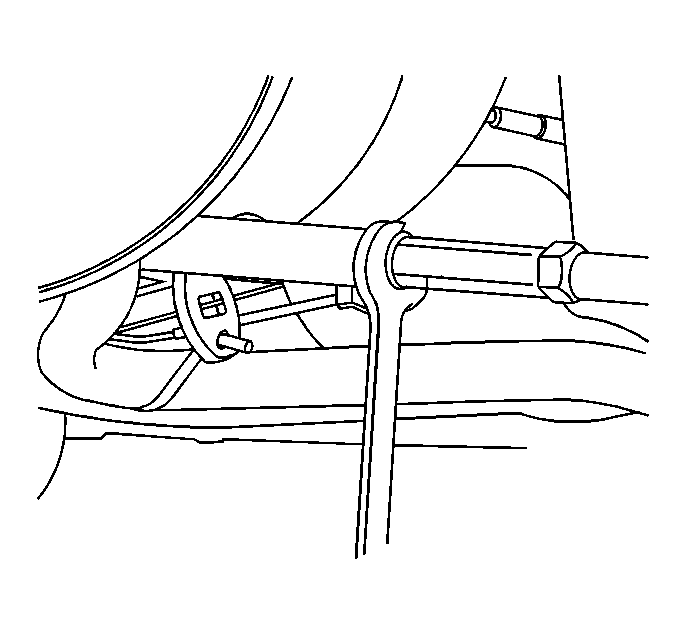

Fig 1: View Of Jam Nut At Rear Wheel Spindle Rod

Courtesy of GENERAL MOTORS CORP.

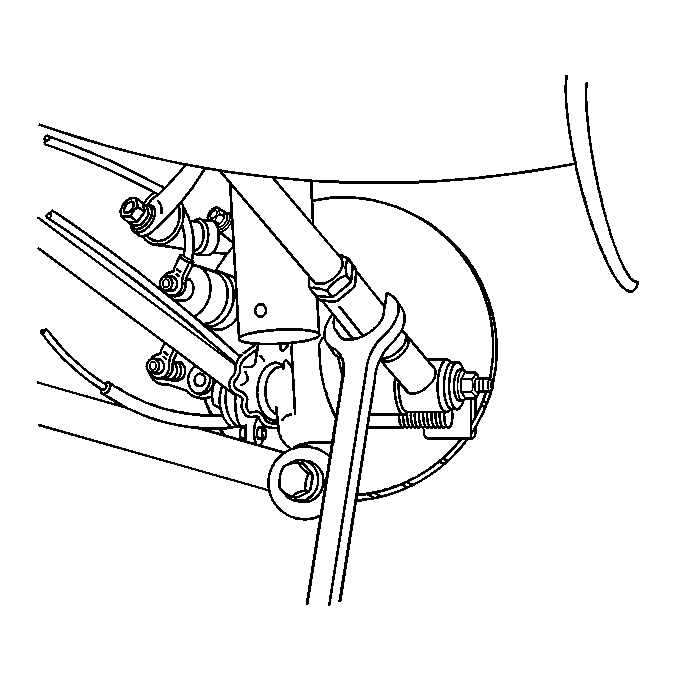

Fig 2: View Of Rear Toe Adjustment

Courtesy of GENERAL MOTORS CORP.

Adjust the toe to the proper setting by turning the adjusting nut. Refer to Wheel Alignment Specifications .

Fig 3: View Of Jam Nut At Rear Wheel Spindle Rod

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the hex nuts on the rear wheel spindle rod (rear).
Tighten: Tighten the rear wheel spindle tie rod end jam nut to 68 N.m (50 lb ft).
