Shift Lock Control Schematics

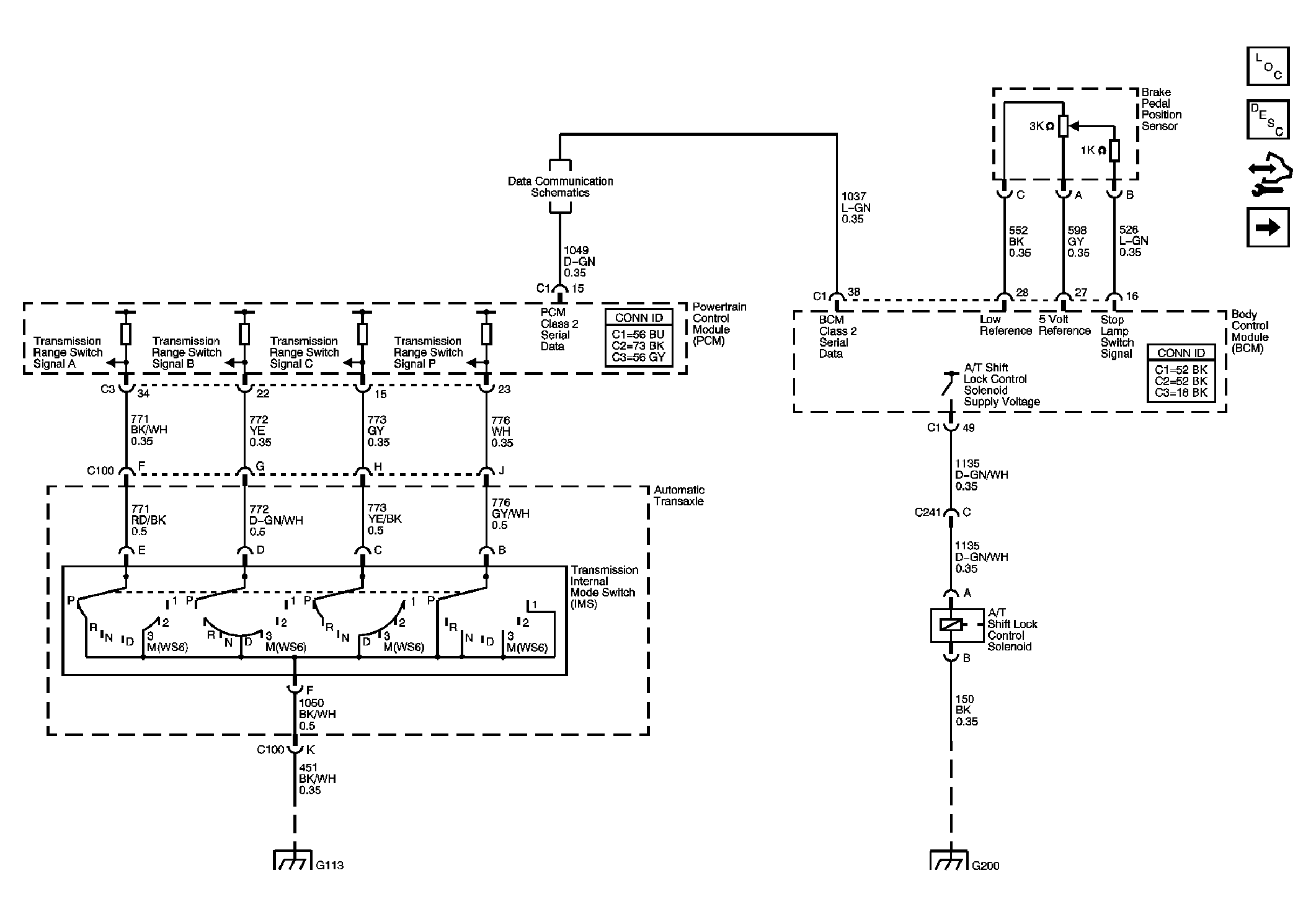

Fig 1: Shift Lock Control Schematic (L26, L32)
GM1798162Courtesy of GENERAL MOTORS CORP.

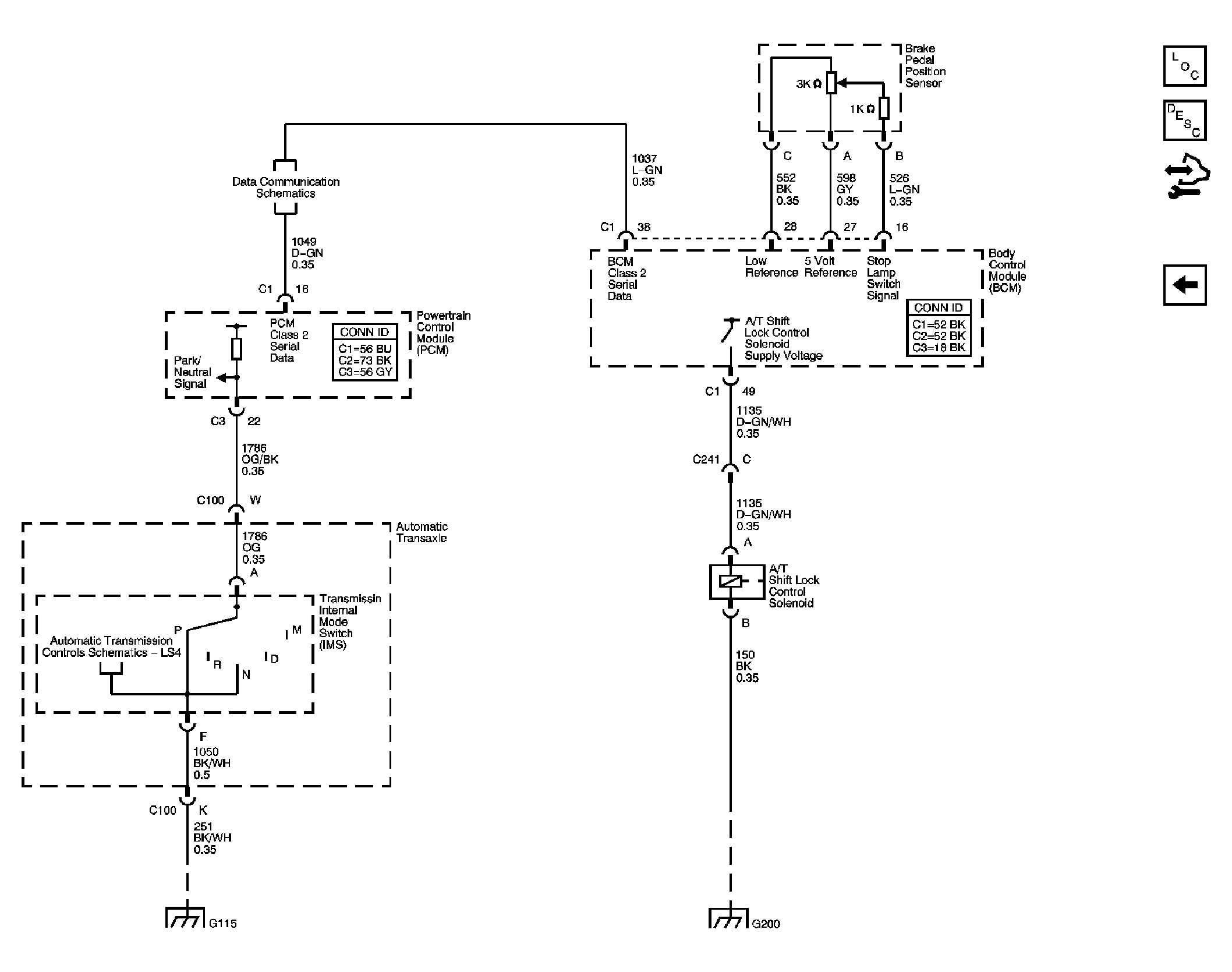

Fig 2: Shift Lock Control Schematic (LS4)
GM1798173Courtesy of GENERAL MOTORS CORP.
