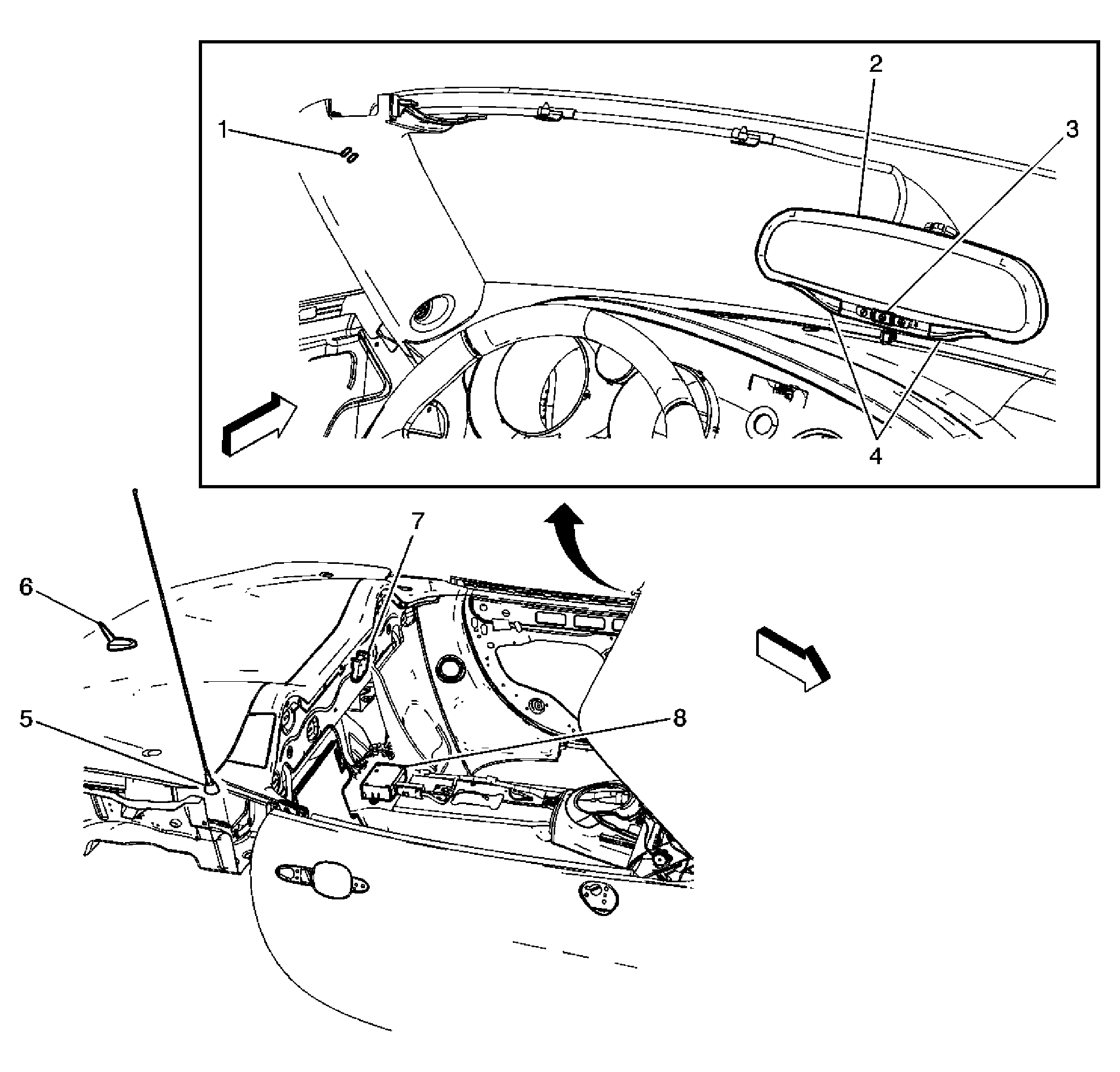

Remote Function Component Views
Callouts For Fig 1
| Callout | Component Name |
|---|---|
| 1 | Cellular Microphone (UE1) |
| 2 | Inside Rearview Mirror |
| 3 | OnStar Button Assembly (UE1) |
| 4 | Inside Rearview Mirror Lamps |
| 5 | Antenna |
| 6 | Cellular and Navigational Antenna (U2K/UE1) |
| 7 | Remote Control Door Lock Receiver (RCDLR) |
| 8 | Vehicle Communication Interface Module (VCIM) |
