Remote Control Door Lock Receiver Replacement

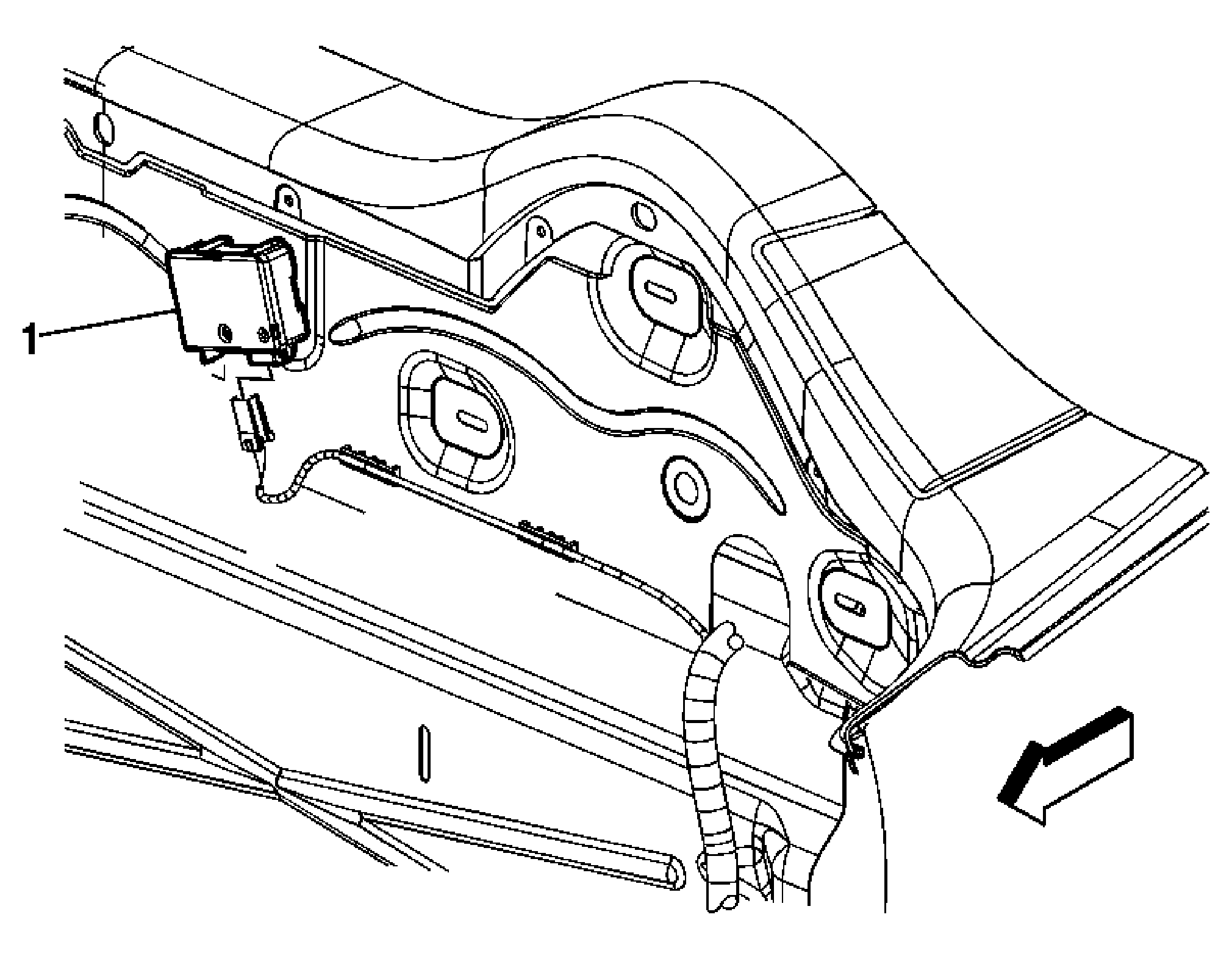

Fig 1: Remote Control Door Lock Receiver

GM1588706

Courtesy of GENERAL MOTORS CORP.

Remote Control Door Lock Receiver Replacement

Callout

Component Name

Preliminary Procedure

Remove the seat back body panel. Refer to Front Seat Back Body Panel Replacement .
Program the remote control door lock receiver after replacement. Refer to Control Module References .

1

Transmitter Assembly, Remote Control Door Lock
Tip:

Disconnect the electrical connector.
Push the 2 tabs toward the module assembly in order to release the module from the panel.
