Antilock Brake System Component Views

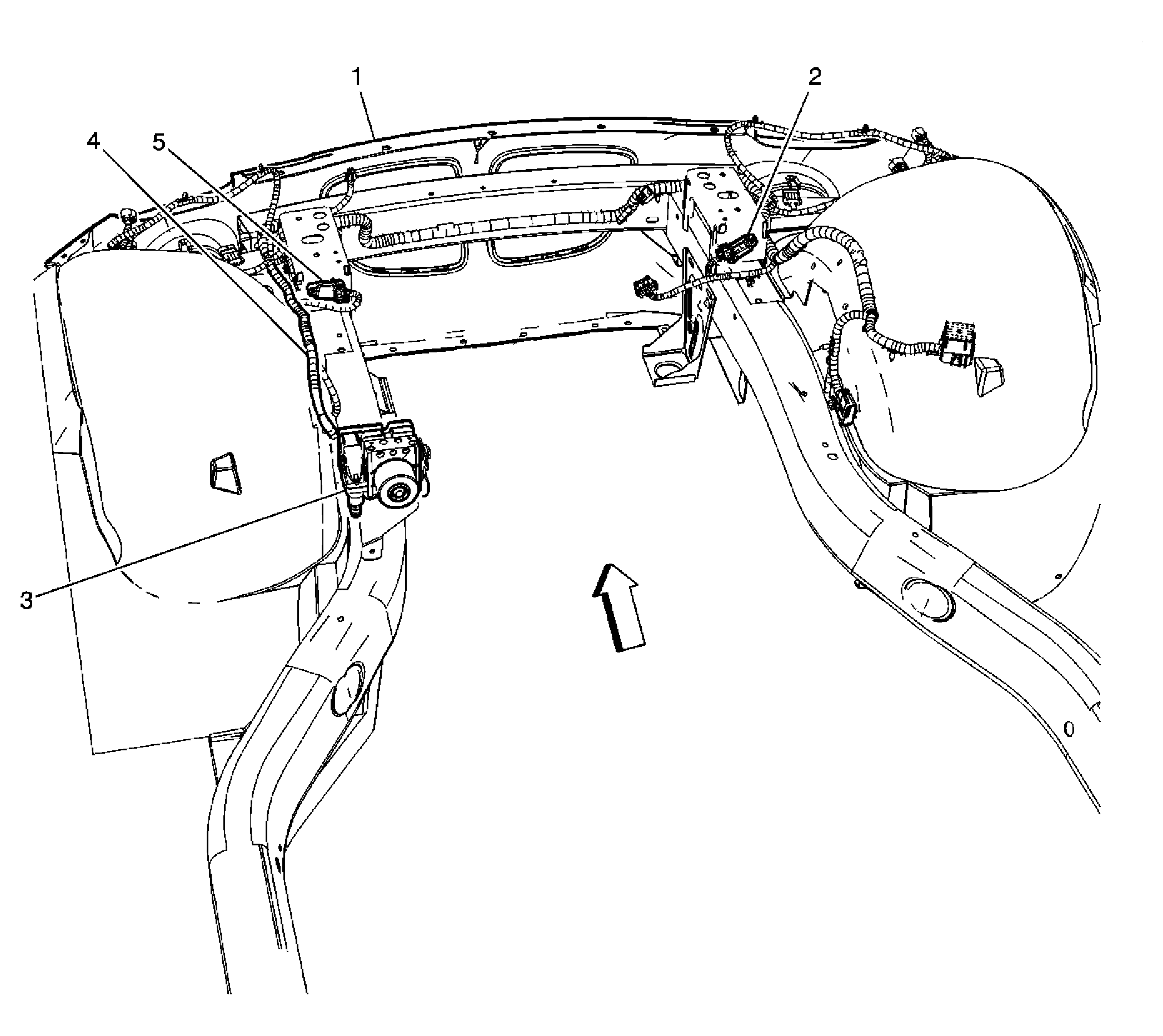

Fig 1: EBCM (Front Engine Compartment)
GM1631752Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 1

Callout Component Name
1 Front Fascia
2 Inflatable Restraint Front End Sensor - Right
3 Electronic Brake Control Module (EBCM)
4 Forward Lamp Harness
5 Inflatable Restraint Front End Sensor - Left

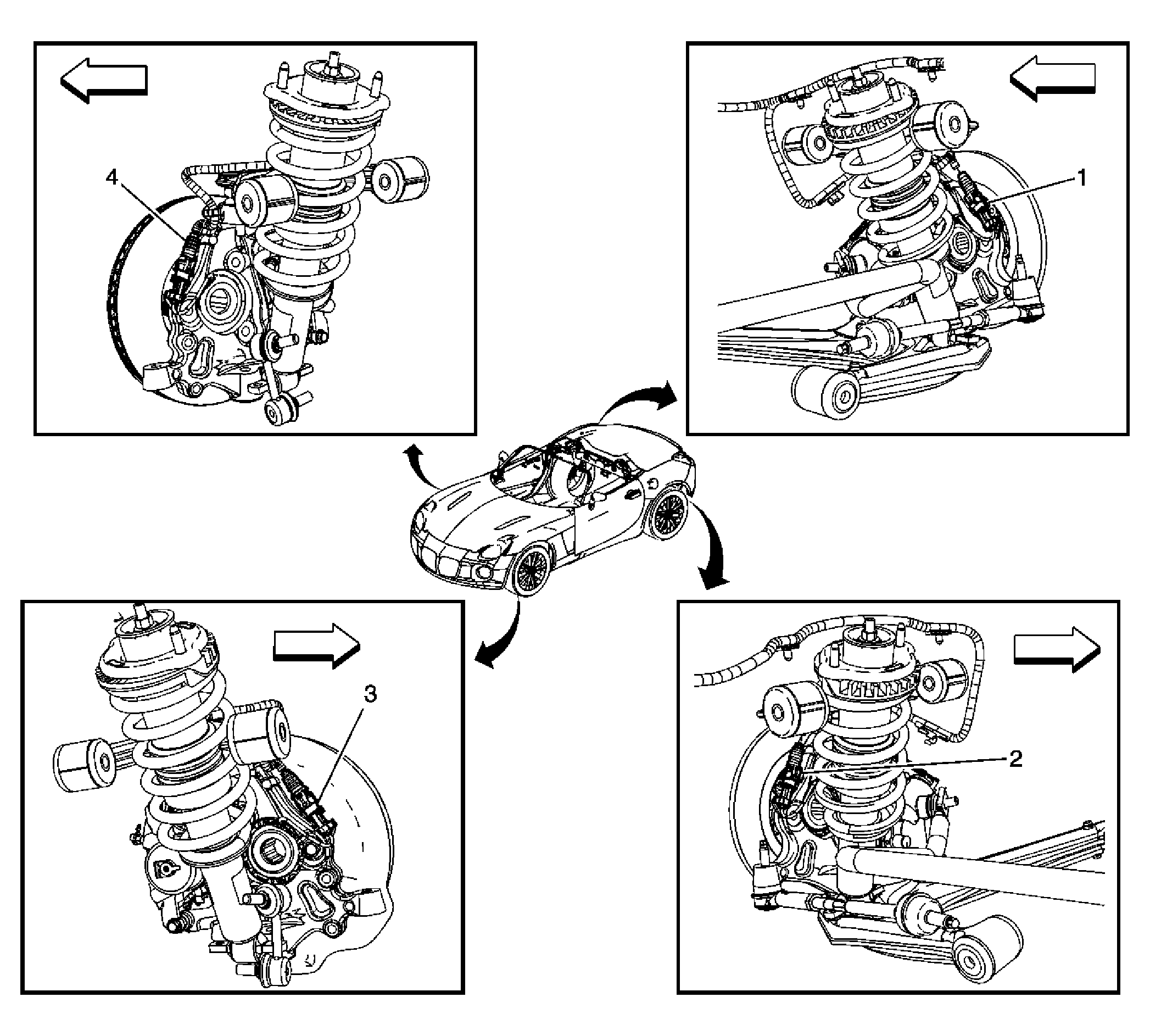

Fig 2: Wheel Speed Sensors
GM1631750Courtesy of GENERAL MOTORS CORP.
Callouts For Fig 2

Callout Component Name
1 Wheel Speed Sensor (WSS) - RR
2 Wheel Speed Sensor (WSS) - LR
3 Wheel Speed Sensor (WSS) - LF
4 Wheel Speed Sensor (WSS) - RF
