Traction Control Switch Replacement

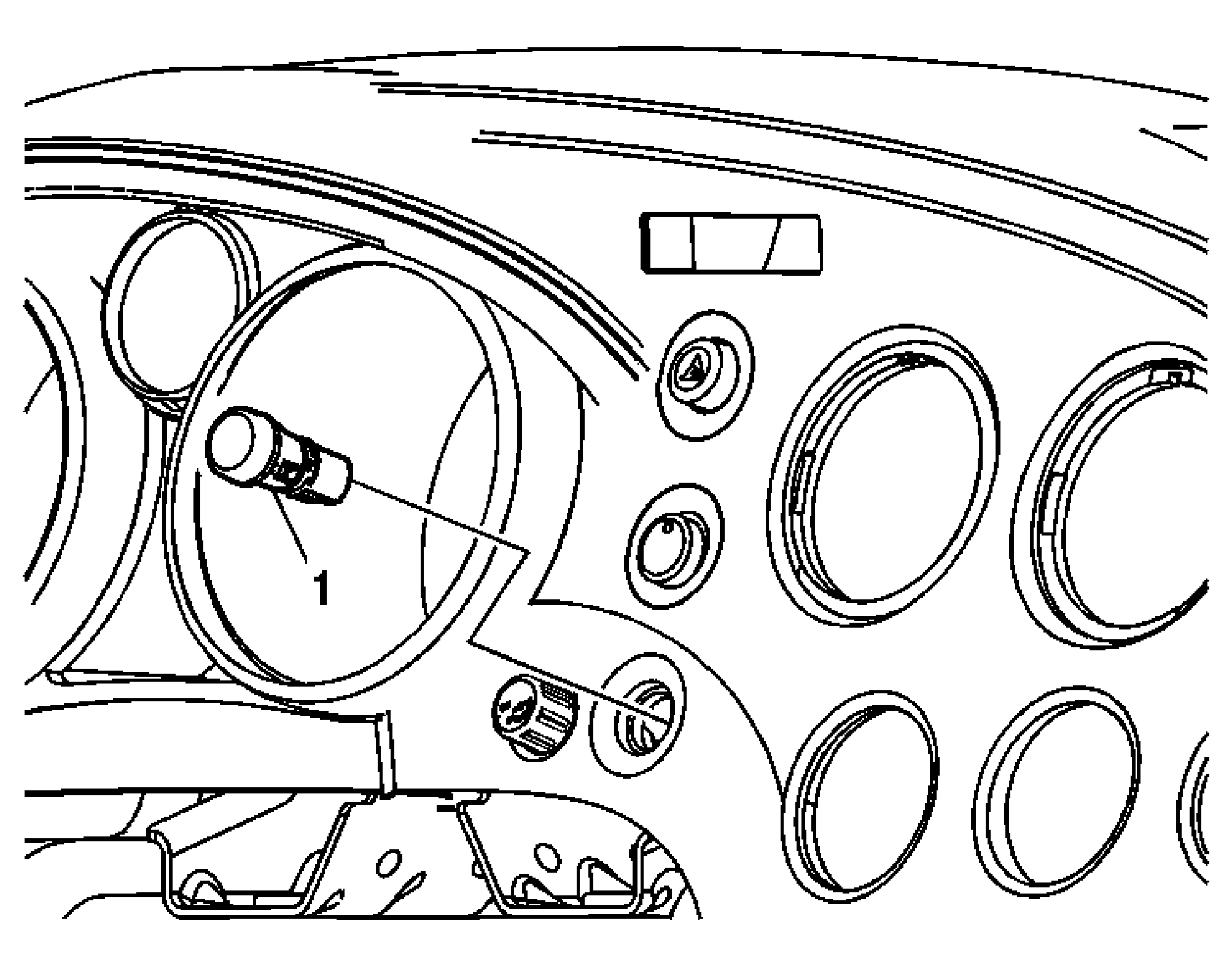

Fig 1: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the lower I/P extension panel. Refer to Instrument Panel Extension Trim Plate Replacement . Disconcert the electrical connector for the traction control switch.
1	Switch, Traction Control. Tip: Depress the retaining clip for the traction control switch before removing the switch.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the lower I/P extension panel. Refer to Instrument Panel Extension Trim Plate Replacement .
Disconcert the electrical connector for the traction control switch.

Switch, Traction Control.
Tip: Depress the retaining clip for the traction control switch before removing the switch.
