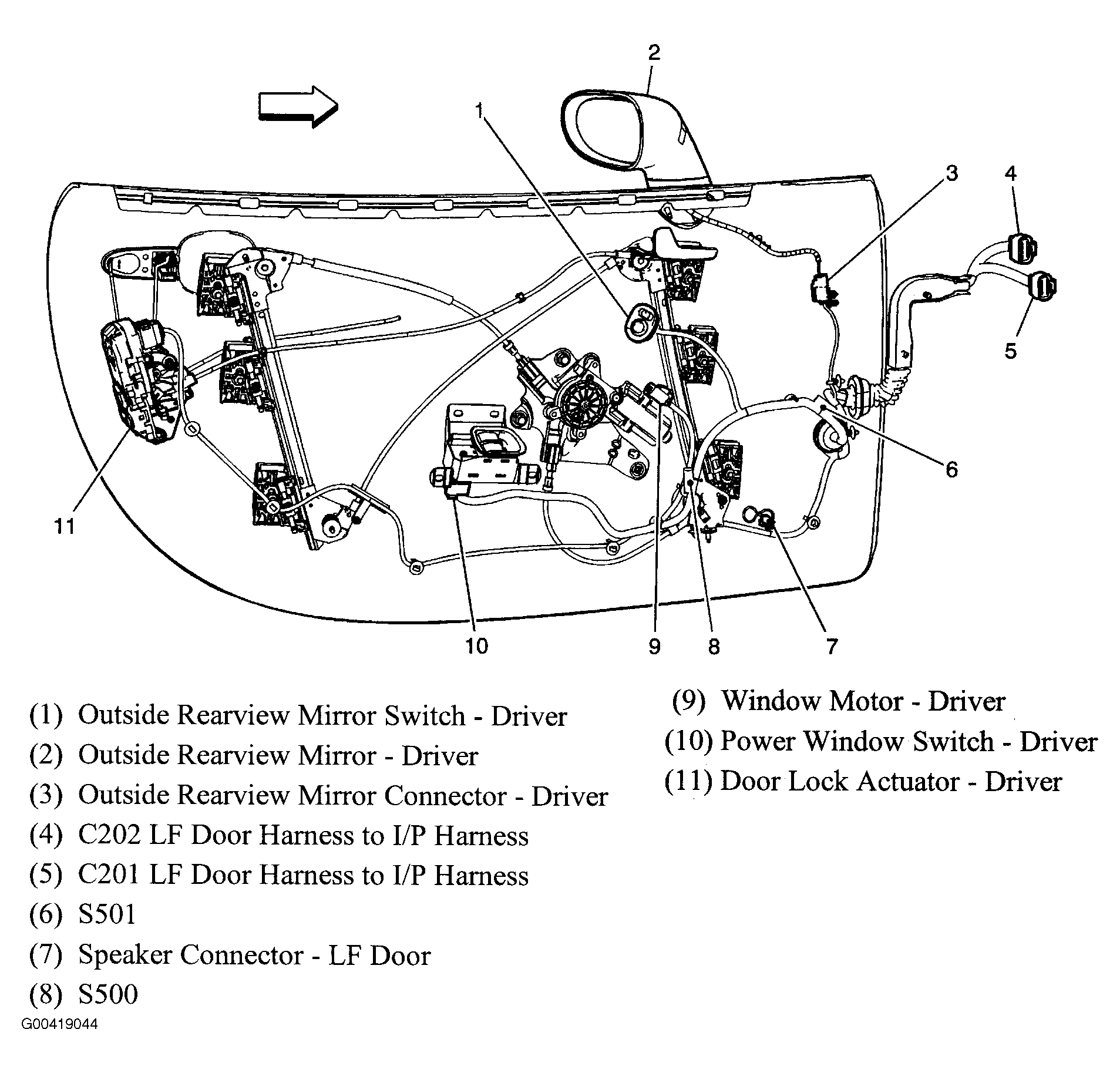

Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics

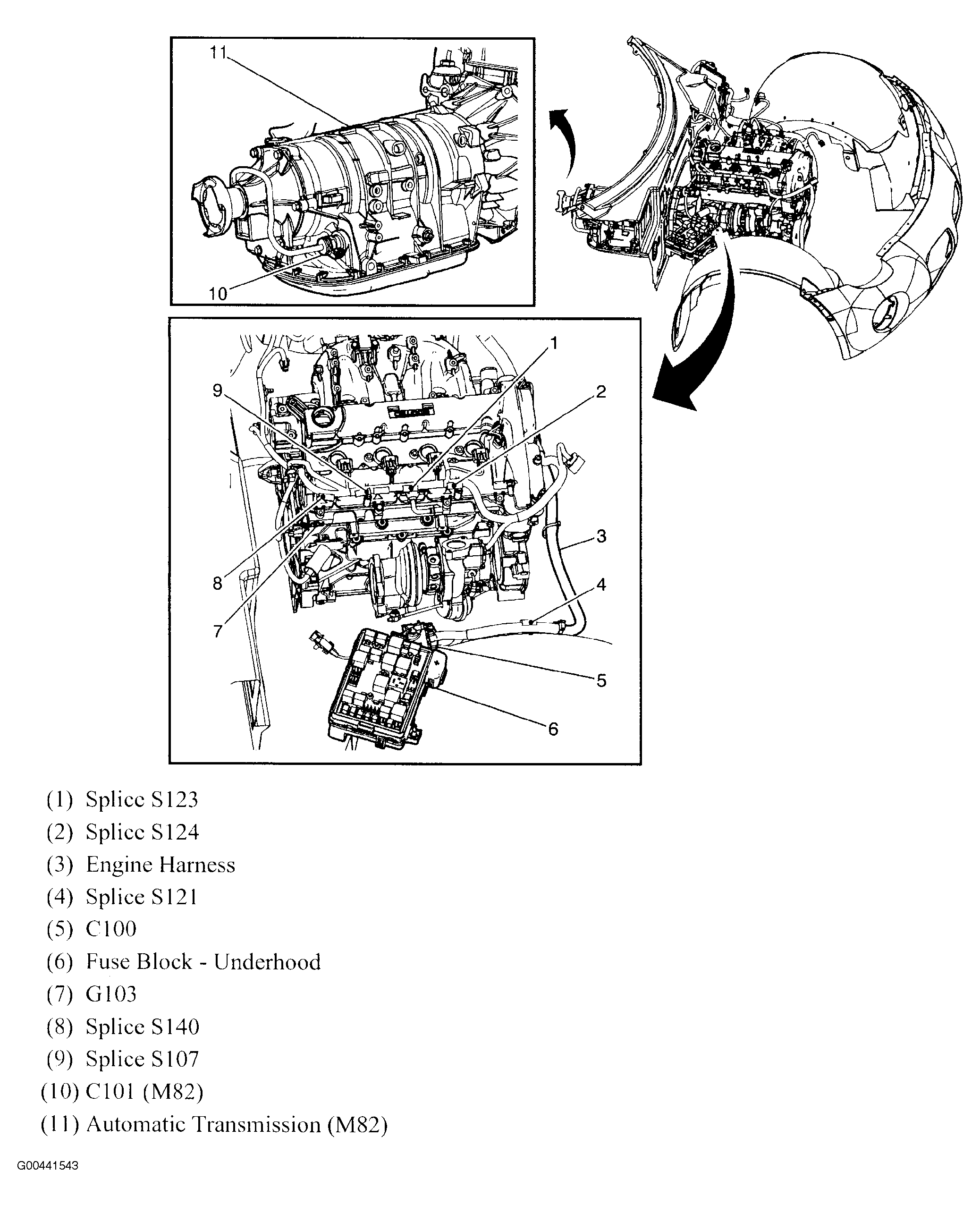

April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

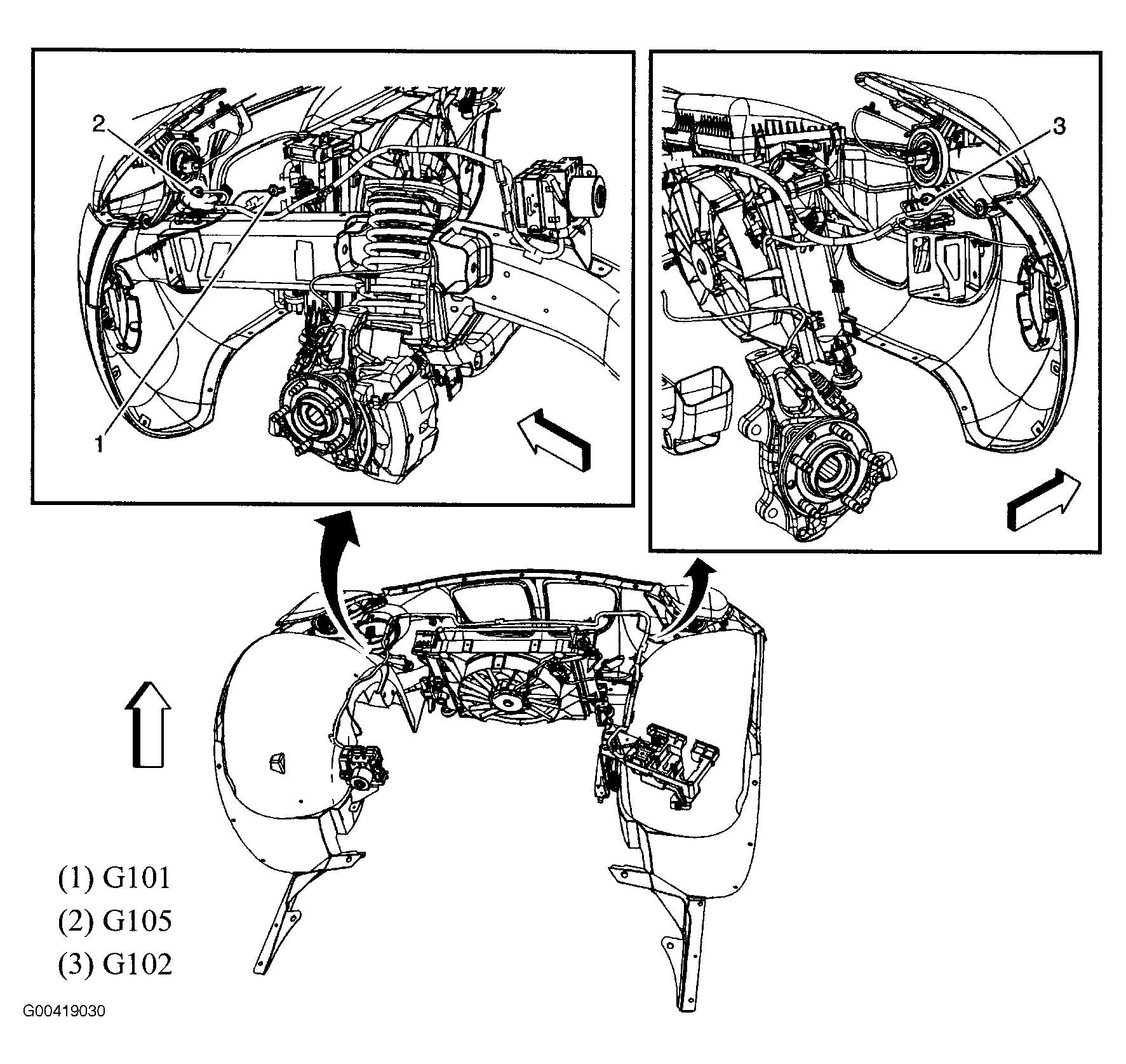

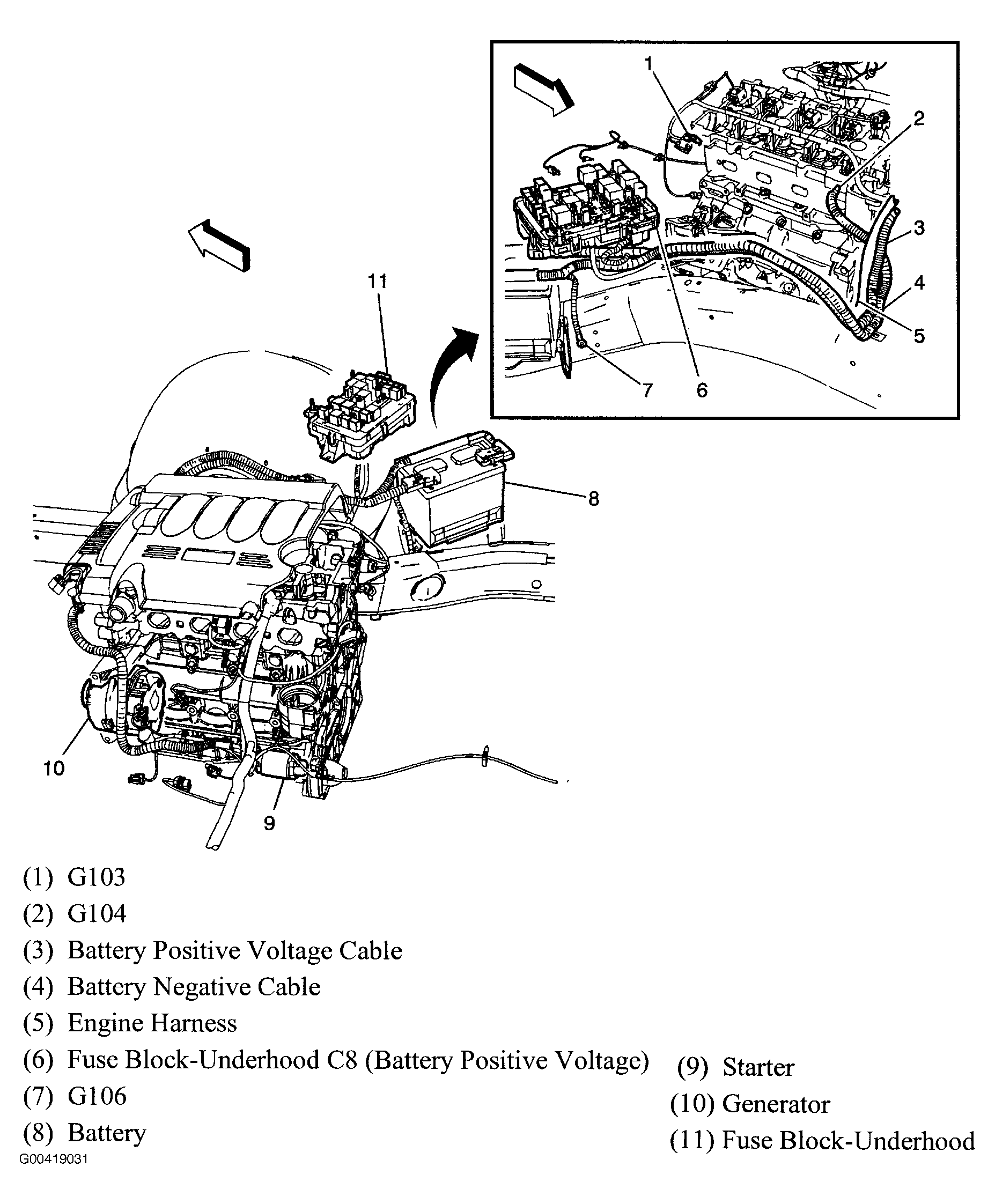

Fig 1: Front Engine Compartment Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

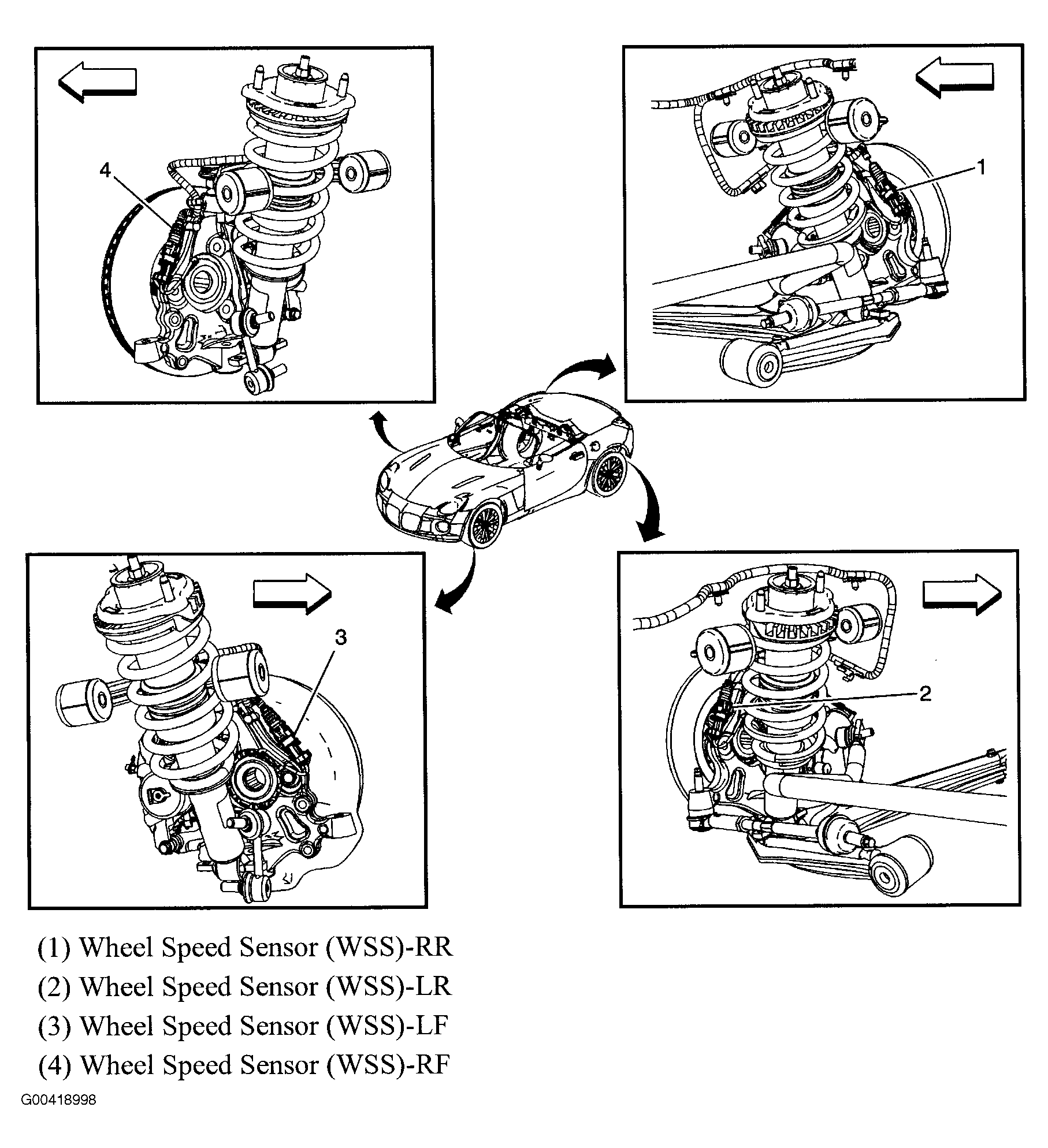

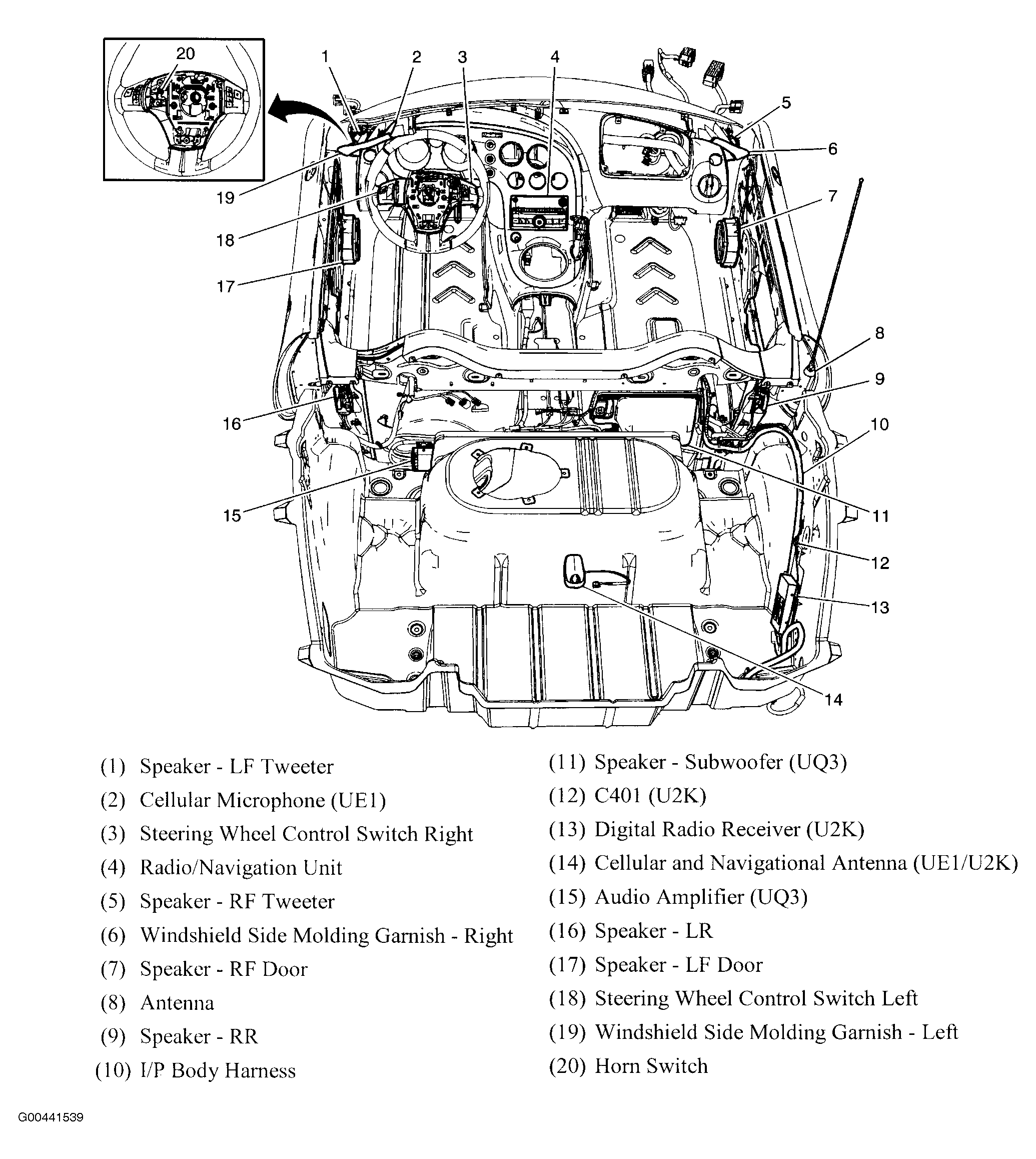

Fig 3: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

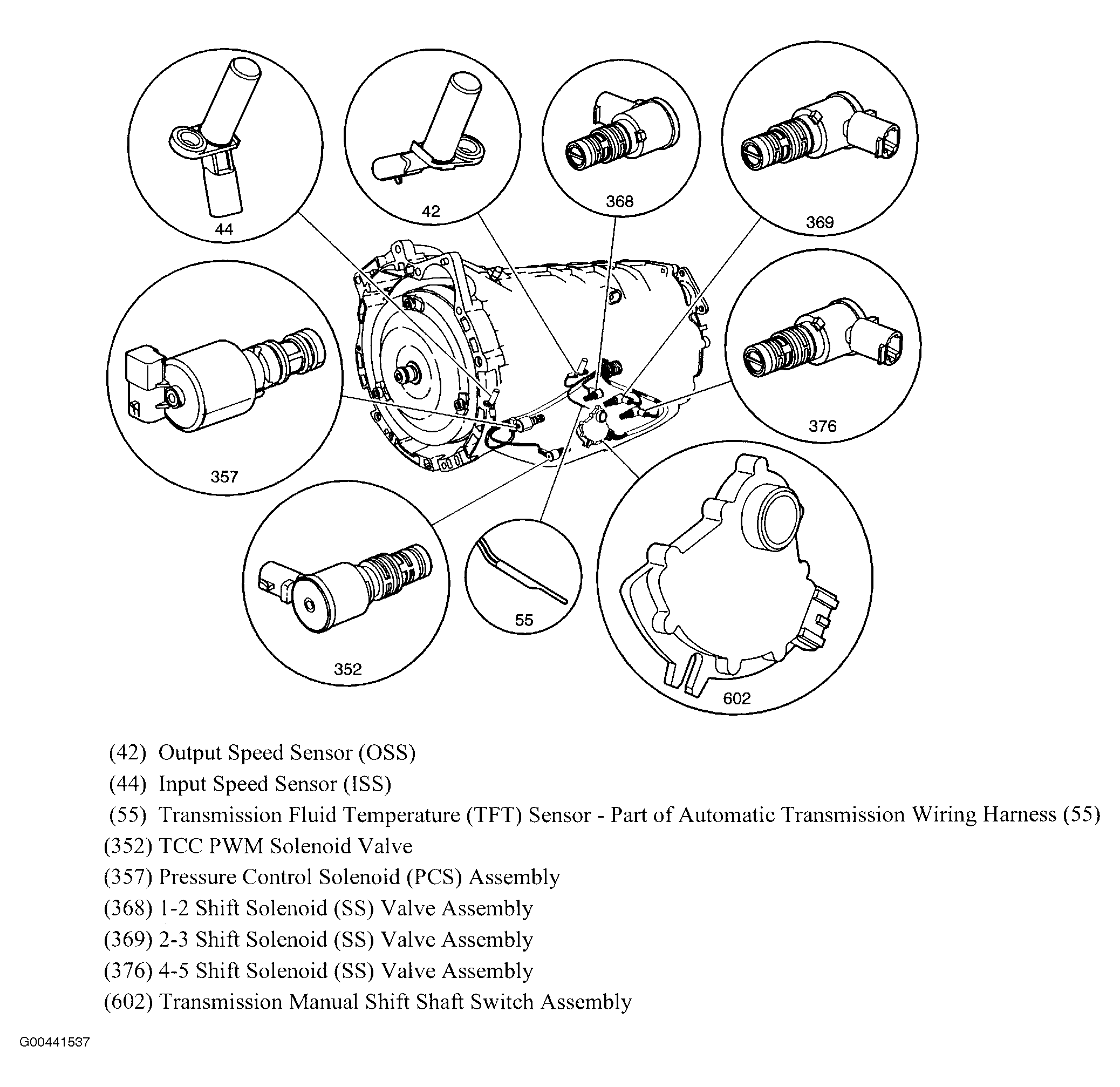

Fig 4: Automatic Transmission Electronic Component Views
Courtesy of GENERAL MOTORS CORP.

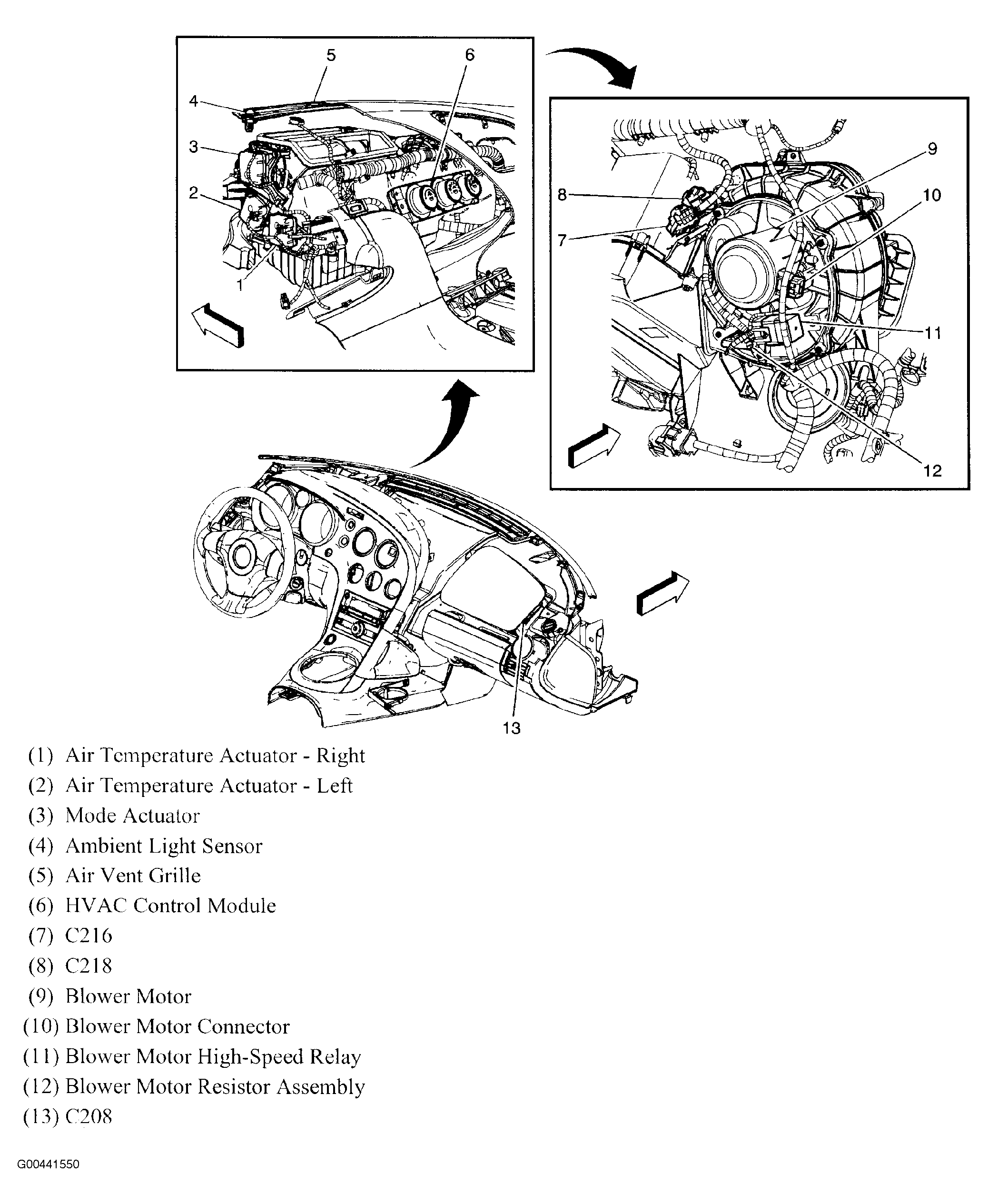

Fig 5: Dash Assembly Overview
Courtesy of GENERAL MOTORS CORP.
Fig 6: Rear Cargo Area (Convertible)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Cellular Communication Components
Courtesy of GENERAL MOTORS CORP.

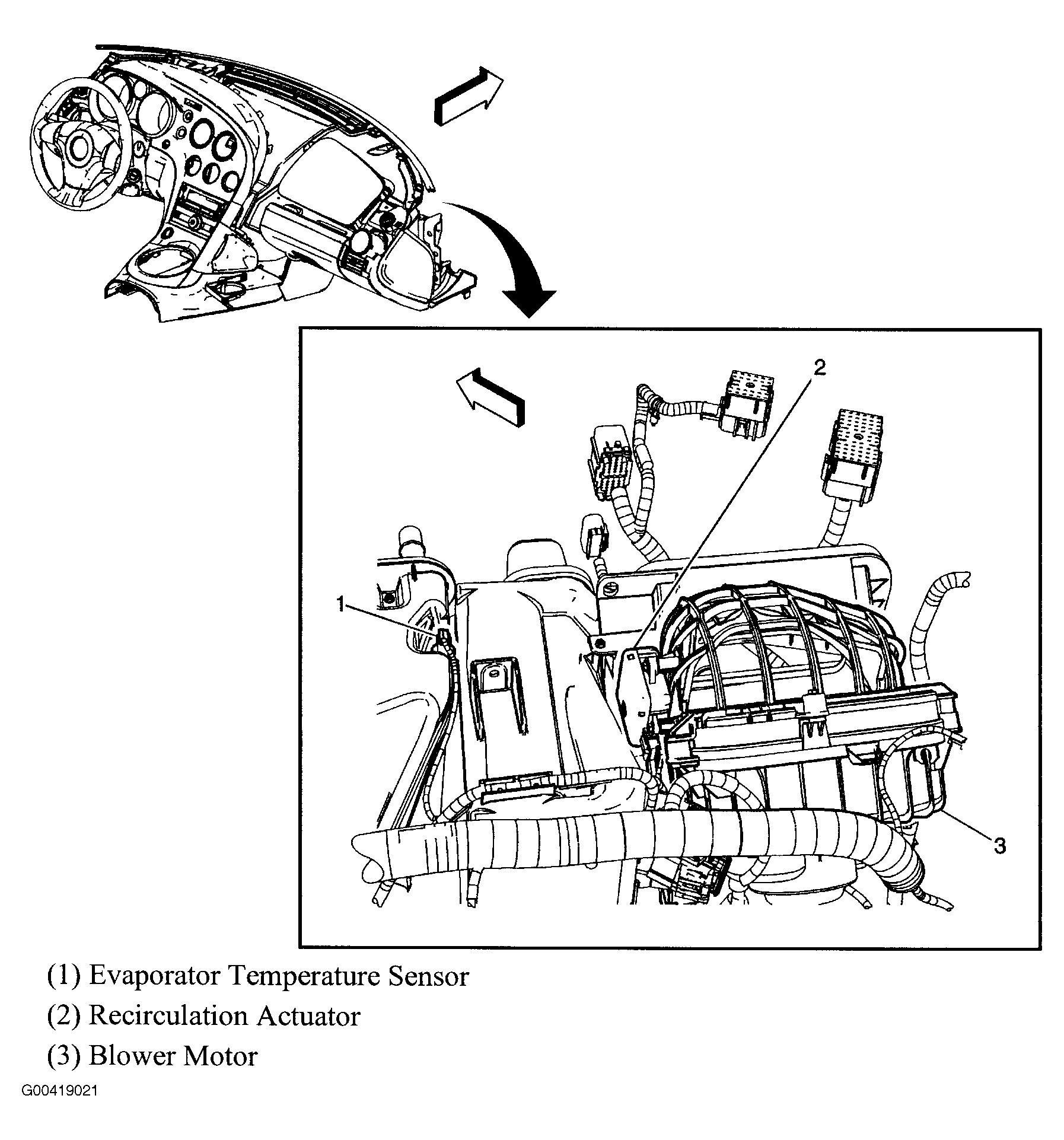

Fig 8: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

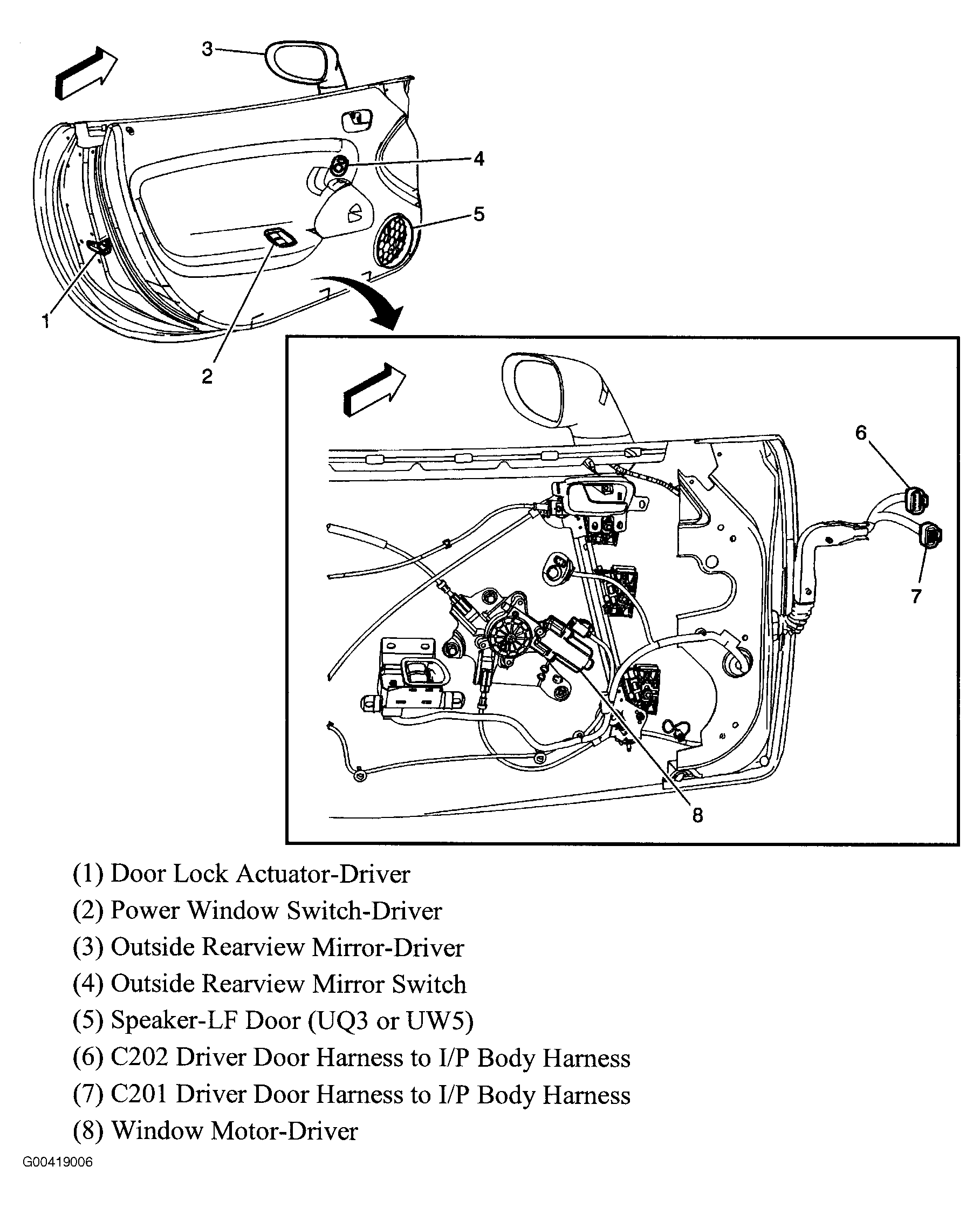

Fig 9: Driver's Door Components
Courtesy of GENERAL MOTORS CORP.

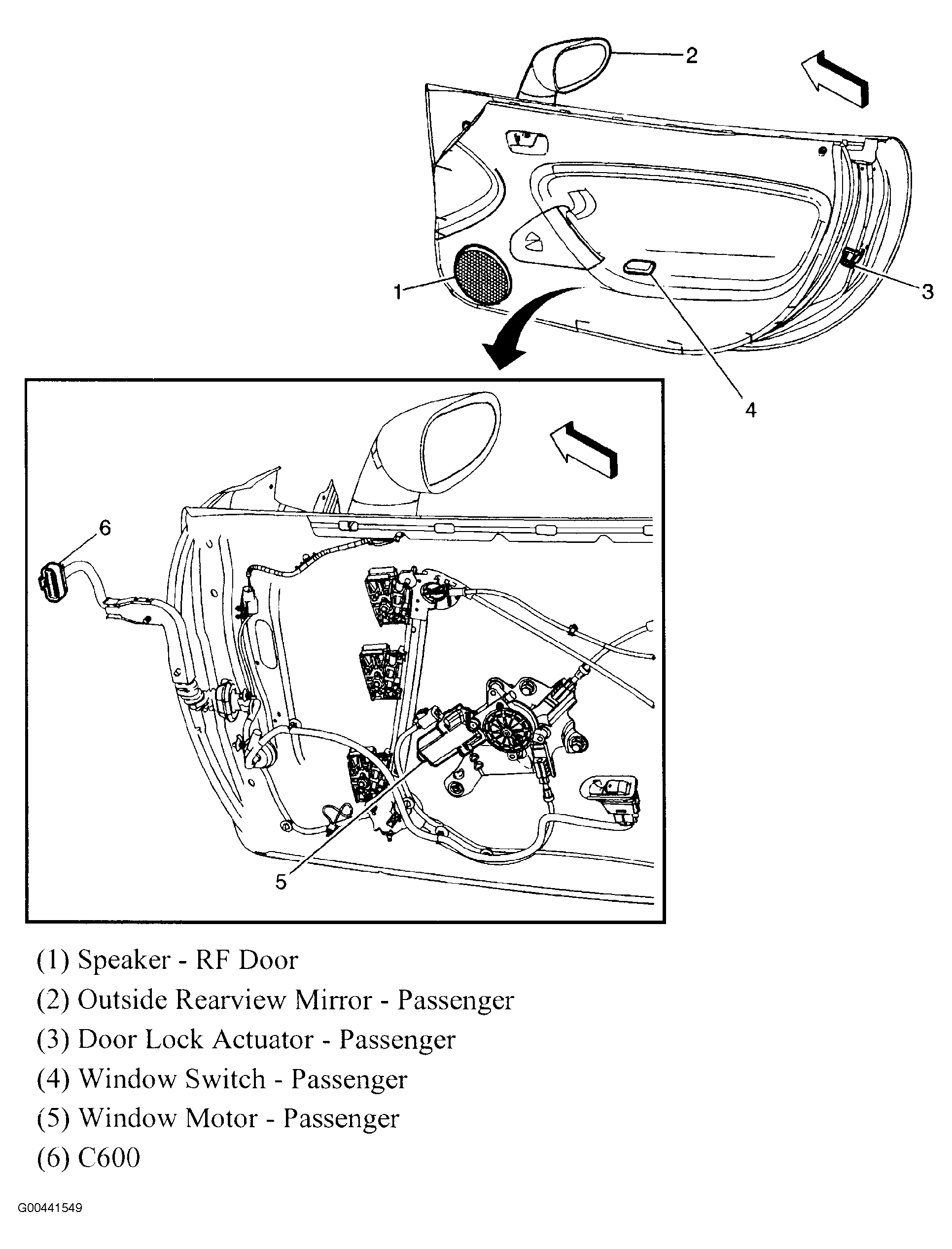

Fig 10: Passenger's Door Components
Courtesy of GENERAL MOTORS CORP.

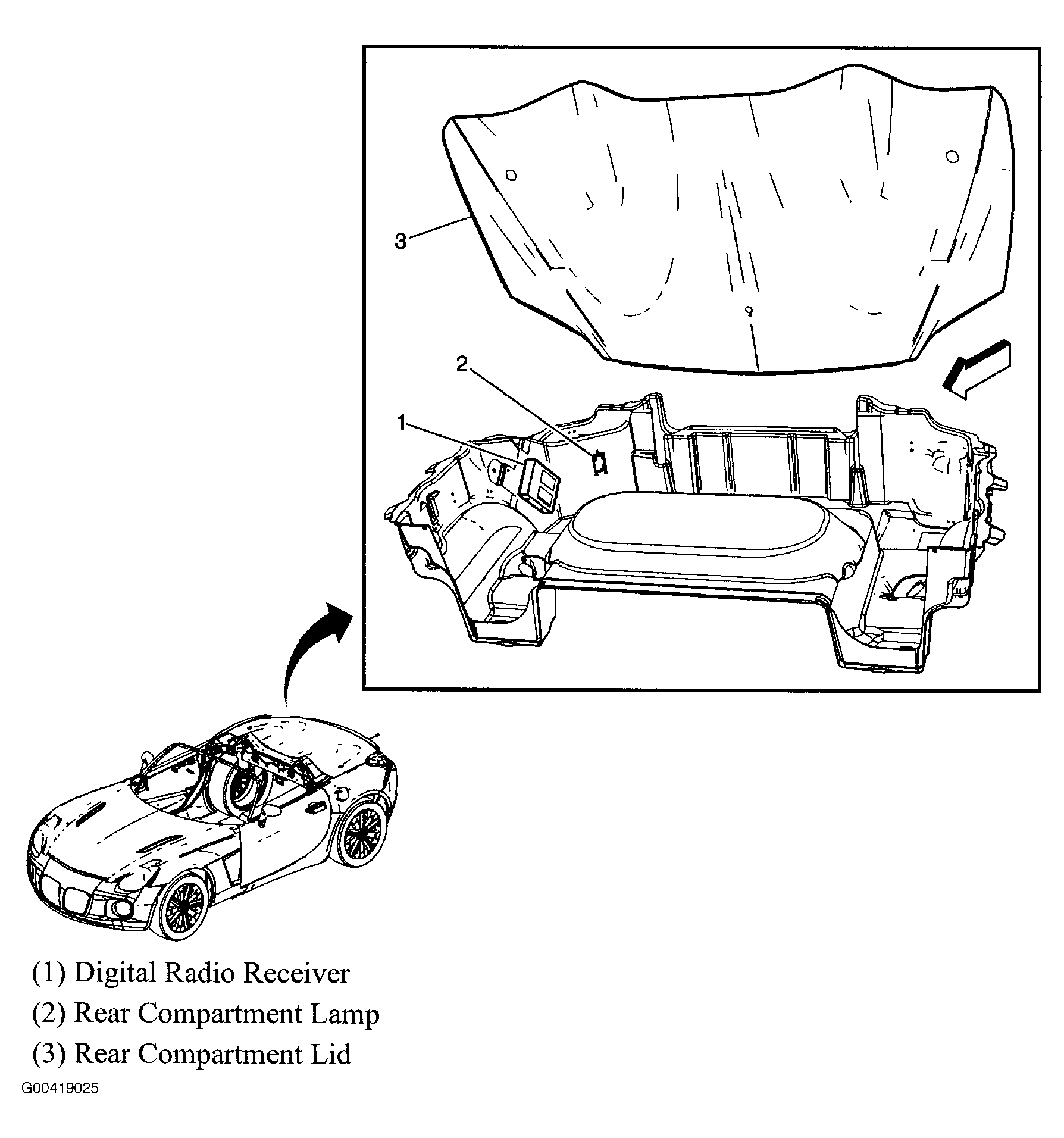

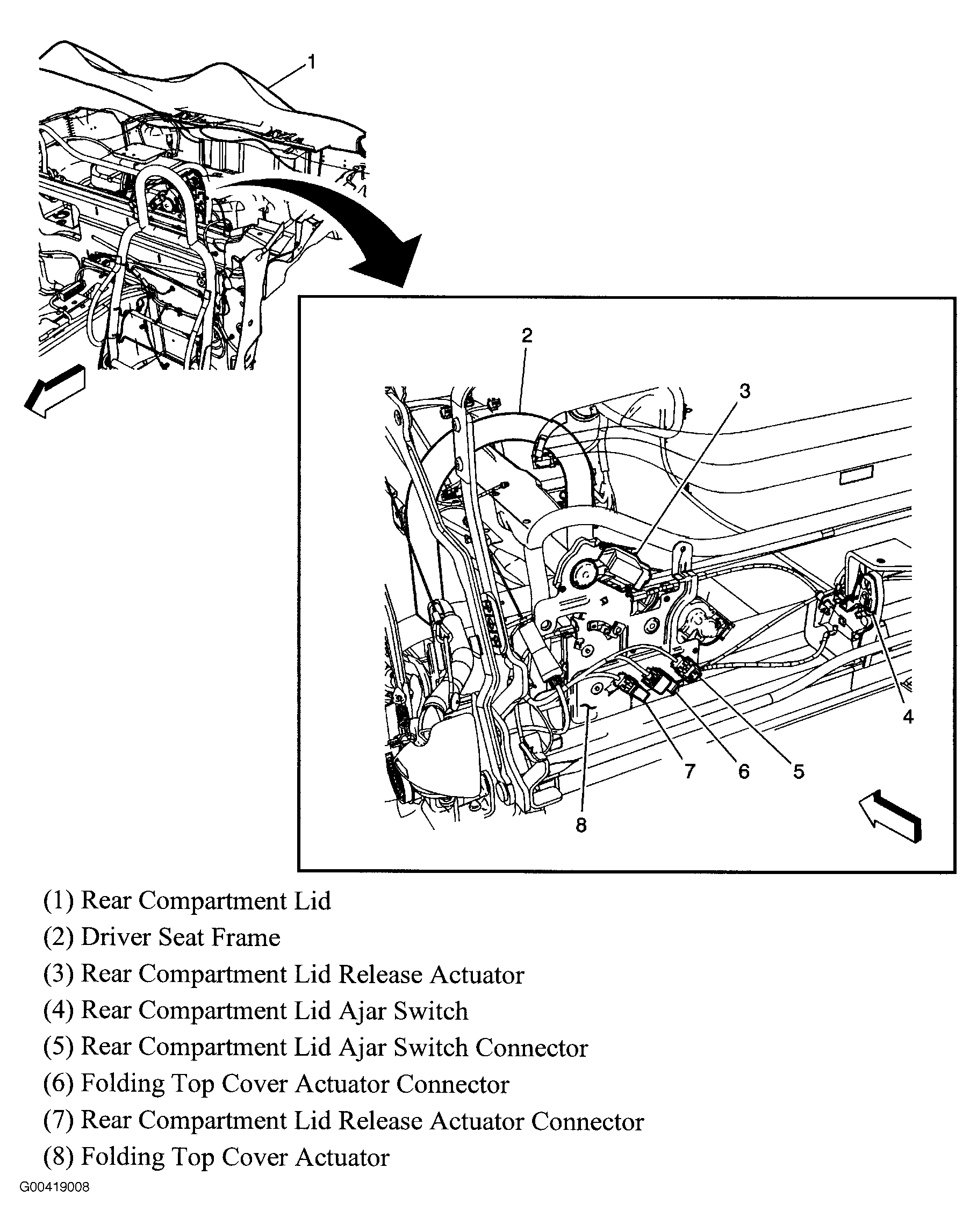

Fig 11: Rear Compartment Components
Courtesy of GENERAL MOTORS CORP.

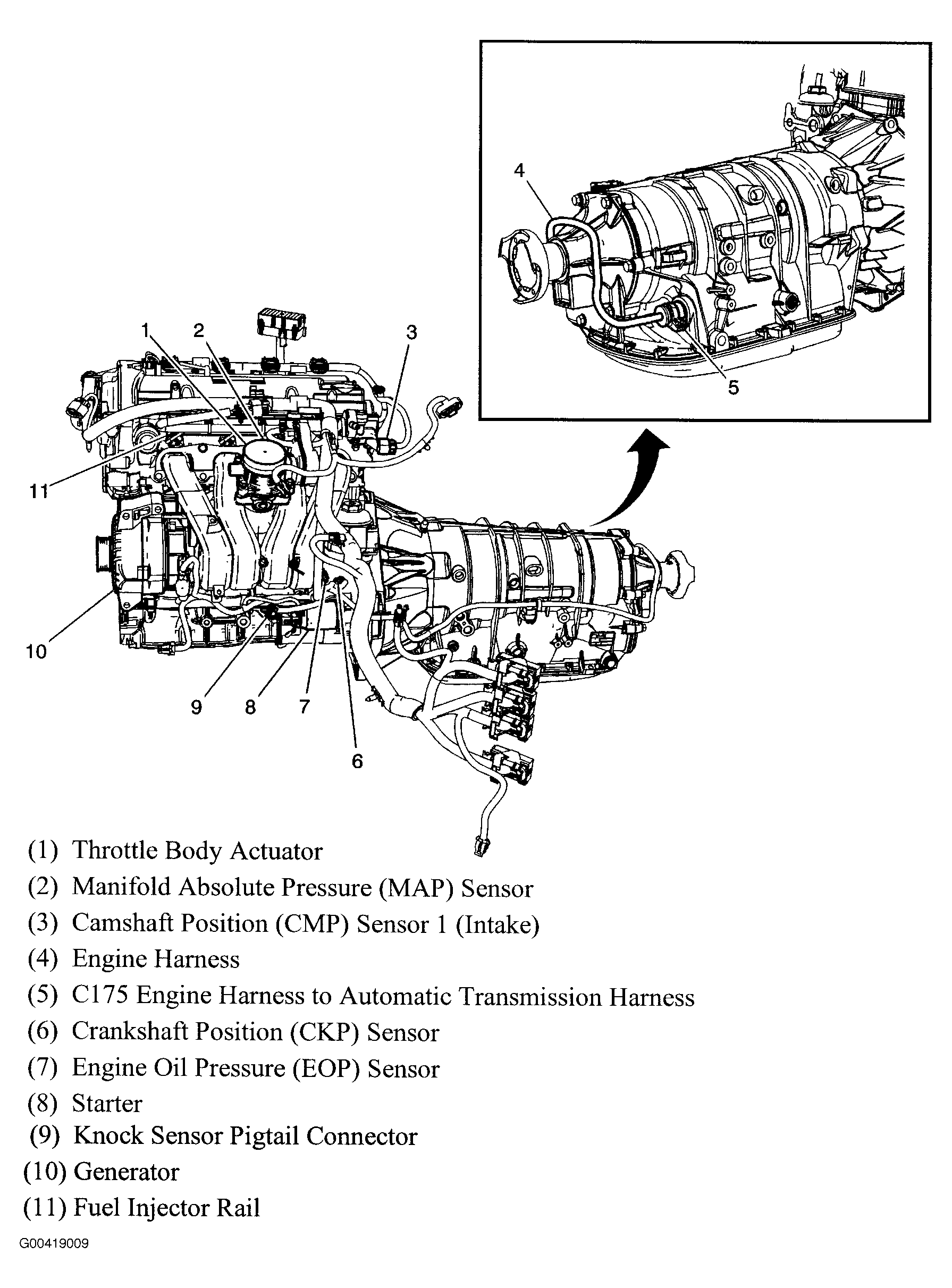

Fig 12: Engine & Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.

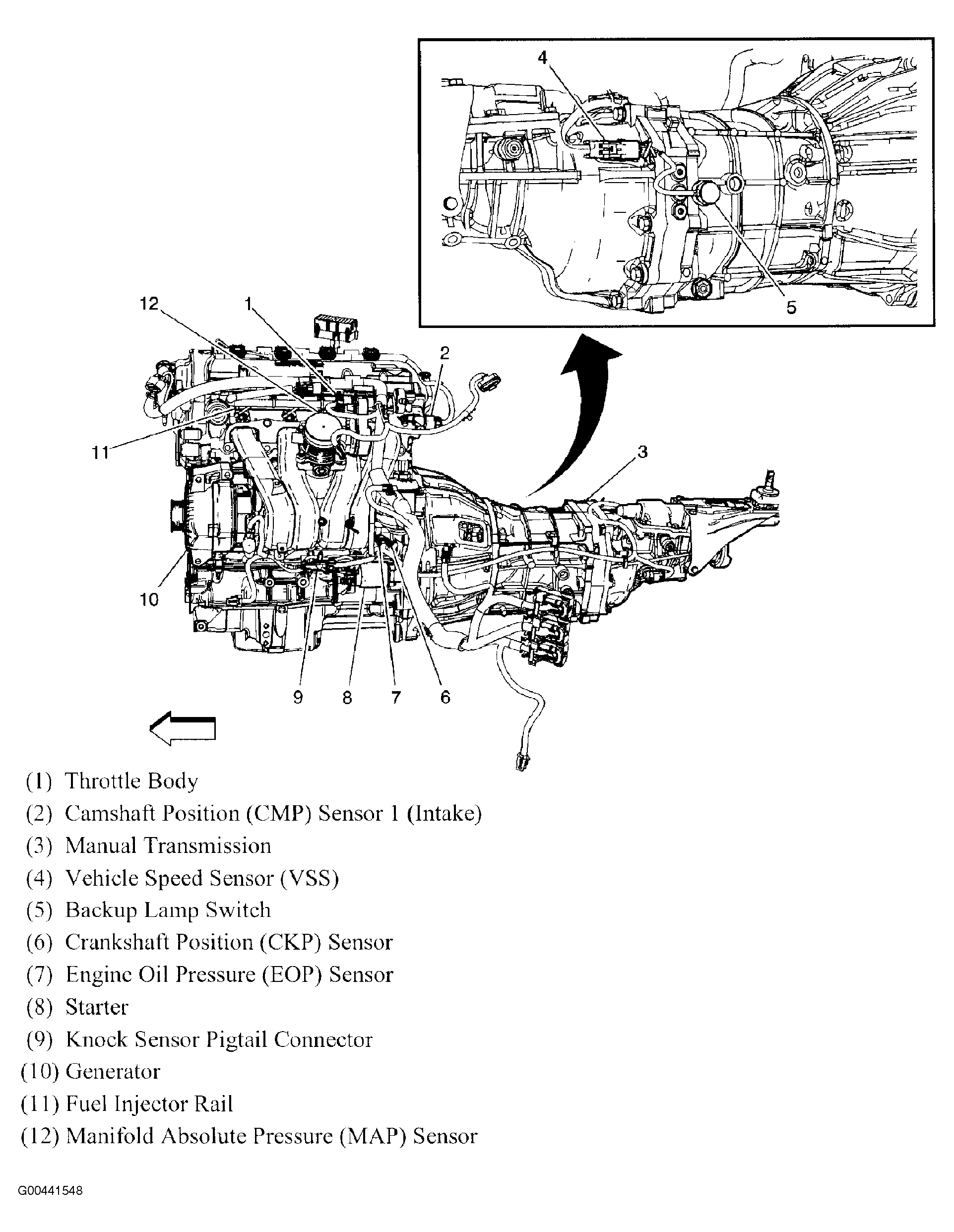

Fig 13: Engine & Manual Transmission Assembly (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Rear Of Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Engine Components
Courtesy of GENERAL MOTORS CORP.

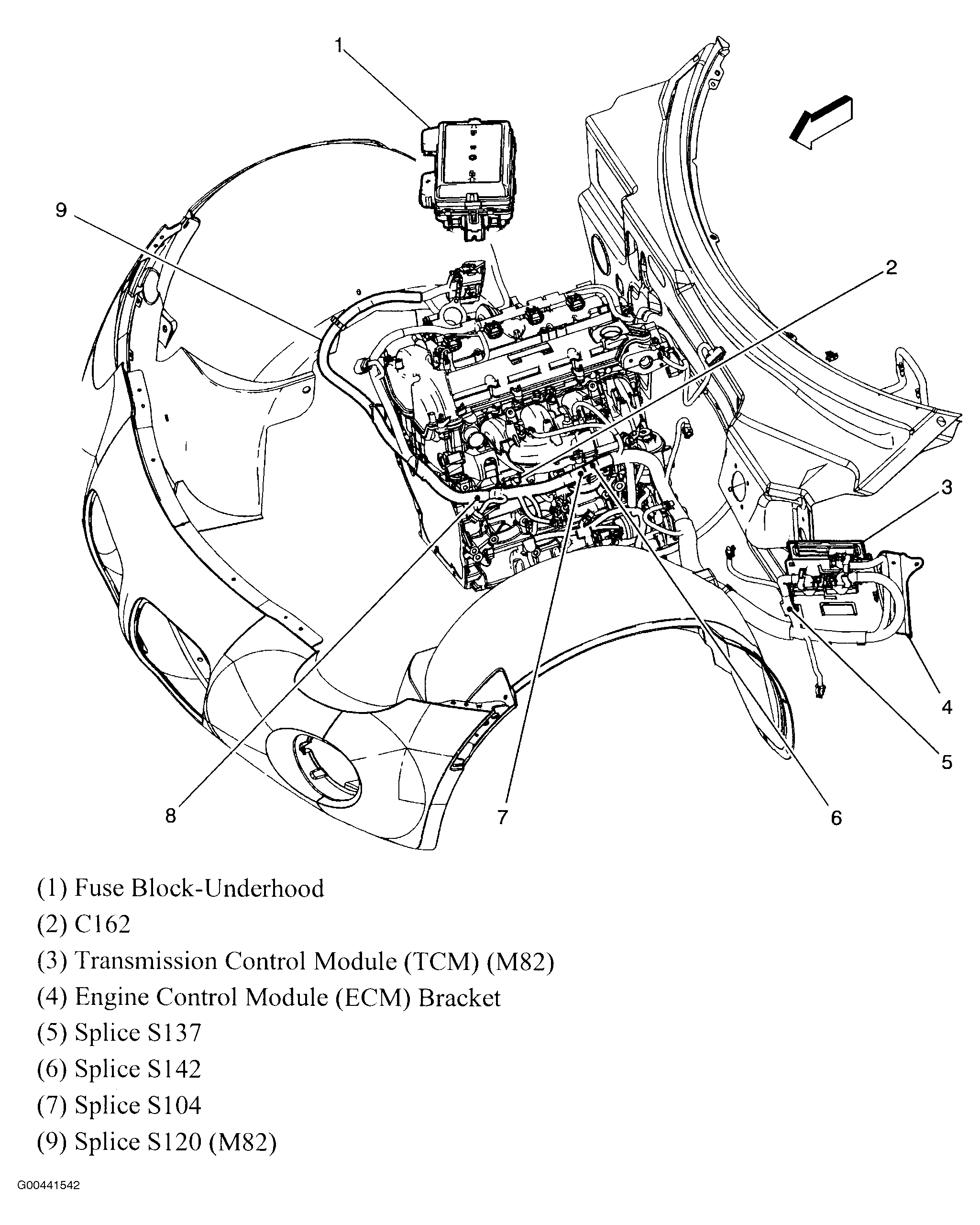

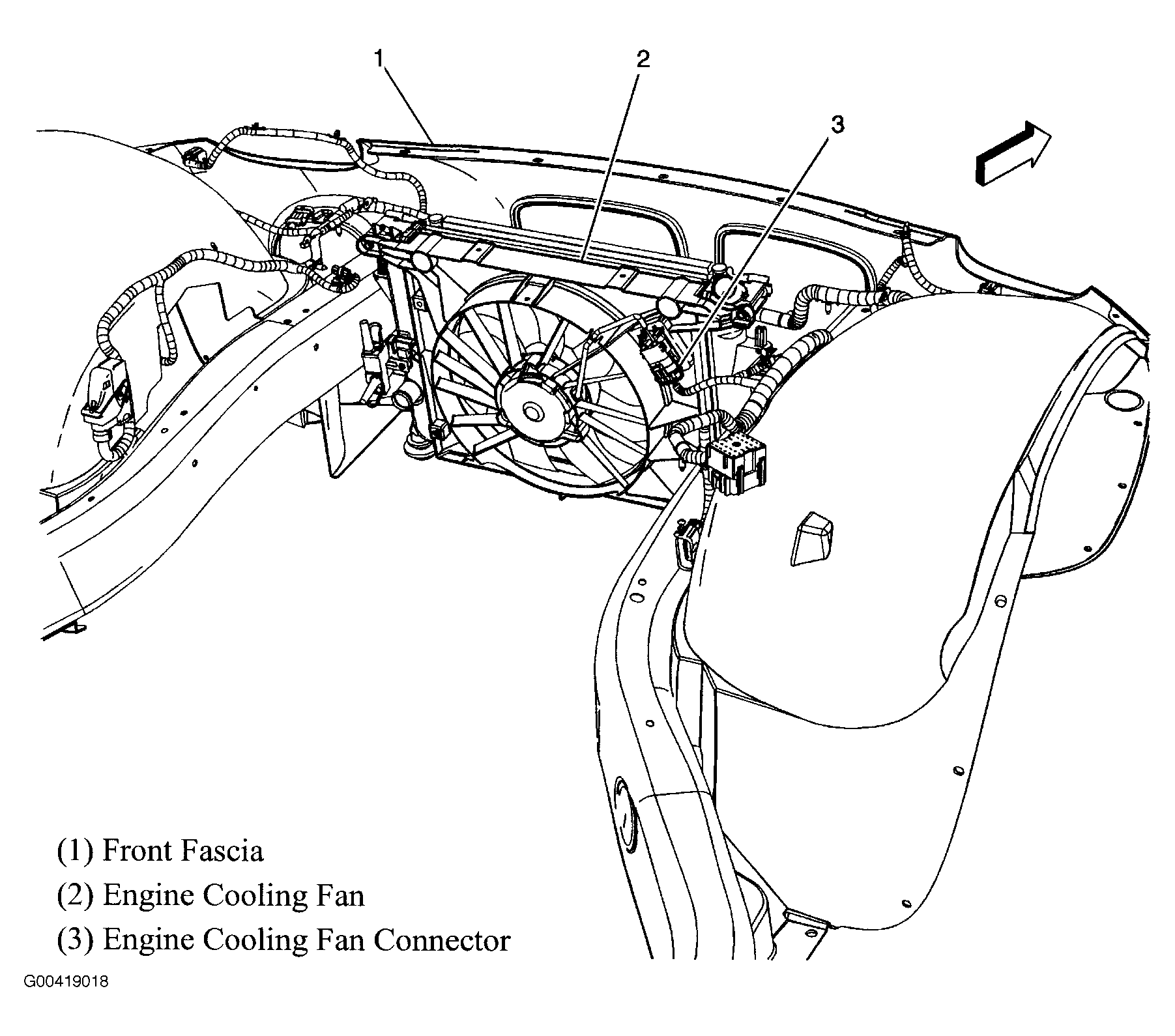

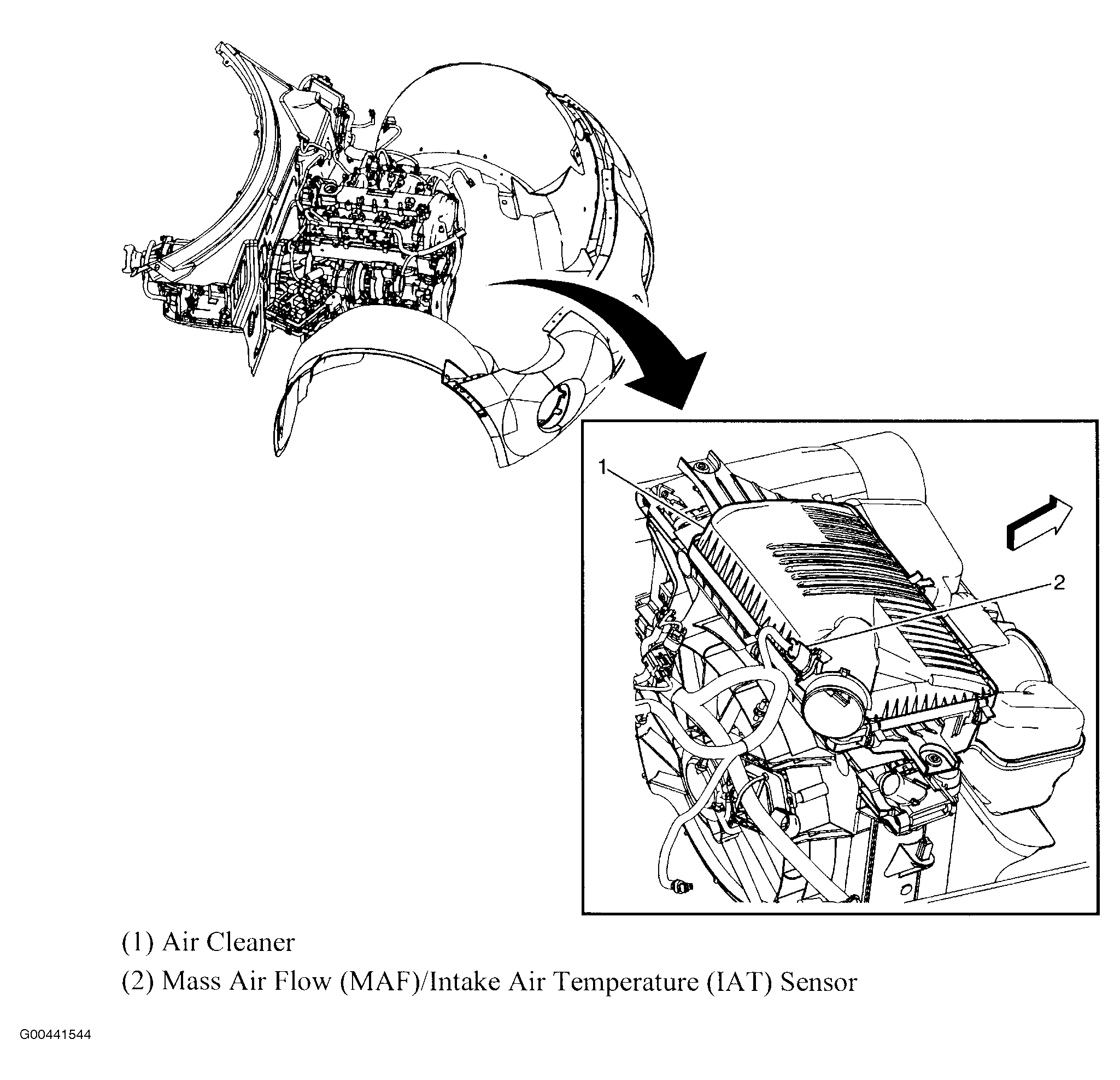

Fig 16: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

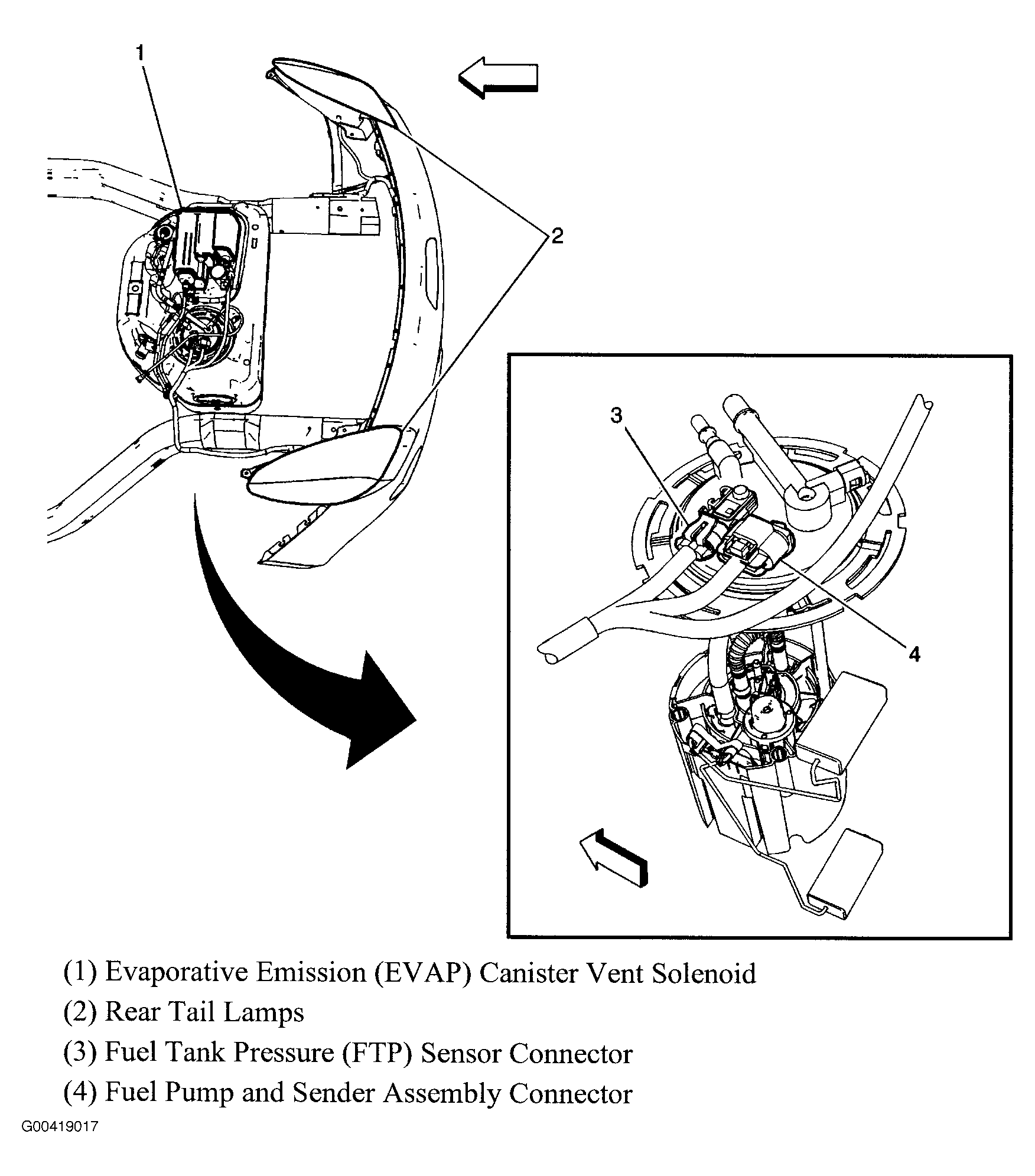

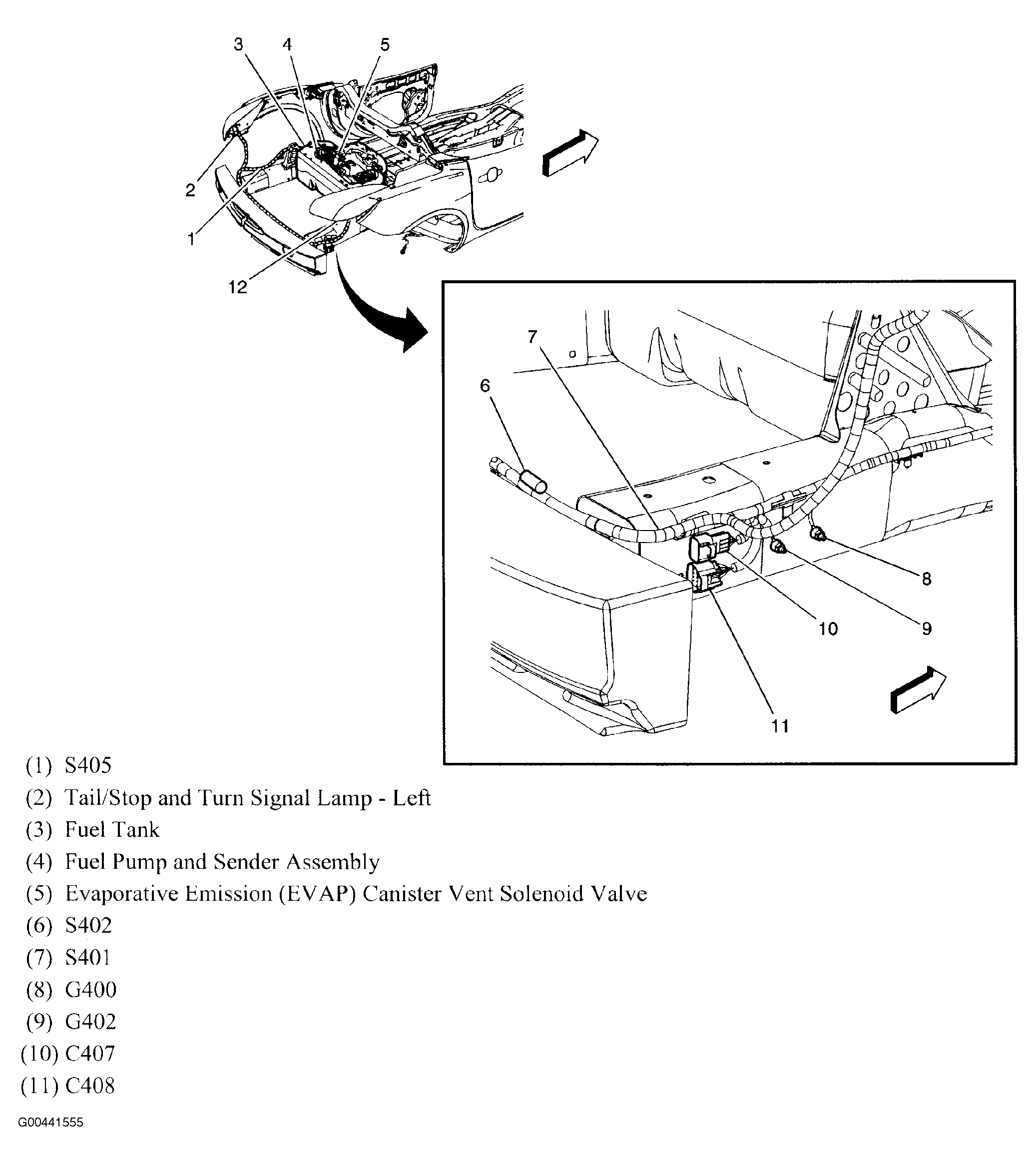

Fig 17: Fuel Tank Components
Courtesy of GENERAL MOTORS CORP.

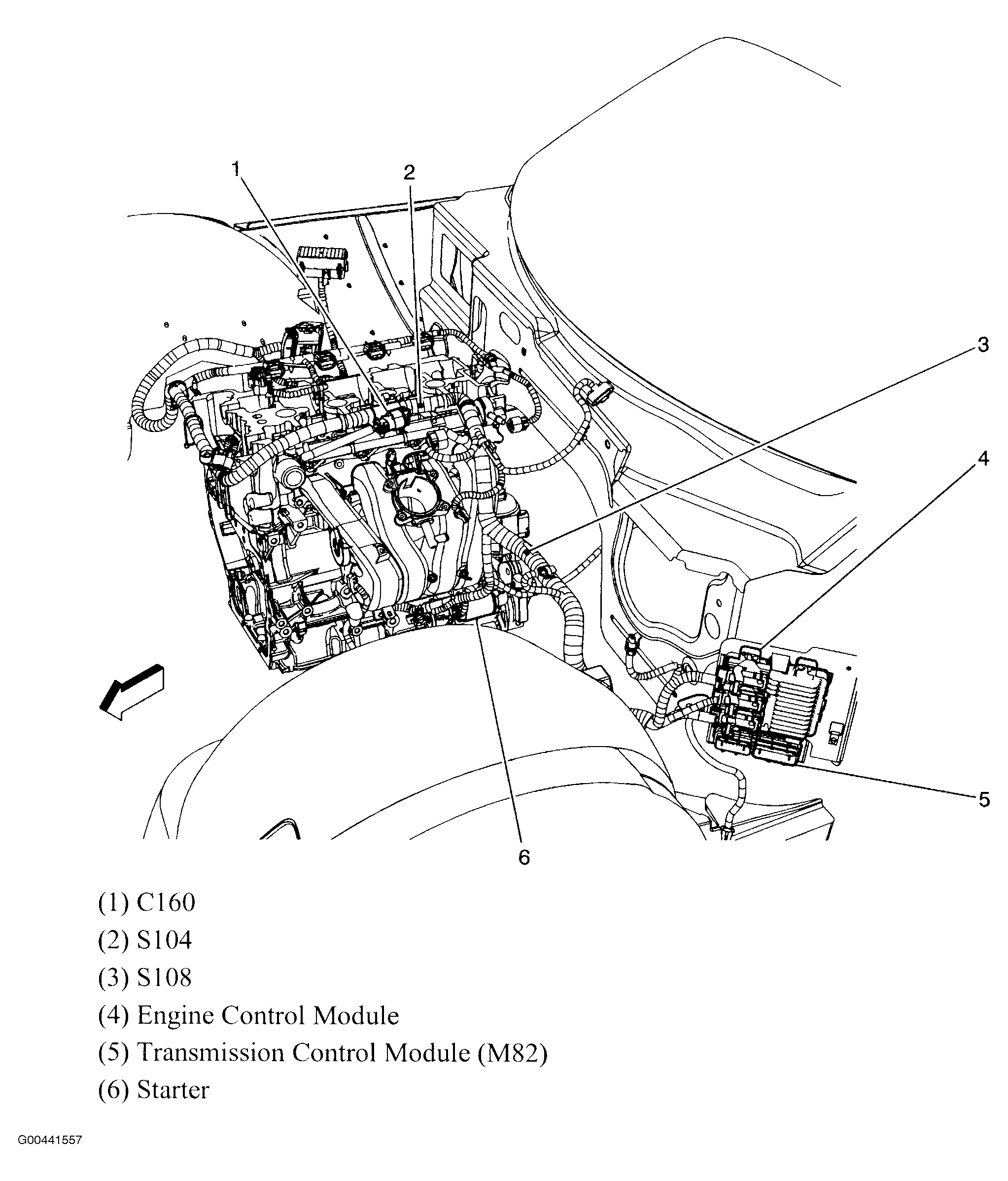

Fig 18: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 20: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

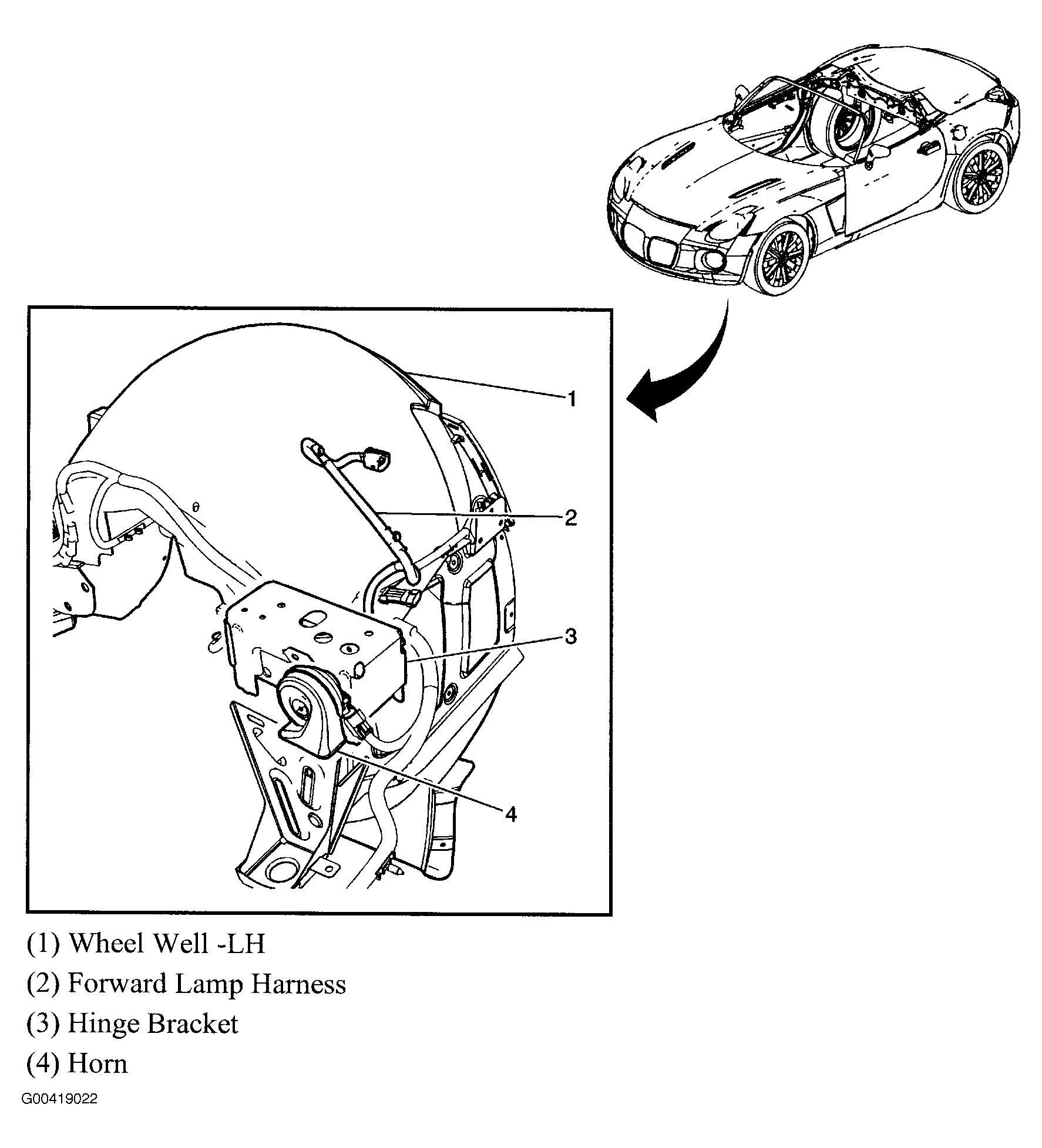

Fig 22: Horn Component Views
Courtesy of GENERAL MOTORS CORP.

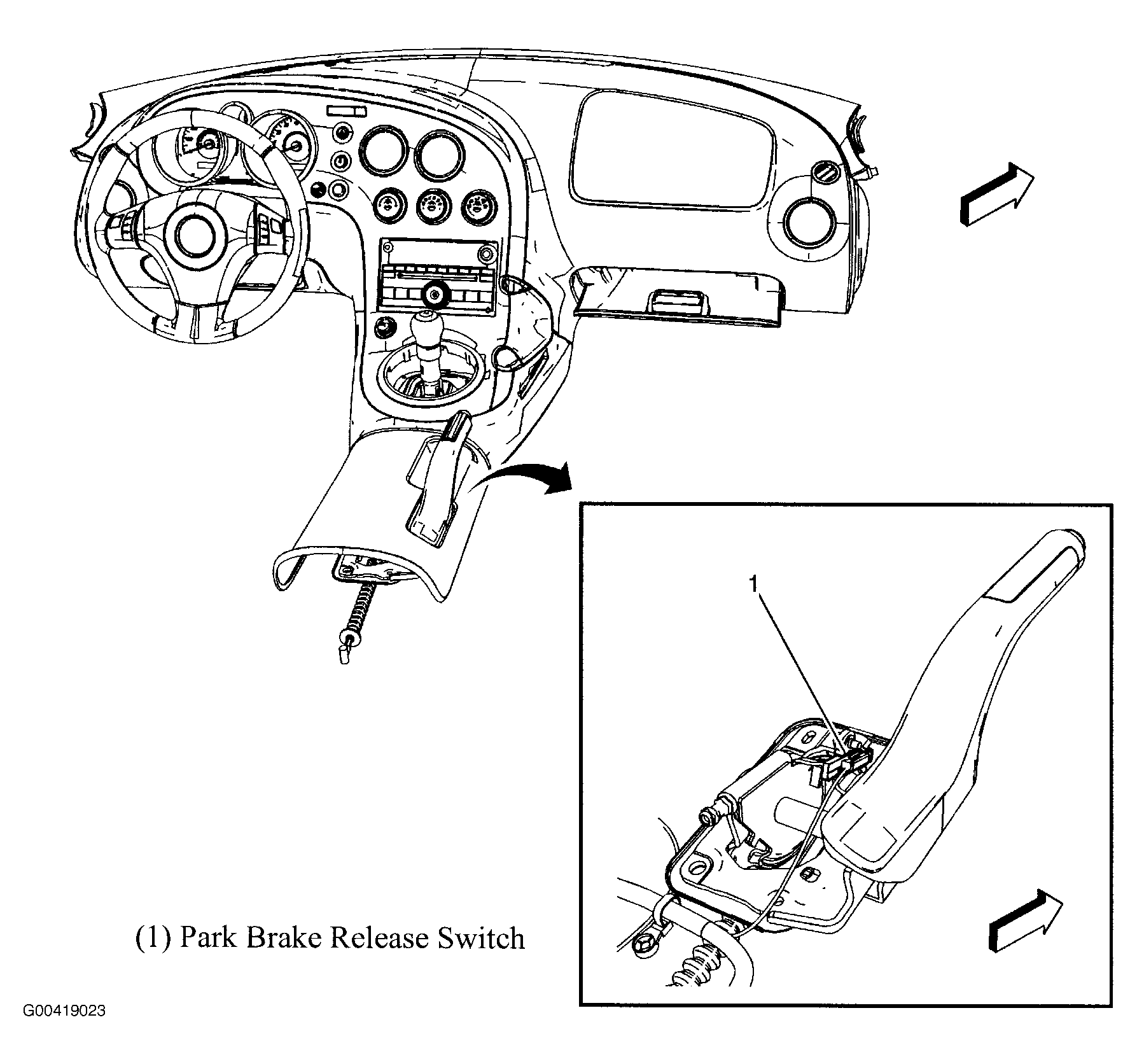

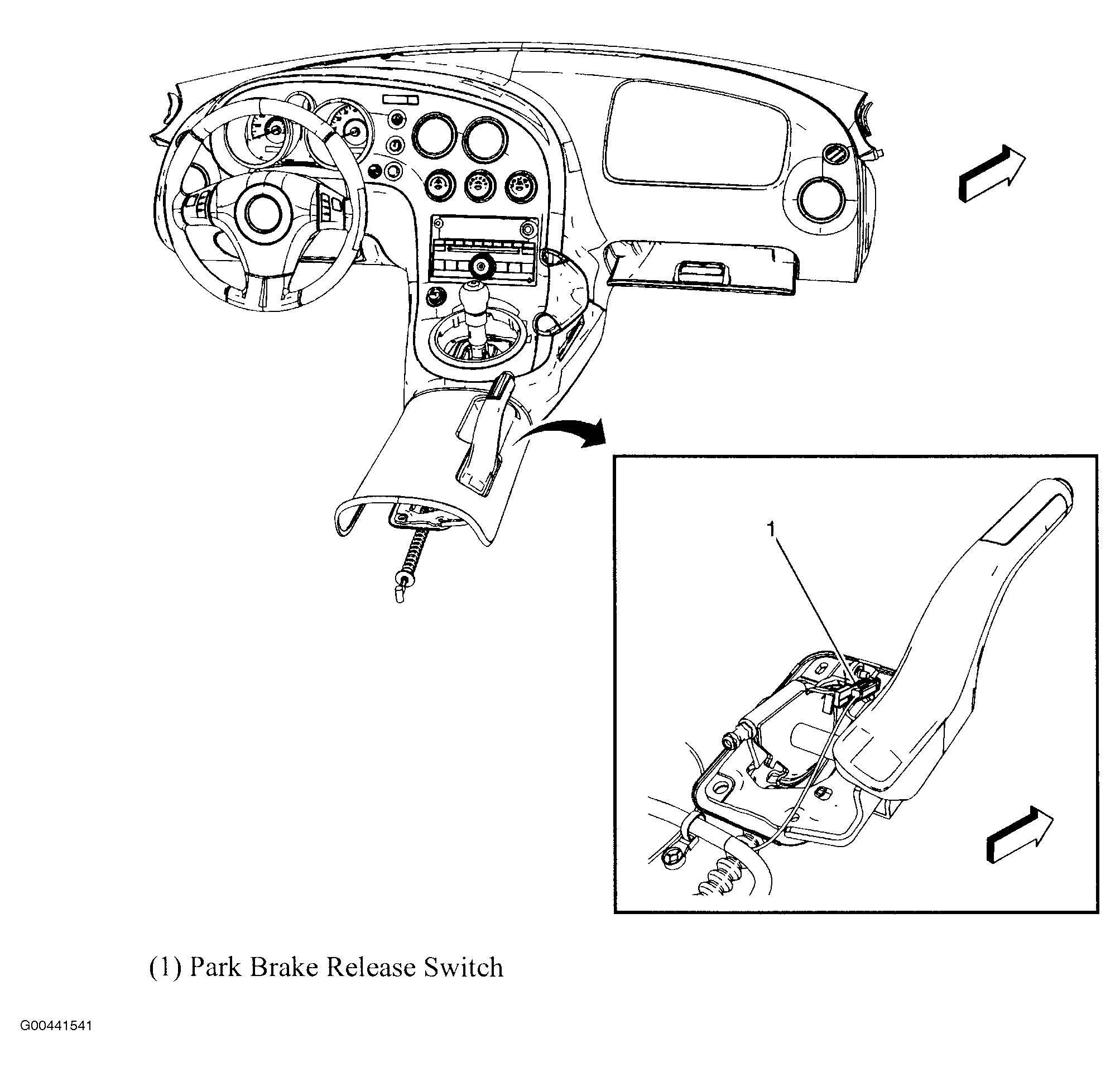

Fig 23: Floor Console
Courtesy of GENERAL MOTORS CORP.

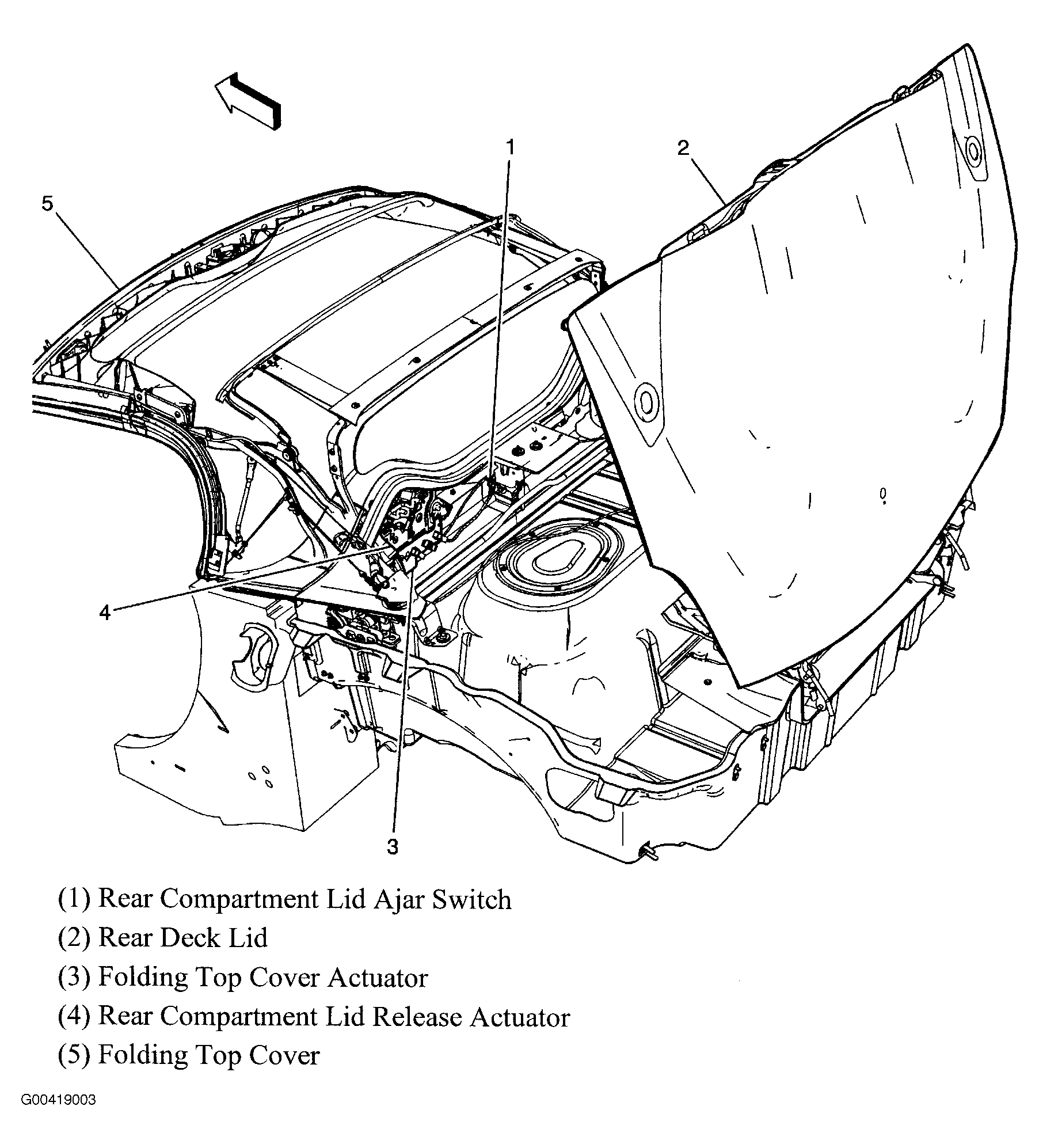

Fig 24: Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 25: Supplemental Restraint Components
Courtesy of GENERAL MOTORS CORP.

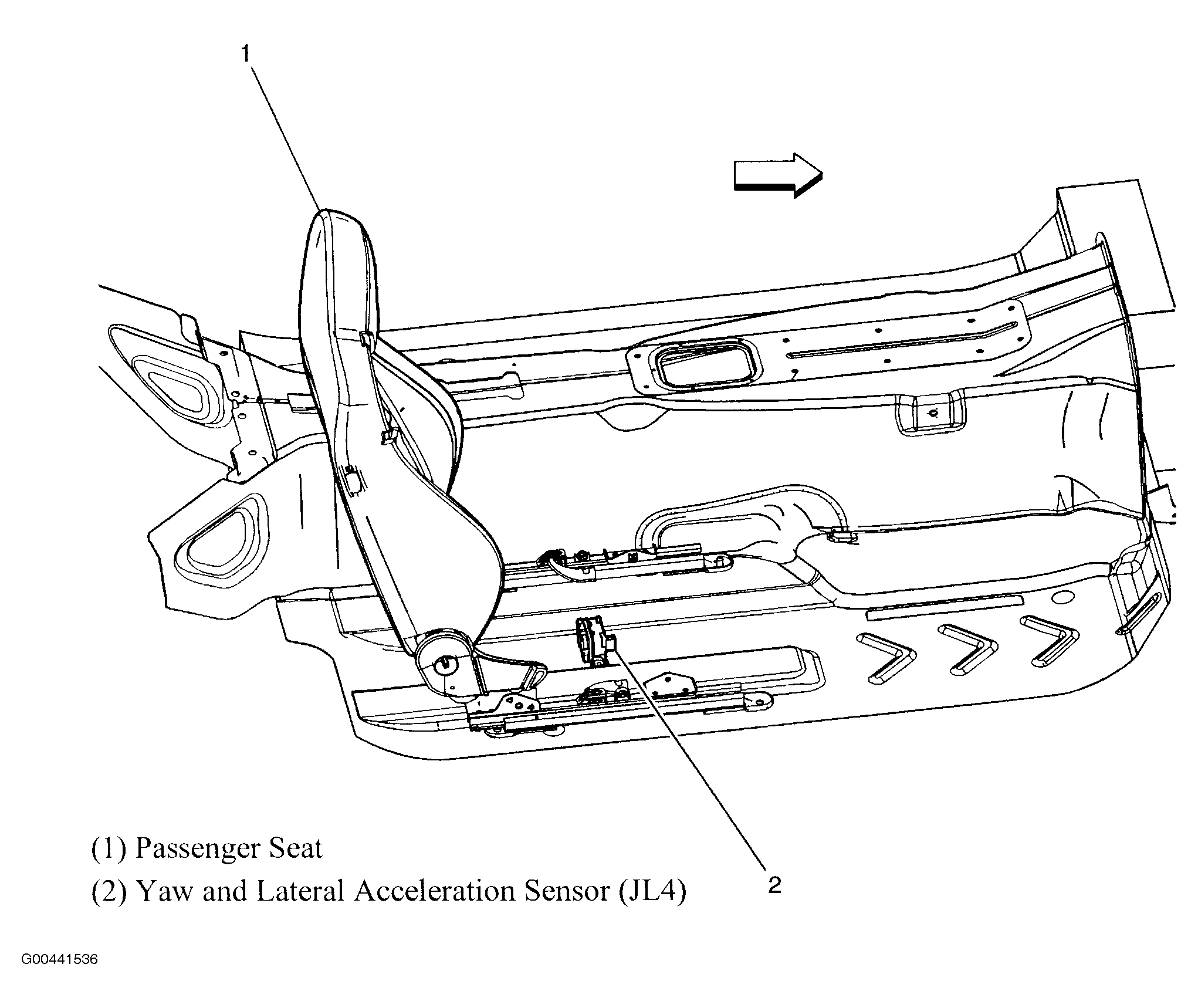

Fig 26: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

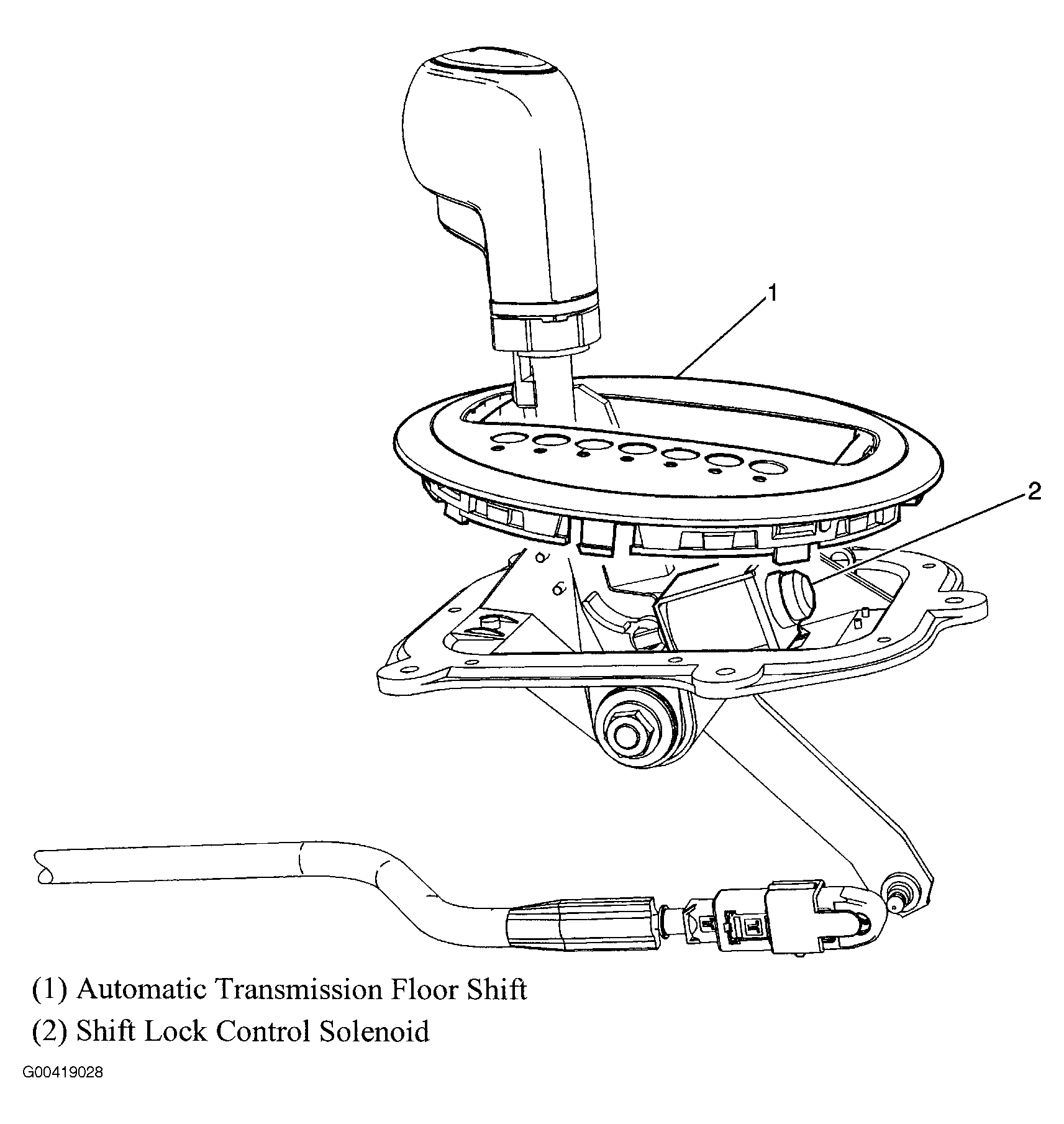

Fig 27: Shift Lock Control Component Views
Courtesy of GENERAL MOTORS CORP.

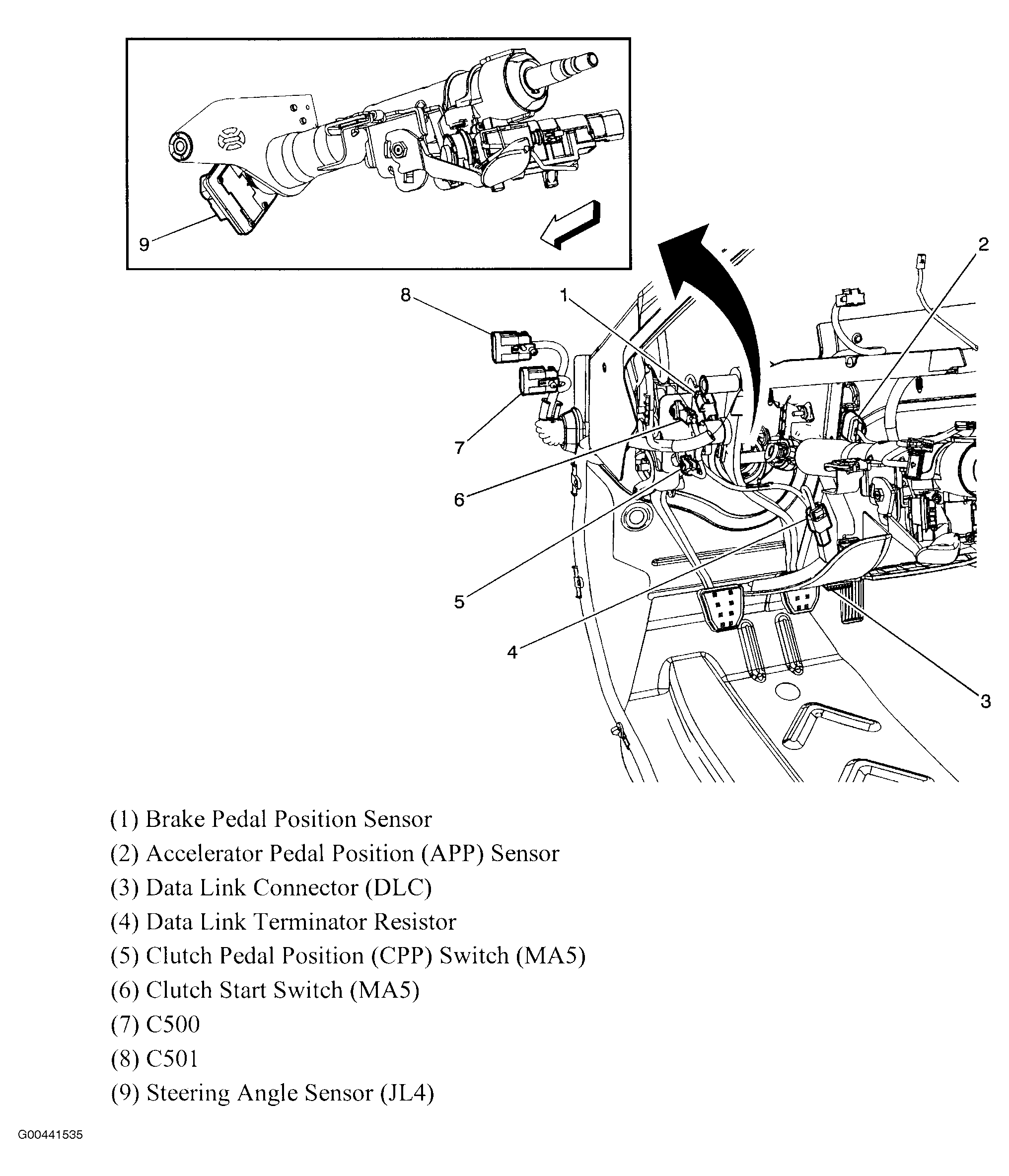

Fig 28: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 29: Front Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 30: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

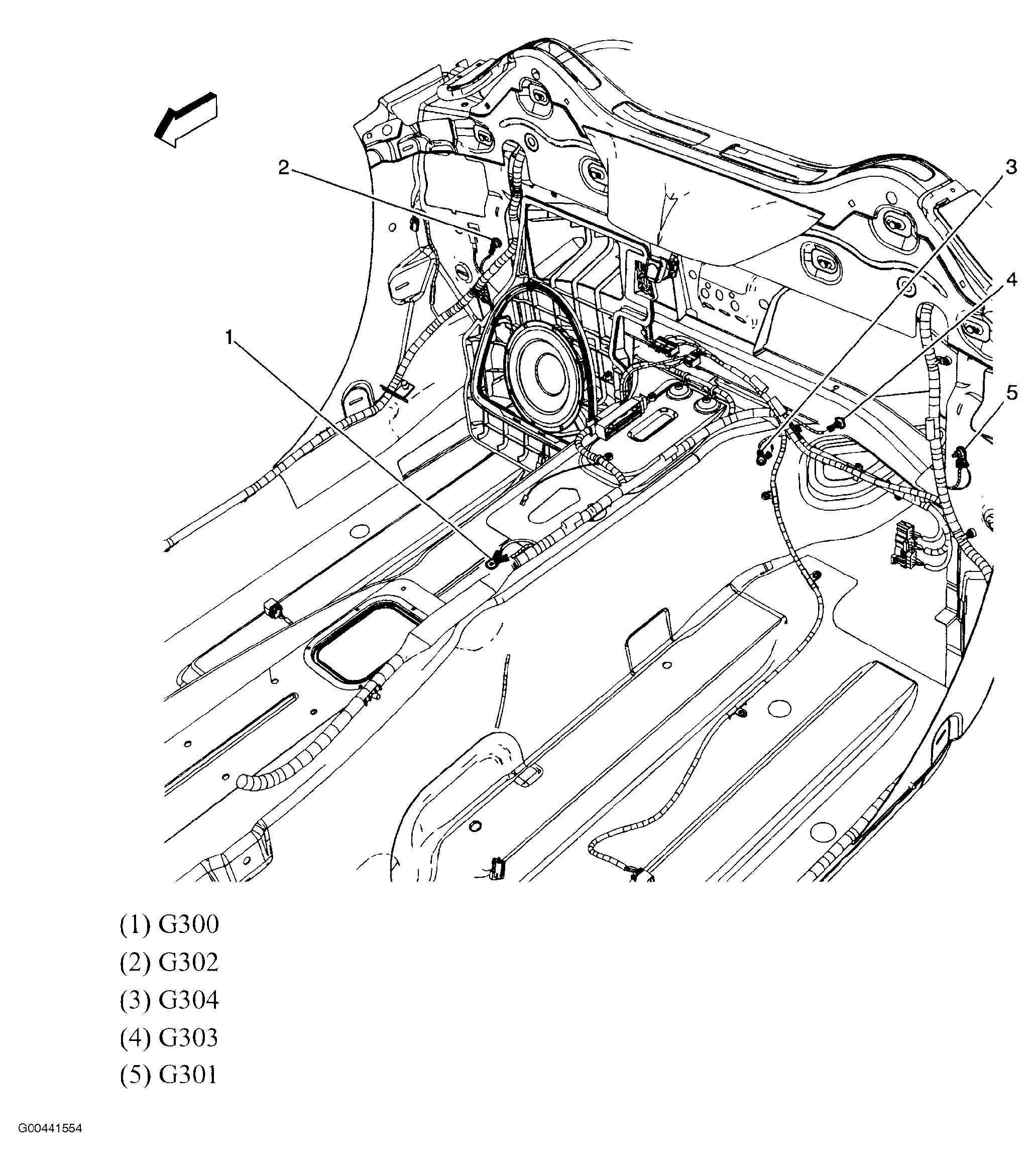

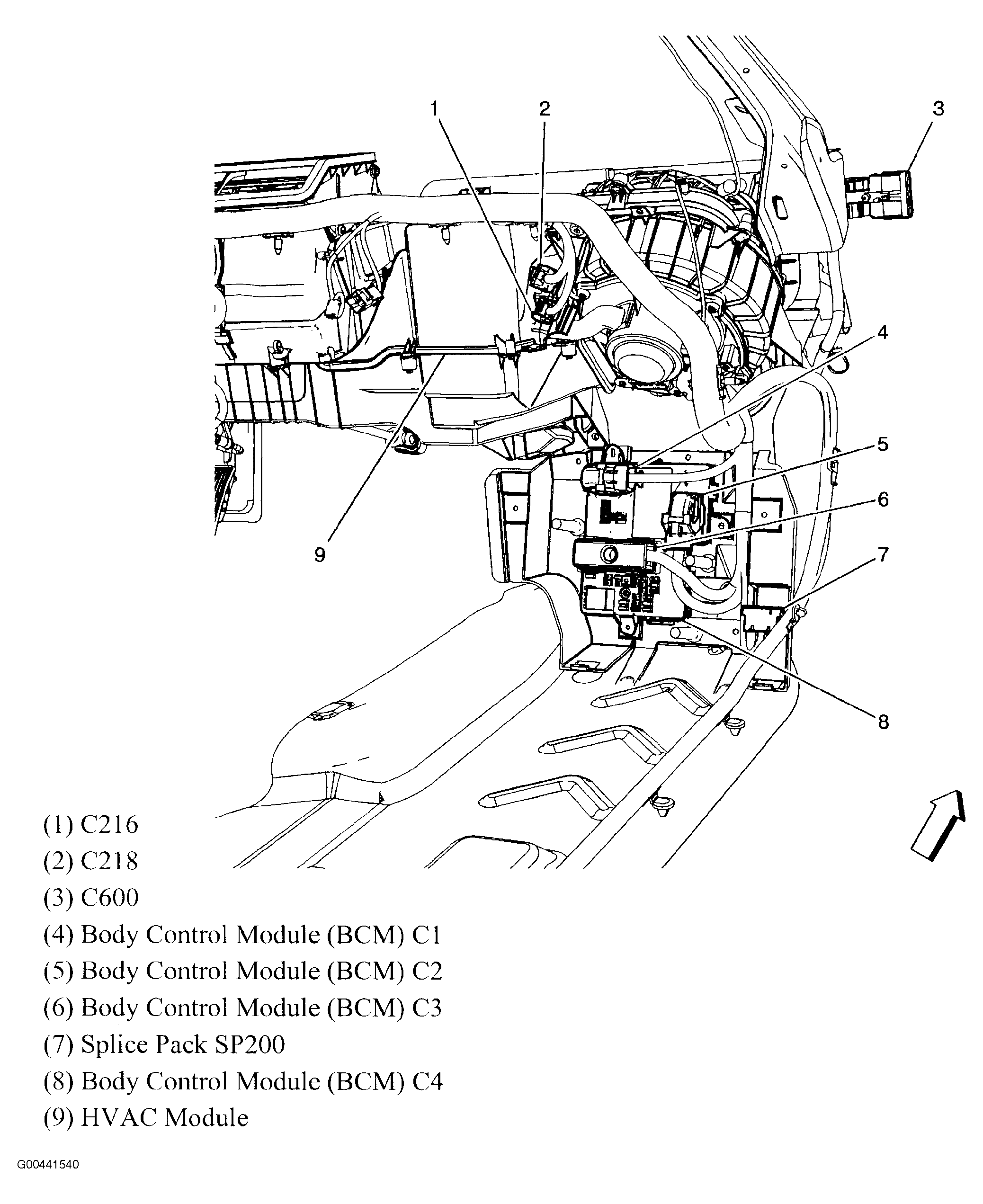

Fig 31: Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 32: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right Side Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.

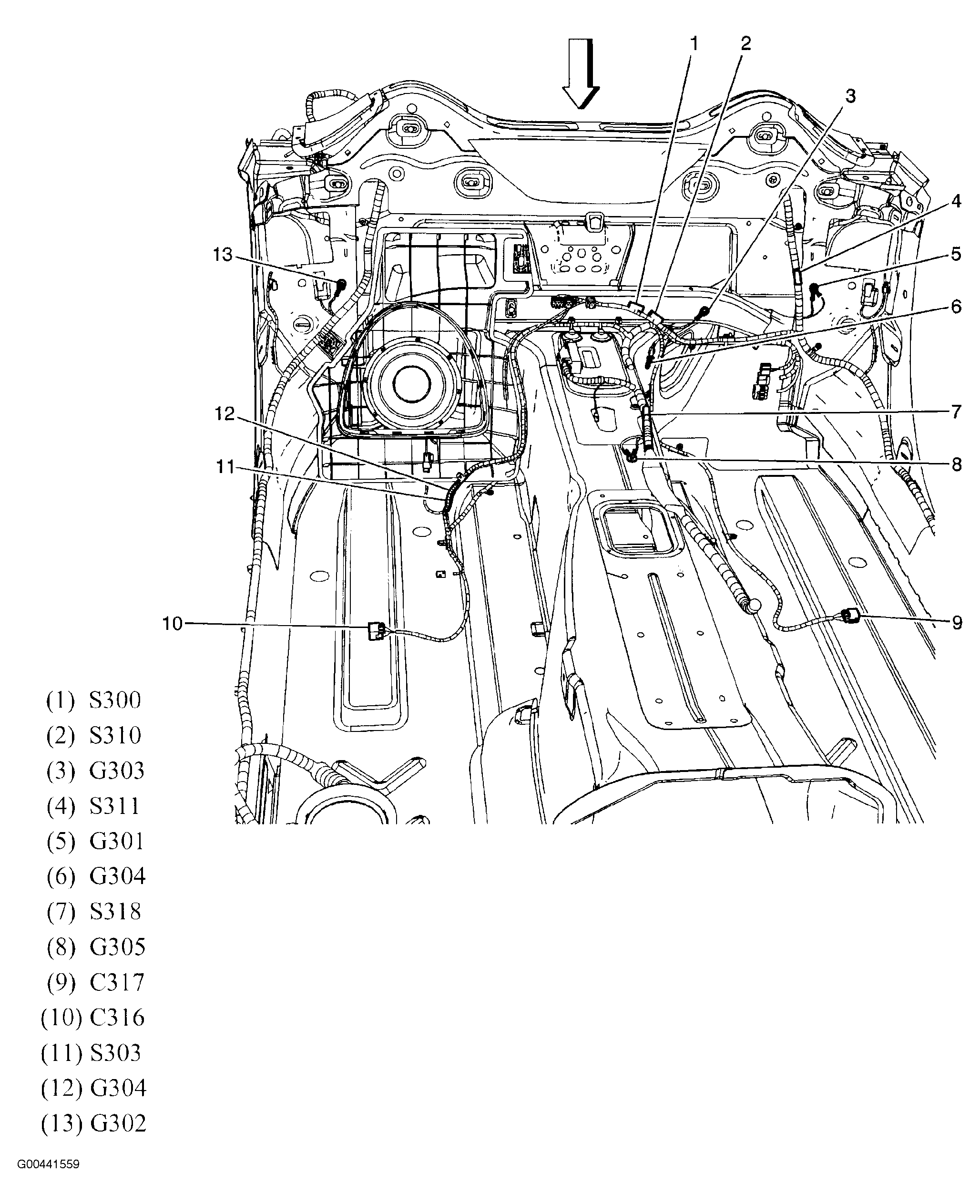

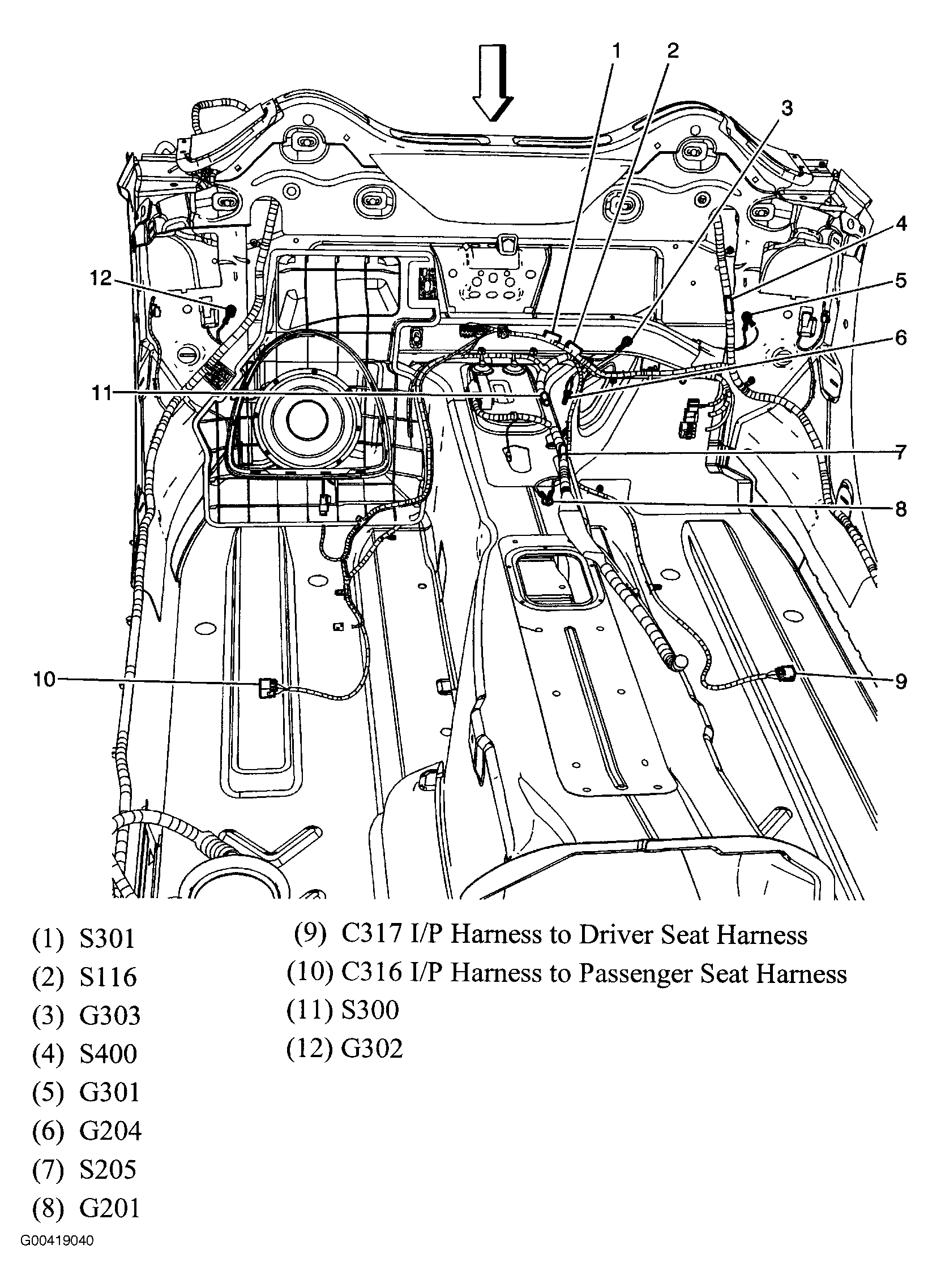

Fig 34: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

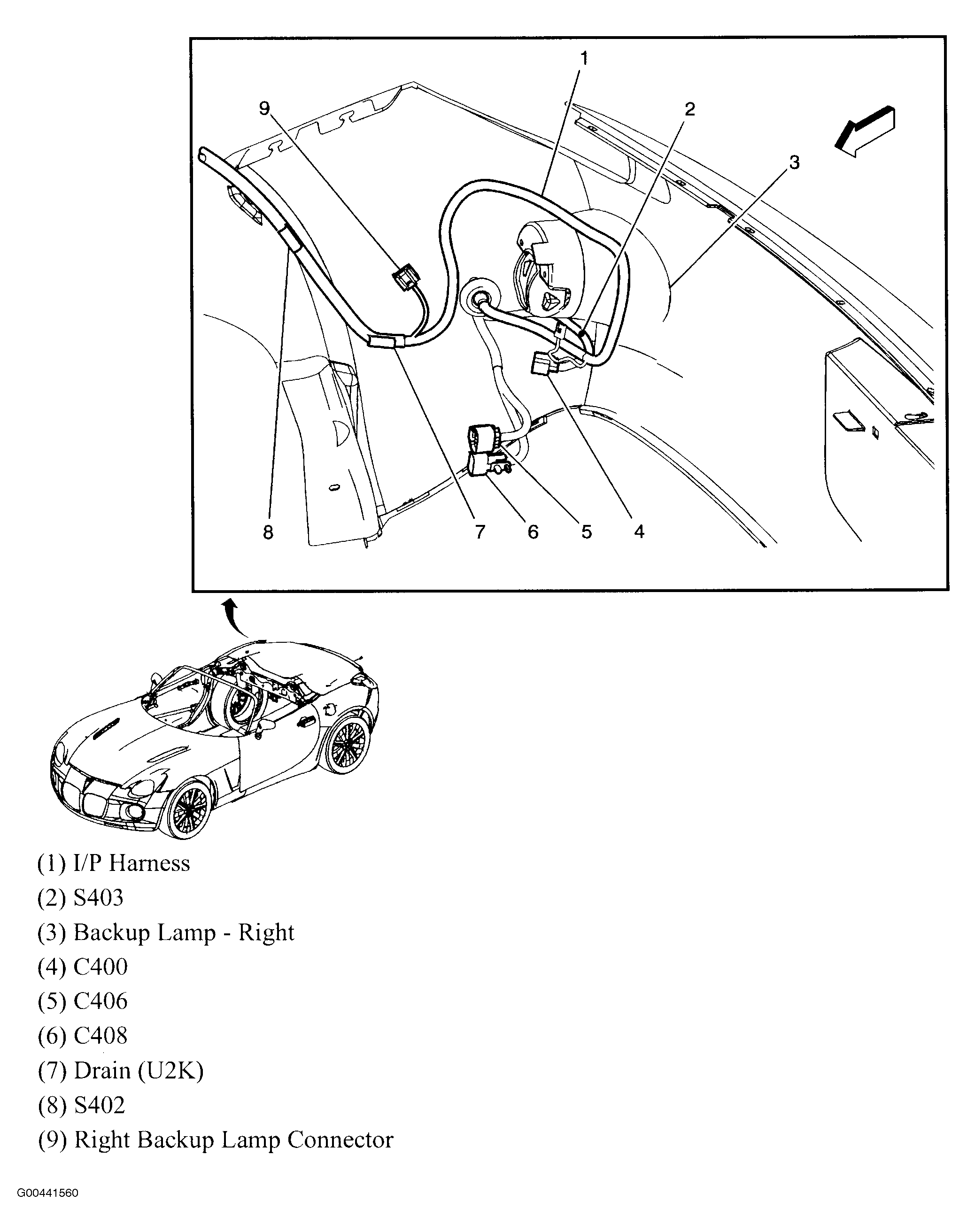

Fig 35: Right Rear Quarter Panel
Courtesy of GENERAL MOTORS CORP.
Fig 36: Chassis Harness
Courtesy of GENERAL MOTORS CORP.
Fig 37: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 38: Passenger's Door
Courtesy of GENERAL MOTORS CORP.

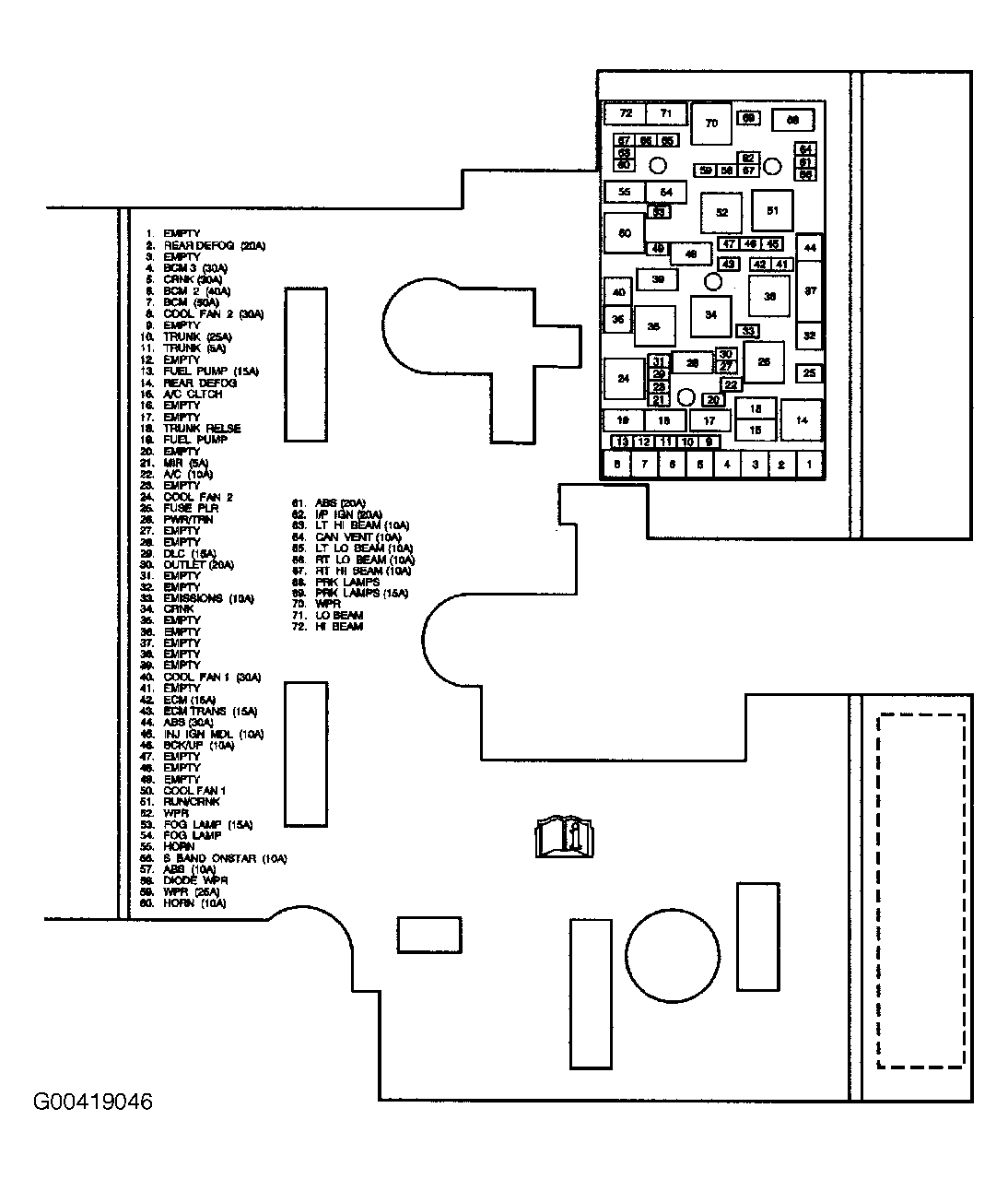

Fig 39: Underhood Fuse Block (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

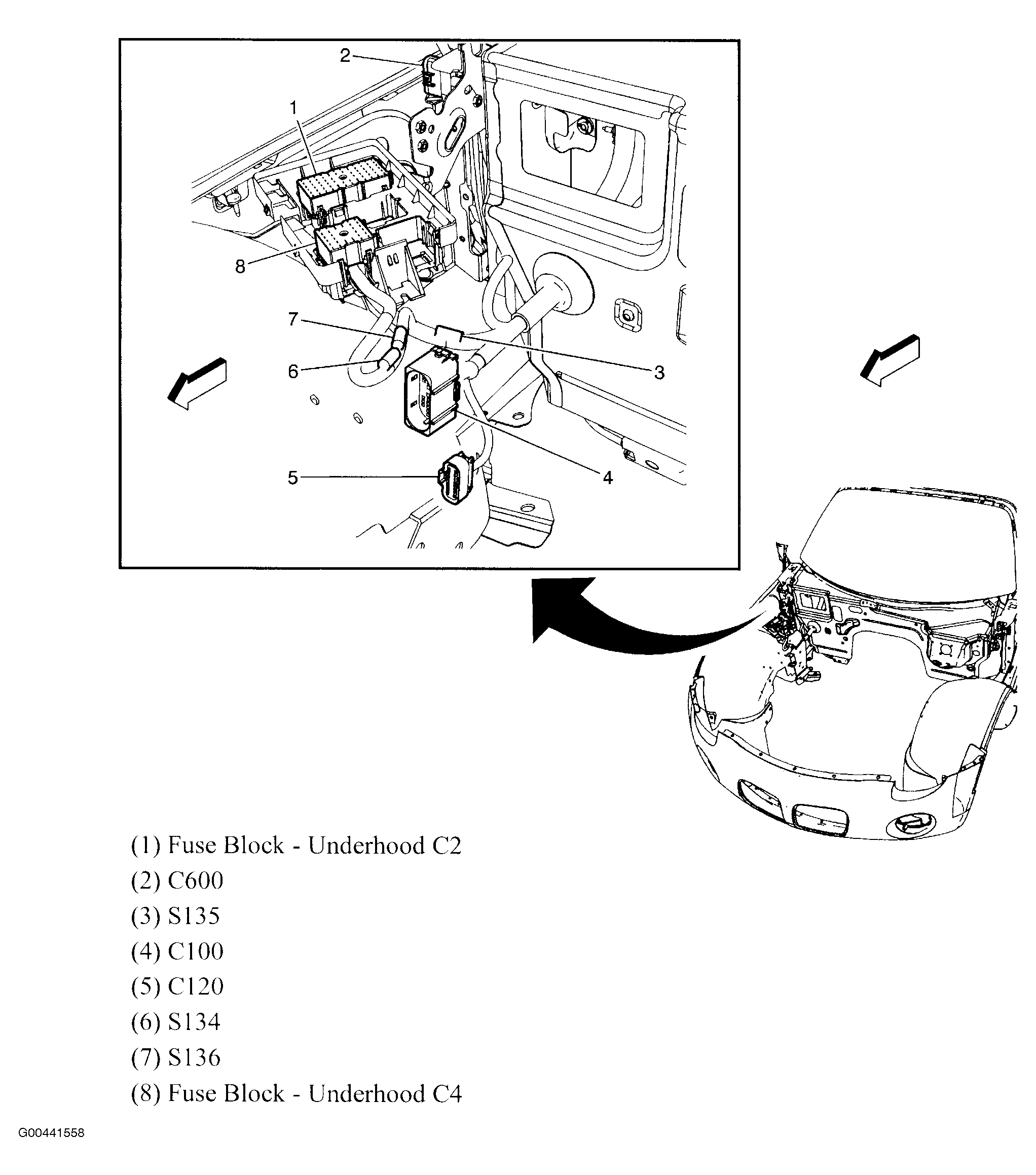

Fig 41: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 42: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 43: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 44: Center Console
Courtesy of GENERAL MOTORS CORP.

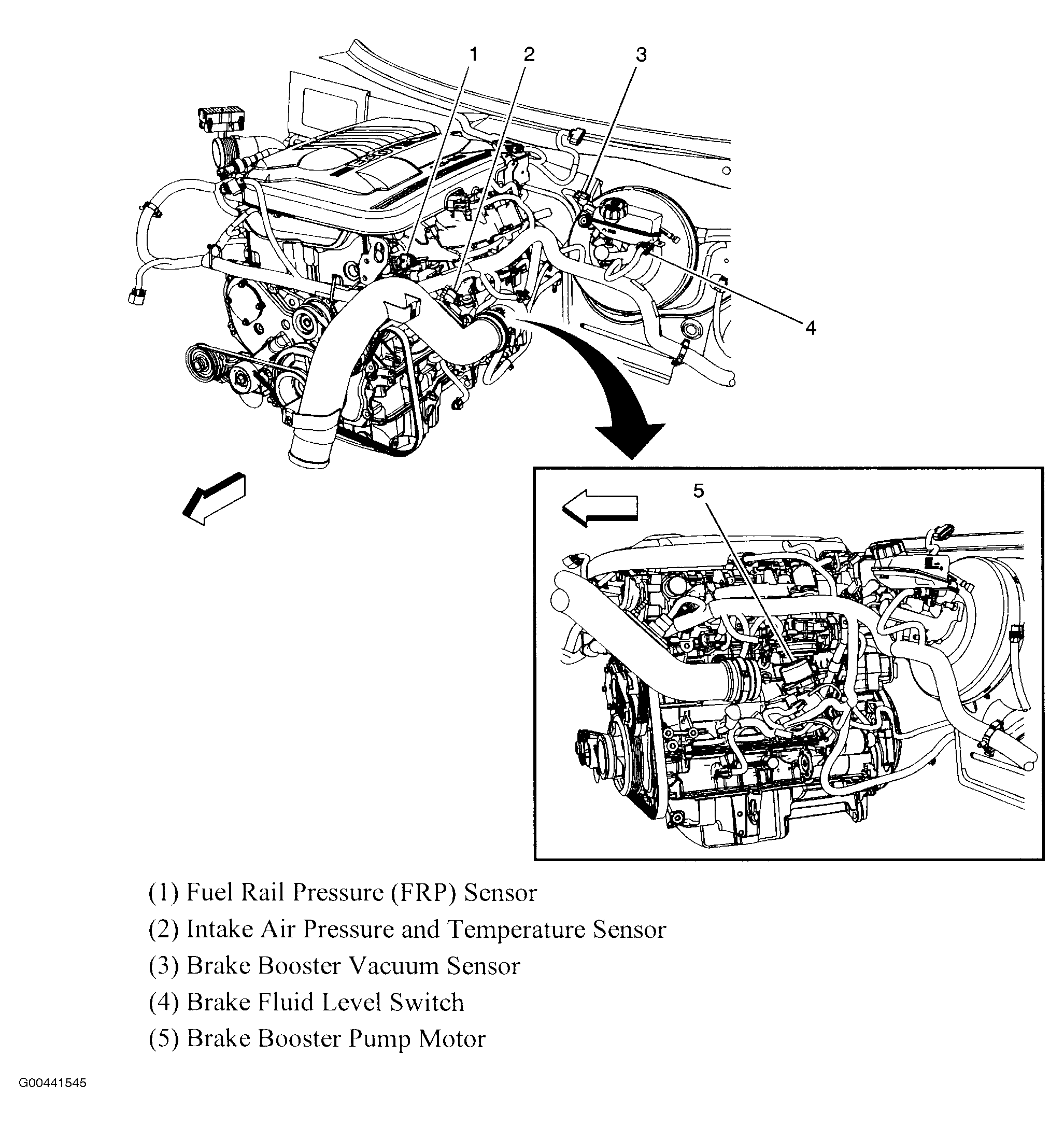

Fig 45: Top Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Top Right Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

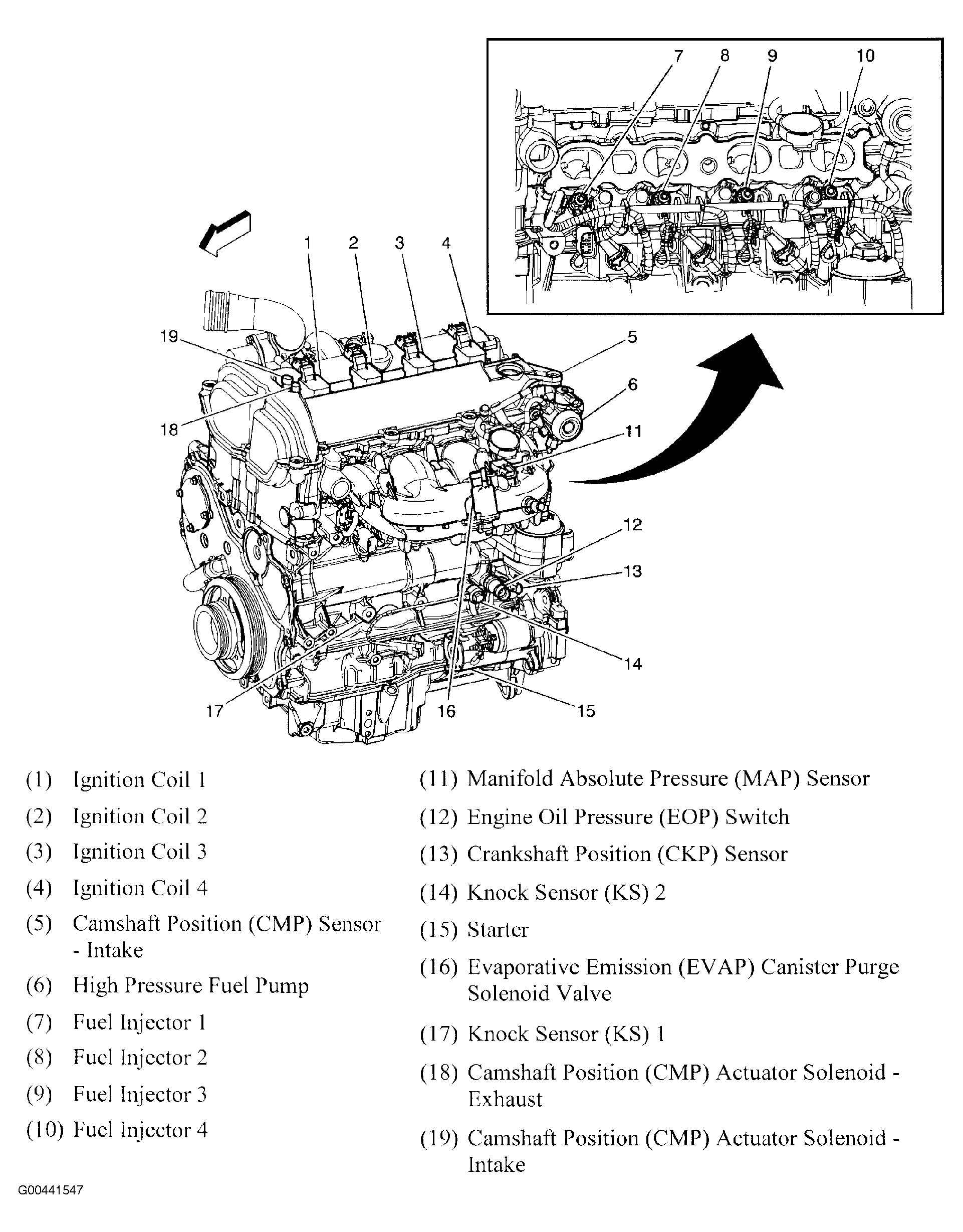

Fig 48: Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.

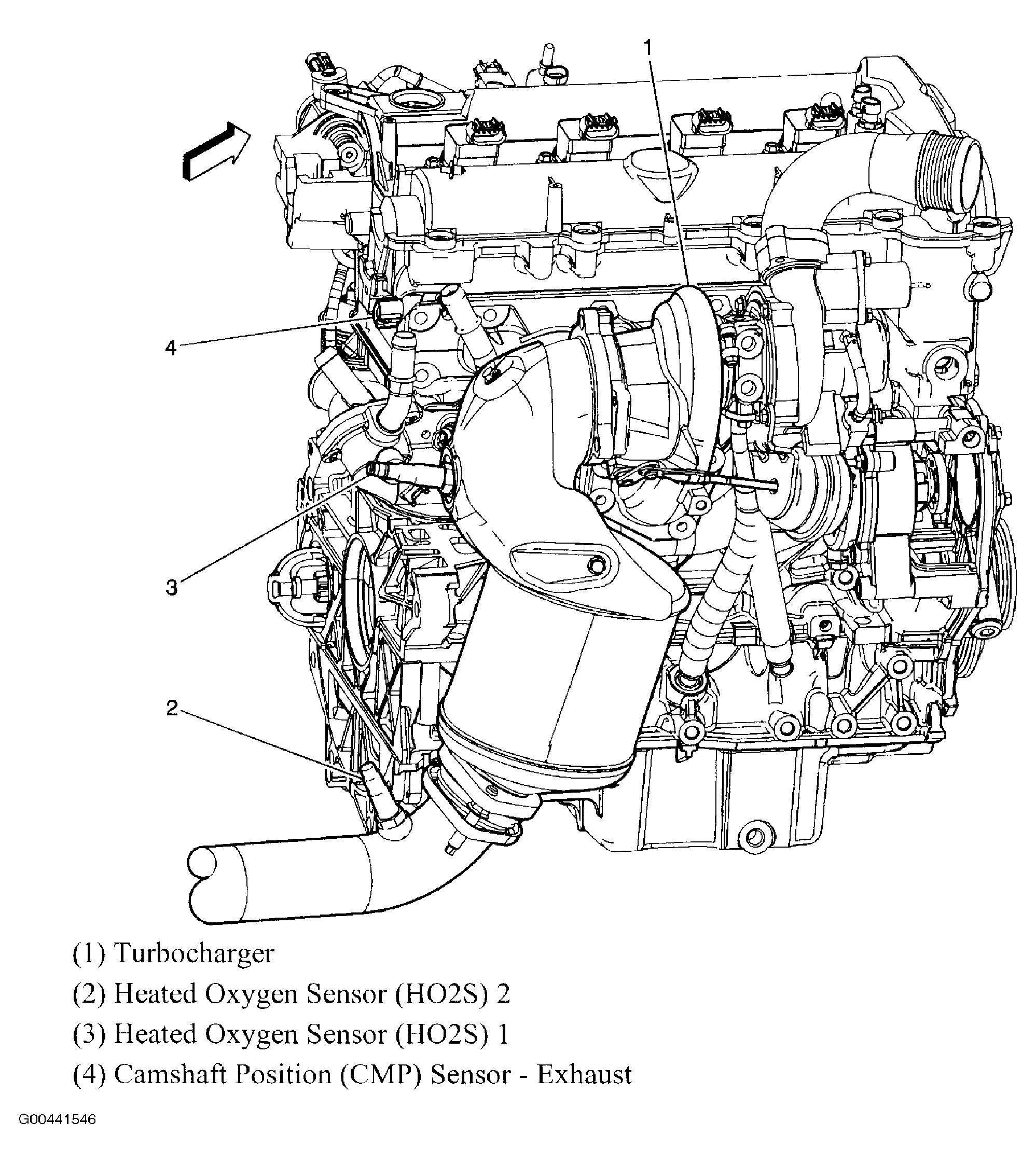

Fig 49: Right Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Side Of Engine (2.0L)
Courtesy of GENERAL MOTORS CORP.

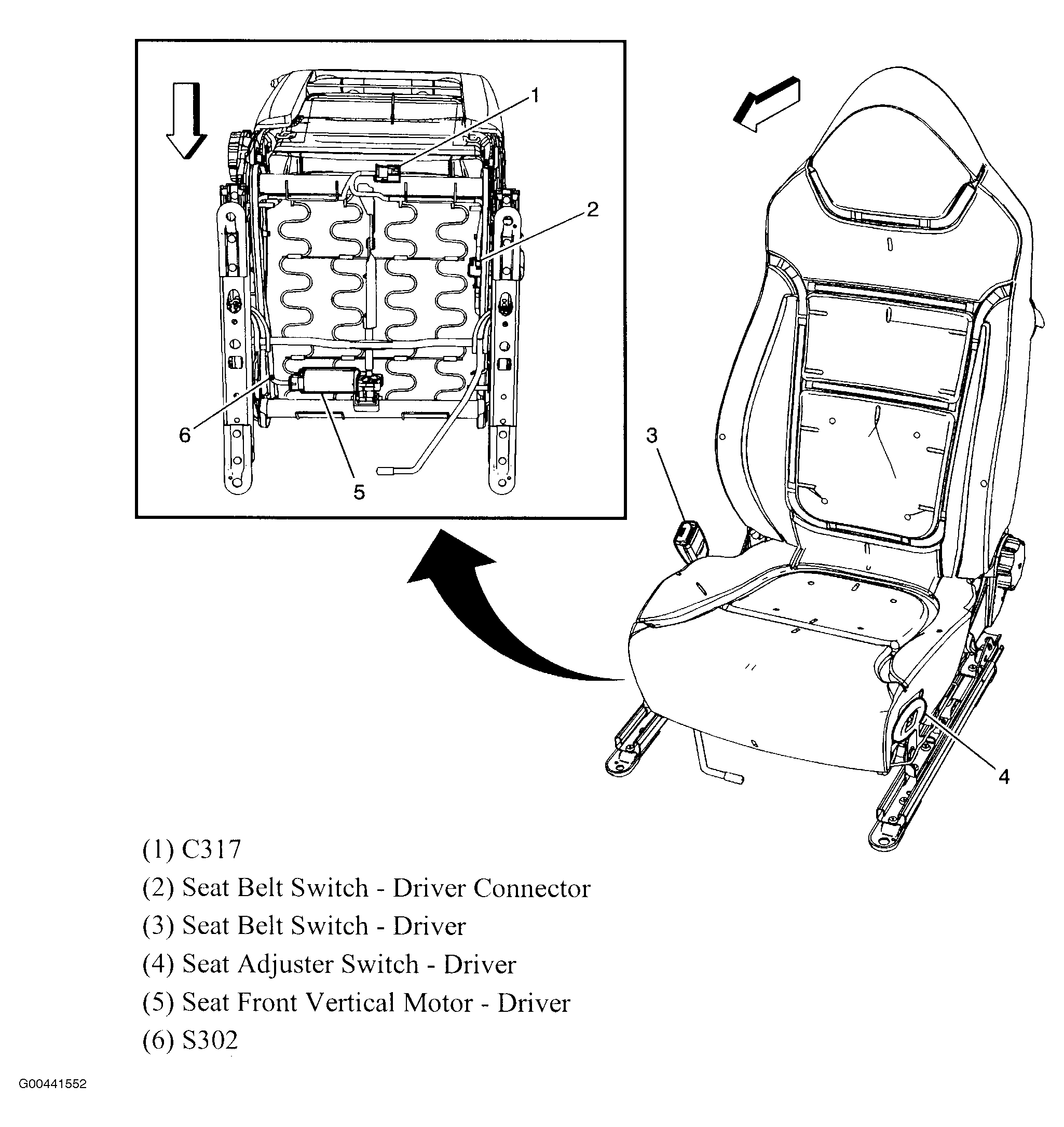

Fig 51: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

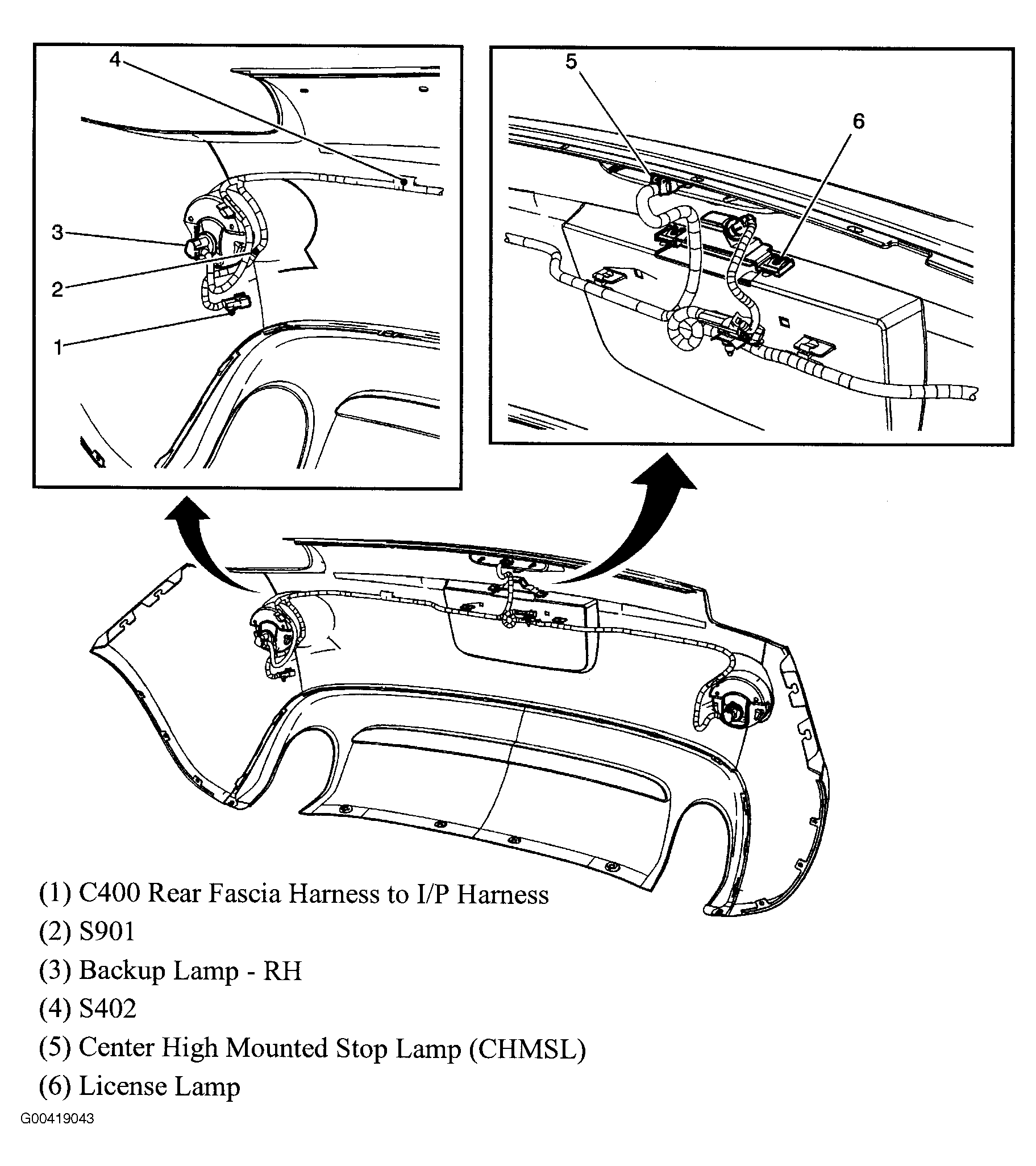

Fig 52: Rear Chassis
Courtesy of GENERAL MOTORS CORP.

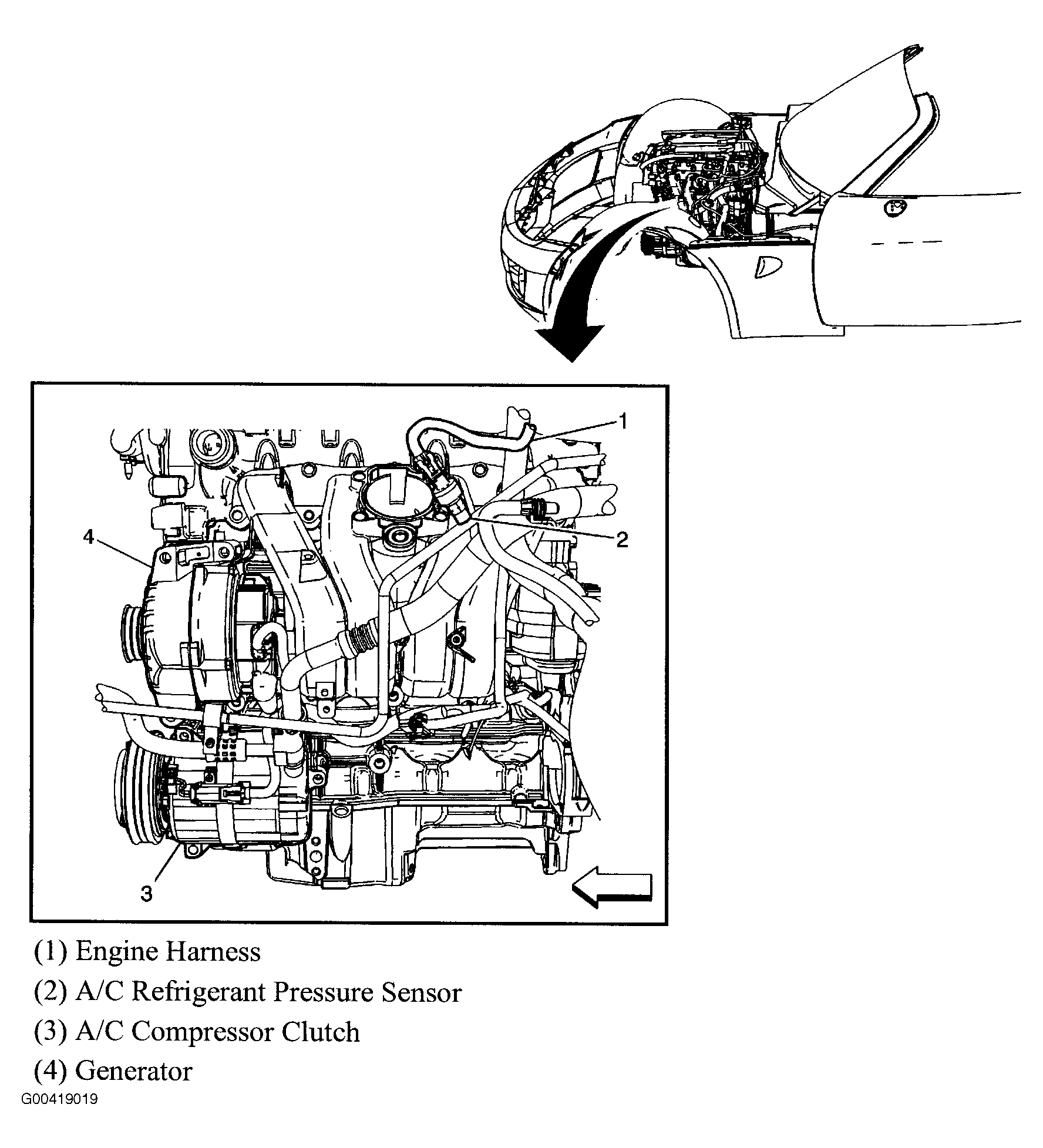

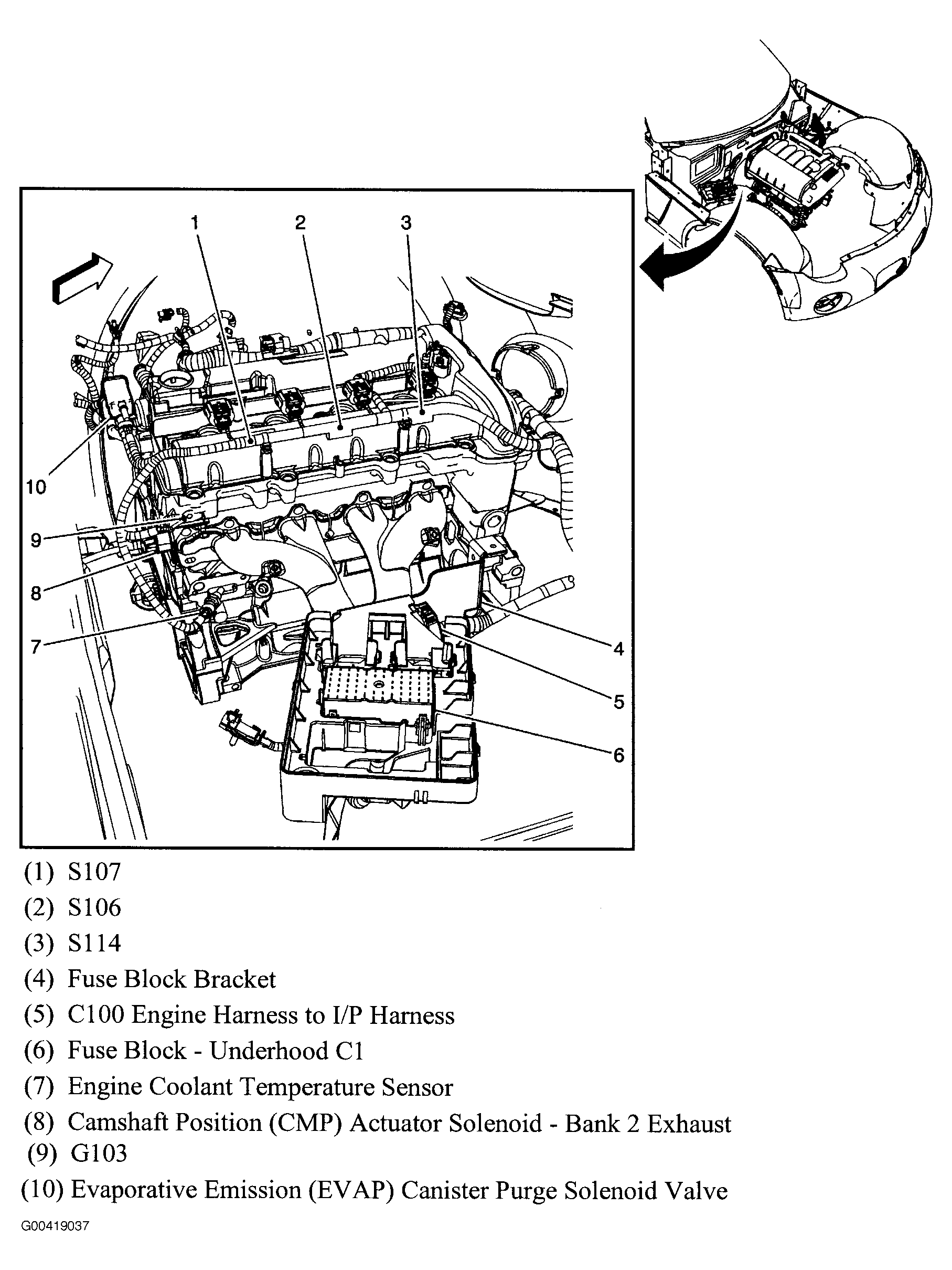

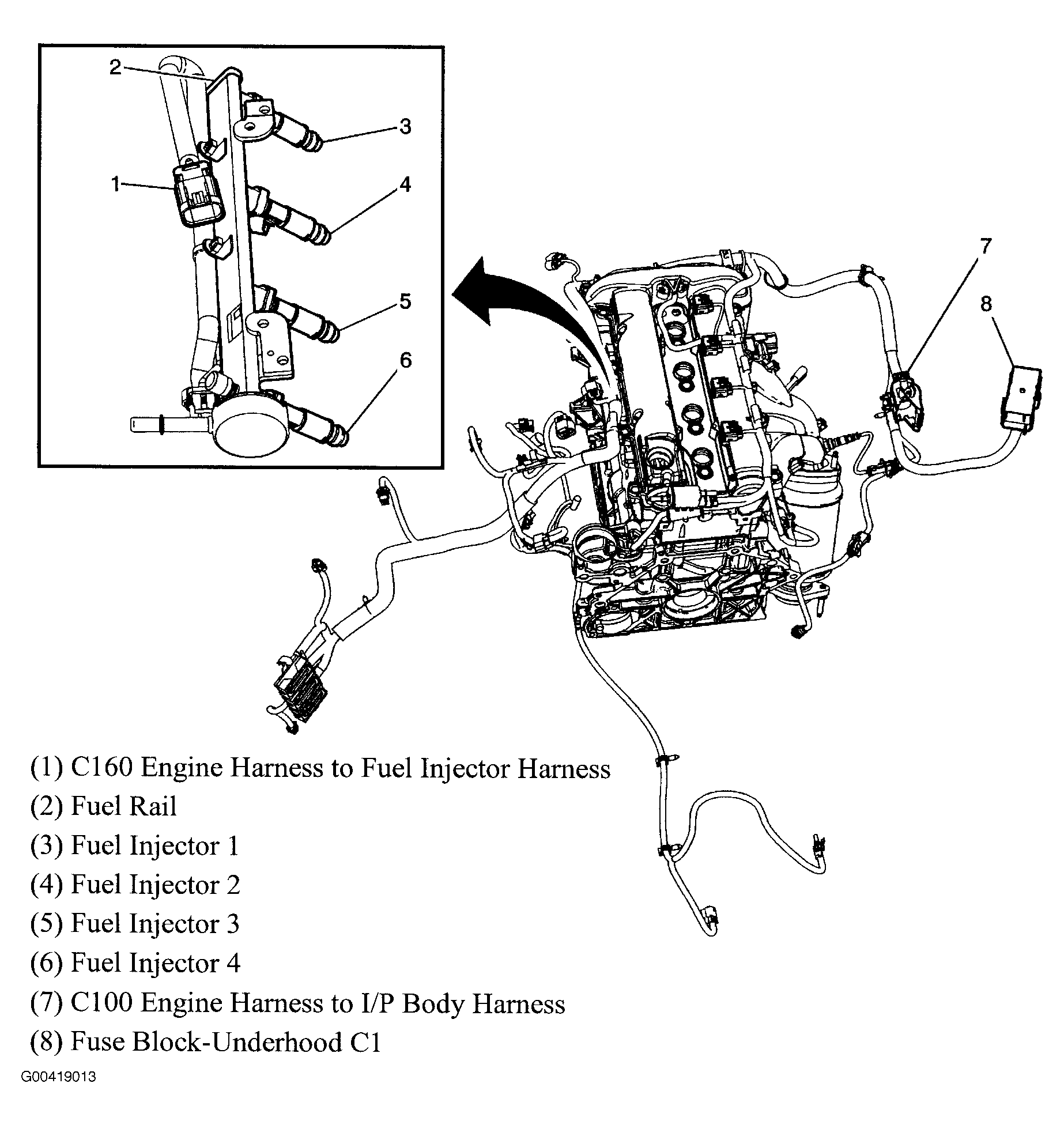

Fig 53: Engine (2.4L)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

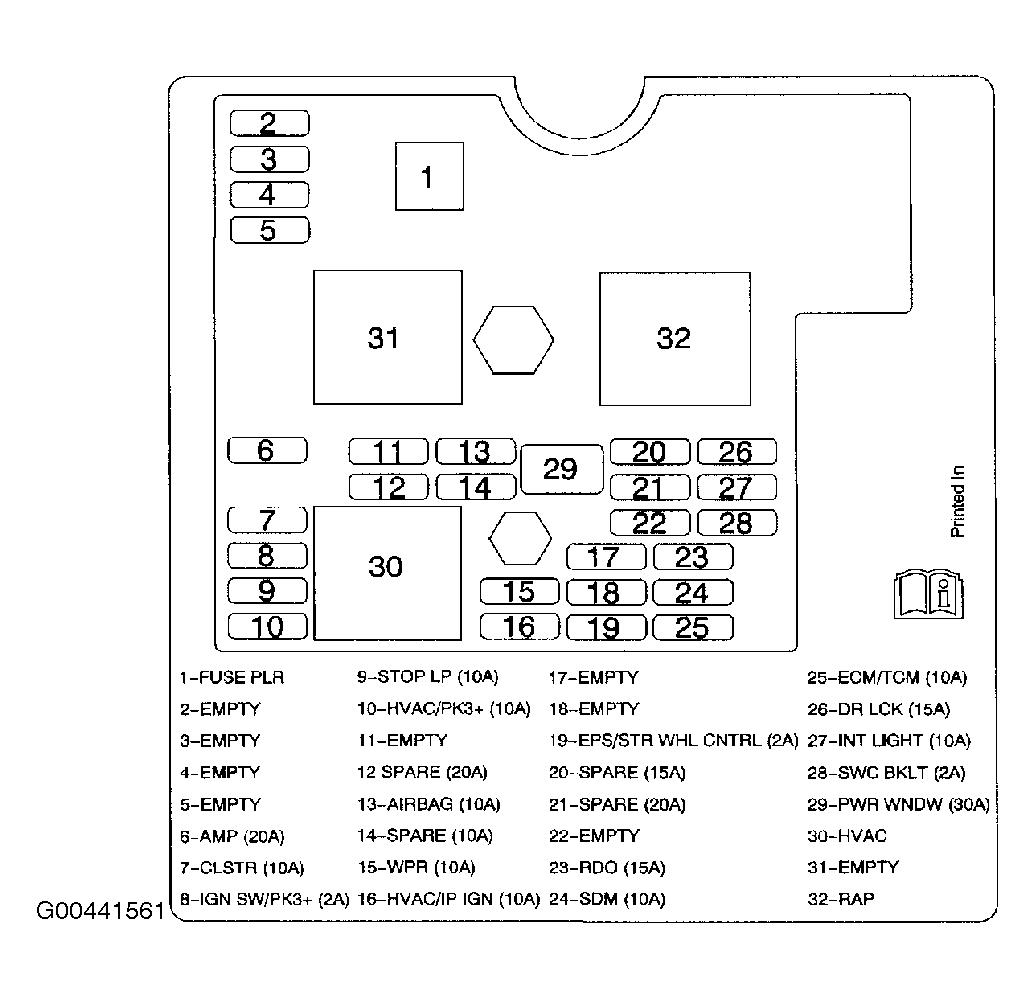

Fig 56: Body Control Module
Courtesy of GENERAL MOTORS CORP.
