Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

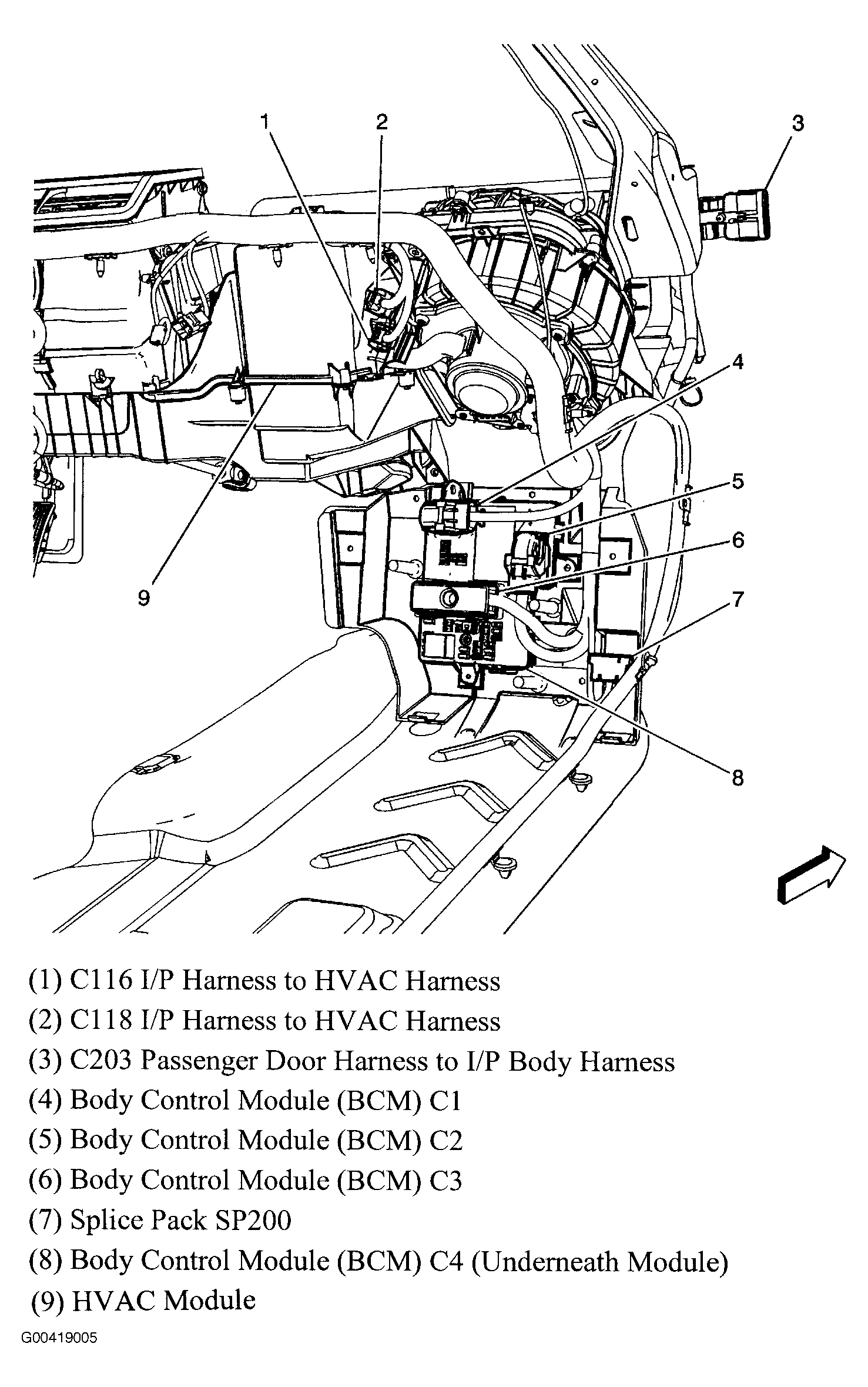

| Body Control Module | Right of HVAC module. See Figure. |

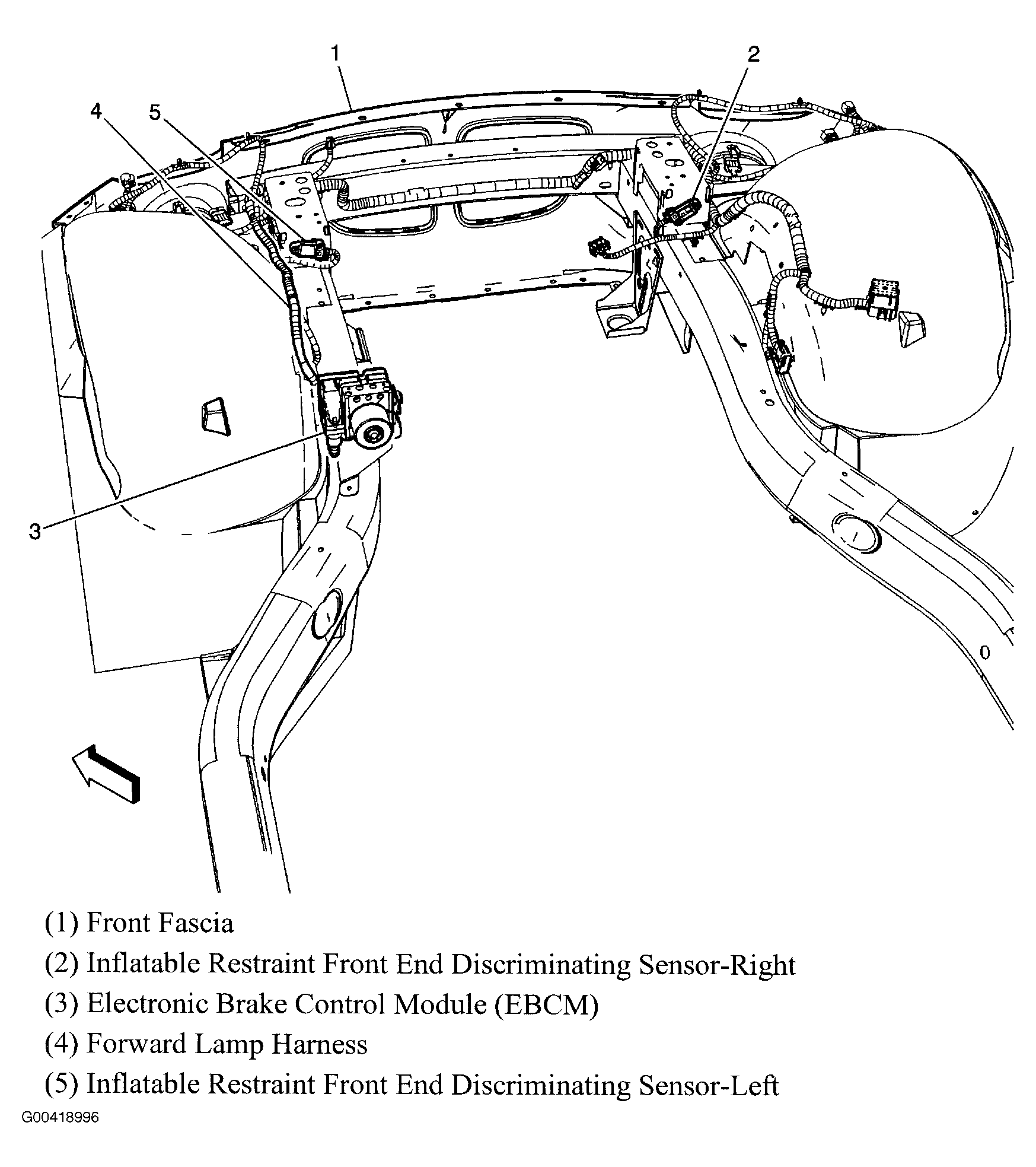

| Electronic Brake Control Module (EBCM) | At left side of engine compartment, mounted on inner frame rail. See Figure. |

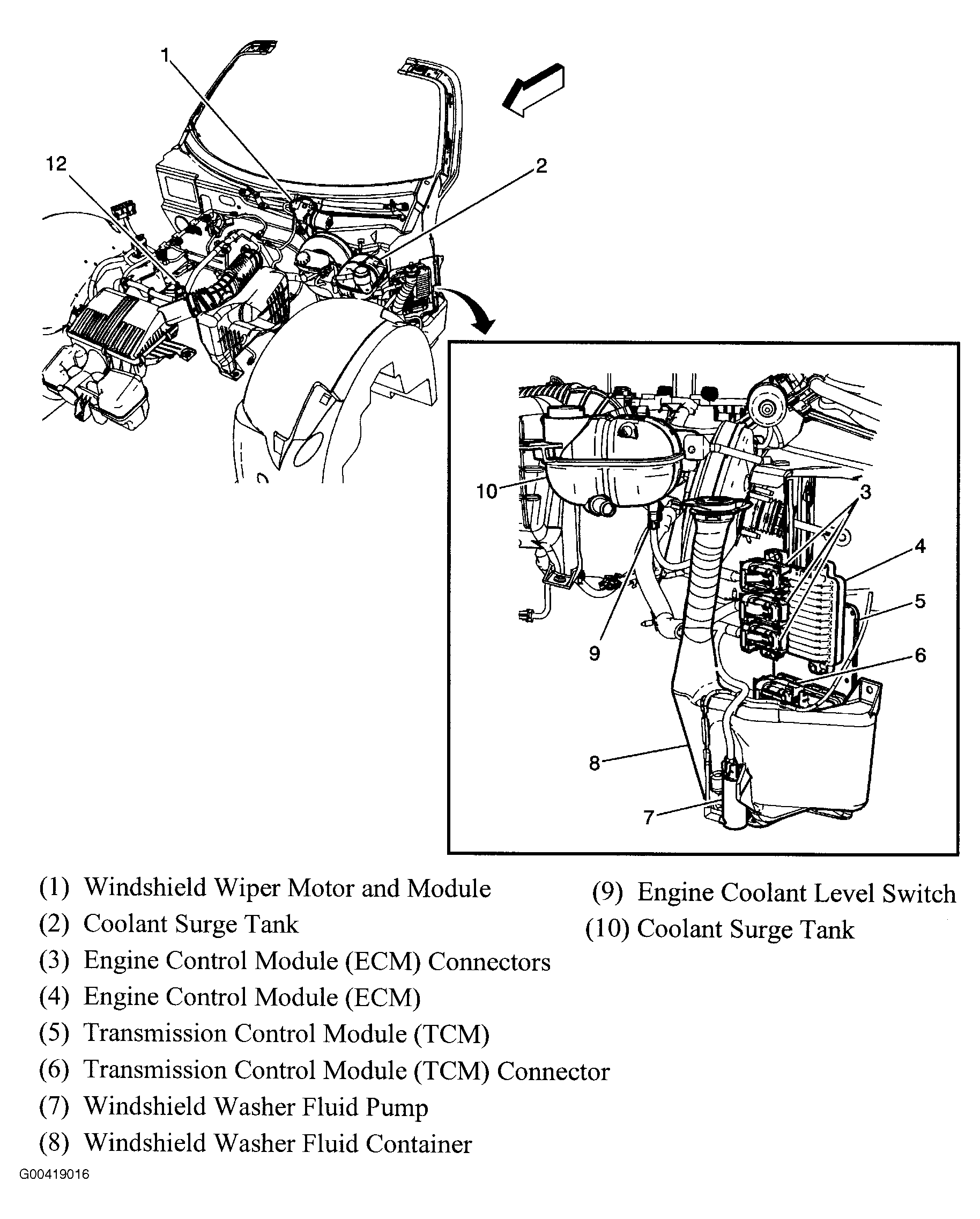

| Electronic Control Module (ECM) | Left side of engine compartment. See Figure. |

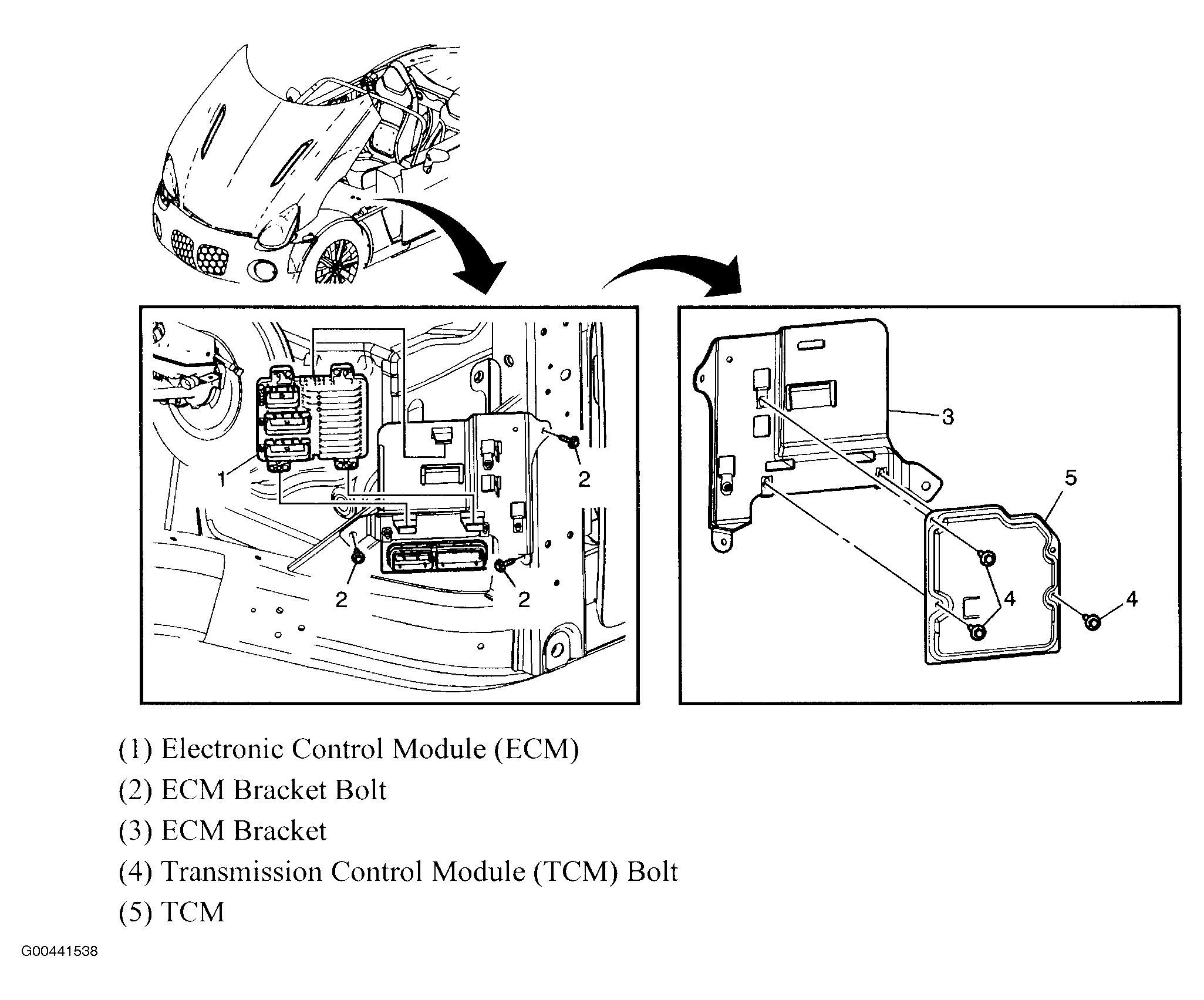

| Engine Control Module (ECM) | At left rear corner of engine compartment, near brake master cylinder. See Figure. |

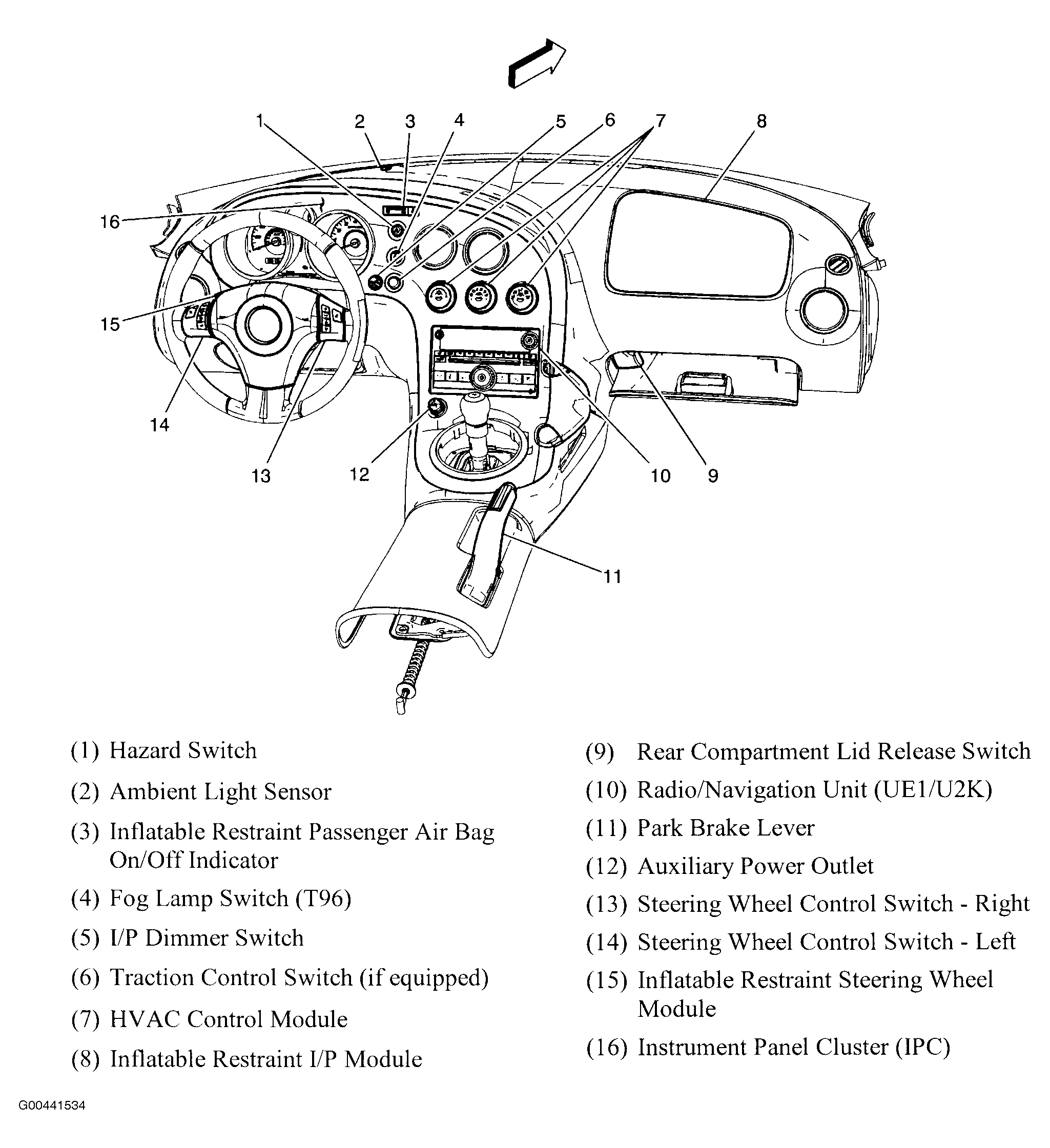

| HVAC Control Module | At center of dash, above radio. See Figure. |
| Inflatable Restraint I/P Module | Under passenger side of dash. See Figure. |

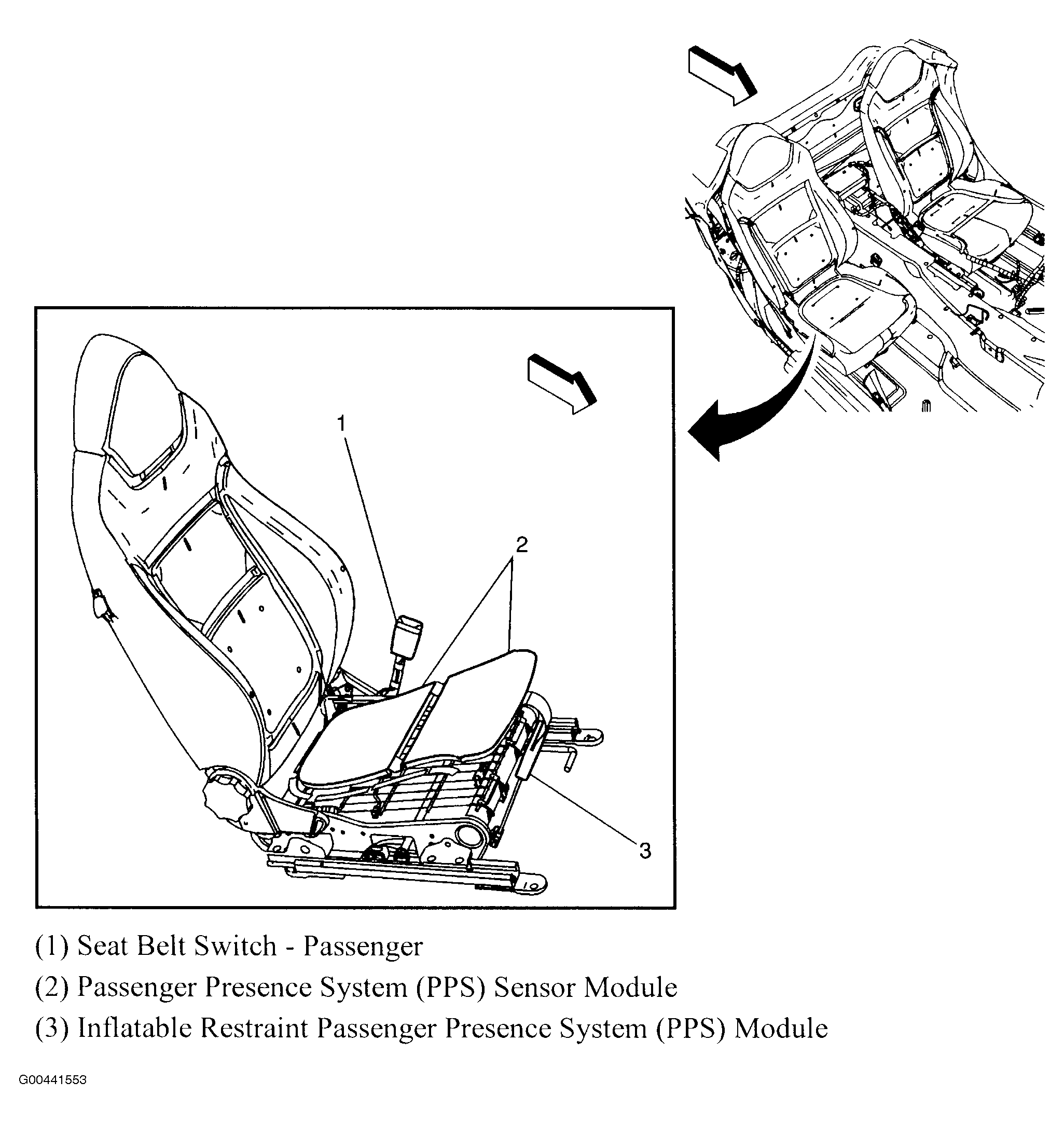

| Inflatable Restraint Passenger Presence System (PPS) Module | Under passenger seat. See Figure. |

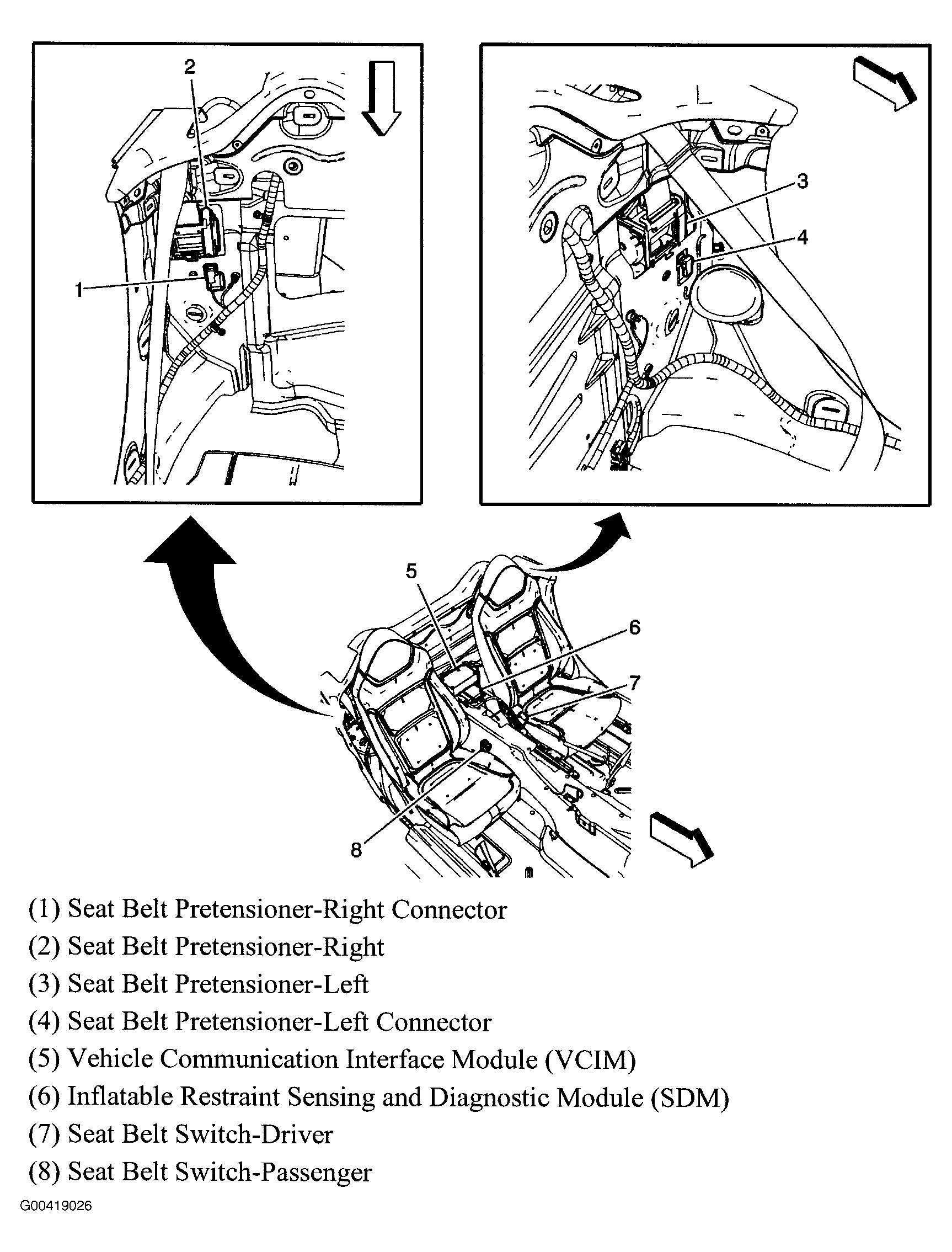

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under passenger seat. See Figure. |
| Inflatable Restraint Steering Wheel Module | In steering wheel. See Figure. |

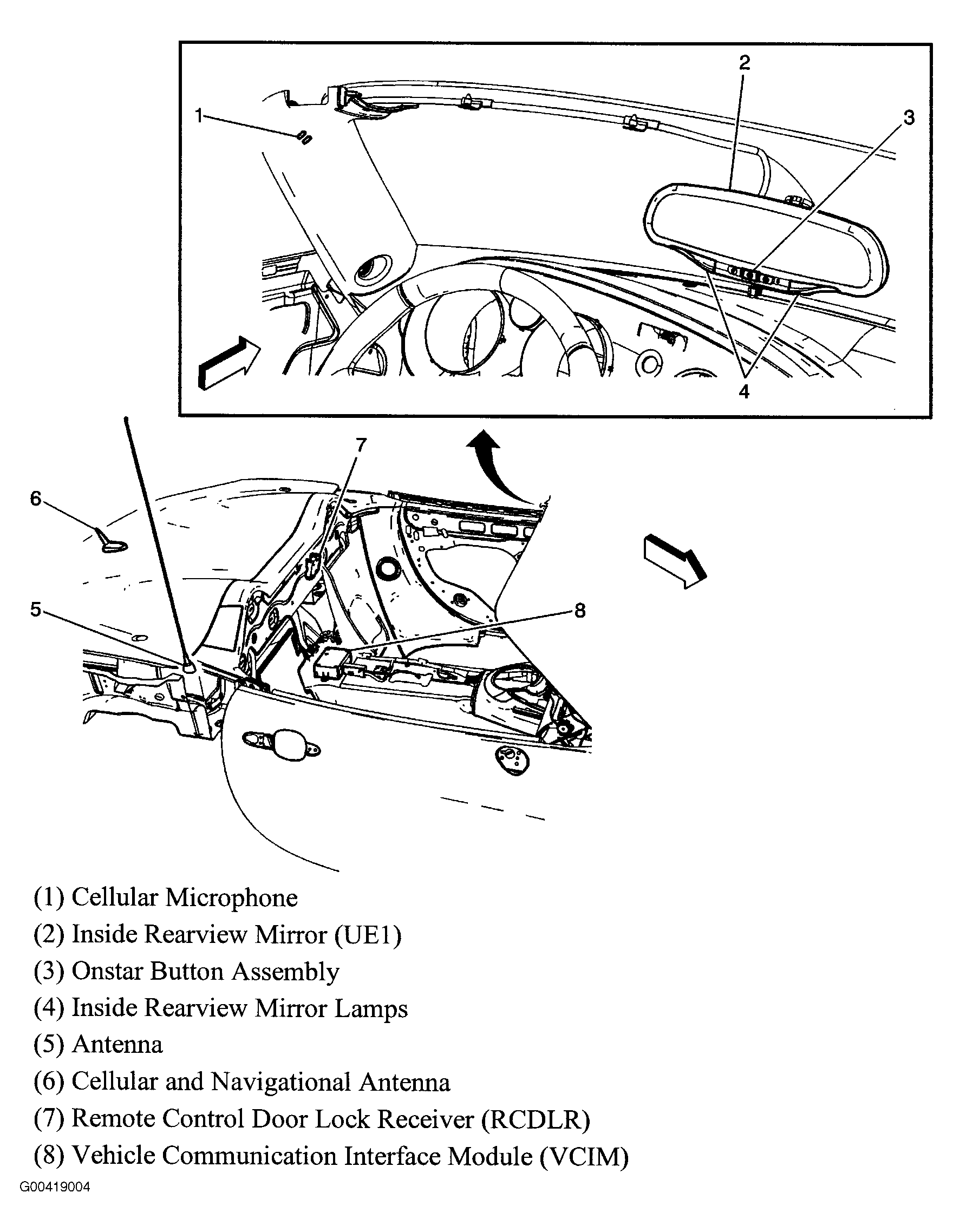

| Remote Control Door Lock Receiver (RCDLR) | Behind driver seat, to right center of rear support. See Figure. |

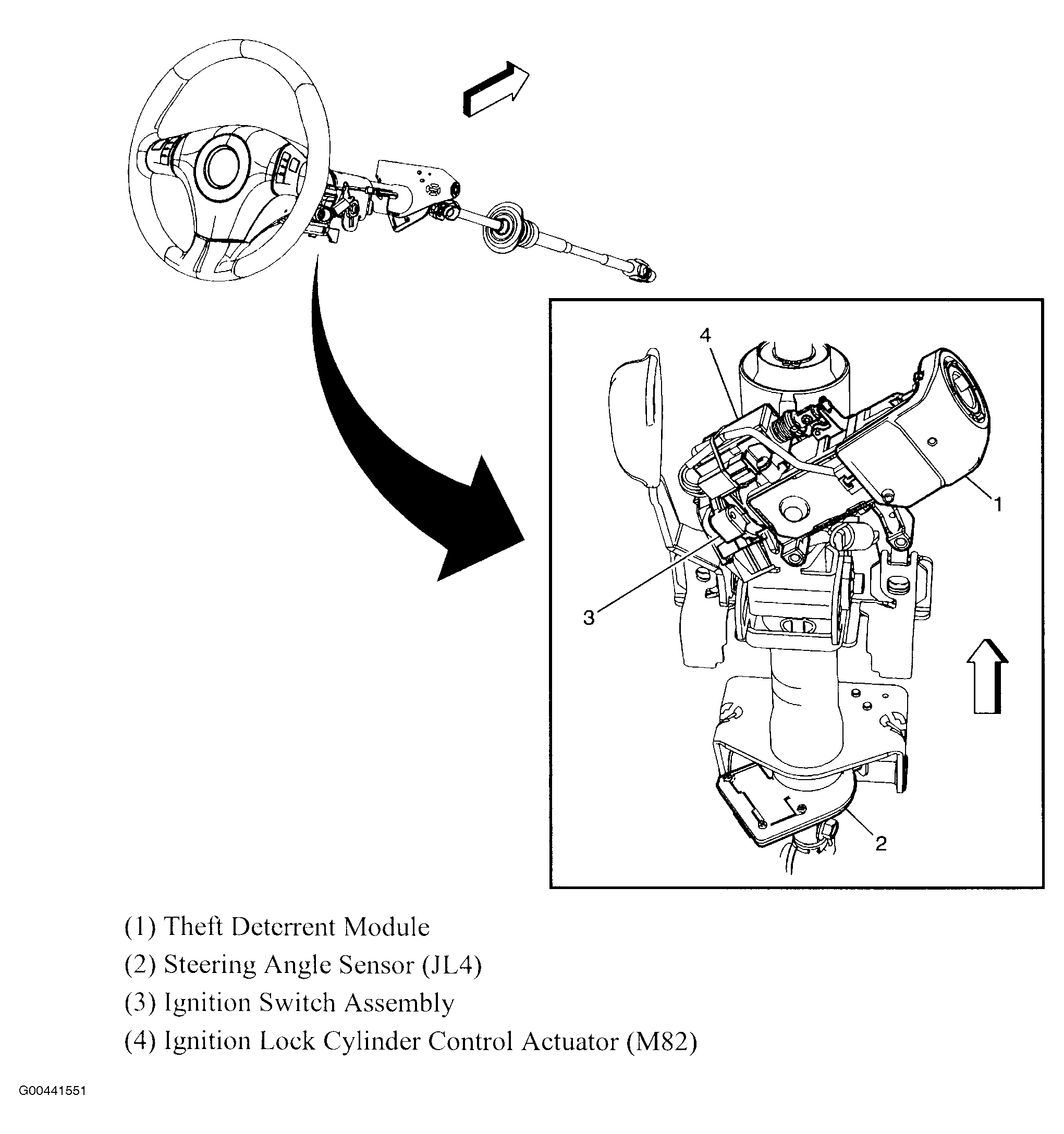

| Theft Deterrent Module | Top right side of steering column. See Figure. |
| Transmission Control Module (TCM) | Near brake master cylinder. See Figure. |
| Vehicle Communication Interface Module (VCIM) | At rear of passenger compartment, near back of center console. See Figure. |
