Front Toe Adjustment

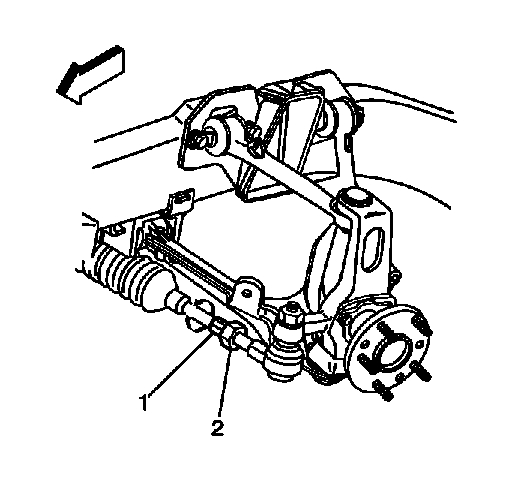

Fig 1: Identifying Inner Tie Rod Assembly & Jam Nut

Courtesy of GENERAL MOTORS CORP.

Loosen the jam nut on the tie rod (2).
Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .

NOTE: Refer to Fastener Notice .

Tighten the jam nut on the tie rod.
Tighten: Tighten the front tie rod jam nut to 68 N.m (50 lb ft).
Check the toe setting after tightening.
Adjust the toe setting if necessary.
