Brake Pressure Modulator Valve Bracket Replacement

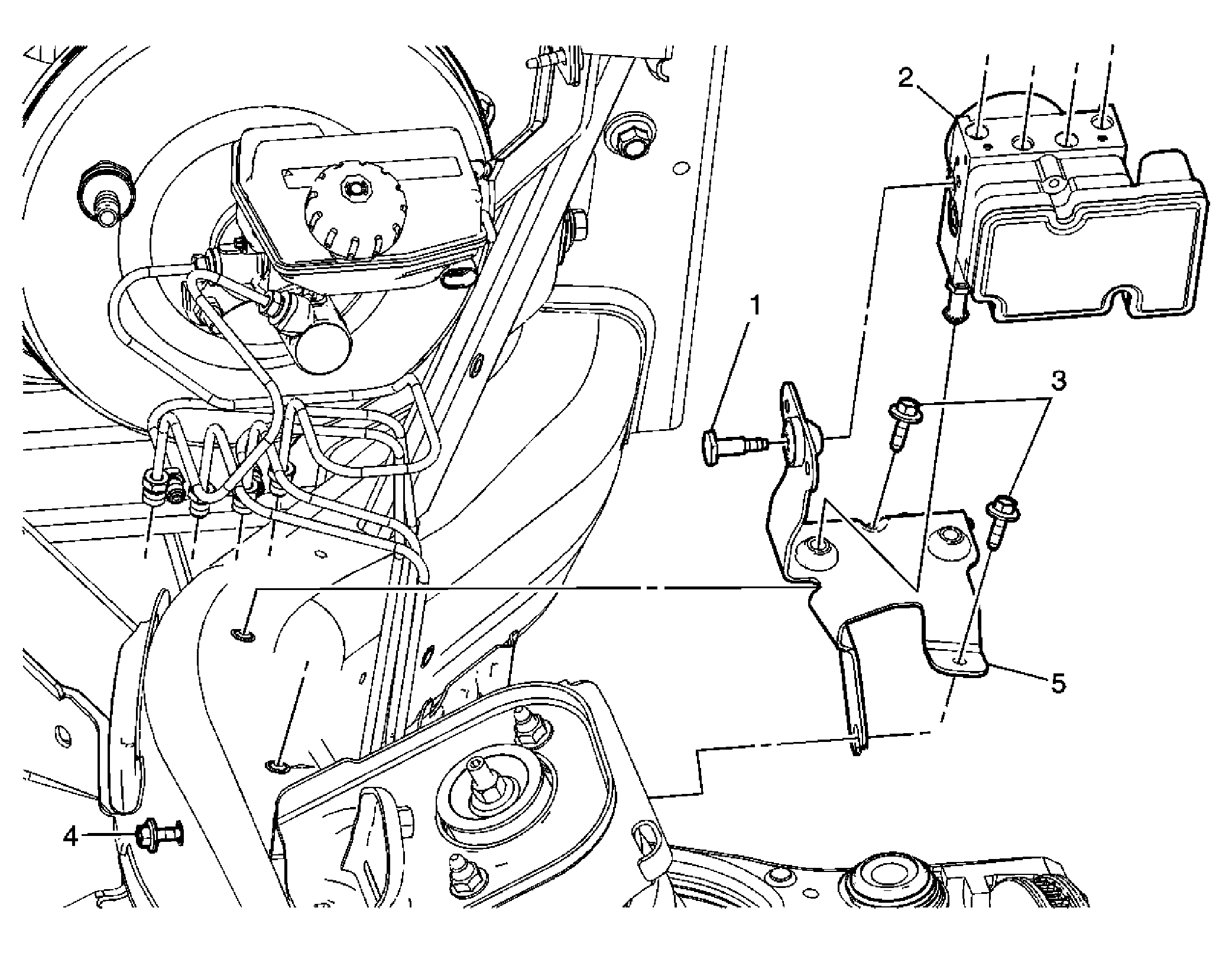

Fig 1: Brake Pressure Modulator Valve Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Turn the ignition switch to the OFF position. Reposition the air cleaner outlet resonator forward slightly. Lift to release the resonator from the studs on the rail. Refer to Air Cleaner Outlet Resonator Replacement .
1	Brake Pressure Modulator Valve (BPMV) Mounting Bracket Bolt NOTE: Refer to Fastener Notice . Tighten: 11 N.m (97 lb in)
2	BPMV Assembly Tip: Do not pry against the accumulator covers on the underside of the brake pressure modulator assembly to release the mounting pins from the bracket insulators. Do not remove the mounting pins unless it is necessary to aid in releasing the modulator assembly from the bracket. Position and support the modulator assembly to aid in bracket removal.
3	BPMV Mounting Bracket Bolt (Qty: 2) Tighten: 10 N.m (89 lb in)
4	BPMV Mounting Bracket Bolt Tighten: 10 N.m (89 lb in) Tip: Loosen but do not remove the bolt.
5	BPMV Mounting Bracket Tip: Slide the mounting bracket rearward to remove.
