Power Steering Cooler Replacement

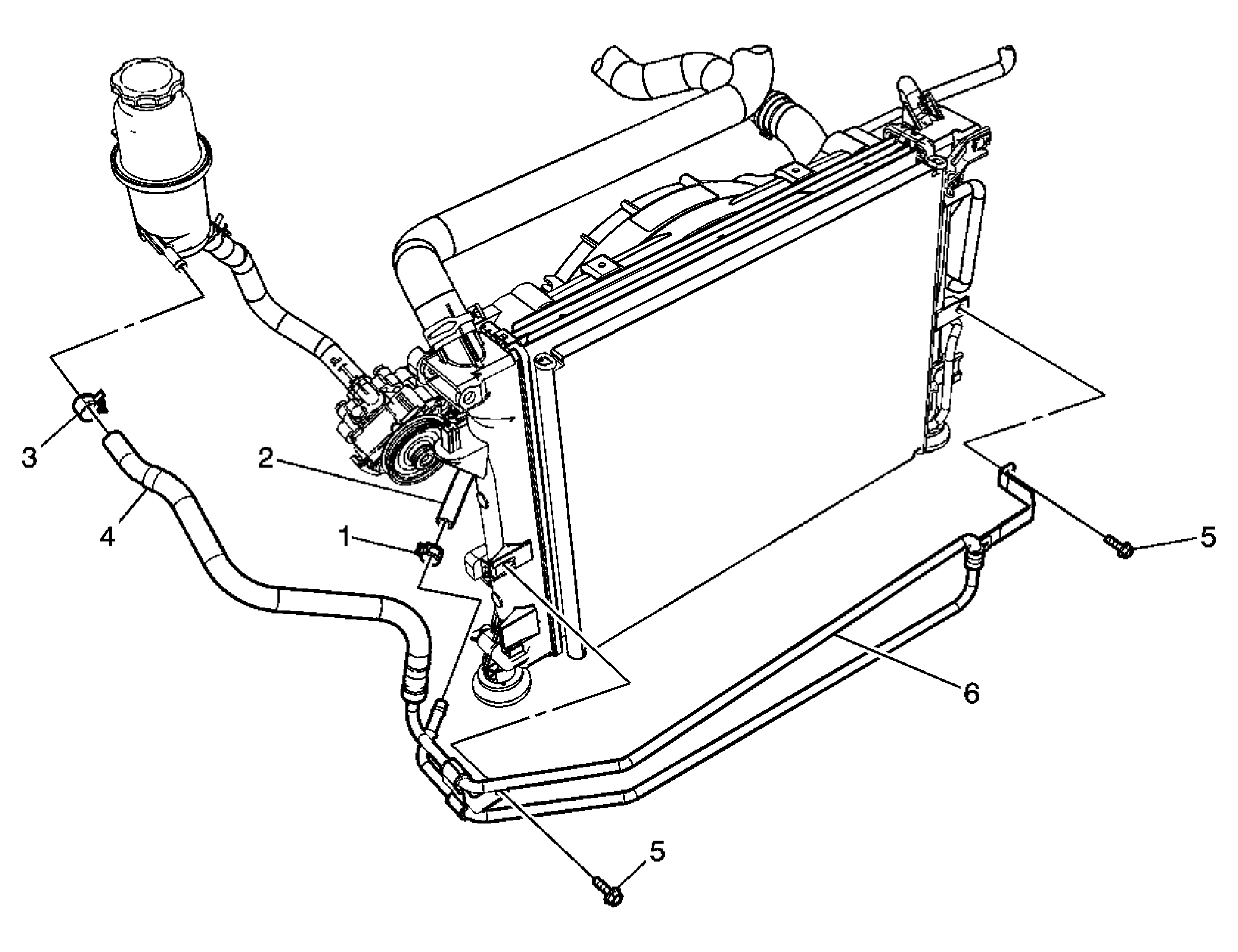

Fig 1: Power Steering Cooler

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement or Air Cleaner Assembly Replacement . Remove the radiator air baffle and deflector - side. Refer to Radiator Air Lower Baffle and Deflector Replacement . Remove the radiator air baffle and deflector - upper. Refer to Radiator Air Upper Baffle and Deflector Replacement .
1	Power Steering Gear Hose Clamp Tip: Position the clamp aside.
2	Power Steering Gear Hose Tip: Disconnect the power steering gear hose from the cooler.
3	Power Steering Cooler to Reservoir Hose Clamp Tip: Position the clamp aside.
4	Power Steering Cooler to Reservoir Hose Tip: Disconnect the hose from the reservoir.
5	Power Steering Cooler Mounting Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
6	Power Steering Cooler Tip: Remove the cooler from the bottom of the vehicle. Refer to Lifting and Jacking the Vehicle .
