Power Steering Pulley Replacement

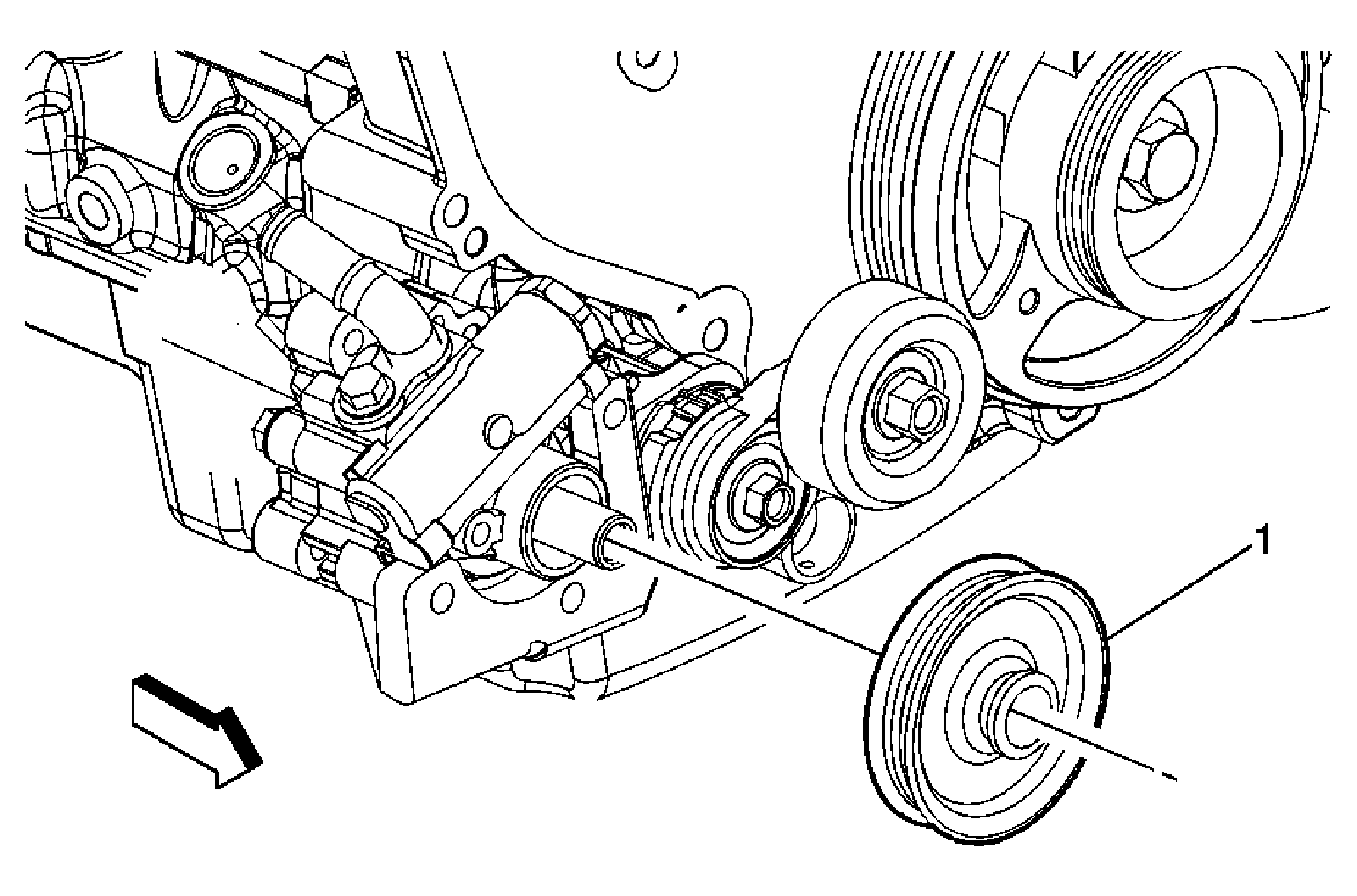

Fig 1: Power Steering Pulley
GM1585294Courtesy of GENERAL MOTORS CORP.
Power Steering Pulley Replacement

Callout Component Name

Preliminary Procedure

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the power steering pump drive belt. Refer to Power Steering Pump Drive Belt Replacement .
1 Power Steering Pump Pulley
Tip:
  1. Using the J 25034-C  , remove the power steering pump pulley. See Special Tools .
  2. Using the J 25033-C  , install the power steering pump pulley. See Special Tools .
