Electronic Brake Control Module



Electronic Brake Control Module (EBCM)(LNF)

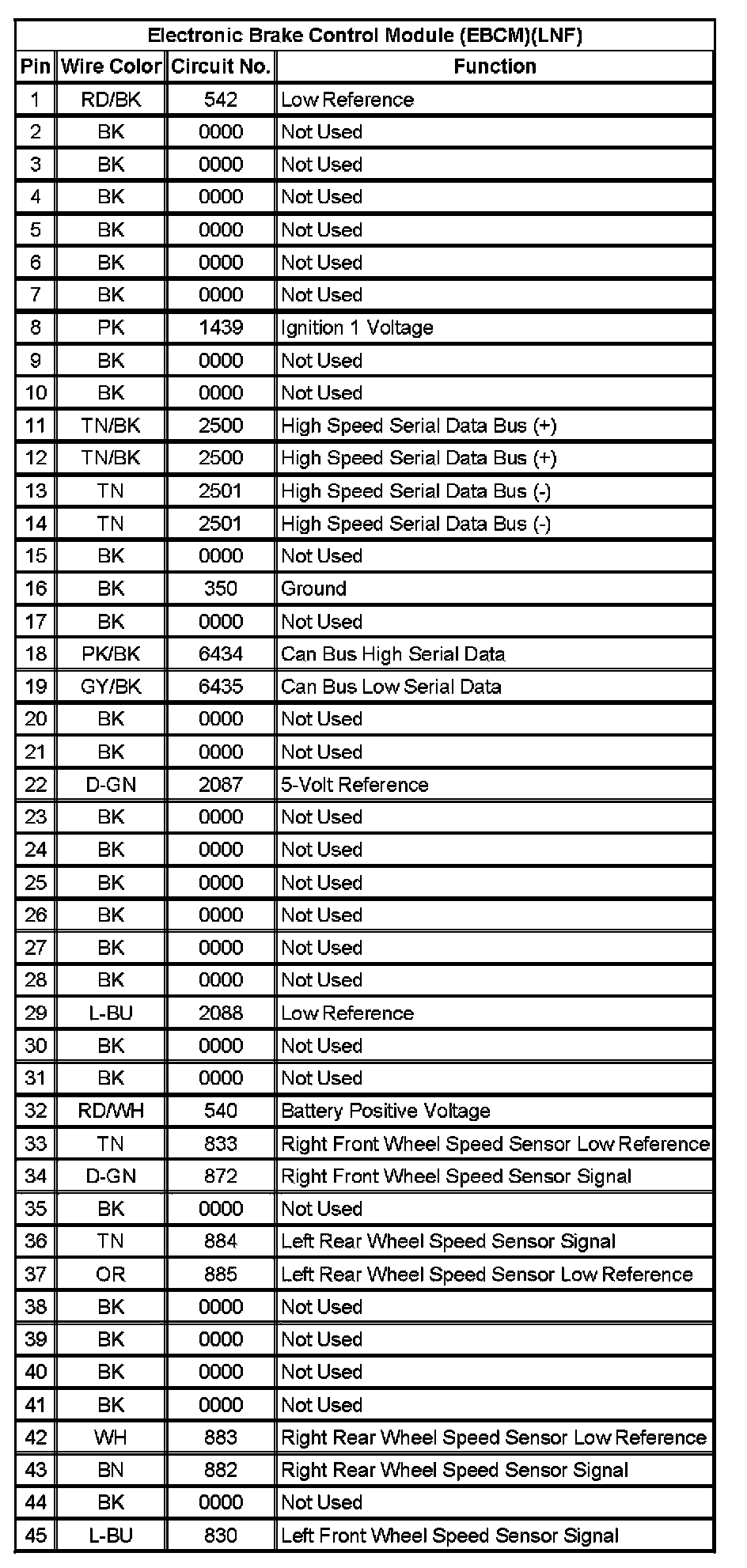

Electronic Brake Control Module (EBCM)(LNF) (Part 1):

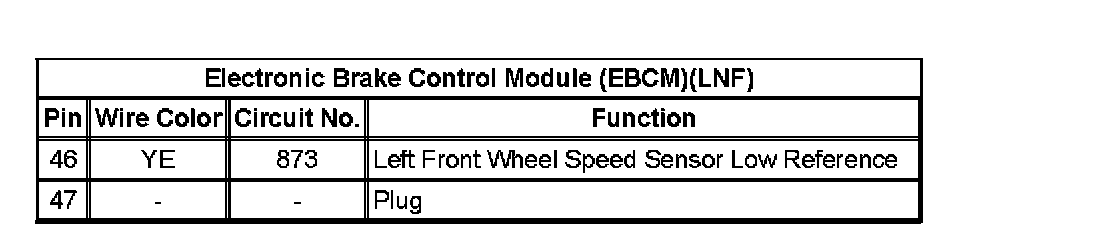

Electronic Brake Control Module (EBCM)(LNF) (Part 2):
