Body Control Systems

Body Control System Diagrams

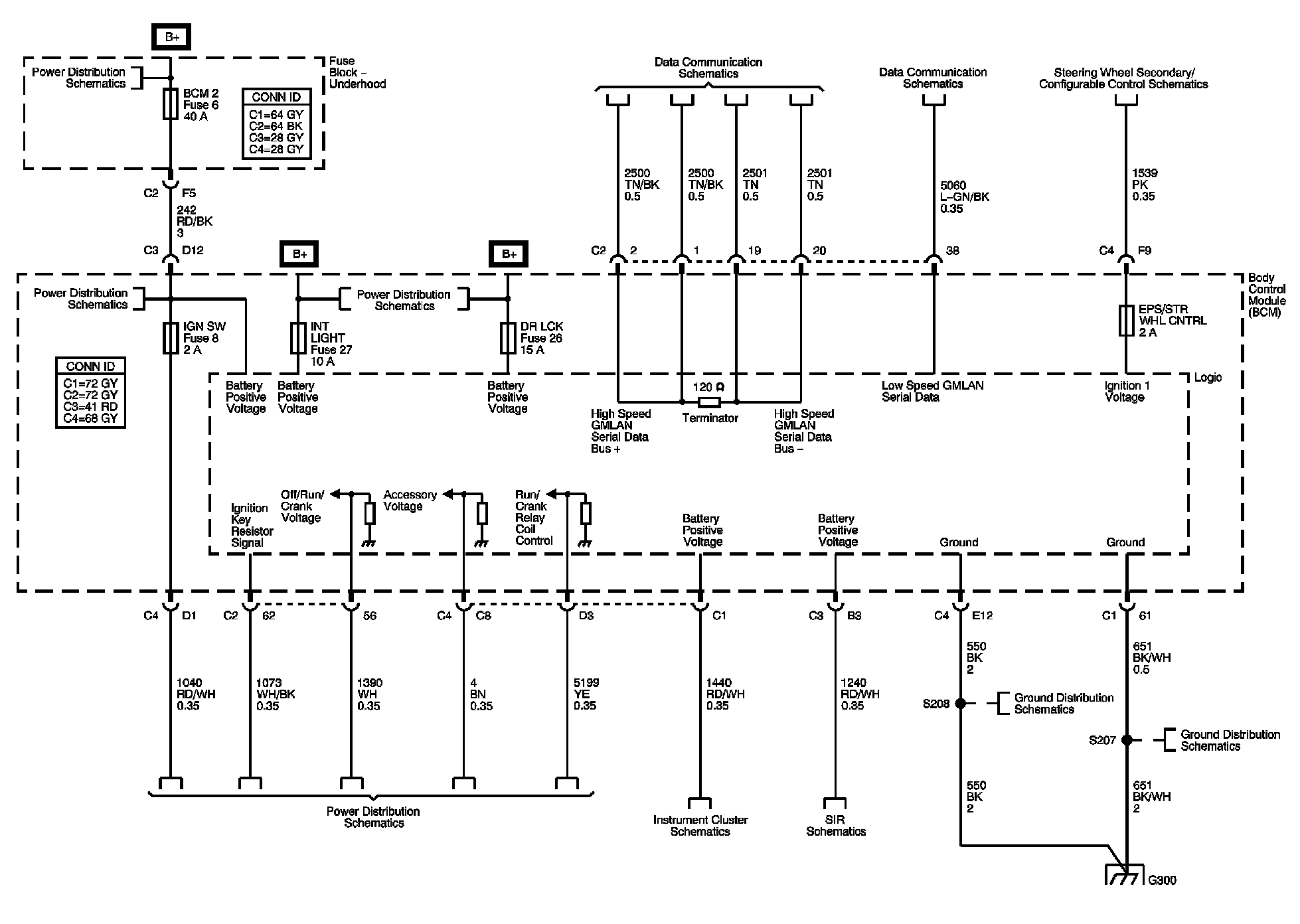

Data Link, Ground, and Power

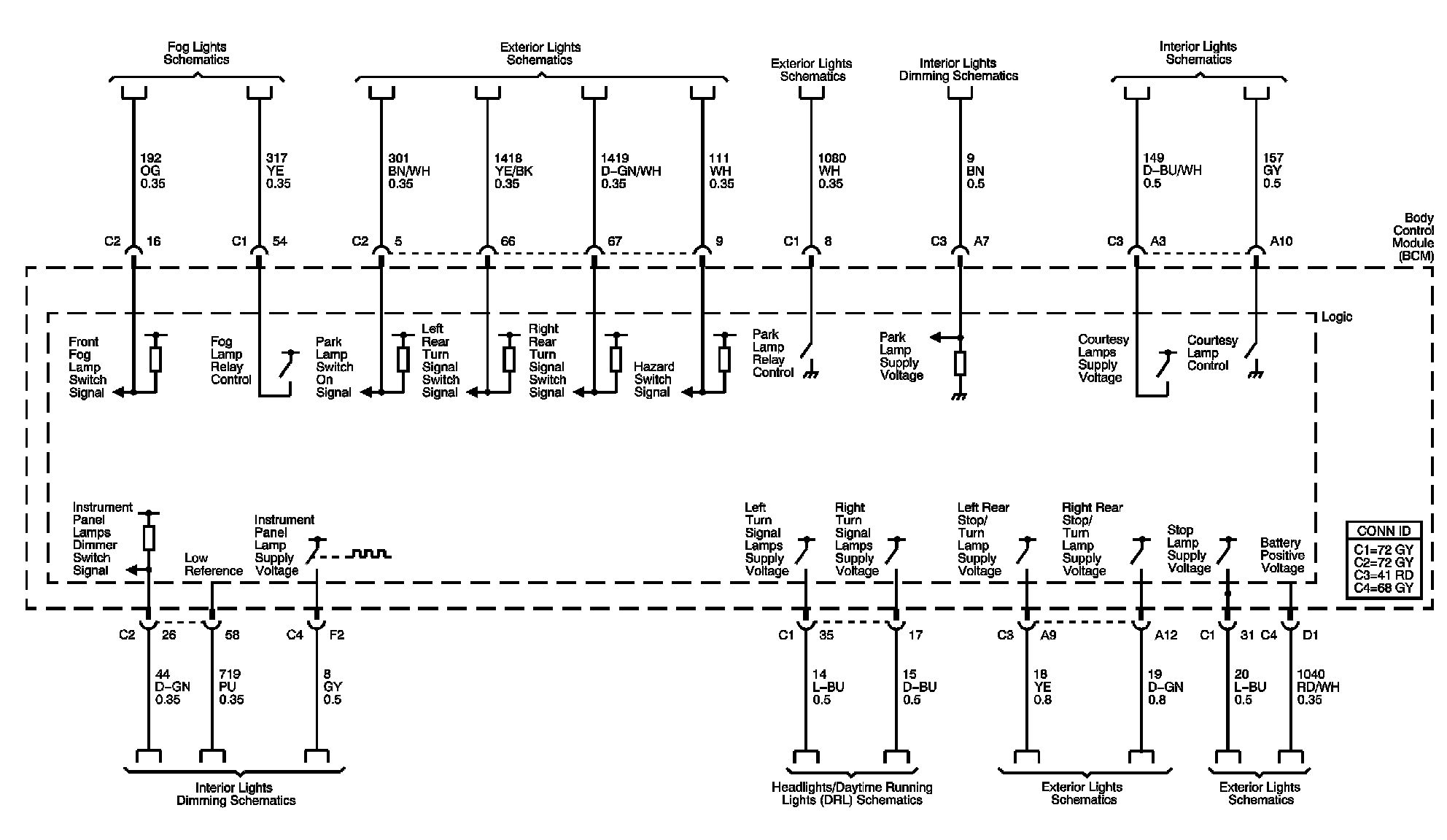

Lighting System References

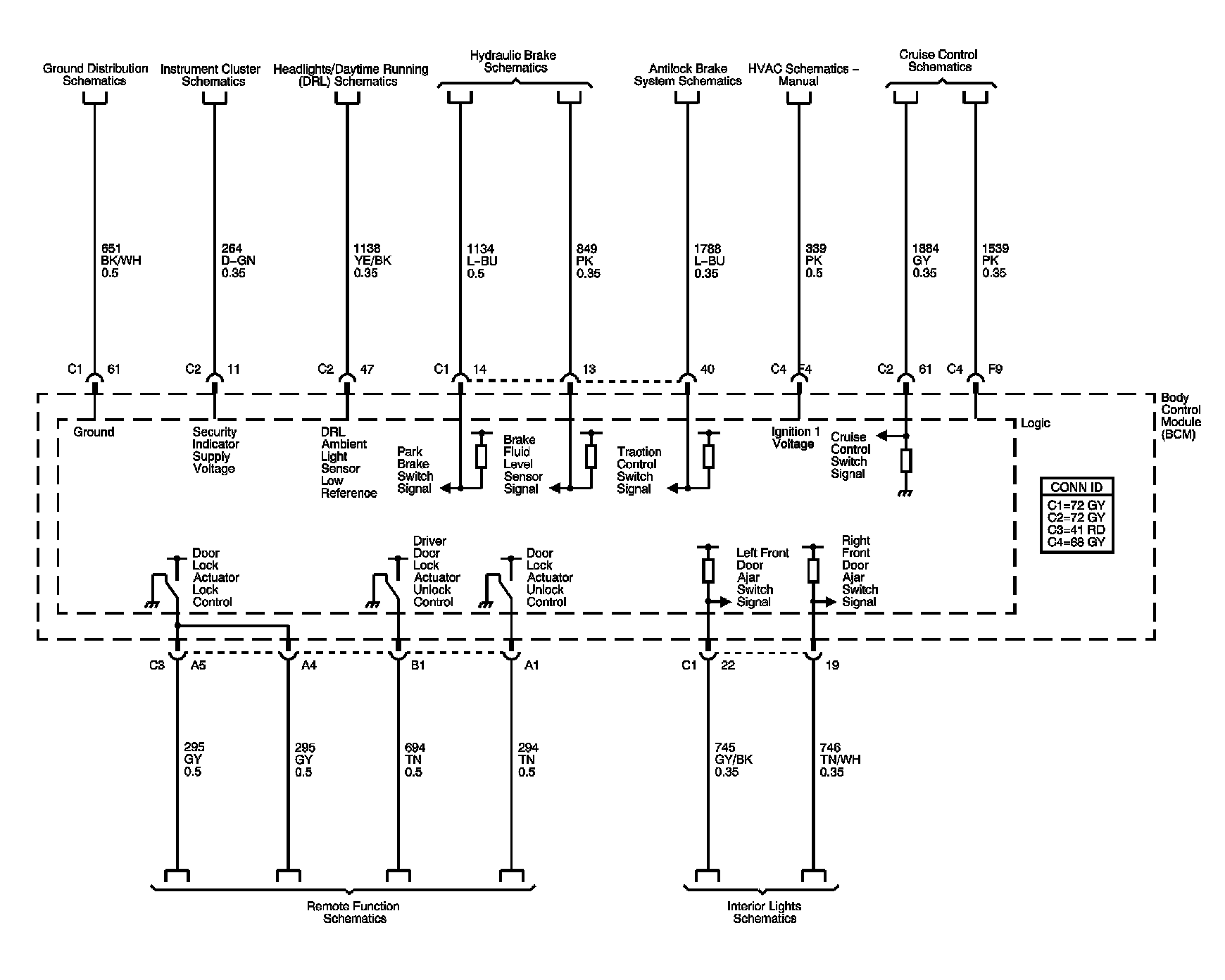

Brakes, Cooling System, Cruise, and Door Lock References

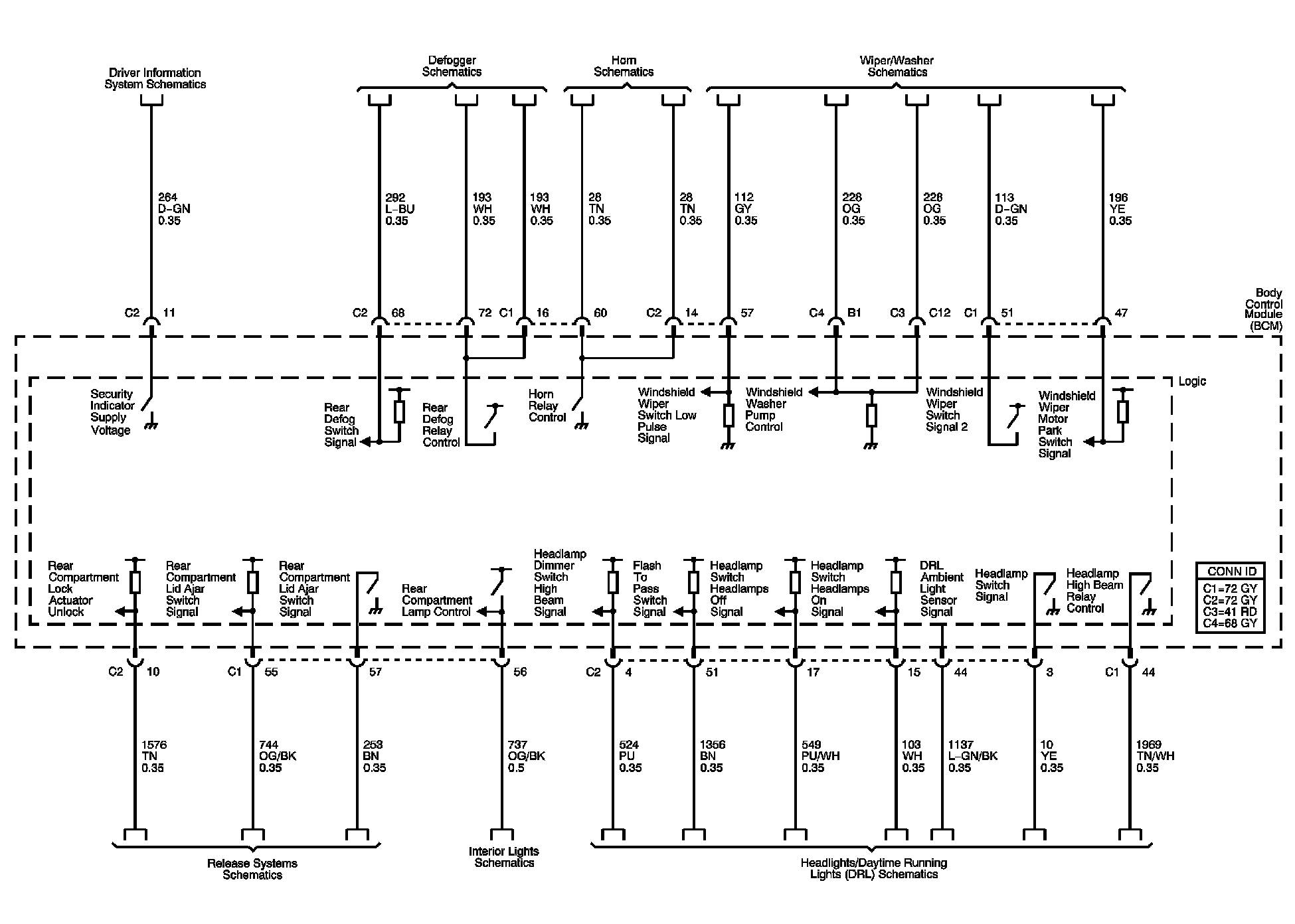

Defogger, Horn, Release Systems, and and Wiper/Washer References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
