System Specifications

Camshaft Timing Chain Tensioner 75 N.m (55 lb ft)

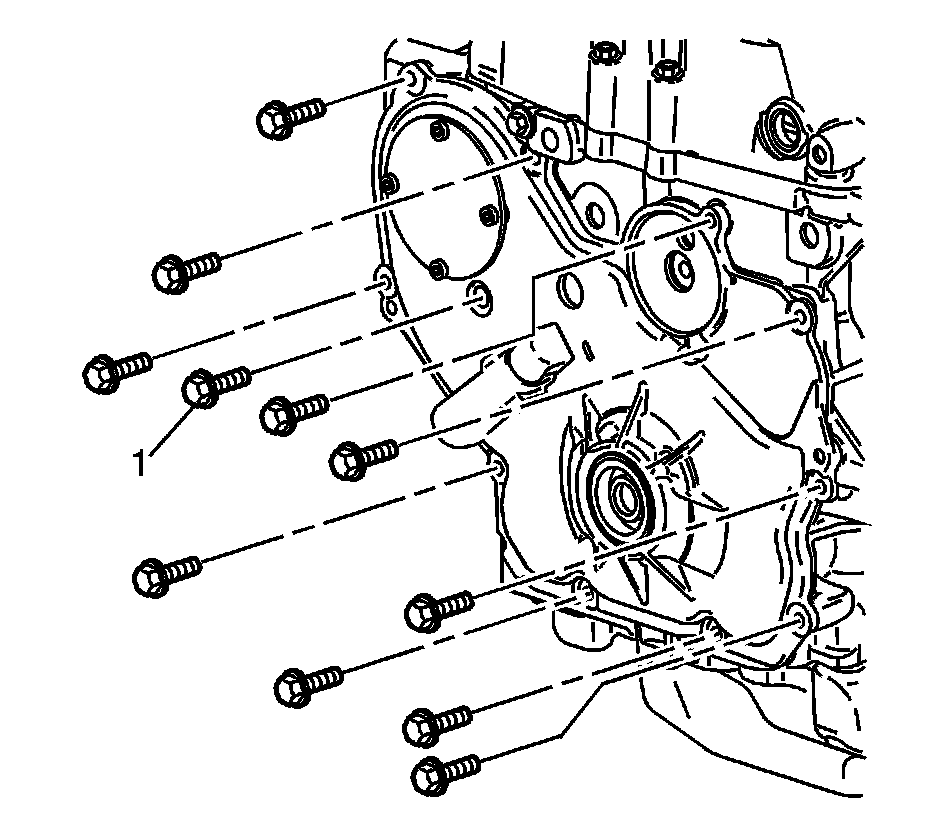

Front Cover to Block Bolt 25 N.m (18 lb ft)

Important: The center bolt (1) should be tightened last.

Crankshaft Balancer Bolt
First Pass 100 N.m (74 lb ft)
Final Pass 125 degrees
