Central Control Module



Entertainment/Communication Connector End Views

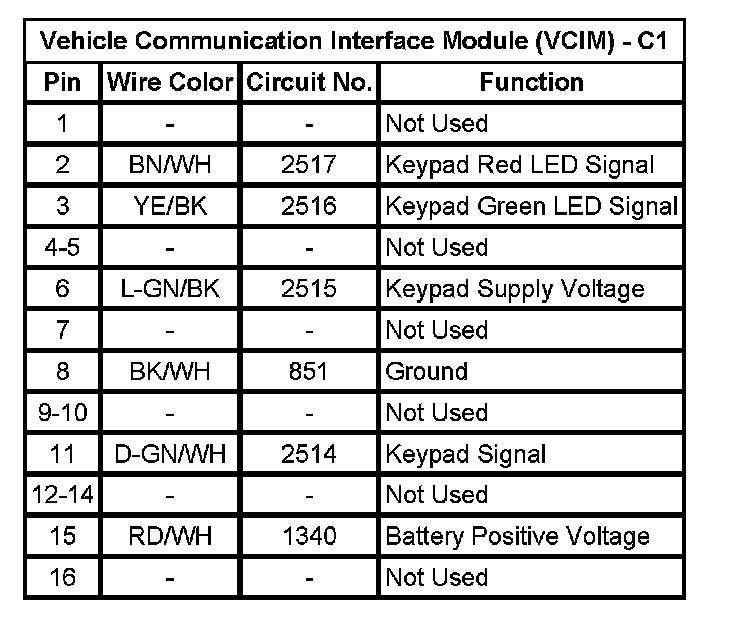

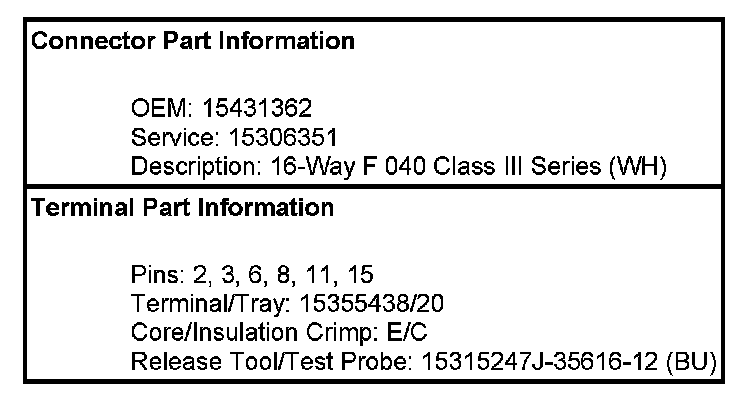

Vehicle Communication Interface Module (VCIM) - C1

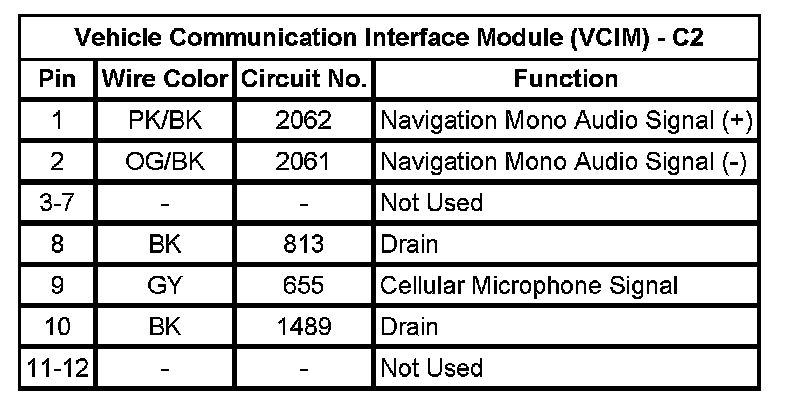

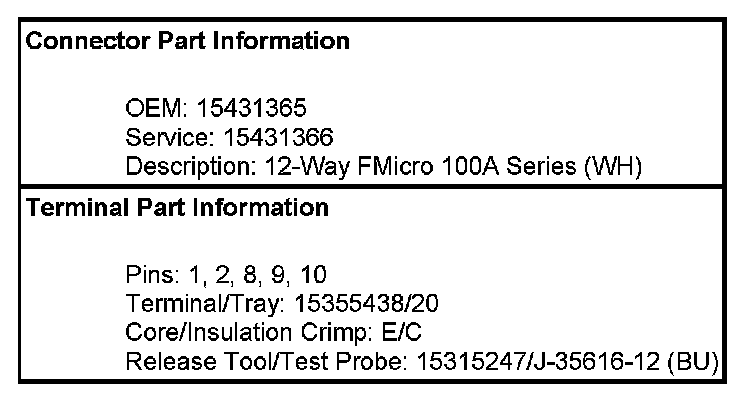

Vehicle Communication Interface Module (VCIM) - C2

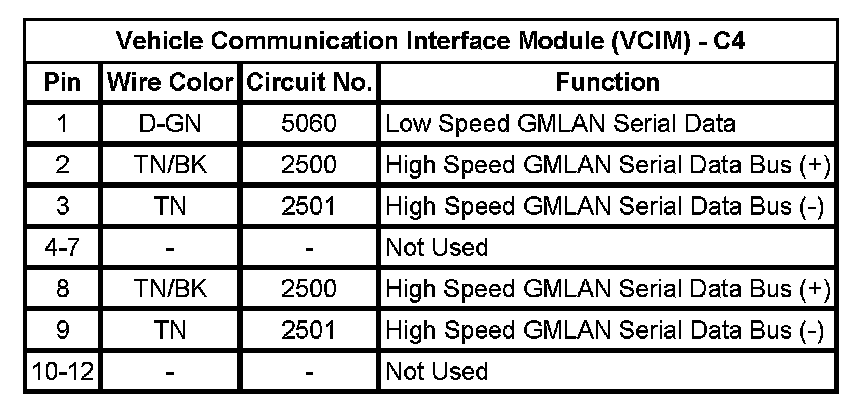

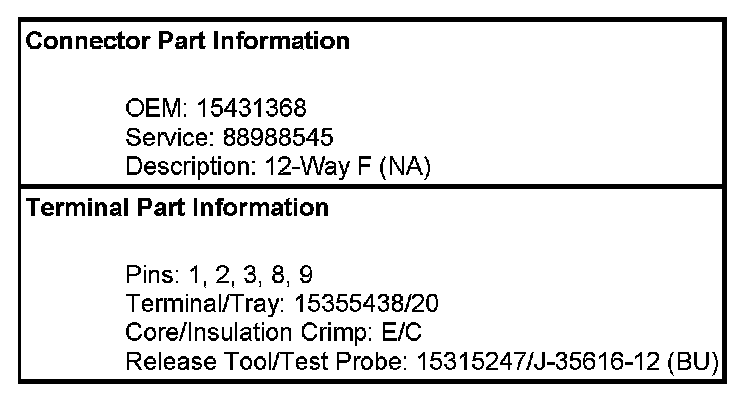

Vehicle Communication Interface Module (VCIM) - C4
