Combination Switch



Lighting Systems Connector End Views

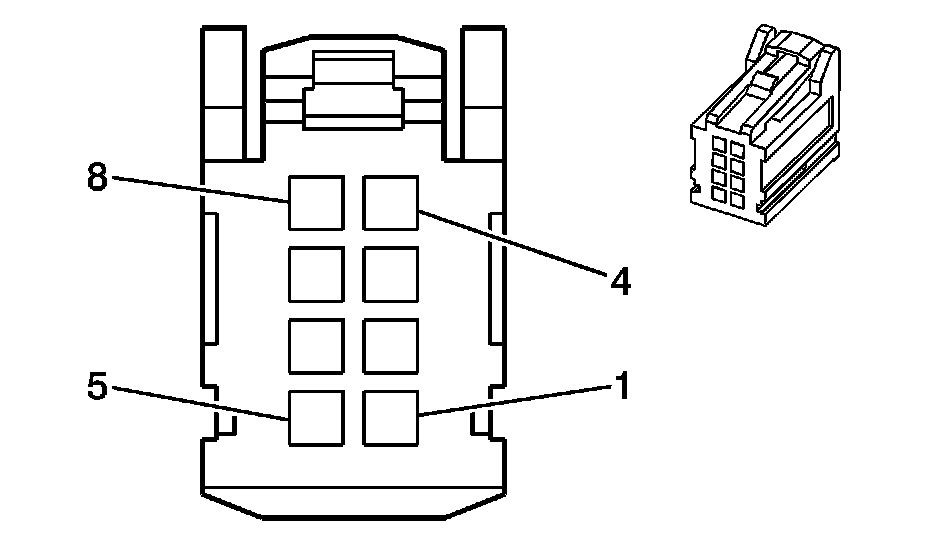

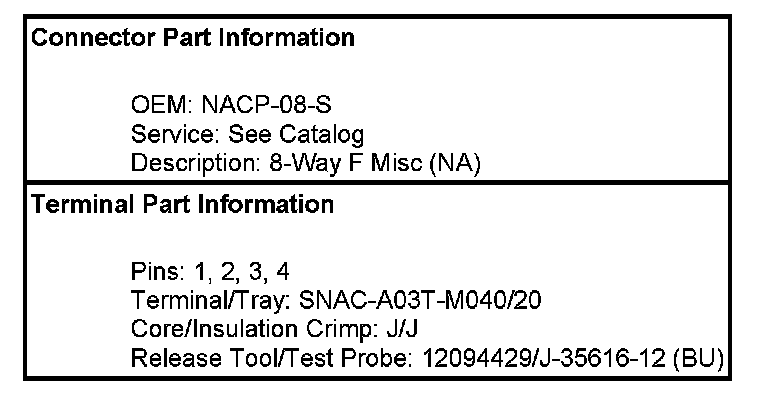

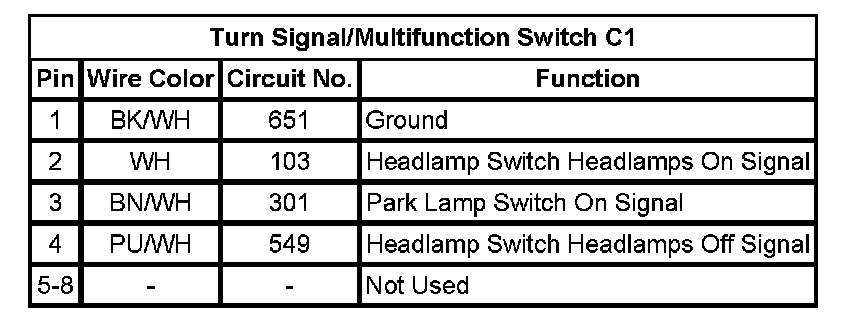

Turn Signal/Multifunction Switch C1

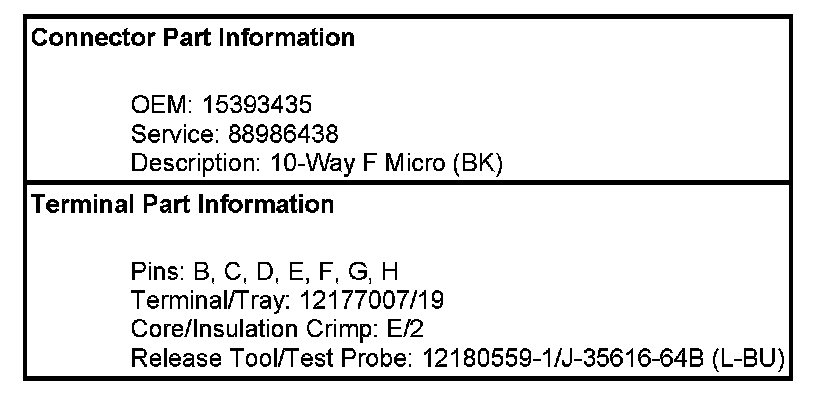

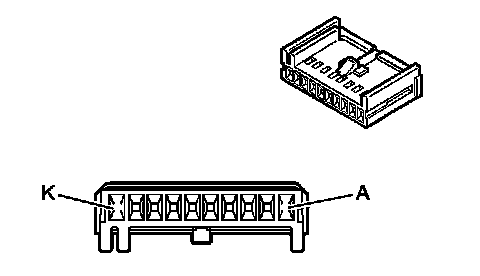

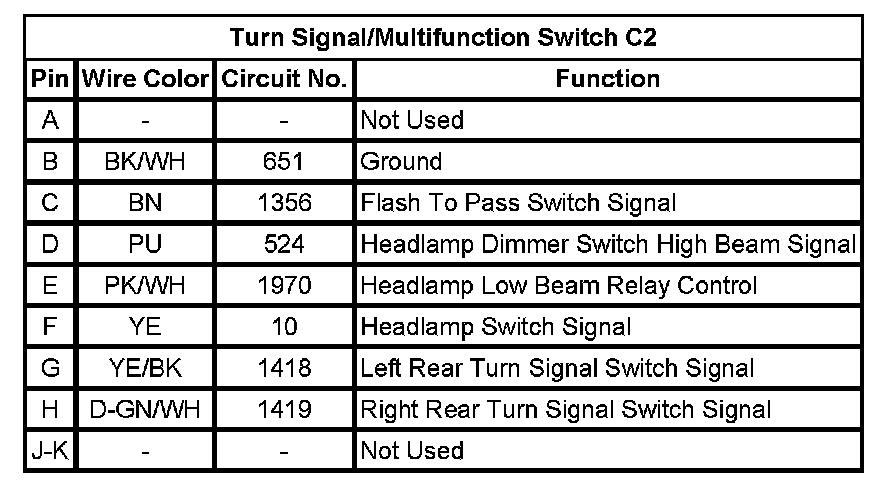

Turn Signal/Multifunction Switch C2
