Electronic Brake Control Module

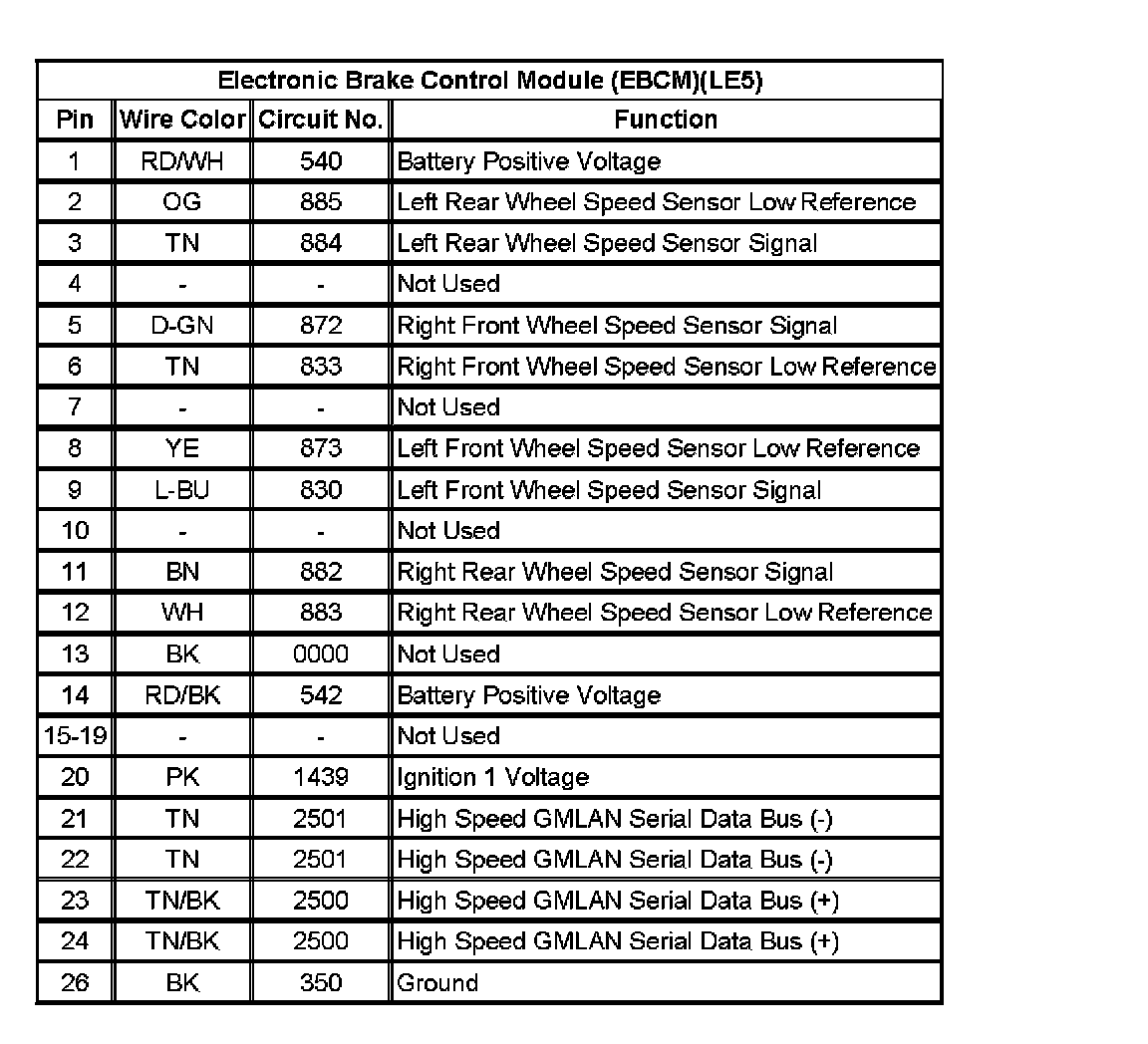

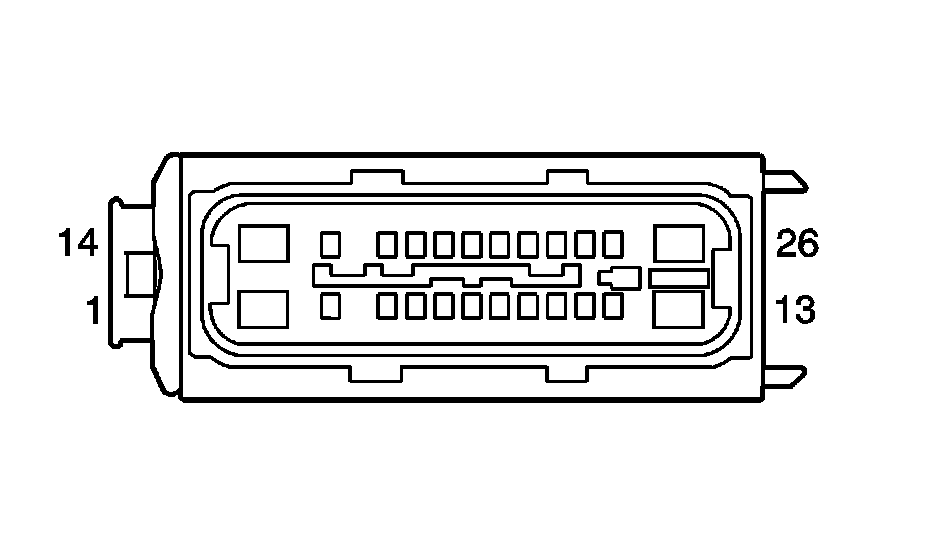

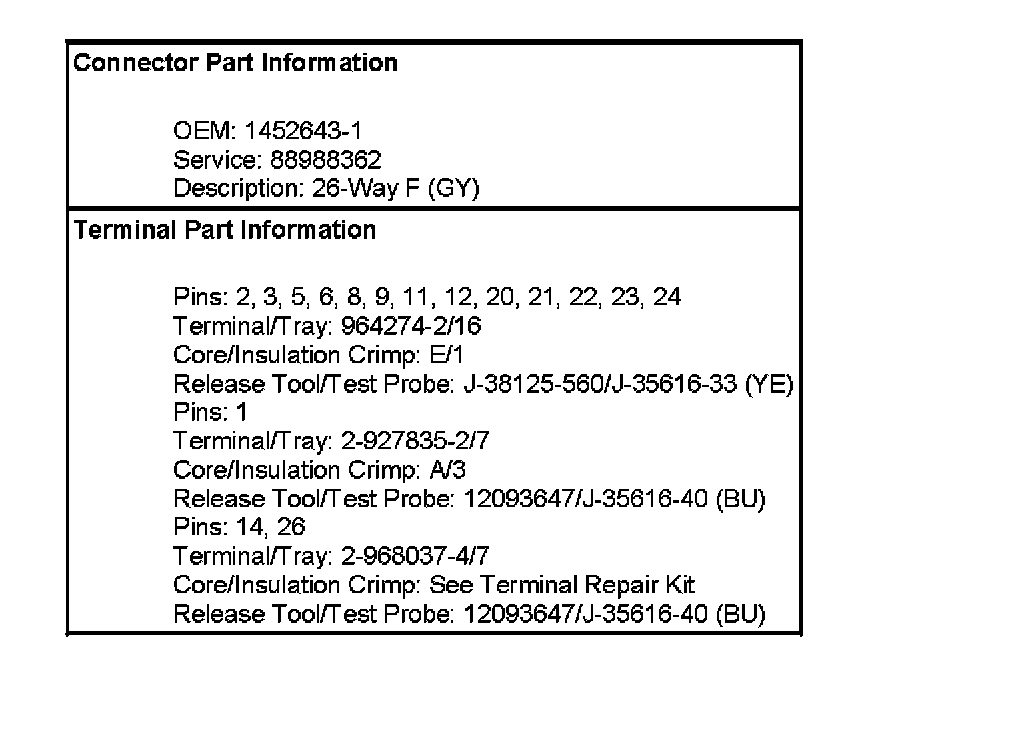

Electronic Brake Control Module (EBCM)(LE5)







Electronic Brake Control Module (EBCM)(LE5):
