Keyless Entry Module

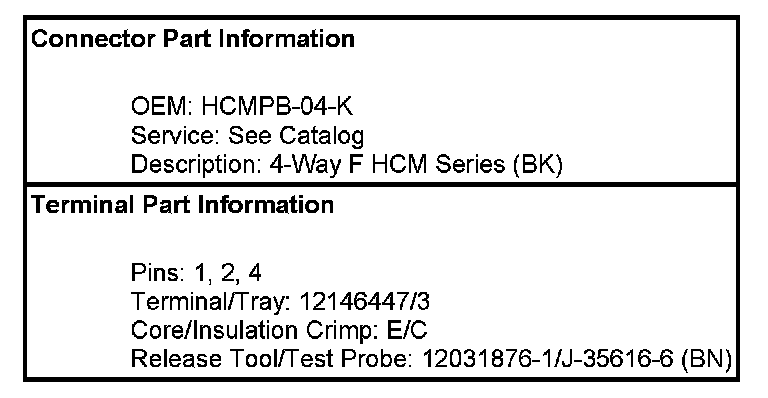

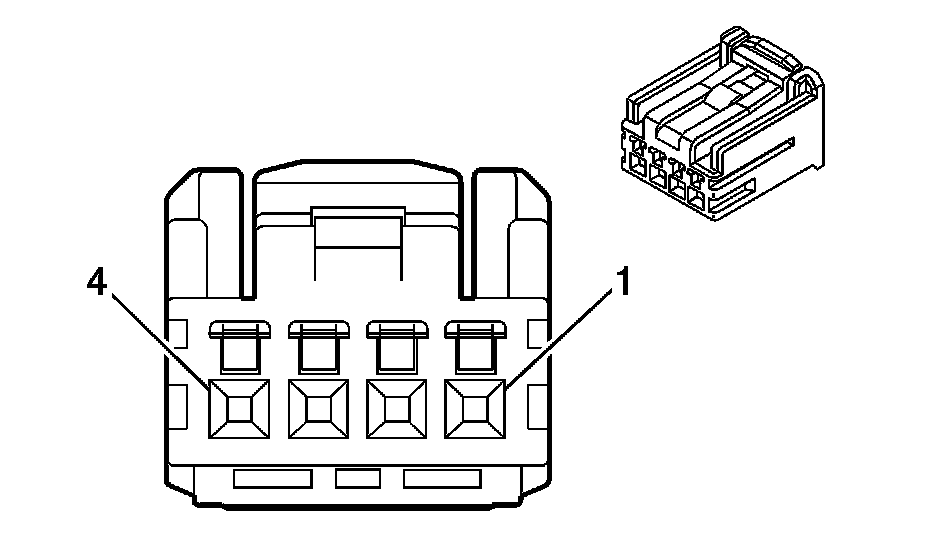

Remote Function Connector End Views

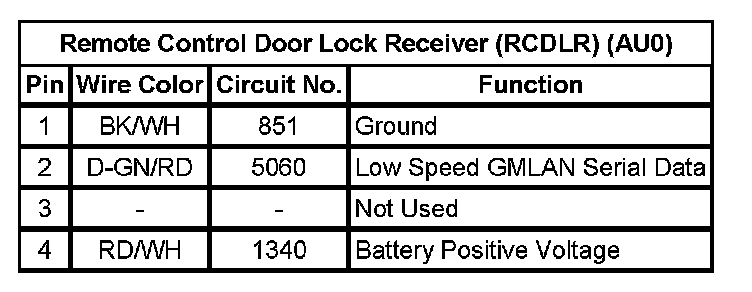

Remote Control Door Lock Receiver (RCDLR) (AU0)
