Power Window Motor



Window Systems Connector End Views

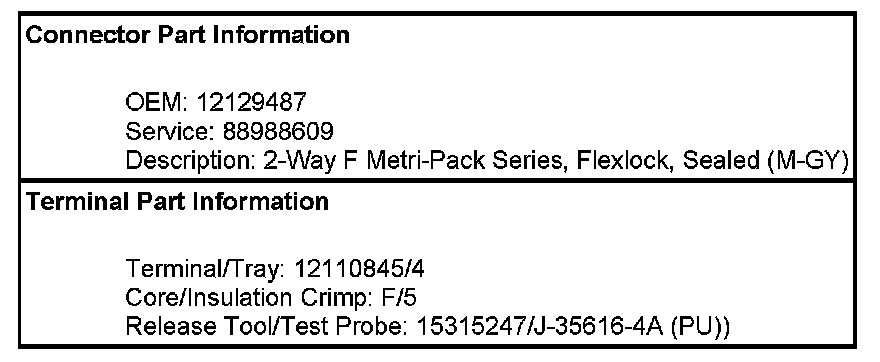

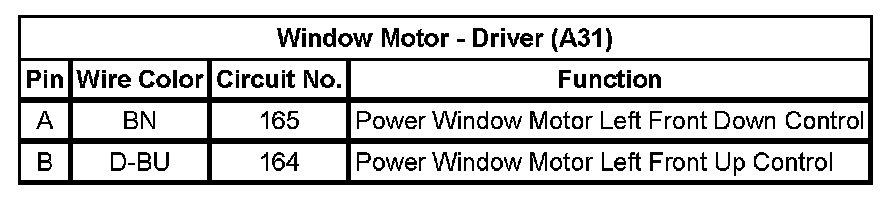

Window Motor - Driver (With RPO Code A31)

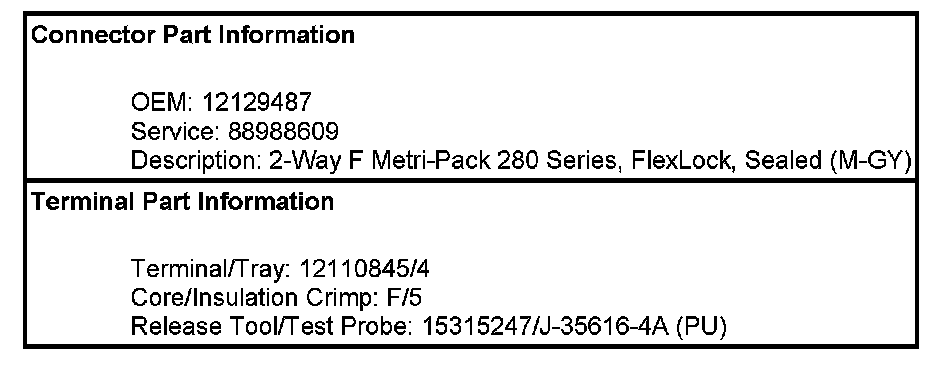

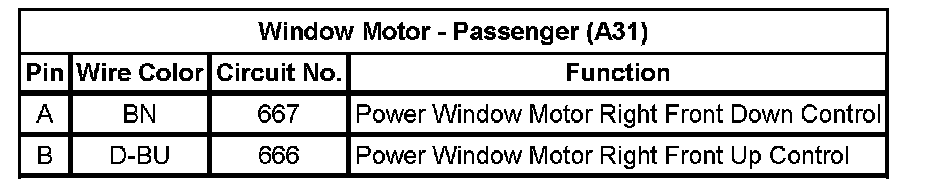

Window Motor - Passenger (With RPO Code A31)
