Power Window Switch



Window Systems Connector End Views

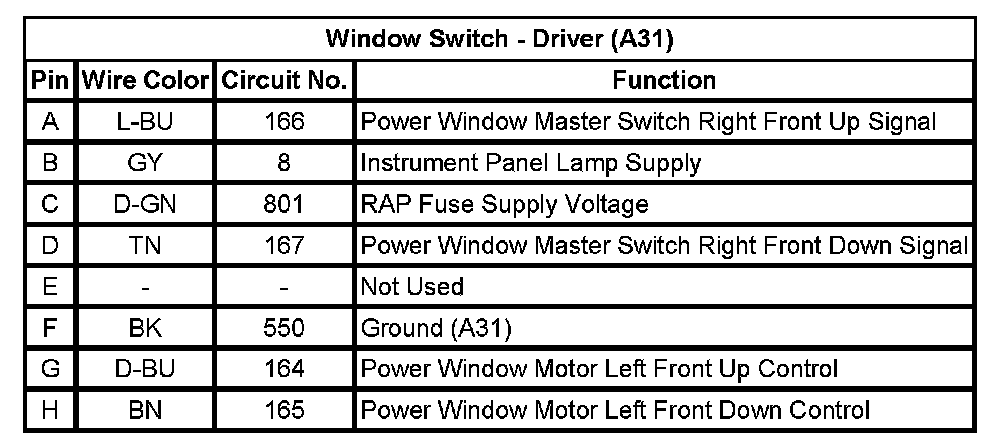

Window Switch - Driver (With RPO Code A31)

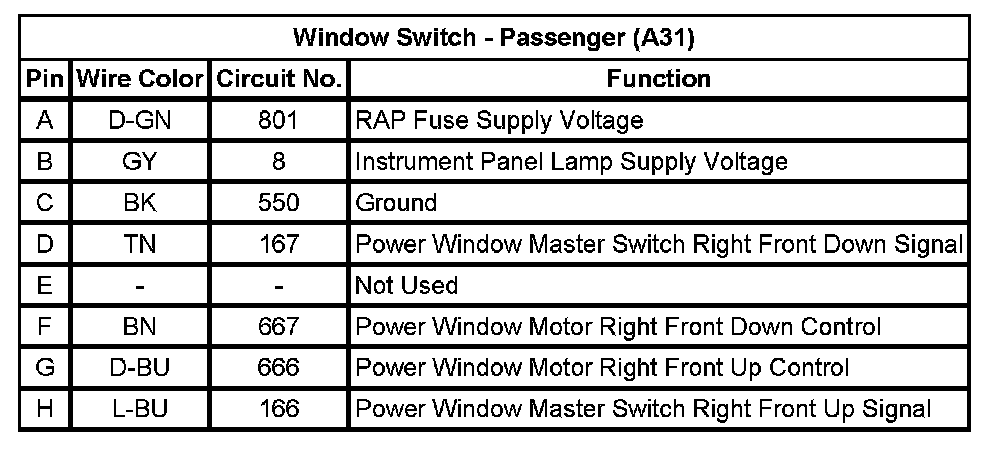

Window Switch - Passenger (With RPO Code A31)
