Steering Angle Sensor, Traction Control

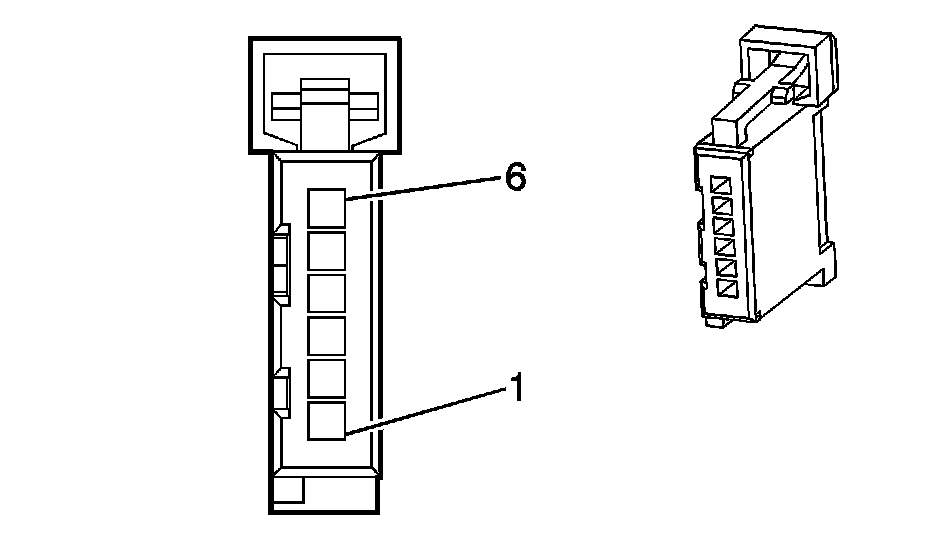

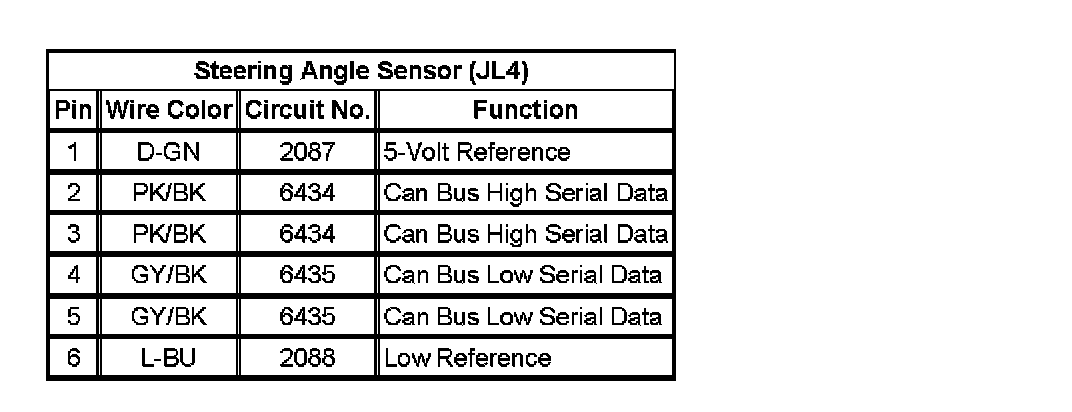

Steering Angle Sensor (JL4)







Steering Angle Sensor (JL4):
