Trunk / Liftgate Switch

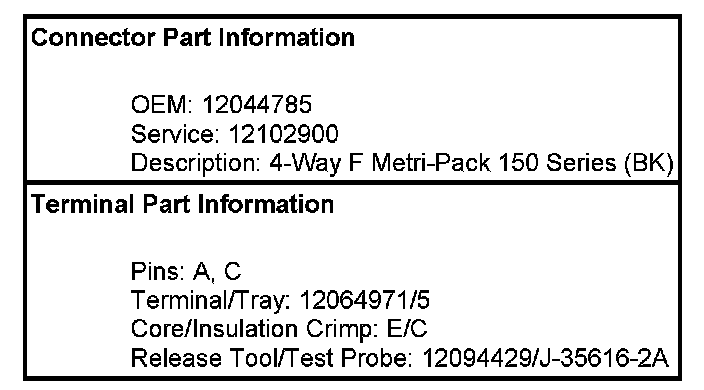

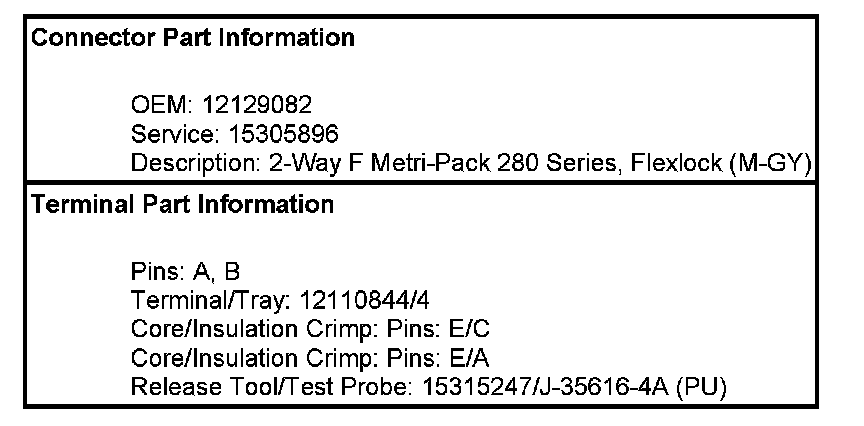

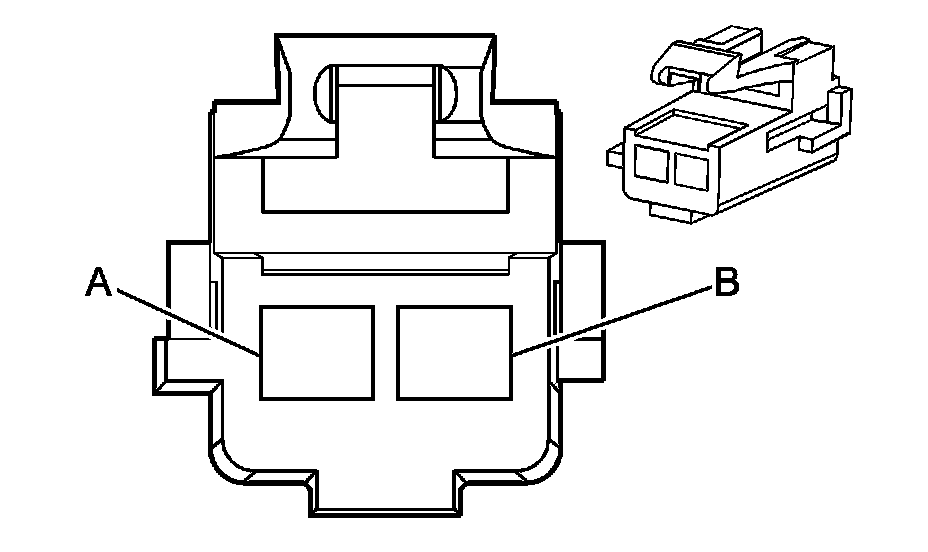

Vehicle Access Connector End Views

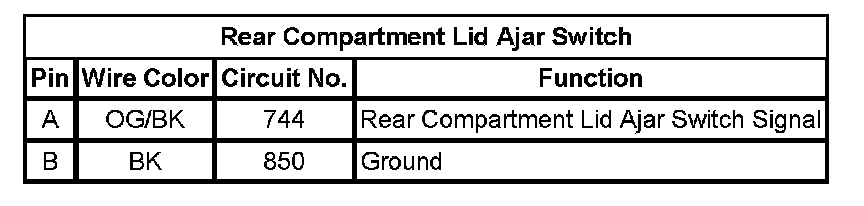

Rear Compartment Lid Ajar Switch

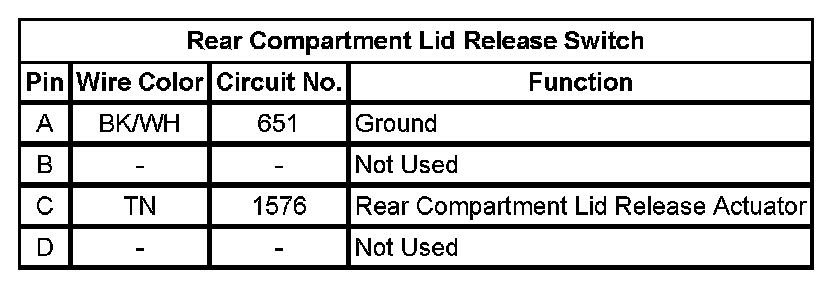

Rear Compartment Lid Release Switch
