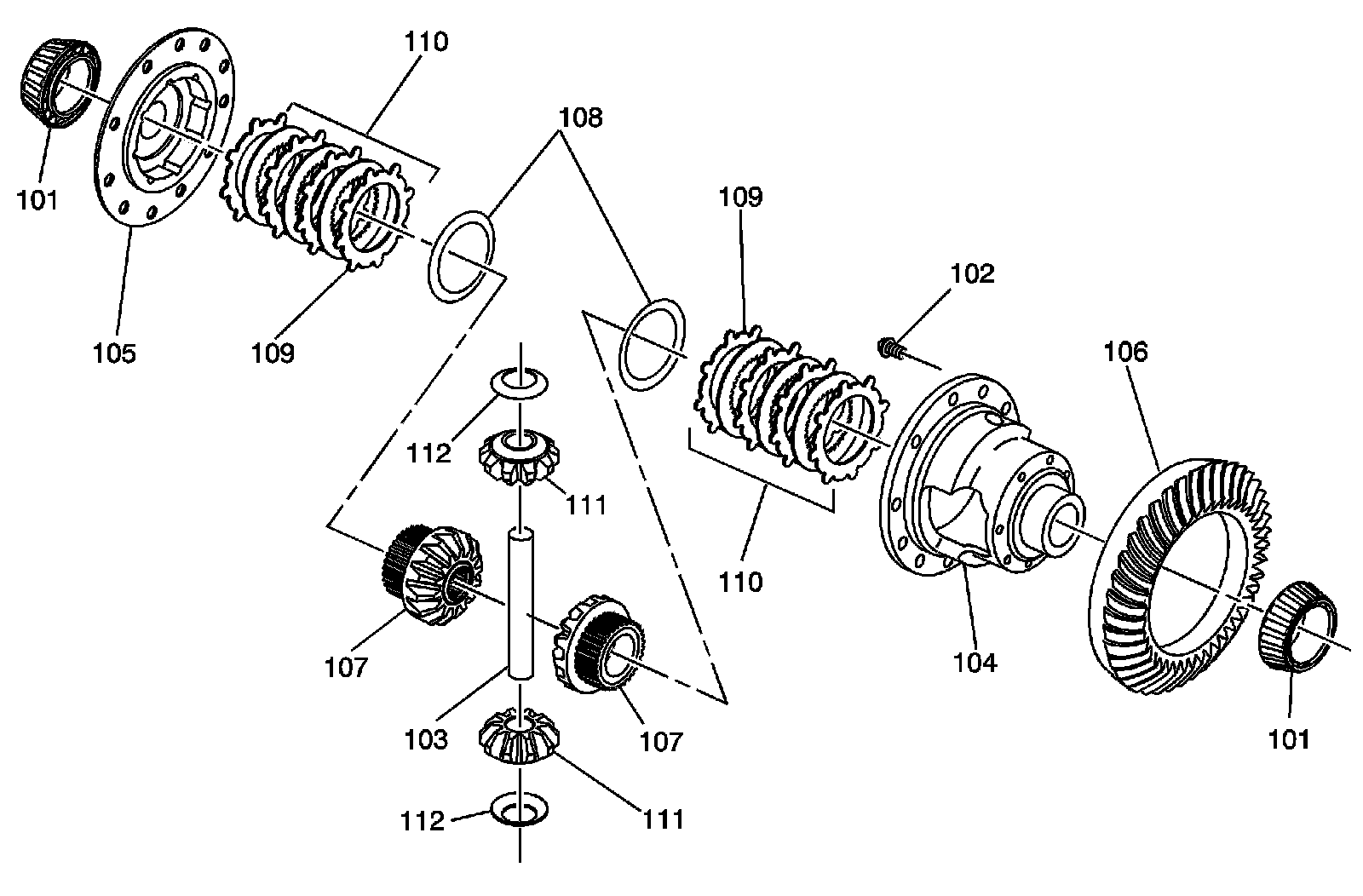

Limited Slip Differential Disassembled Views

Limited Slip Differential Disassembled Views

Differential Components

Differential Components:

101 - Bearing
101 - Bearing
102 - Bolt
103 - Differential Shaft
104 - Left Case Half
105 - Right Case Half
106 - Ring Gear
107 - Axle Side Gear
107 - Axle Side Gear
108 - Beveled Washer
109 - Plate/Separator
109 - Plate/Separator
110 - Clutch Pack
110 - Clutch Pack
111 - Pinion Gear
111 - Pinion Gear
112 - Washer
112 - Washer
