Accelerator Pedal Position Sensor: Locations

Engine Controls Component Views

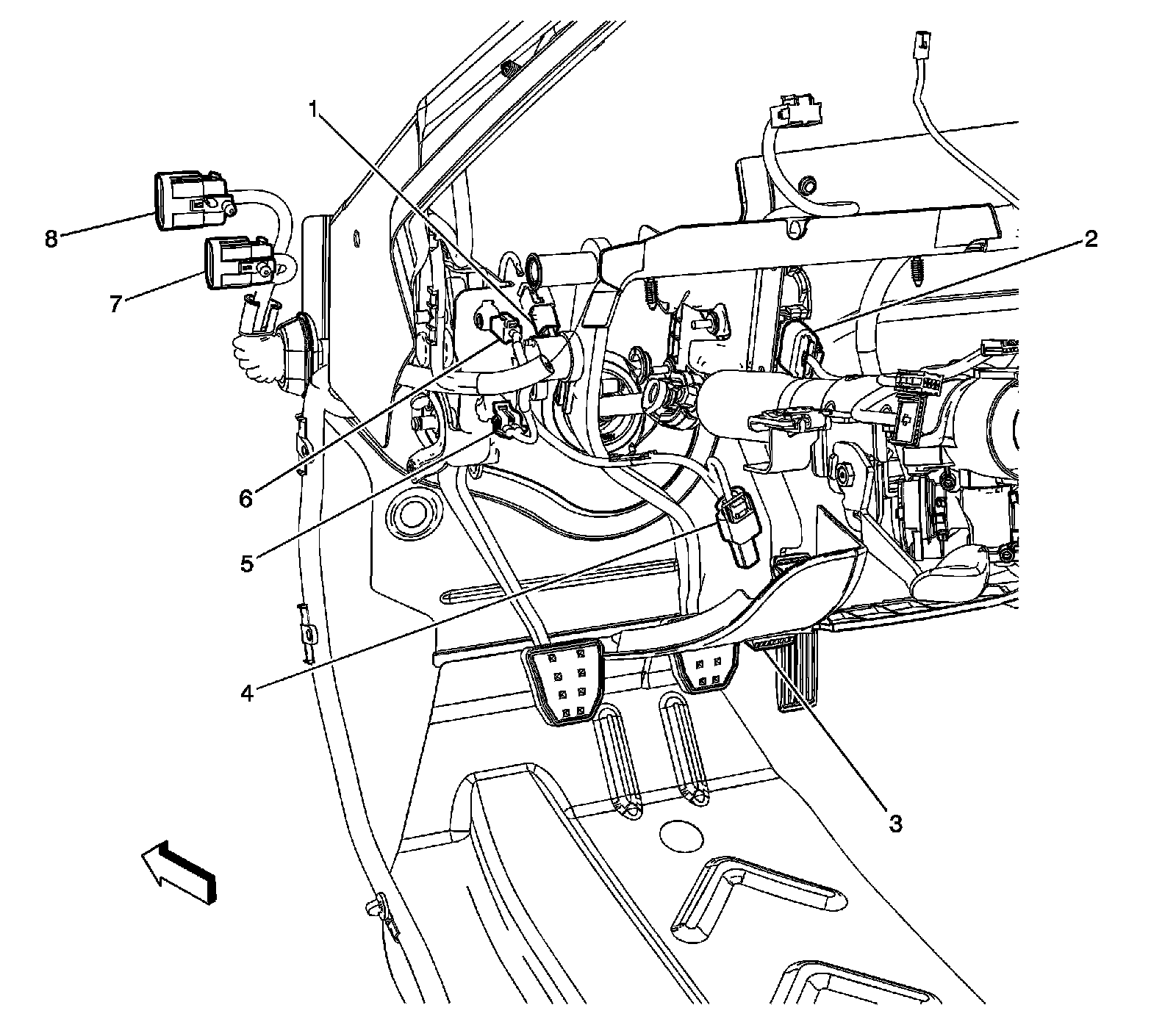

Left Side of I/P

Left Side of I/P:

1 - Brake Pedal Position Sensor
2 - Accelerator Pedal Position (APP) Sensor
3 - Data Link Connector (DLC)
4 - Data Link Connector (DLC) Resistor
5 - Clutch Pedal Position (CPP) Switch
6 - Clutch Start Switch
7 - C165
8 - C166
